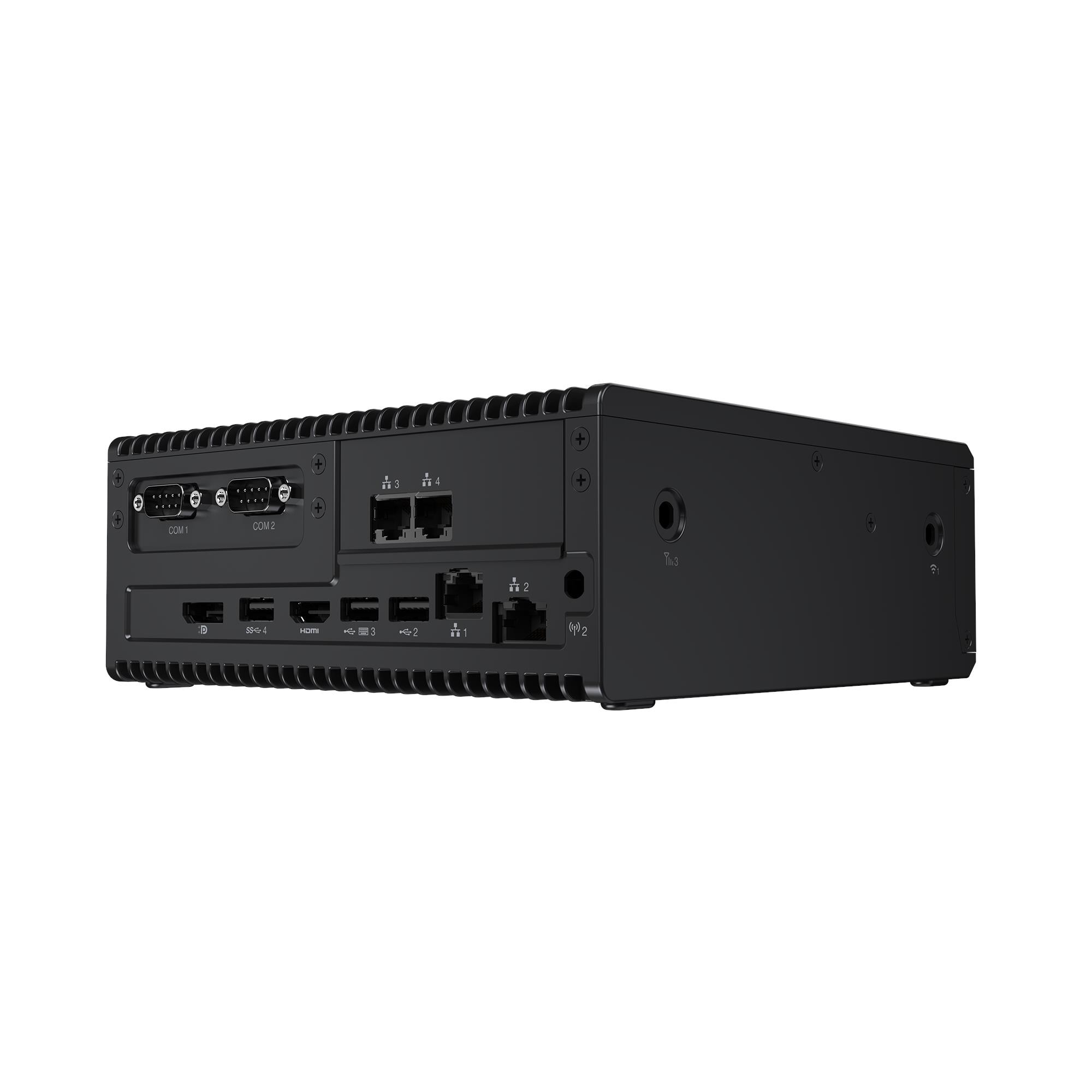

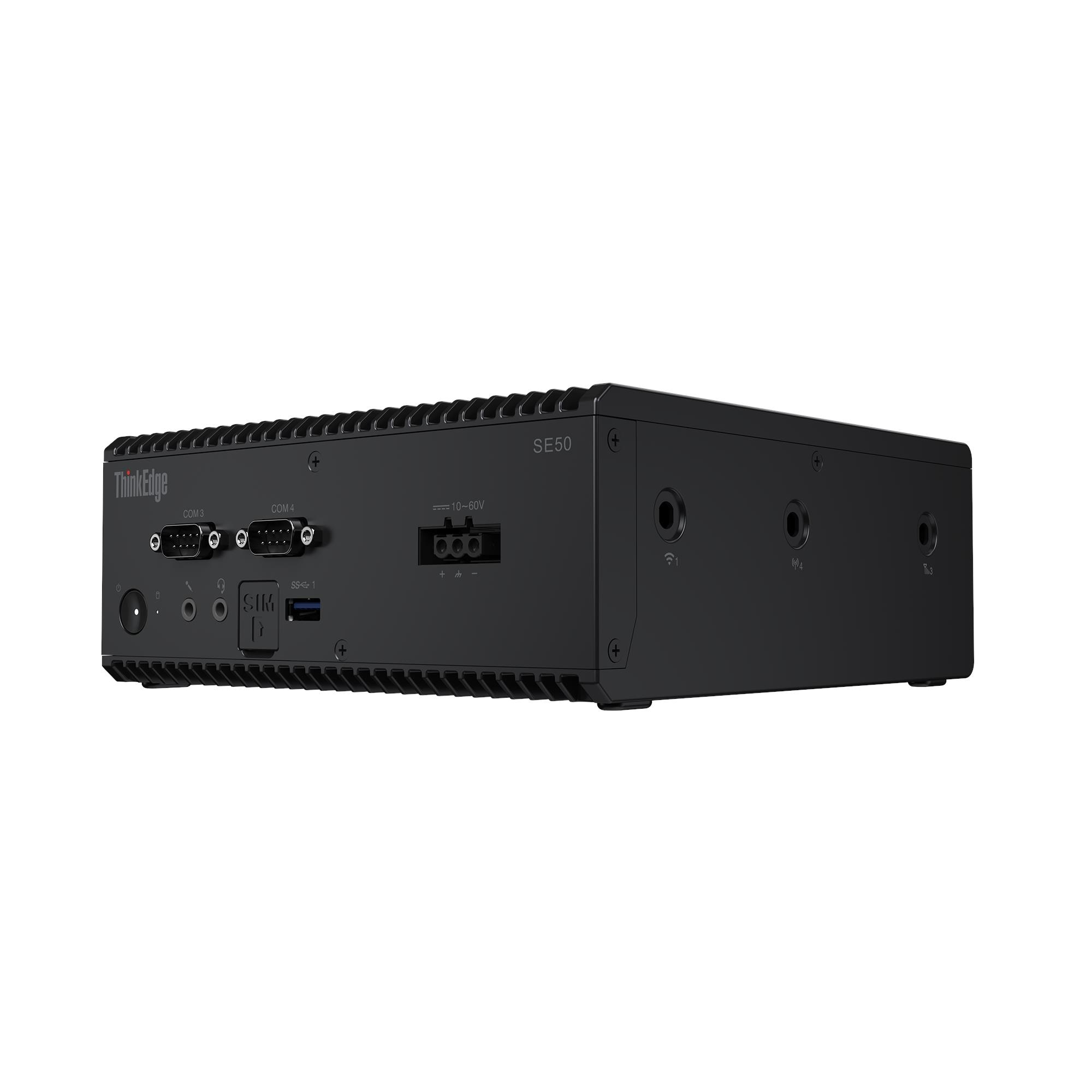

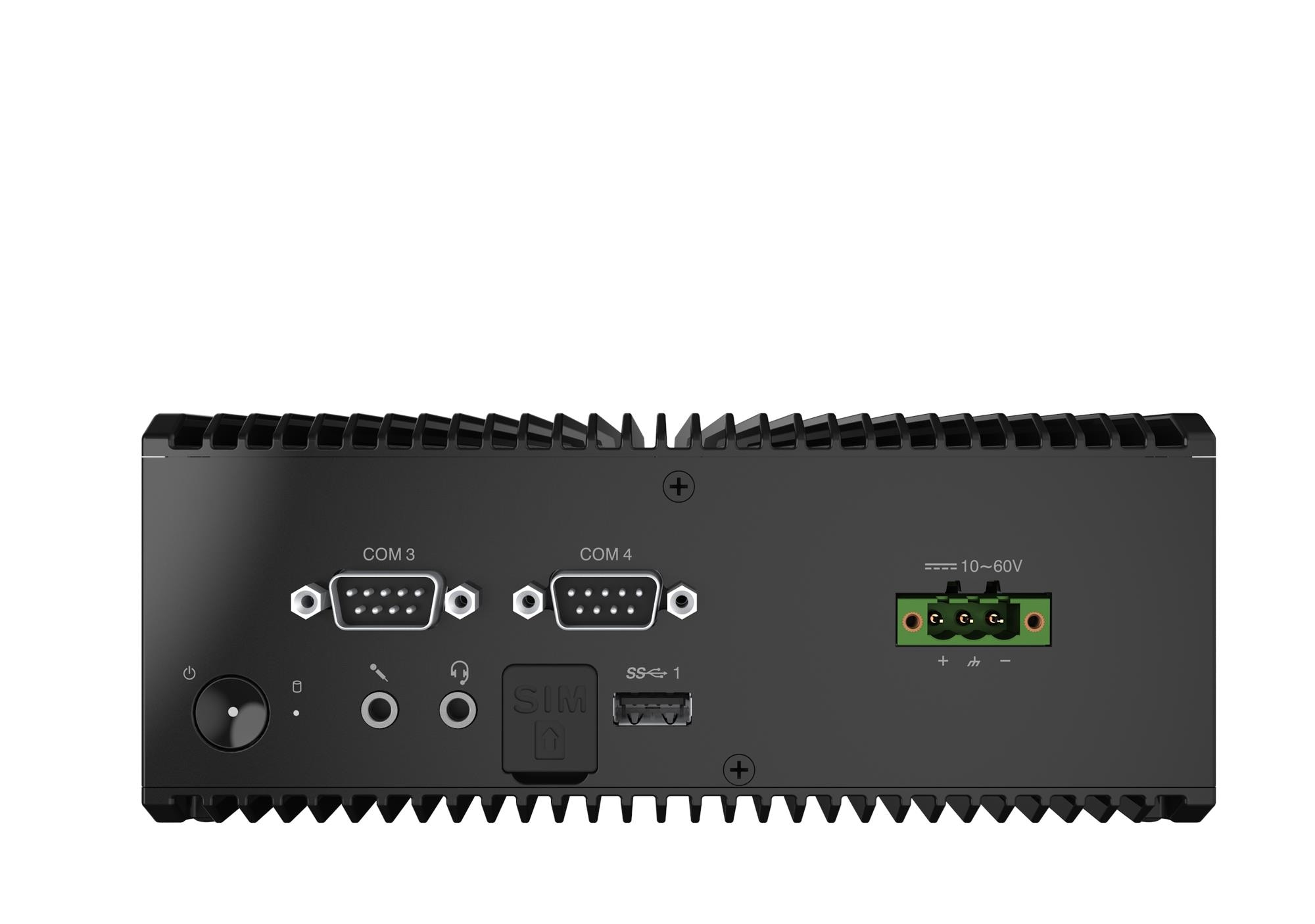

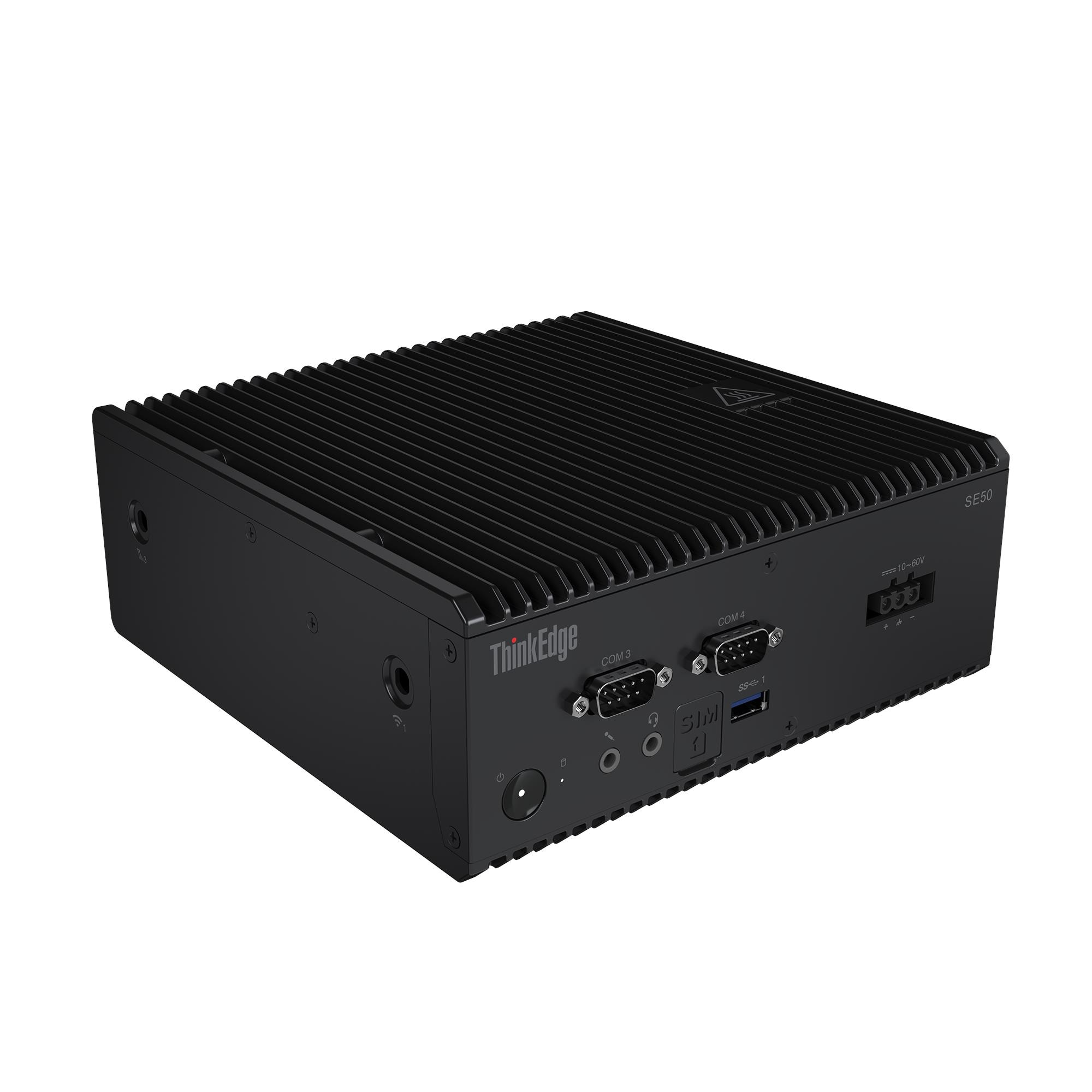

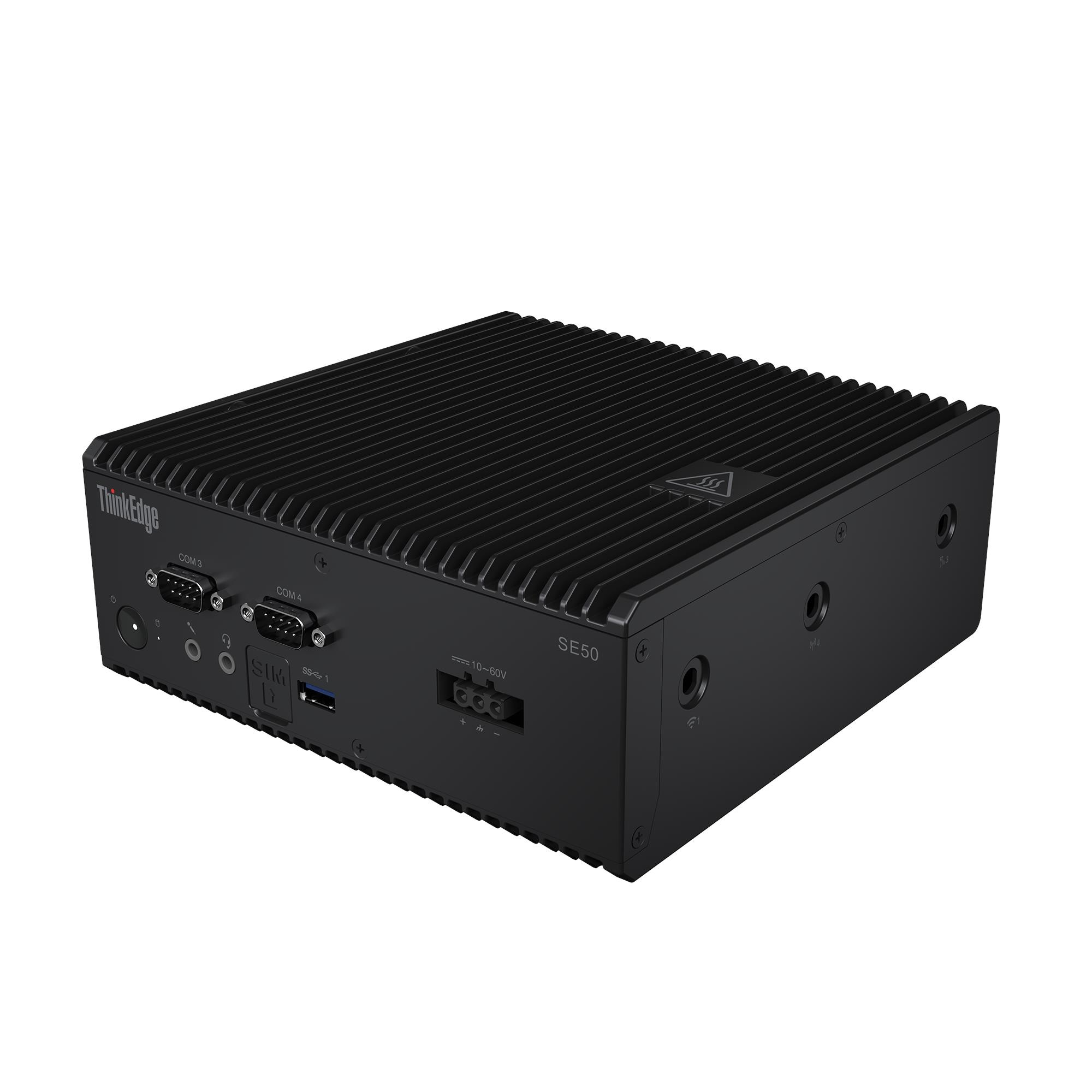

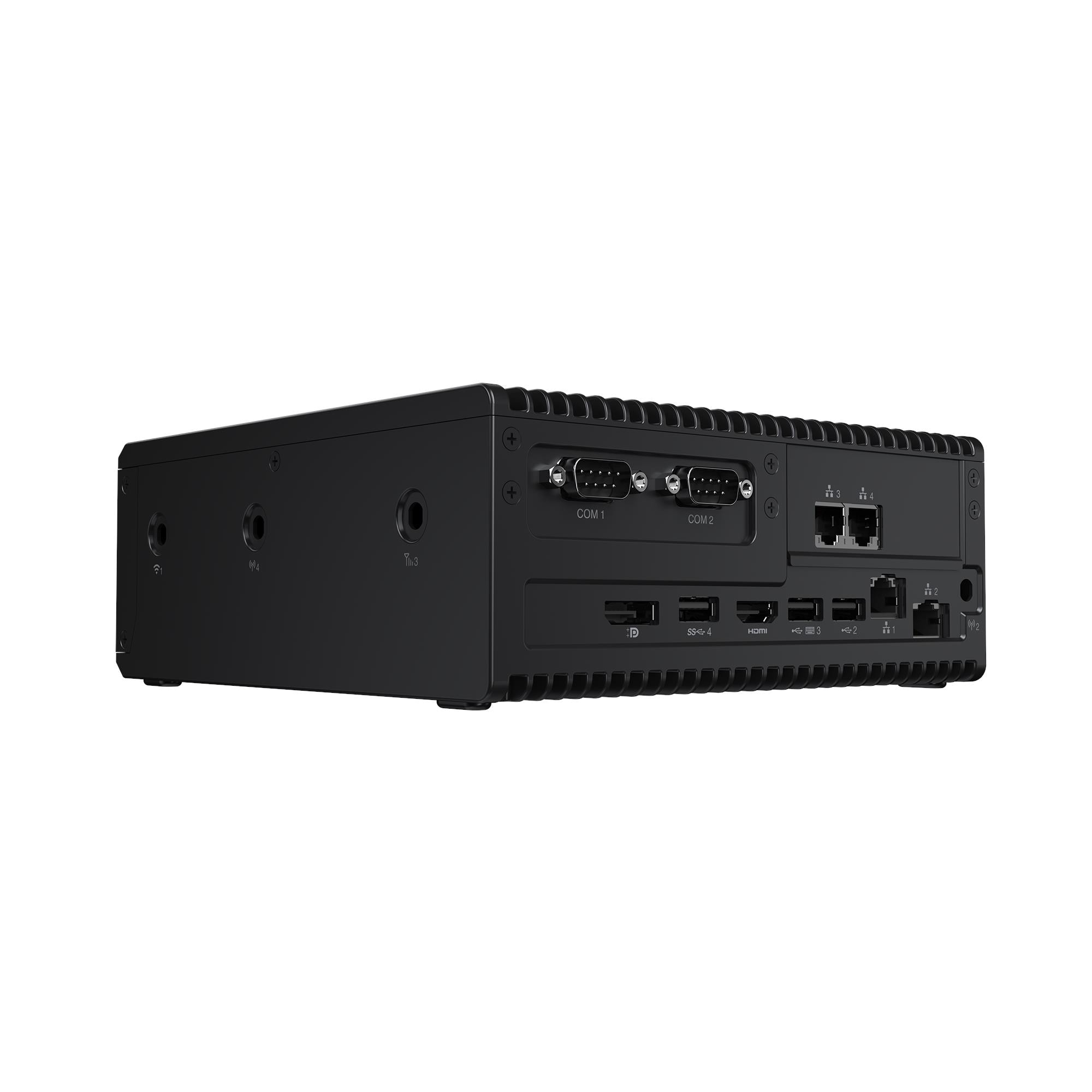

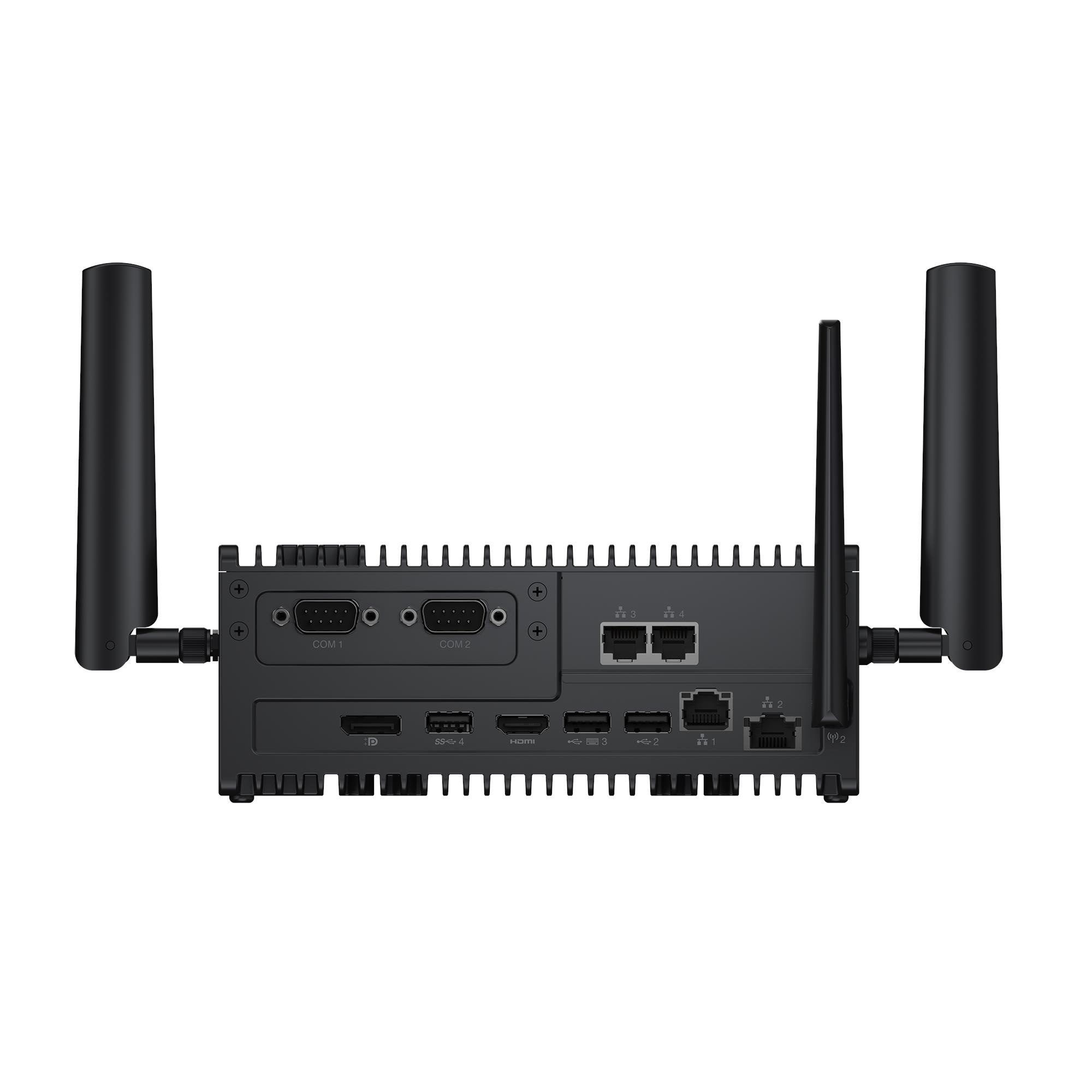

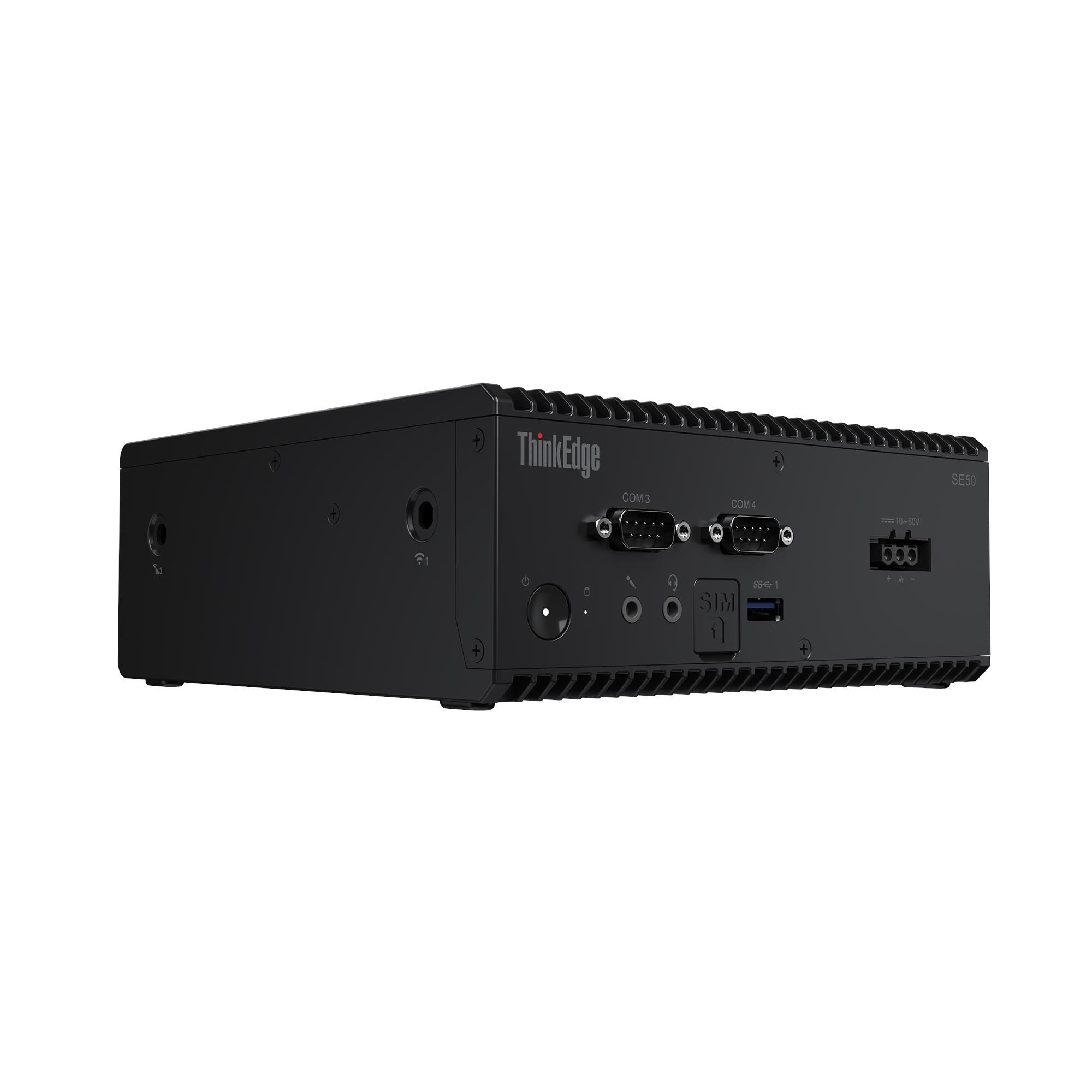

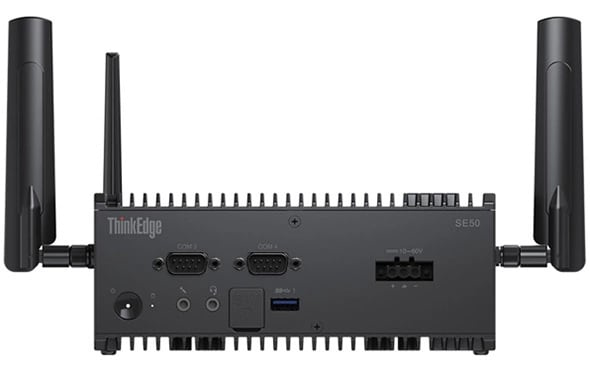

Lenovo ThinkEdge SE50 Intel® Core™ i5 i5-8365UE 8 GB DDR4-SDRAM 128 GB SSD Windows 11 IoT Enterprise Mini PC Black

Lenovo ThinkEdge SE50 Intel® Core™ i5 i5-8365UE 8 GB DDR4-SDRAM 128 GB SSD Windows 11 IoT Enterprise Mini PC Black

  • Brand: Lenovo
  • Category:
  • SKU: 11RJ00A4MT
  • EAN: 0198155797811
Intel Core i5-8365UE (6MB Cache, 1.6GHz), 8GB DDR4-SDRAM, 128GB SSD, Intel UHD Graphics 620, LAN, WLAN, Bluetooth, Windows 11 IoT Enterprise 64-bit

Related Products

Reasons To Buy

More power, more versatility

The ThinkEdge SE50 has the power to handle all your real-time data aggregation and processing with higher performance options for superior computational capabilities at the edge — so you can confidently scale your IoT environment as your business grows. The SE50 even doubles as an IoT gateway, with diverse wired and wireless connections built right in.

Bandwidth and storage savings

End users can deploy the ThinkEdge SE50 to aggregate and analyze real-time data from distributed IoT devices. This smart edge device can filter and forward IoT data across the WAN to the cloud or data center.

Built-in reliability and connectivity

True to the Lenovo brand, the fanless ThinkEdge SE50 is rugged, built to withstand industrial environments from 0° to 50°C, and comes with an IP50 rating. Available CAN bus and expandable NICs enable rapid communication between devices at the edge of your business.

Description

Power and reliability at the edge
- Fanless design (0°-50°C operating temperature)
- Diverse I/O port support

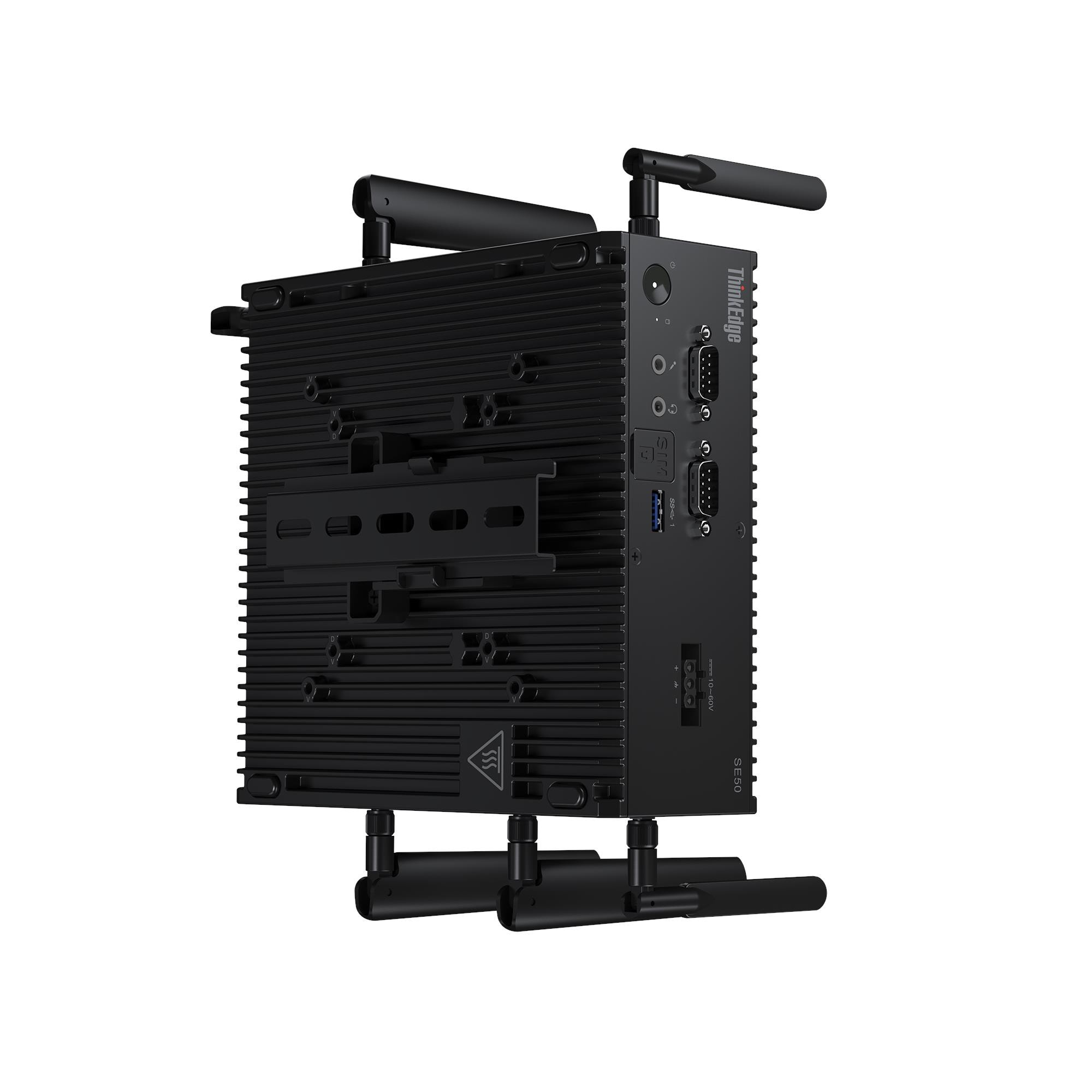

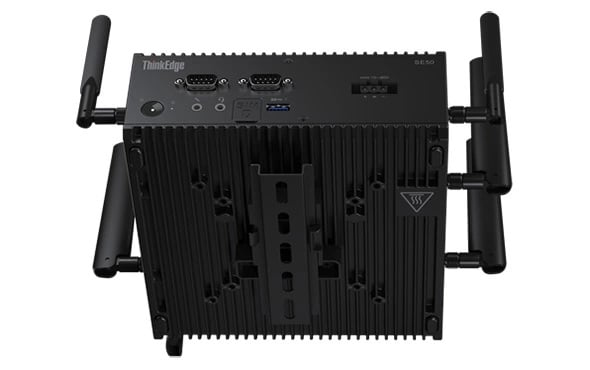

- DIN rail, wall mount support
- High-performing computing and memory
- Microsoft® Azure IoT Edge Certified
- AWS IoT Greengrass Certified

Specifications

Processor
Processor generation8th gen Intel® Core™ i5
Processor cache typeSmart Cache
Processor cache6 MB
Processor frequency1.6 GHz
Processor modeli5-8365UE
Number of processors installed1
Processor manufacturerIntel
Processor boost frequency4.1 GHz
Processor threads8
Processor cores4
Processor familyIntel® Core™ i5
Memory
Memory layout (slots x size)1 x 8 GB
Internal memory8 GB
Maximum internal memory64 GB
Memory slots2x SO-DIMM
Internal memory typeDDR4-SDRAM
Memory clock speed2400 MHz
Memory channelsDual-channel
Storage
Storage mediaSSD
Number of storage drives installed1
Optical drive typeNo
SSD interfacePCI Express 3.0
SSD capacity128 GB
Number of SSDs installed1
Total storage capacity128 GB
SSD form factorM.2
Total SSDs capacity128 GB
NVMeYes
M.2 SSD size2242 (22 x 42 mm)
Graphics
Discrete graphics cardNo
Maximum on-board graphics card memory32 GB
On-board graphics card familyIntel® UHD Graphics
On-board graphics cardYes
Discrete graphics card modelNot available
On-board graphics card modelIntel® UHD Graphics 620
On-board GPU manufacturerIntel
Optical drive
Optical drive typeNo
Network
Ethernet LANYes
Wi-FiYes
BluetoothYes
Bluetooth version5.1
Wi-Fi standardsWi-Fi 5 (802.11ac)
Ethernet LAN data rates100,1000 Mbit/s
Cabling technology10/100/1000Base-T(X)
WLAN controller modelIntel Dual Band Wireless-AC 9560
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Antenna type2x2
WLAN controller manufacturerIntel

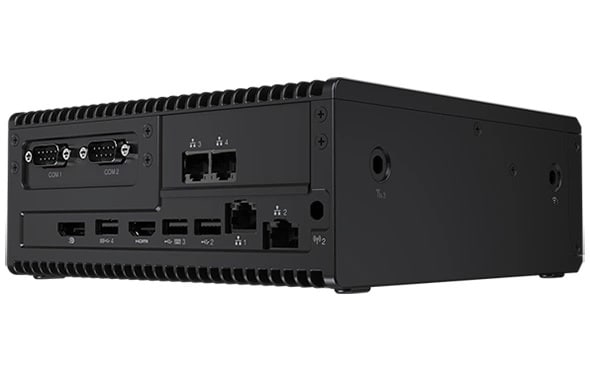

Ports & interfaces
Combo headphone/mic portYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Thunderbolt 3 ports quantity0
USB 2.0 ports quantity2
Serial ports quantity6
Headphone outputs1
HDMI ports quantity1
Ethernet LAN (RJ-45) ports2
DisplayPorts quantity1
Technical details
Product typeMini PC
Trusted Platform Module (TPM)Yes
Product colourBlack
Chassis typeMini PC
Placement supportedHorizontal
Motherboard chipsetIntel SoC
Compliance certificatesRoHS, WEEE
Design
Product colourBlack
Chassis typeMini PC
Placement supportedHorizontal
Performance
Product typeMini PC
Trusted Platform Module (TPM)Yes
Motherboard chipsetIntel SoC
Trusted Platform Module (TPM) version2.0
Software
Operating system languageEnglish, Swedish, Finnish, Danish, Norwegian
Operating system architecture64-bit
Operating system installedWindows 11 IoT Enterprise
Operational conditions
Operating altitude0 - 3048 m
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%
Operating temperature (T-T)5 - 35 °C
Non-operating altitude0 - 12192 m
Certificates
CertificationLow Halogen REACH RoHS compliant TED (ECO-declaration) WEEE
Compliance certificatesRoHS, WEEE
Weight & dimensions
Width179 mm
Depth182.9 mm
Height72 mm
Weight2.98 kg
Packaging content
Mouse includedYes
Display includedNo
Keyboard includedYes
Mouse connectivityWired
Keyboard connectivityWired
Display
Display includedNo
Other features
Trusted Platform Module (TPM)Yes
On-board graphics cardYes
Processor manufacturerIntel
