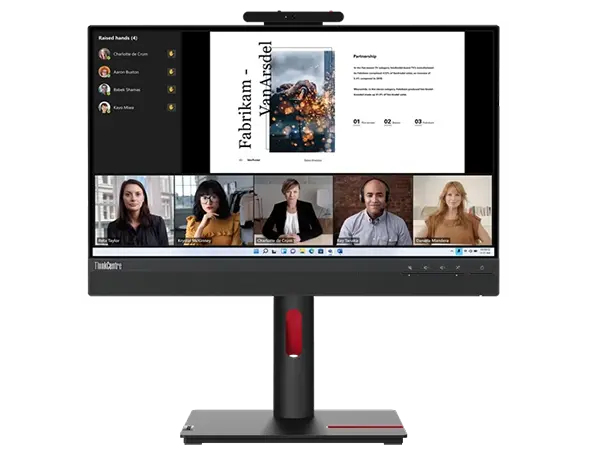

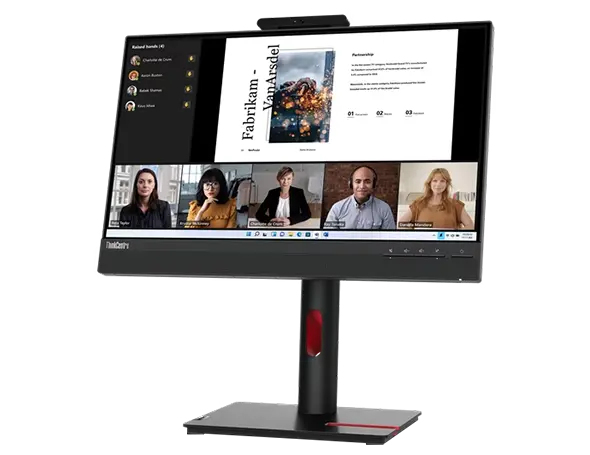

Lenovo ThinkCentre TIO-22 Gen5 Monitor

Lenovo ThinkCentre TIO-22 Gen5 Monitor

21.5", 1920 x 1080 WLED IPS, 60Hz, 16:9, 250cd/m², 4ms, 178° / 178°, WebCam

Trade Prices

Distributor Product SKU Stock Updated Price
Ingram Micro

TIO22GEN5(A23TIO22) 21.5

View on Xvantage open_in_new 		CS57271 Register free see stock
Ingram Micro CS

TIO22GEN5(A23TIO22) 21.5

 CS57271

Related Products

Reasons To Buy

<p>Tiny package, max performance</p>

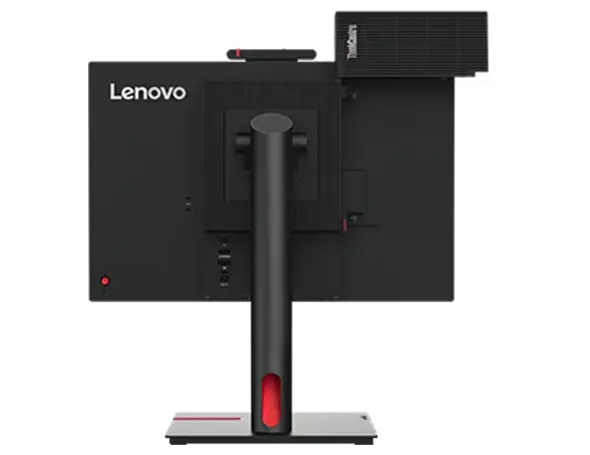

The TIO 22 Gen 5 is designed to give you a modular, easy-to-upgrade, plug-and-play experience. It is compatible with Lenovo’s range of ThinkCentre and ThinkStation Tiny Computers from 4th Gen. This can be installed easily and quickly, and housed at the back of the monitor in a dedicated slot, making your desk clutter-free. An unchanged installation mechanism ensures that your experience of attaching Tiny PCs to your monitor is smooth and convenient. Securing both your monitor and the Tiny Computer is also now possible using the Kensington locks available.

<p>Meets your meeting requirements</p>

With the TIO 22 Gen 5, all your online meetings come to life. Dedicated VoIP buttons make getting to and managing audio on online calls very easy and convenient. You’ll hear all meeting participants loud and clear on the monitor’s two built-in 3W speakers. The 1080p RGB webcam module perfectly captures even the most minute expressions, ensuring that your image looks crisp and sharp to your colleagues. The Smart Traffic Light indicator ensures that you continue working without any interruptions by alerting everyone in the vicinity about an ongoing meeting.

<p>Naturally comfortable</p>

The TIO 22 Gen 5’s 21.5-inch FHD In-Plane Switching panel with 99% sRGB color support reproduces crisp & colorful imagery and video content. Your eyes are protected by the TÜV Rheinland Eye Comfort, TÜV Low Blue Light, and Eyesafe 2.0 certified technologies and Natural Low Blue Light technology that filters out harmful blue light during extended screen time, without any color distortion. Adjust your seating position to gain a comfortable working posture with the wider lift range and lower position functions. Keeping your workspace clutter-free is easy with the open phone rack and cable management system. Rest assured that your choice of monitor is environment friendly with its green, recycled paper packaging and optional CO2 offset service

Specifications

Audio
Built-in speaker(s)Yes
RMS rated power6 W
Performance
Built-in speaker(s)Yes
RMS rated power6 W
Built-in microphoneYes
Built-in cameraYes
AMD FreeSyncNo
Compatible operating systemsWindows 10, Windows 11
NVIDIA G-SYNCNo
Low Blue Light technologyYes
Display
Display brightness (typical)250 cd/m²
Screen shapeFlat
Display number of colours16.7 million colours
Native aspect ratio16:9
Pixel density102 ppi
Colour gamut99%
Maximum refresh rate60 Hz
sRGB coverage (typical)99%
HD typeFull HD
Display technologyLED
Contrast ratio (dynamic)3000000:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Pixel pitch0.248 x 0.248 mm
Viewable size, horizontal47.6 cm
Viewable size, vertical26.8 cm
Backlight typeW-LED
Display resolution1920 x 1080 pixels
Response time6 ms
Display diagonal54.6 cm (21.5")
Contrast ratio (typical)1000:1
Response time (fast)4 ms
TouchscreenNo
Panel typeIPS
Colour depth8 bit
LED backlightYes
Colour gamut standardsRGB
Anti-glare screenYes
Management features
On Screen Display (OSD)Yes
Multimedia
Number of speakers2
Built-in speaker(s)Yes
RMS rated power6 W
Built-in microphoneYes
Built-in cameraYes
Power
Power cable length1 m
Power supply typeExternal
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)33 W
Power consumption (standby)0.3 W
Power consumption (typical)13.4 W
Power consumption (off)0.5 W
Energy efficiency scaleA to G
Design
CertificationEU Energy Label (D-class) ENERGY STAR® Certified EPEAT™ Gold Registered TCO Certified 9.0 TCO edge 2.0 Volatile Organic Compound Certification RoHS compliant Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution), TÜV Rheinland Eye Comfort
Product colourBlack
Colour nameBlack
Camera
Built-in cameraYes
Ports & interfaces
Built-in USB hubYes
USB hub version3.2 Gen 1 (3.1 Gen 1)
USB upstream port typeUSB Type-B
Number of upstream ports1
USB Type-A downstream ports quantity1
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DisplayPorts quantity1
HDMIYes
HDMI version1.4
DisplayPort version1.2
USB Power Delivery (USB PD)No
USB Type-C DisplayPort Alternate ModeNo
Number of USB Type-B upstream ports quantity1
DisplayPort out quantity0
Ethernet LANNo
Technical details
Height (without stand)339.1 mm
Depth (without stand)72.8 mm
Width (without stand)489.3 mm
Cable lock slotYes
HDMIYes
Built-in microphoneYes
Product colourBlack
Warranty period3 year(s)
Compatible operating systemsWindows 10, Windows 11
Power supply typeExternal
Weight (with stand)5.5 kg
TouchscreenNo
Network
Ethernet LANNo
Ergonomics
VESA mountingYes
Cable lock slotYes
Panel mounting interface100 x 100 mm
SwivellingYes
Swivel angle range-45 - 45°
Tilt angle range-5 - 23.5°
PivotYes
On Screen Display (OSD)Yes
Pivot angle-5 - 90°
Height adjustmentYes
Cable lock slot typeKensington
Cable managementYes
Tilt adjustmentYes
Adjustable height (max)15.5 cm
Weight & dimensions
Height (without stand)339.1 mm
Depth (without stand)72.8 mm
Width (without stand)489.3 mm
Width (with stand)489.3 mm
Depth (with stand)207.6 mm
Height (with stand)512.3 mm
Bezel width (side)2 mm
Bezel width (top)2 mm
Bezel width (bottom)4.6 cm
Weight (with stand)5.5 kg
Weight (without stand)3.2 kg
Package width568 mm
Package depth176 mm
Package height422 mm
Package weight8.1 kg
Packaging data
Package width568 mm
Package depth176 mm
Package height422 mm
Package weight8.1 kg
Stand includedYes
Power cable length1 m
Quick start guideYes
Cables includedAC
Power adapter includedYes
Packaging content
Stand includedYes
Power cable length1 m
Quick start guideYes
Cables includedAC
Power adapter includedYes
Other features
Compatible operating systemsWindows 10, Windows 11
CertificationEU Energy Label (D-class) ENERGY STAR® Certified EPEAT™ Gold Registered TCO Certified 9.0 TCO edge 2.0 Volatile Organic Compound Certification RoHS compliant Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution), TÜV Rheinland Eye Comfort
Warranty period3 year(s)
Height (without stand)339.1 mm
Depth (without stand)72.8 mm
Width (without stand)489.3 mm
Power consumption (max)33 W
Quick start guideYes
HDMIYes
Energy efficiency scaleA to G
USB Type-C DisplayPort Alternate ModeNo
Power supply typeExternal
Power cable length1 m
Ethernet LANNo
TouchscreenNo
USB Power Delivery (USB PD)No
Certificates
CertificationEU Energy Label (D-class) ENERGY STAR® Certified EPEAT™ Gold Registered TCO Certified 9.0 TCO edge 2.0 Volatile Organic Compound Certification RoHS compliant Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution), TÜV Rheinland Eye Comfort
