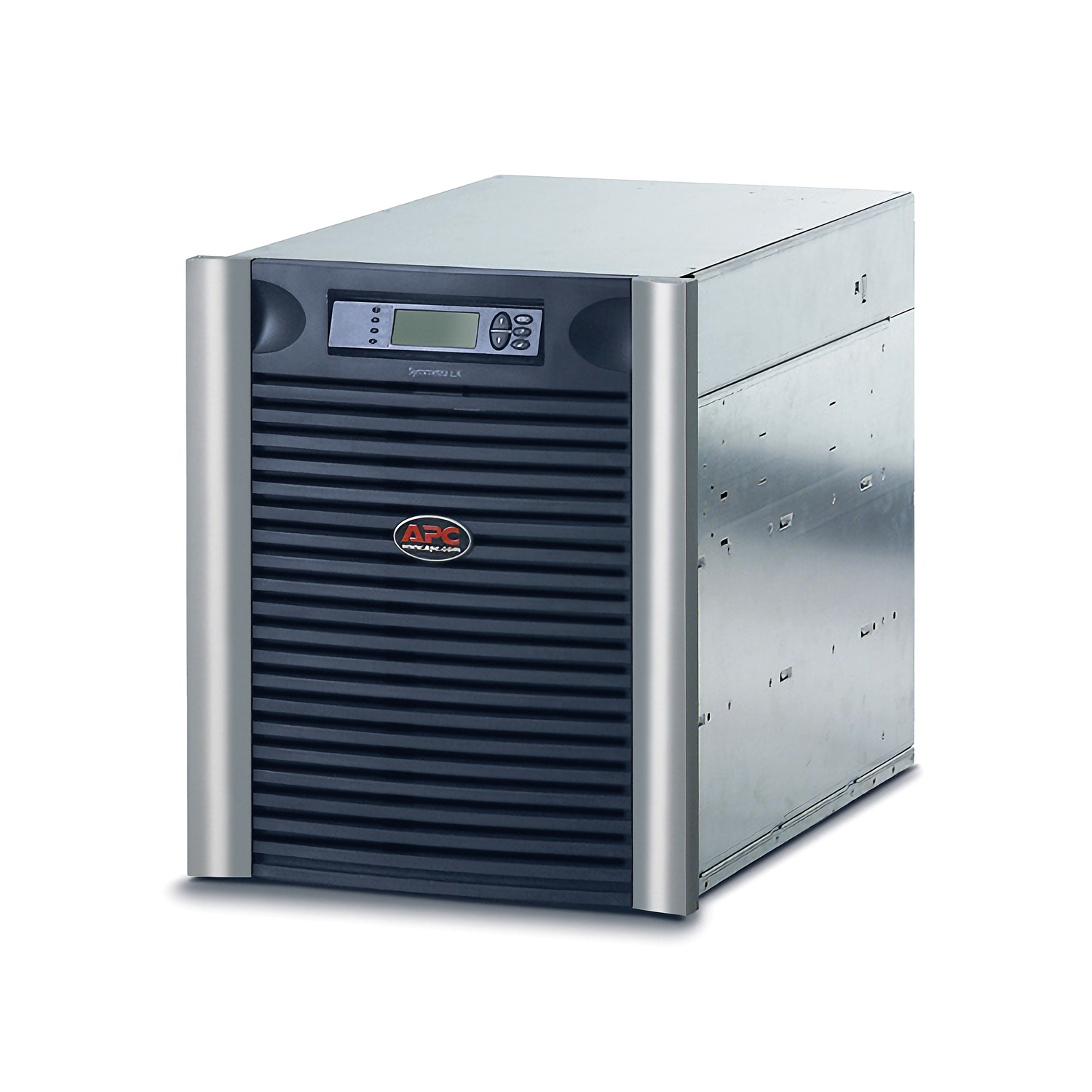

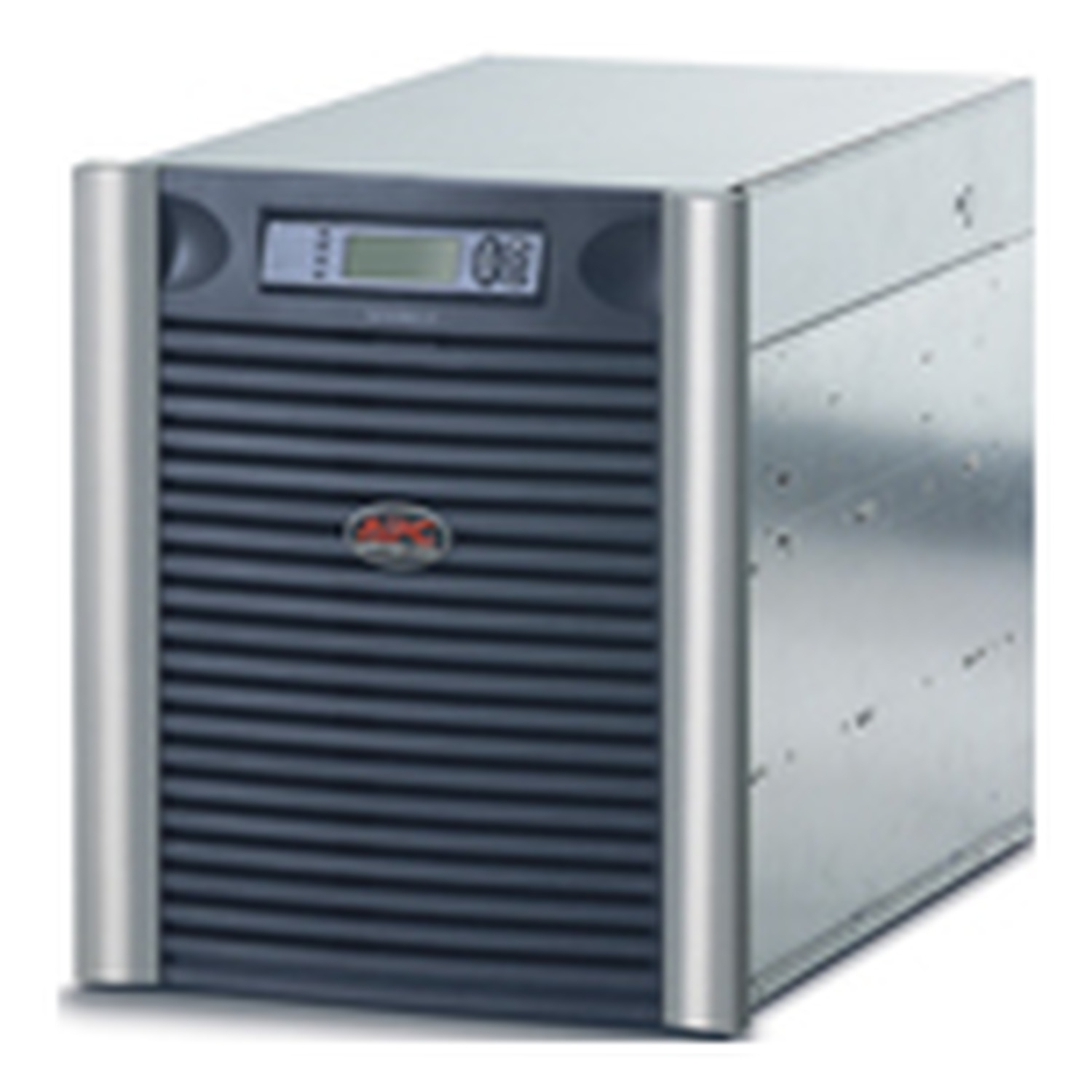

APC Symmetra LX 4kVA Scalable to 8kVA N+1 Rack-mount, 220/230/240V or 380/400/415V

APC Symmetra LX 4kVA Scalable to 8kVA N+1 Rack-mount, 220/230/240V or 380/400/415V

  • Brand: APC
  • Category:
  • SKU: SYA4K8RMI
  • EAN: 0731304218890 5054444424644 00 ...4424644 0001401925510 3606485318721 5055792367348 8592978028909 2000925510002 8032976053898more
Symmetra LX 4kVA Scalable to 8kVA N+1 Rack-mount, 220/230/240V or 380/400/415V

Trade Prices

Distributor Product SKU Stock Updated Price
CMS Distribution (Ireland)

Symmetra LX 4kVA - 8kVA RM 13U

 000000000000106690 Register free see stock
Hammer Distribution

SYA4K8RMI

 APC-SYA4K8RMI
Ingram Micro

SYMMETRA LX 8KVA RACKMOUNT

View on Xvantage open_in_new 		2702318
Microwarehouse Ireland

SYMMETRA LX 4KVA SCALABLE TO 8KVA N+1 RACK-MOUNT, 220/230/240V OR 380/400/415V

 SYA4K8RMI
TD Synnex UK

Please contact sales for freight costs

View on InTouch open_in_new 		925510
EET

Symmer LX/4KVg/8KV

 SYA4K8RMI
Ingram Micro CS

SYMMETRA LX 8KVA RACKMOUNT

 2702318

Related Products

Reasons To Buy

Allows quick and easy installation and maintenance of the UPS.

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Description

"High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks."

Specifications

Power
Output power2800 W
Emergency Power Off (EPO)Yes
Output power capacity4 kVA
Three-phase input voltage supported220,380,400,415 V
Single-phase input voltage supported240,220 V
Battery
Battery typeLead-Acid
Battery recharge time3 h
Typical backup time at half load20 min
Typical backup time at full load7.5 min
Battery replacement accessibilityEnd-user
Performance
WaveformSine
Number of output phases1
Number of input phases1
Audible alarm(s)Yes
Features
Country of originPhilippines
WaveformSine
Number of output phases1
Number of input phases1
Output power2800 W
Emergency Power Off (EPO)Yes
Audible alarm(s)Yes
Output power capacity4 kVA
Three-phase input voltage supported220,380,400,415 V
Single-phase input voltage supported240,220 V
CompatibilityC-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 55024, EN 60950, GOST, IEC 60950, VDE
Ports & interfaces
AC outlet typesIEC 60320
Design
Country of originPhilippines
CompatibilityC-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 55024, EN 60950, GOST, IEC 60950, VDE
Product colourBlack, Silver
CertificationC-Tick; CE; GOST; VDE
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Technical details
Output voltage220 V
Mountingfront
Harmonized System (HS) code85078000
Total carbon footprint (kg of CO2e)18972.8277417512
Compliance certificatesRoHS, REACH, WEEE
Packaging data
Package dimensions (WxDxH)599 x 997 x 1054 mm
Package weight166.4 kg
Certificates
CertificationC-Tick; CE; GOST; VDE
Waste Electrical and Electronic Equipment (WEEE) complianceYes
Compliance certificatesRoHS, REACH, WEEE
Certification
Waste Electrical and Electronic Equipment (WEEE) complianceYes
Weight & dimensions
Weight134.1 kg
Width472 mm
Package weight166.4 kg
Height572 mm
Depth688 mm
Logistics data
Country of originPhilippines
Customs product code (TARIC)8504409590
Harmonized System (HS) code85078000
Total carbon footprint (kg of CO2e)18972.8277417512
Other features
Output voltage220 V
Mountingfront
InterfaceDB-9 RS-232, Smart-Slot
Battery typeLead-Acid
Output connections(1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (6) IEC 320 C19
Input connection typeHard Wire 3 wire (1PH+N+G)
Dimensions (WxDxH)472 x 688 x 572 mm
Package dimensions (WxDxH)599 x 997 x 1054 mm
Output voltage note220: 230, 240
Output connection typehard wire 3-wire (H N + E) for 1 zone(s); 8 IEC 60320C13; 6 IEC 60320C19
Nominal output voltage230 V
Nominal input voltage230 V
I/O ports(1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (6) IEC 320 C19 Hard Wire 3 wire (1PH+N+G)
