APC Basic Rack 5.7k VA PDU power distribution unit (PDU) 42 AC outlet(s) 0U Black

APC Basic Rack 5.7k VA PDU power distribution unit (PDU) 42 AC outlet(s) 0U Black

Rack PDU, Basic, Zero U, 5.7kW, 208V, (36)C13 & (6)C19

Trade Prices

Distributor Product SKU Stock Updated Price
Ingram Micro

RACK PDU BASIC ZERO U 5.7KW

View on Xvantage open_in_new 		270B557 Register free see stock
Ingram Micro CS

RACK PDU BASIC ZERO U 5.7KW

 270B557

Related Products

Description

-Includes: Installation guide, Rack Mounting brackets, Toolless Mounting Kit.
-Multi-branch power input.
-Toolless mounting capability.

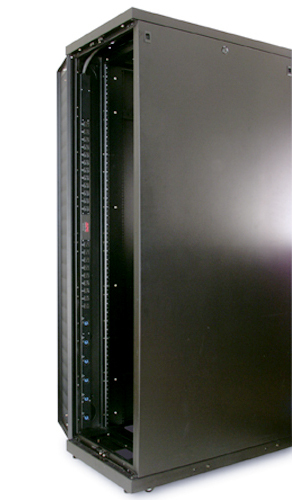

-Vertical mounting capability.

Specifications

Design
PDU typesBasic
Product colourBlack
CertificationcUL,CSA C22.2 No. 60950-1-03,UL 60950-1,UL
Rack capacity0U
Ports & interfaces
AC outlets quantity42 AC outlet(s)
AC outlet typesC13 coupler, C19 coupler
Power plugNEMA L21-20P
Output connections-(36) IEC 320 C13. -(6) IEC 320 C19.
Features
Cable length0.91 m
CertificationcUL,CSA C22.2 No. 60950-1-03,UL 60950-1,UL
Ergonomics
Cable length0.91 m
Power
Nominal input voltage208 V
Nominal output voltage208 V
Maximum total current draw per phase20 A
Maximum input current per phase20 A
Load capacity5700 VA
AC input frequency50 - 60 Hz
Certificates
CertificationcUL,CSA C22.2 No. 60950-1-03,UL 60950-1,UL
Compliance certificatesRoHS
Operational conditions
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Storage relative humidity (H-H)5 - 95%
Operating relative humidity (H-H)5 - 95%
Weight & dimensions
Weight5.45 kg
Width56 mm
Depth44 mm
Height1778 mm
Technical details
Compliance certificatesRoHS
