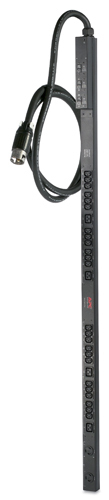

APC NetShelter Basic Rack PDU, Zero U, 14.4kW, 208V,24 C13, 4 C19, 2 NEMA L6-30R outlet, 10ft input cord

APC NetShelter Basic Rack PDU, Zero U, 14.4kW, 208V,24 C13, 4 C19, 2 NEMA L6-30R outlet, 10ft input cord

Trade Prices

Distributor Product SKU Stock Updated Price
Microwarehouse Ireland

RACK PDU,BASIC,0U,14.4KW,208V,(24)C13,(4)C19,(2)L6-30R 10

AP7599 Register free see stock

Related Products

Description

Basic Rack PDU 14 AP7599. 4 kW solution for high density installations.

Specifications

Design
Product colourBlack
CertificationcUL Listed,CSA,METI Denan,UL 60950,UL Listed
Ports & interfaces
Output connections24x IEC 320 C13 4x IEC 320 C19 2x NEMA L6-30R
Input connection typeCS8365
Features
Cable length3.05 m
CertificationcUL Listed,CSA,METI Denan,UL 60950,UL Listed
Ergonomics
Cable length3.05 m
Power
Nominal input voltage208 V
Nominal output voltage208 V
Maximum input current per phase50 A
Load capacity14400 VA
AC input frequency50 - 60 Hz
Certificates
CertificationcUL Listed,CSA,METI Denan,UL 60950,UL Listed
Operational conditions
Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Storage relative humidity (H-H)5 - 95%
Operating relative humidity (H-H)5 - 95%
Weight & dimensions
Weight9.86 kg
Width55 mm
Depth95 mm
Height1778 mm
