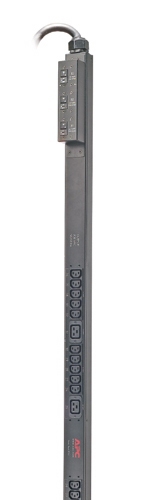

APC NetShelter Basic Rack PDU, Zero U, 12.5kW, 208V, 30 C13 and 6 C19 outlet, 10ft input cord

APC NetShelter Basic Rack PDU, Zero U, 12.5kW, 208V, 30 C13 and 6 C19 outlet, 10ft input cord

APC NetShelter Basic Rack PDU, Zero U, 12.5kW, 208V, 30 C13 and 6 C19 outlet, 10ft input cord

Trade Prices

Distributor Product SKU Stock Updated Price
Ingram Micro

RACK PDU BASIC ZERO U 12.5KW

View on Xvantage open_in_new 		2703503 Register free see stock
Microwarehouse Ireland

RACK PDU,BASIC,ZEROU,12.5KW,208V,(30)C13,(6)C19 10 CORD

 AP7598
Ingram Micro CS

RACK PDU BASIC ZERO U 12.5KW

 2703503

Related Products

Description

APC Basic Rack PDU , Input: 208V 3PH , Input Connections: Compatible With Hubbell CS8365C , Cord Length: 10 feet ( 3.05 meters ) , Output: 208V , Output Connections: IEC 320 C13,IEC 320 C19.

Includes: Cord retention bracket(s), Documentation CD, Installation guide, Rack Mounting brackets, Toolless Mounting Kit.

Specifications

Design
Product colourBlack
CertificationcUL, CSA C22.2 No. 60950-1-03, UL 60950-1, UL
Ports & interfaces

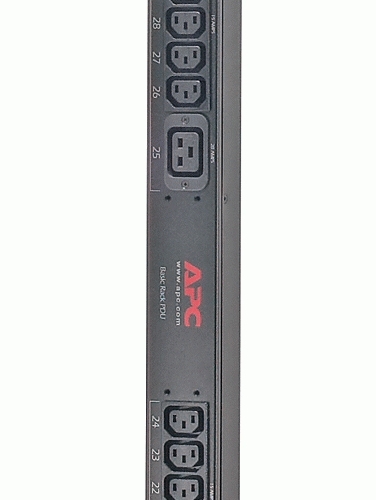

Output connections30 x IEC 320 C13, 6 x IEC 320 C19

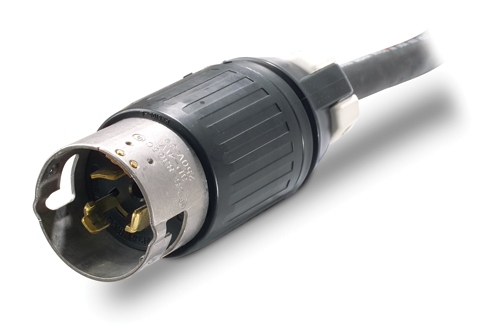

Input connection typeHubbell CS8365C
Features
Cable length3.05 m
CertificationcUL, CSA C22.2 No. 60950-1-03, UL 60950-1, UL
Ergonomics
Cable length3.05 m
Power
Nominal input voltage208 V
Nominal output voltage208 V
Maximum total current draw per phase35 A
Maximum input current per phase35 A
Certificates
CertificationcUL, CSA C22.2 No. 60950-1-03, UL 60950-1, UL
Operational conditions
Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Storage relative humidity (H-H)5 - 95%
Operating relative humidity (H-H)5 - 95%
Weight & dimensions
Weight8.79 kg
Width56 mm
Depth89 mm
Height1778 mm
Package width152 mm
Package depth127 mm
Package height2108 mm
Package weight11.9 kg
Packaging data
Package width152 mm
Package depth127 mm
Package height2108 mm
Package weight11.9 kg
