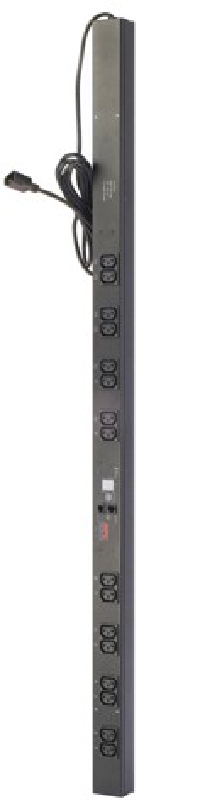

APC AP7850B power distribution unit (PDU) 16 AC outlet(s) 0U Black

APC AP7850B power distribution unit (PDU) 16 AC outlet(s) 0U Black

200V, 208V, 230V, 47 - 63 Hz, IEC-320 C14, 3.05 m, 200-250VAC, 10A, 1245 x 56 x 44 mm, 3.07 kg

Trade Prices

Distributor Product SKU Stock Updated Price
CMS Distribution (Ireland)

Rack PDU Metered Zero U 10A 230V

 000000000000182732 Register free see stock
Hammer Distribution

AP7850B

 APC-AP7850B
Ingram Micro

RACK PDU METERED ZERO U

View on Xvantage open_in_new 		270B824
Microwarehouse Ireland

Rack PDU, Metered, Zero U, 10A

 AP7850B
TD Synnex UK

Metered Rack PDU AP7850B - Power distribution unit (rack-mountable) - AC 230 V - input: IEC 60320 C14 - output connectors: 16 (power IEC 60320 C13) - 0U - 3 m cord - for P/N: SCL500RMI1U, SMX1500RM2UCNC, SMX2KR2UX145, SMX3KR2UNCX145, SMX750C, SMX750CUS

View on InTouch open_in_new 		4107608
Westcoast

RACK PDU METERED ZERO U 10A 230V (16

View on Webshop open_in_new 		AP7850B
EET

RCK PDU MEERED ZERO U 10

 AP7850B
Ingram Micro CS

RACK PDU METERED ZERO U

 270B824
SYNAXON

Metered Rack PDU - IEC 60320 C14 - 16 x IEC 60

 STD10063501
Alternative Suppliers
Memory Bank

RACK PDU METERED ZERO U 10A 230V (16

 CLAP7850B Register free see stock

Retail Prices

Merchant Product Condition Updated Price
Amazon New £674.15
Amazon New £561.70
Amazon New £562.50
Amazon New £679.88
Amazon New £481.96
Currys Business APC Metered Rack PDU AP7850B - power distribution unit New 148 hours ago £663.58

Related Products

Description

Toolless Rack Mounting Capabilities

Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.

Vertical Mounting Capabilities

Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.

Wide range of input and output connections

Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Single input power source

Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Rack-Mountable

Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Integrates with StruxureWare Data Center Expert

An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network

Load indicator LED

Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Flash Upgradeable

Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)

Remote Management Capabilities

Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Alarm Thresholds

Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)

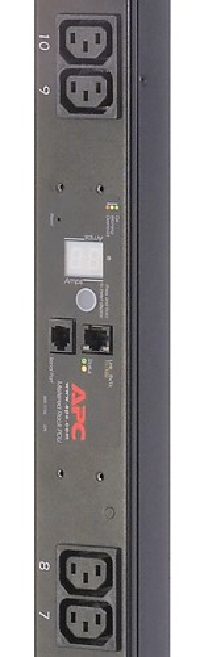

Local Current Monitoring Display

The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)

Specifications

Design
PDU typesMetered
MountingVertical
Product colourBlack
CertificationCE, GOST, VDE
Rack capacity0U
Ports & interfaces
AC outlets quantity16 AC outlet(s)
AC outlet typesC13 coupler
Power plugC14 coupler
Features
Cable length3.05 m
LED indicatorsYes
CertificationCE, GOST, VDE
Management features
MonitoringCurrent, Power, Voltage
Ergonomics
Cable length3.05 m
LED indicatorsYes
Power
Maximum power2300 W
Nominal input voltage200-250 V
Nominal output voltage230 V
Maximum current10 A
Maximum total current draw per phase10 A
Maximum input current per phase10 A
Load capacity2300 VA
AC input frequency47/63 Hz
Certificates
CertificationCE, GOST, VDE
Compliance certificatesRoHS
Operational conditions
Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Storage relative humidity (H-H)5 - 95%
Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)23 - 113 °F
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Weight & dimensions
Weight3.07 kg
Width56 mm
Depth44 mm
Height1245 mm
Package width387 mm
Package depth323 mm
Package height2134 mm
Package weight3.98 kg
Packaging data
Package width387 mm
Package depth323 mm
Package height2134 mm
Package weight3.98 kg
Technical details
Compliance certificatesRoHS
