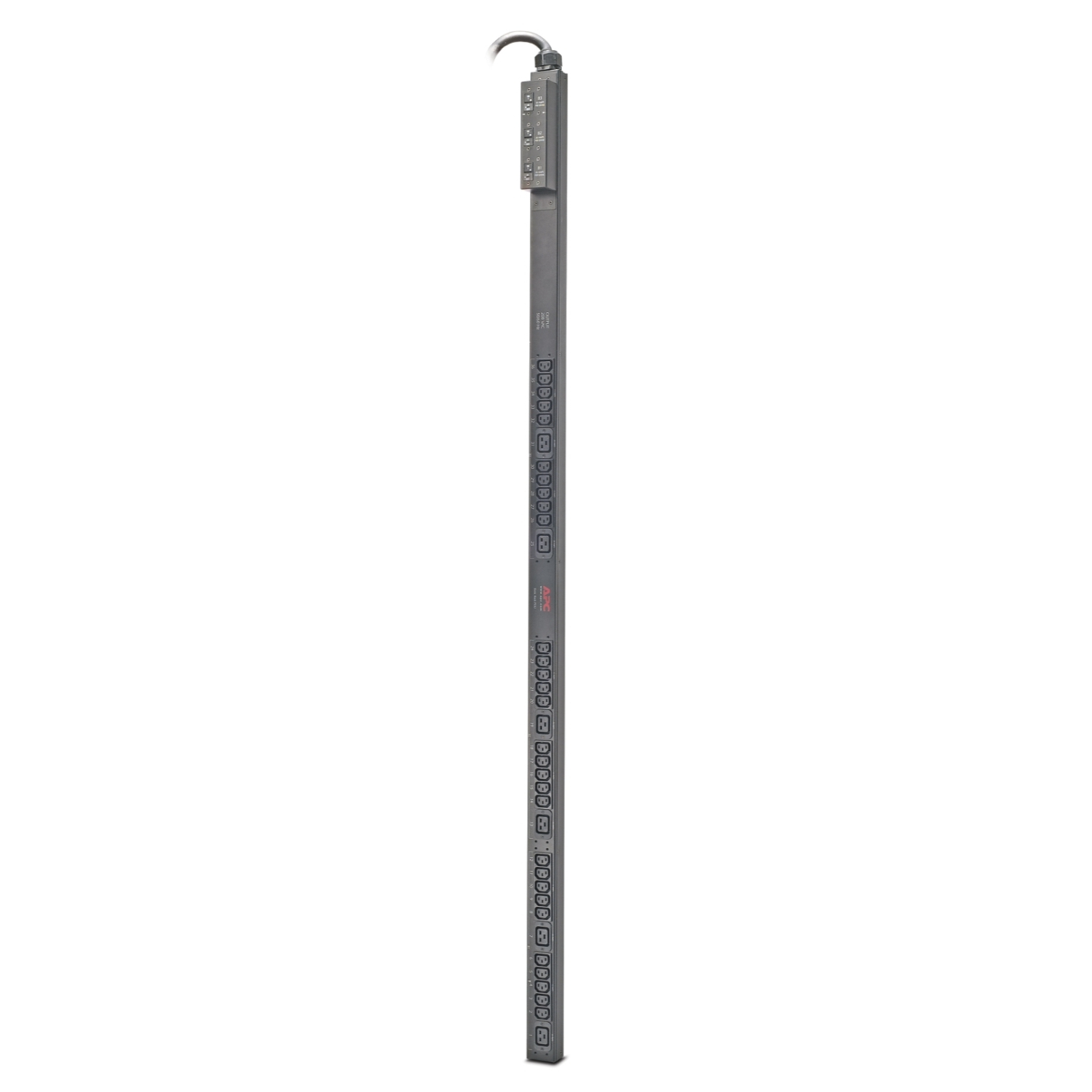

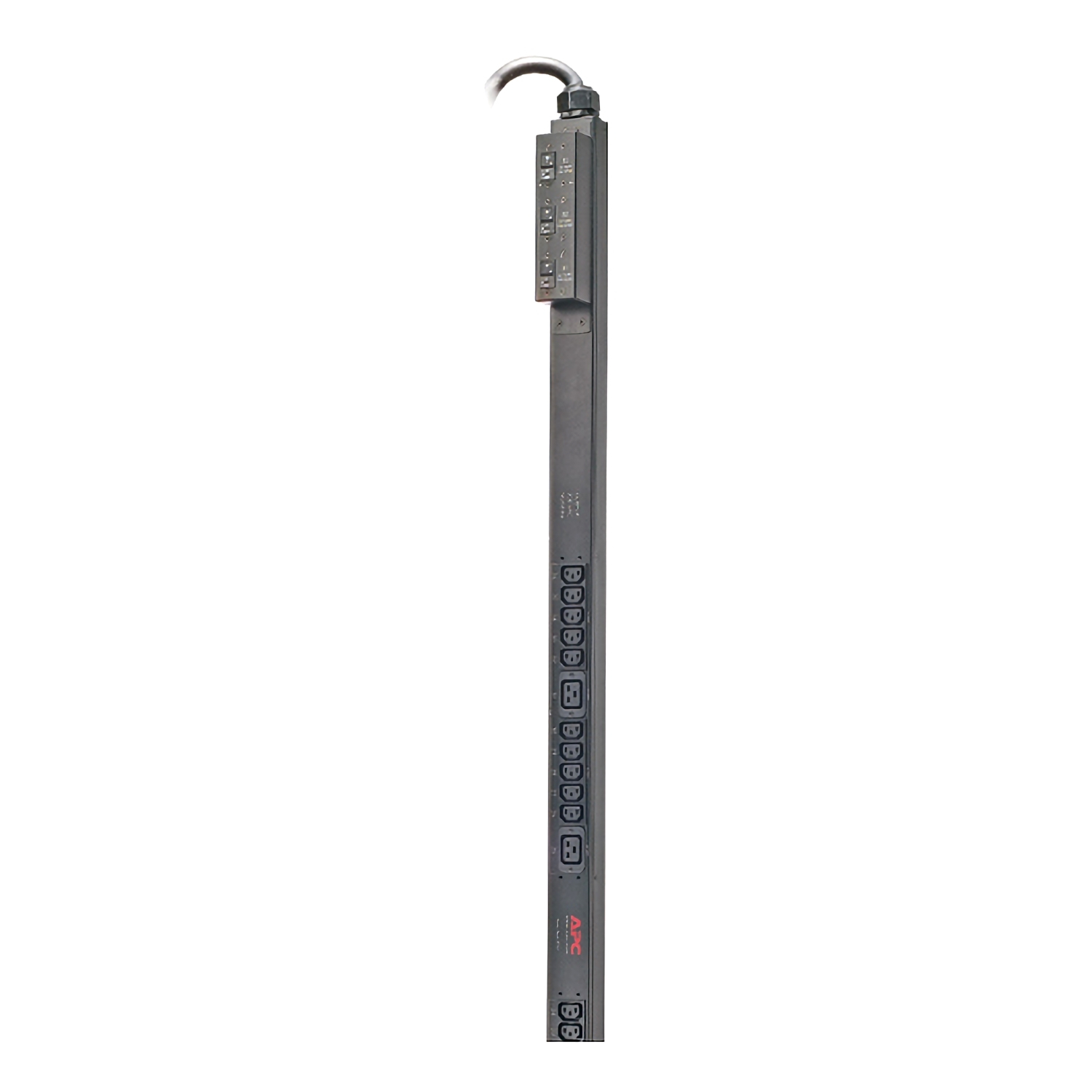

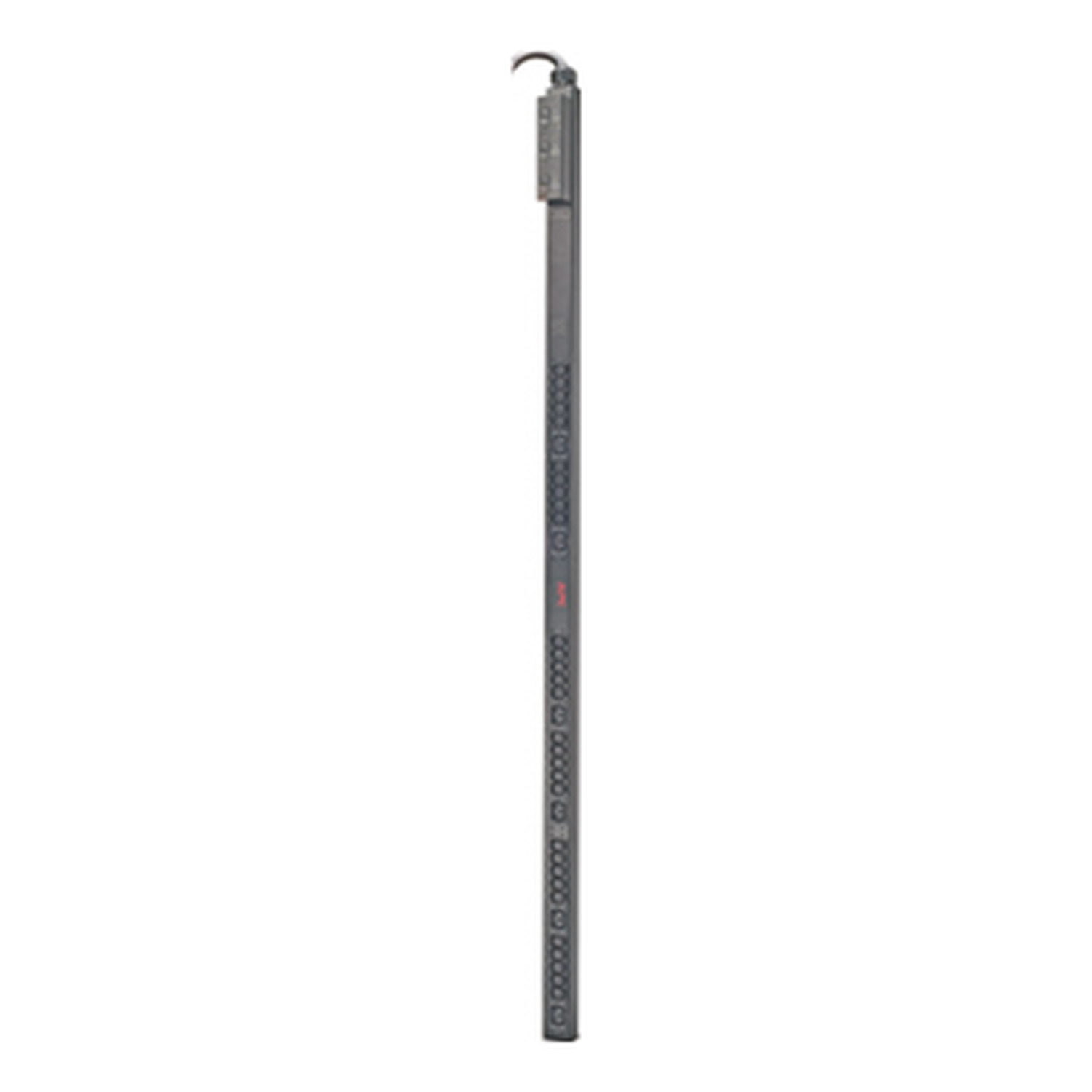

APC NetShelter Basic Rack PDU, Zero U, 12.5kW, 208V, 30 C13 and 6 C19 outlet, 3ft input Cord

APC NetShelter Basic Rack PDU, Zero U, 12.5kW, 208V, 30 C13 and 6 C19 outlet, 3ft input Cord

APC NetShelter Basic Rack PDU, Zero U, 12.5kW, 208V, 30 C13 and 6 C19 outlet, 3ft input Cord

Trade Prices

Distributor Product SKU Stock Updated Price
Ingram Micro

RACK PDU BASIC.ZERO U 12.5KW

View on Xvantage open_in_new 		2703522 Register free see stock
Microwarehouse Ireland

RACK PDU,BASIC,ZEROU,12.5KW,208V,(30)C13,(6)C19 3 CORD

 AP7568
TD Synnex UK

Basic Rack PDU Zero U - Power distribution strip (rack-mountable) - AC 208 V - output connectors: 36 (power IEC 60320 C13, IEC 60320 C19) - 0U - 0.9 m cord - black - for P/N: SMX1500RM2UCNC, SMX2KR2UX145, SMX3KR2UNCX145, SMX750C, SMX750CNC, SMX750CUS

View on InTouch open_in_new 		1373847
Ingram Micro CS

RACK PDU BASIC.ZERO U 12.5KW

 2703522

Description

-Includes: Cord retention bracket(s), Documentation CD, Installation guide, Rack Mounting brackets, Toolless Mounting Kit.

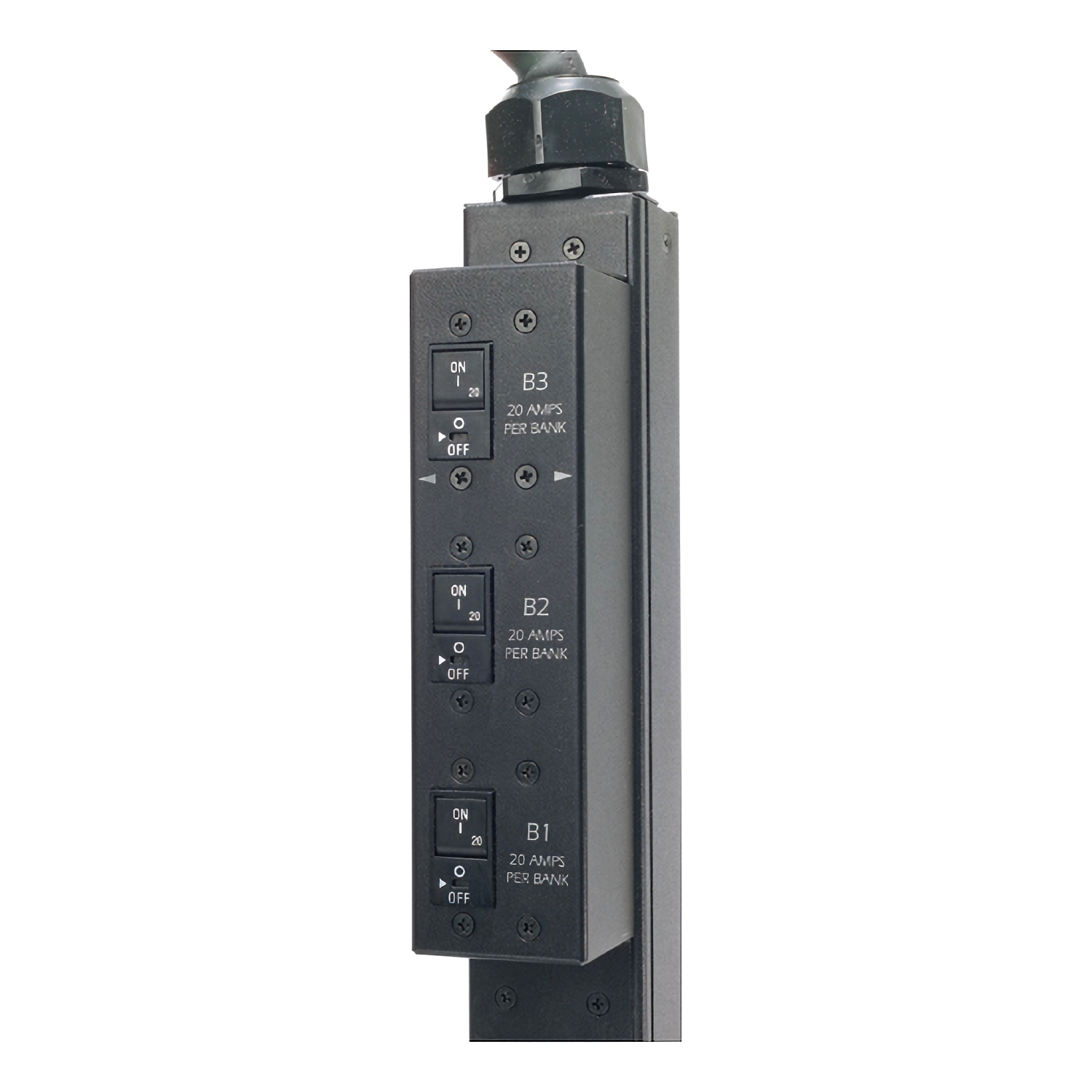

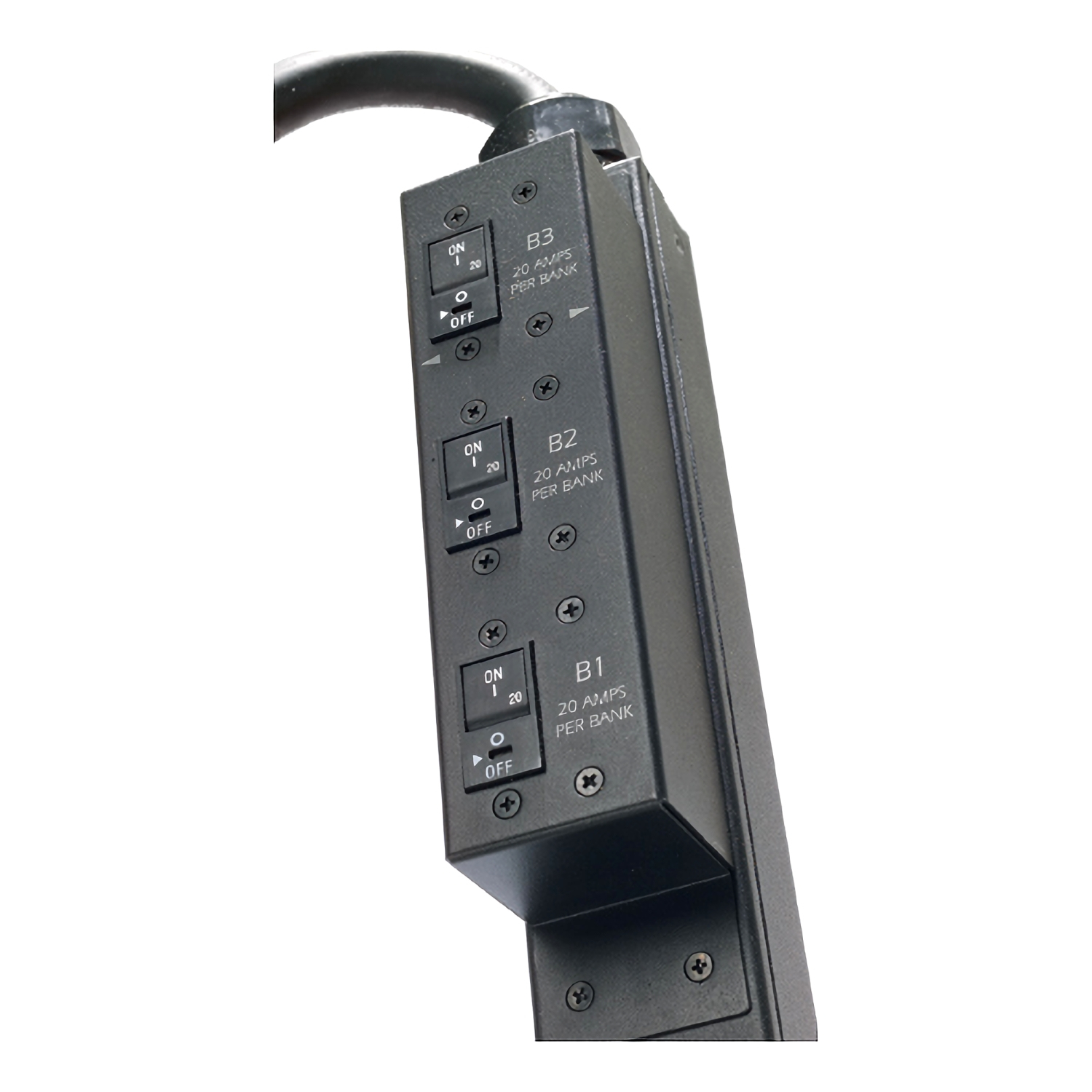

-Multi-branch power input.
-Toolless mounting capability.
-Vertical mounting capability.

Specifications

Design
Product colourBlack
CertificationcUL,CSA C22.2 No. 60950-1-03,UL 60950-1,UL
Ports & interfaces

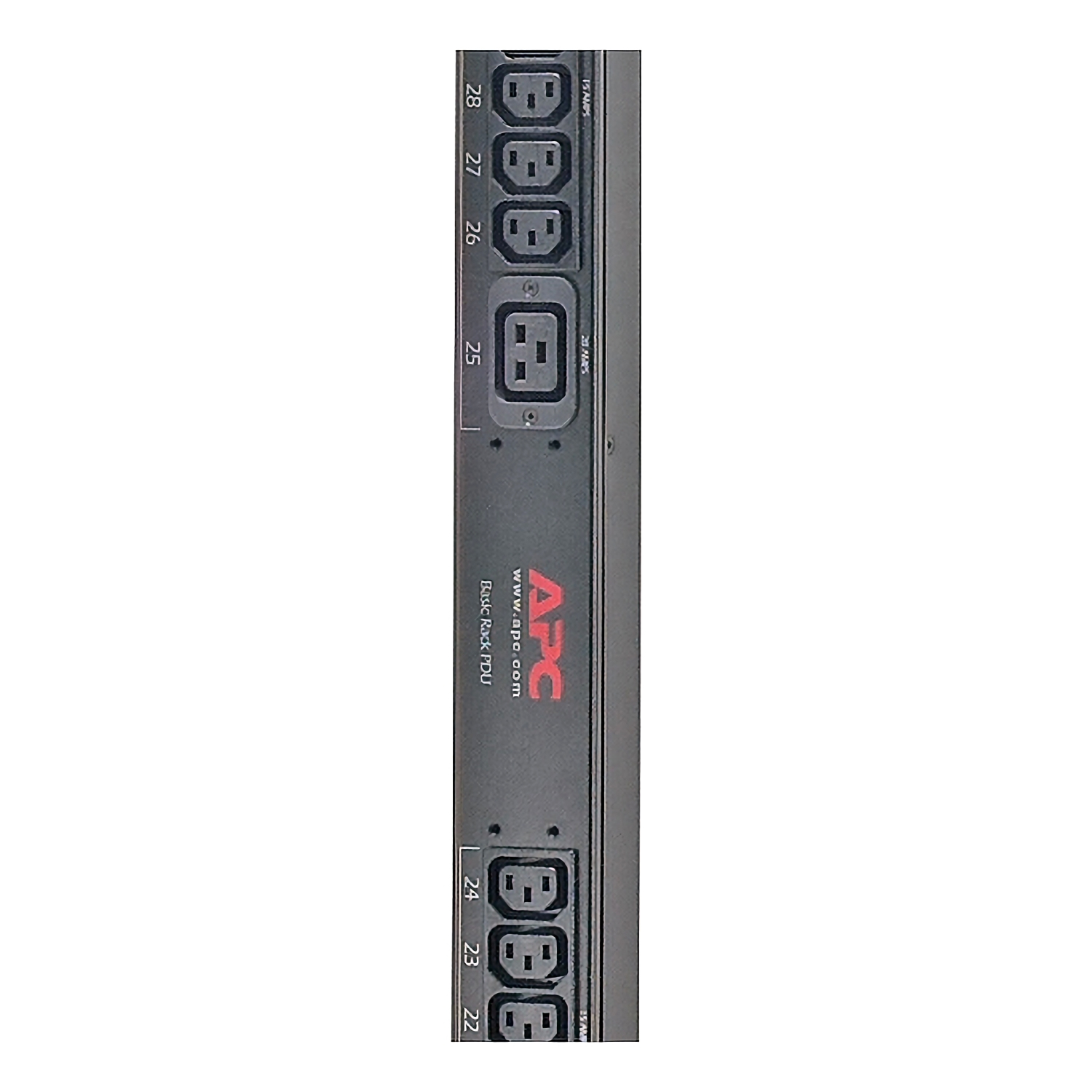

Output connections-(30) IEC 320 C13. -(6) IEC 320 C19.
Input connection typeHubbell CS8365C
Features
Cable length0.91 m
CertificationcUL,CSA C22.2 No. 60950-1-03,UL 60950-1,UL
Ergonomics
Cable length0.91 m
Power
Nominal input voltage208 V
Nominal output voltage208 V
Maximum total current draw per phase35 A
Maximum input current per phase35 A
Load capacity12500 VA
Certificates
CertificationcUL,CSA C22.2 No. 60950-1-03,UL 60950-1,UL
Operational conditions
Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Storage relative humidity (H-H)5 - 95%
Operating relative humidity (H-H)5 - 95%
Weight & dimensions
Weight6.95 kg
Width56 mm
Depth89 mm
Height1778 mm
