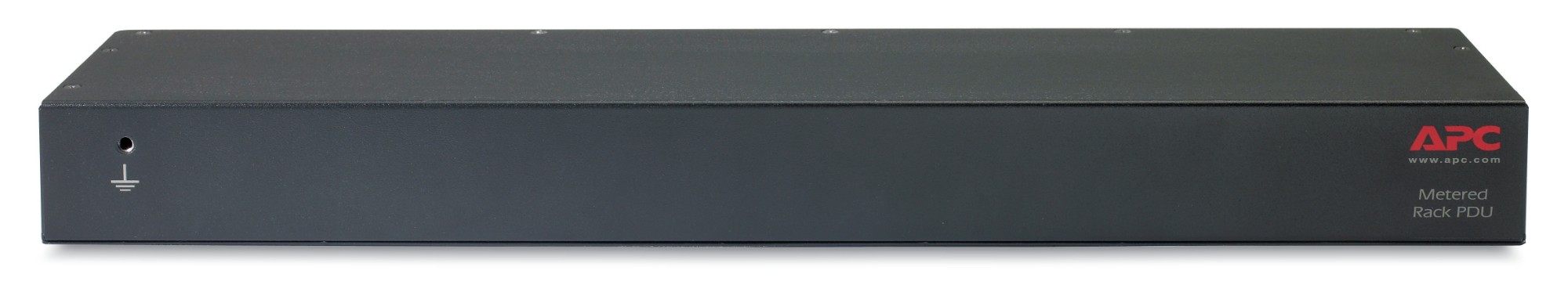

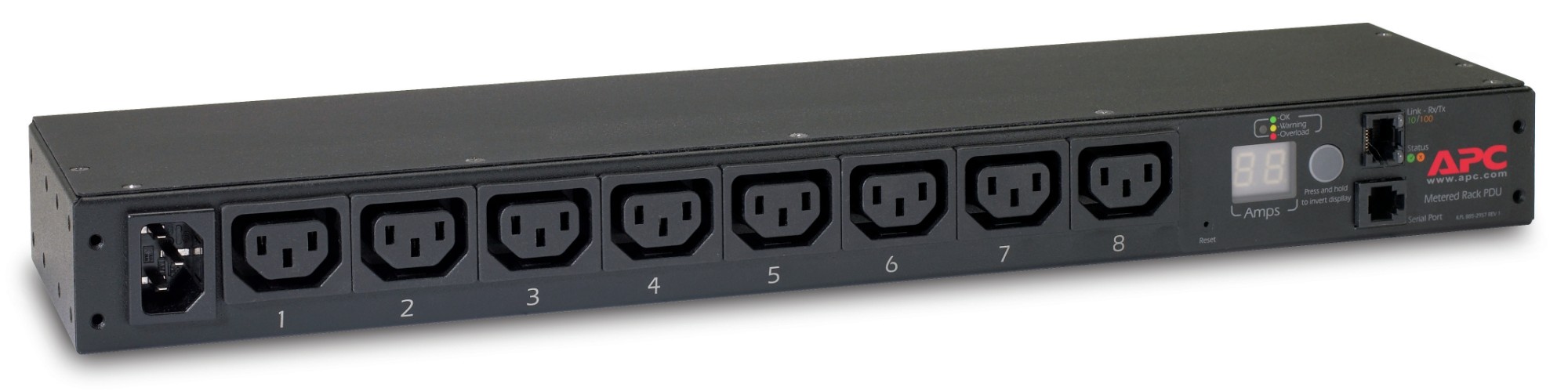

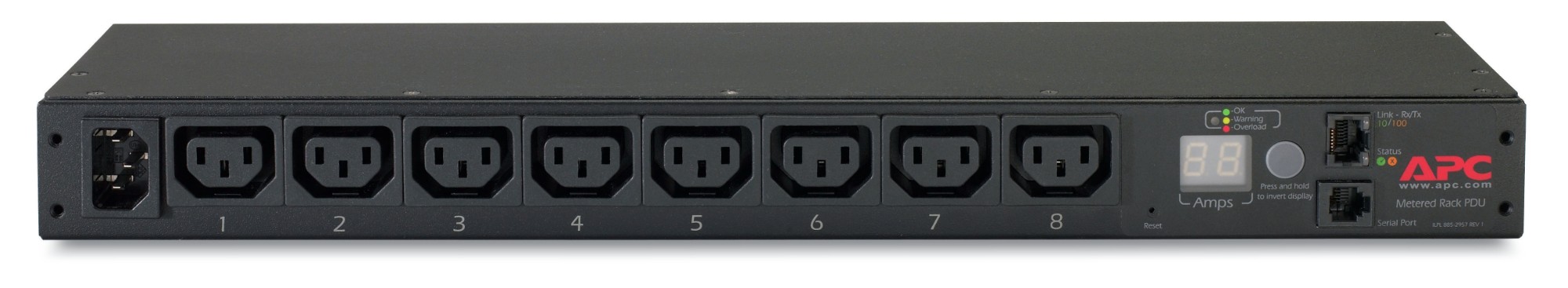

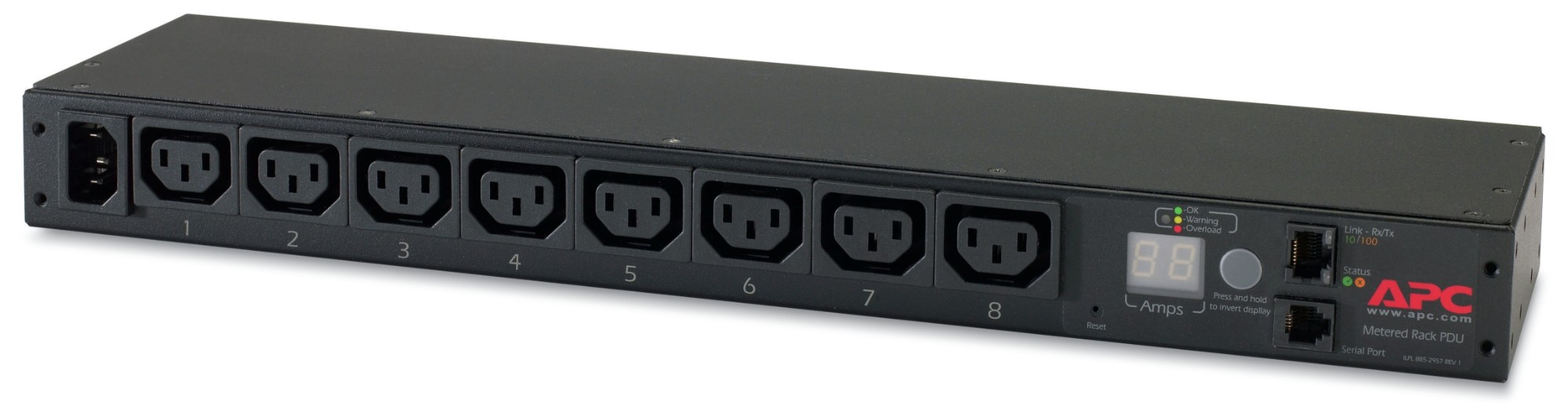

APC AP7820B power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black
- Brand: APC
- Category:
- SKU: AP7820B
- EAN: 0731304331506
Rack PDU, Metered, 1U, 12A/208V, 10A/230V, 50/60 Hz, 8x IEC 320 C13, IEC-320 C14, 444 x 102 x 44 mm, 1730 g
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
RACK PDU 1U 12A/208V 10A/230V |
000000000000211467 | |||
|
AP7820B |
APC-AP7820B | |||
|
RACK PDU METERED 1U 12A/208V View on Xvantage |
270B834 | |||
|
RACK PDU, METERED, 1U, 12A/208V, 10A/230V, (8) C13 |
AP7820B | |||
|
Metered Rack PDU AP7820B - Power distribution unit (rack-mountable) - AC 200/208/230 V - 2300 VA - Ethernet 10/100 - input: IEC 60320 C14 - output connectors: 8 (power IEC 60320 C13) - 1U - 1.98 m cord - for P/N: SRTL2K2RM1UWC, SRTL2K2RM1UWNC, SRTL3KRM1UI View on InTouch |
4107610 | |||
|
RACK PDU METERED 1U 12A/208V 10A/230 View on Webshop |
AP7820B | |||
|
RCK PDU MEERED 1U 10/230V |
AP7820B | |||
| Ingram Micro CS |
RACK PDU METERED 1U 12A/208V |
270B834 | |||
|
Metered Rack PDU AP7820B - power distribution unit - 2300 VA |
STD10123212 |
| Alternative Suppliers | |||||
|---|---|---|---|---|---|
|
RACK PDU METERED 1U 12A/208V 10A/230 |
CLAP7820B | |||
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | 12236 hours ago | £860.68 | |
| Amazon | New | 12236 hours ago | £846.74 | |
| Currys Business | APC Metered Rack PDU AP7820B - power distribution unit - 2300 VA | New | 99 hours ago | £568.78 |
Description
Marketing Features
Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
Local and web-based monitoring
Status available to customers both in the data center and remotely
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Agility
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
Local and web-based monitoring
Status available to customers both in the data center and remotely
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Agility
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Specifications
| Design | |
|---|---|
| PDU types | Metered |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Certification | cUL, C-tick, CE, CSA, FCC 15 A, GOST, UL 60950, UL, VDE, VCCI |
| Rack capacity | 0U/1U |
| Ports & interfaces | |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Input connection type | IEC-320 C14 |
| Features | |
| Cable length | 1.98 m |
| LED indicators | Yes |
| Certification | cUL, C-tick, CE, CSA, FCC 15 A, GOST, UL 60950, UL, VDE, VCCI |
| Management features | |
| Monitoring | Current, Power, Voltage |
| Ergonomics | |
| Cable length | 1.98 m |
| LED indicators | Yes |
| Power | |
| Maximum power | 2300 W |
| Nominal input voltage | 208-230 V |
| Nominal output voltage | 208-230 V |
| Maximum current | 15 A |
| Maximum total current draw per phase | 10 A |
| Maximum input current per phase | 15 A |
| Load capacity | 2300 VA |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | cUL, C-tick, CE, CSA, FCC 15 A, GOST, UL 60950, UL, VDE, VCCI |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Weight | 1.73 kg |
| Width | 444 mm |
| Depth | 102 mm |
| Height | 44 mm |
| Package width | 470 mm |
| Package depth | 337 mm |
| Package height | 64 mm |
| Package weight | 2.91 kg |
| Packaging data | |
| Package width | 470 mm |
| Package depth | 337 mm |
| Package height | 64 mm |
| Package weight | 2.91 kg |
| Technical details | |
| Compliance certificates | RoHS |
