Lenovo ThinkVision 27 3D Monitor

Lenovo ThinkVision 27 3D Monitor

  • Brand: Lenovo
  • Category:
  • SKU: 63F1UAT3UK
  • EAN: 0197532306370
27", 3840 x 2160(2D), 1920 x 2160(3D) WLED IPS, 60Hz, 16:9, 310cd/m², 4ms, 178°/178°(2D), 20°/20°(3D), USB PD (100W)

Trade Prices

Distributor Product SKU Stock Updated Price
TD Synnex UK

ThinkVision 27 3D - LED monitor - 27" - 3840 x 2160 4K @ 60 Hz - IPS - 310 cd/m? - 1200:1 - HDR10 - 4 ms - HDMI, DisplayPort, USB-C - speakers - raven black

View on InTouch open_in_new 		10343349 Register free see stock
Westcoast

THINKVISION 27 3D 27-INCH MONITOR

View on Webshop open_in_new 		63F1UAT3UK
Alternative Suppliers
Memory Bank

THINKVISION 27 3D 27-INCH MONITOR

 CL63F1UAT3UK Register free see stock

Related Products

Reasons To Buy

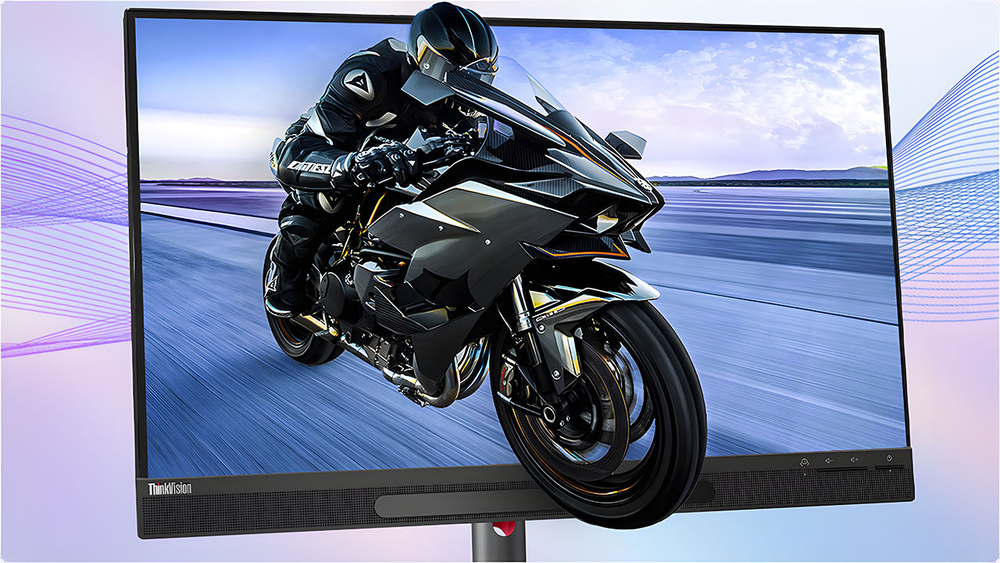

<p>Immersive Experience, No Glasses Needed</p>

Relying on glasses for 3D content is a thing of the past with switchable lenticular lenses. Experience seamless 3D even when moving your head around, thanks to real-time eye tracking. View 3D content with clarity without compromising refresh rate.

<p font-size:="36px">Natural Glasses-Free 3D</p>

Relying on glasses for 3D content is a thing of the past with switchable lenticular lenses.

<p font-size:="36px">Realistic &amp; Seamless Motion</p>

Experience seamless 3D even when moving your head around with real-time eye tracking.

<p font-size:="36px">Clear &amp; Vivid</p>

View your favorite 3D content with unparalleled clarity without any dips in refresh rate.

Consistent with 2D Experience

Seamlessly switch between 2D and 3D content with<br>the monitor’s 2D and 3D compatibility for hybrid creativity.

<p>Precision with 4K Clarify</p>

Revel in sharp content with high color accuracy, 4K resolution (2D) and 99% DCI-P3 and Adobe RGB color space coverage.

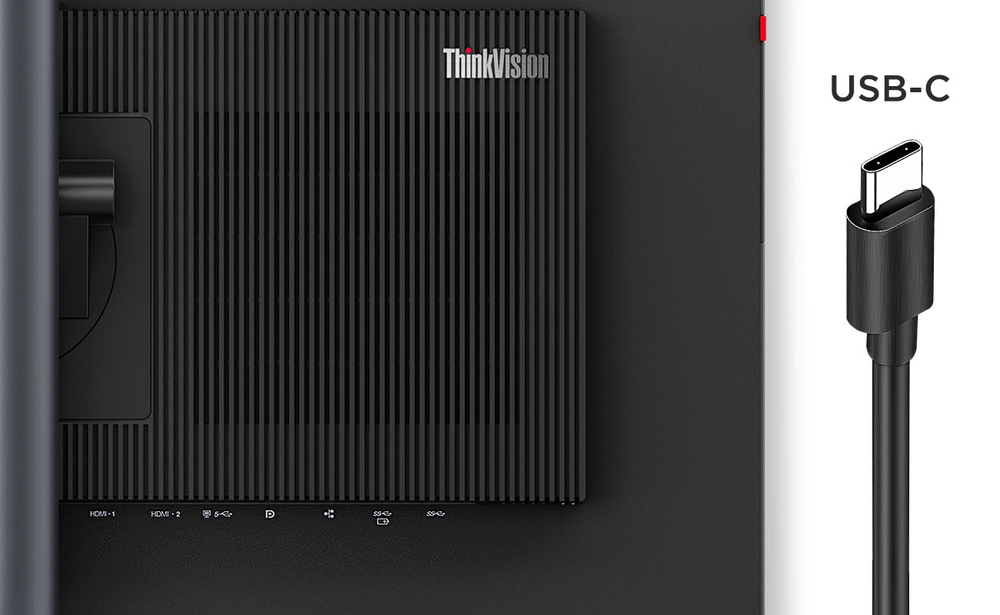

<p>Single-Cable USB-C Docking Experience</p>

Experience efficient charging and extended functionality with the convenience of a single-cable USB-C docking station. This innovative solution not only simplifies your setup but also supports stack integration, allowing you to connect multiple devices effortlessly.*Optional accessory: Sold separately

Uncompromised Productivity

Offload 3D processing to the monitor with the built-in 3D engine to get peak performance from your computer.

<p>3D Gateway</p>

3D Explorer provides a dynamic, immersive gateway to access and manage your apps and resources.

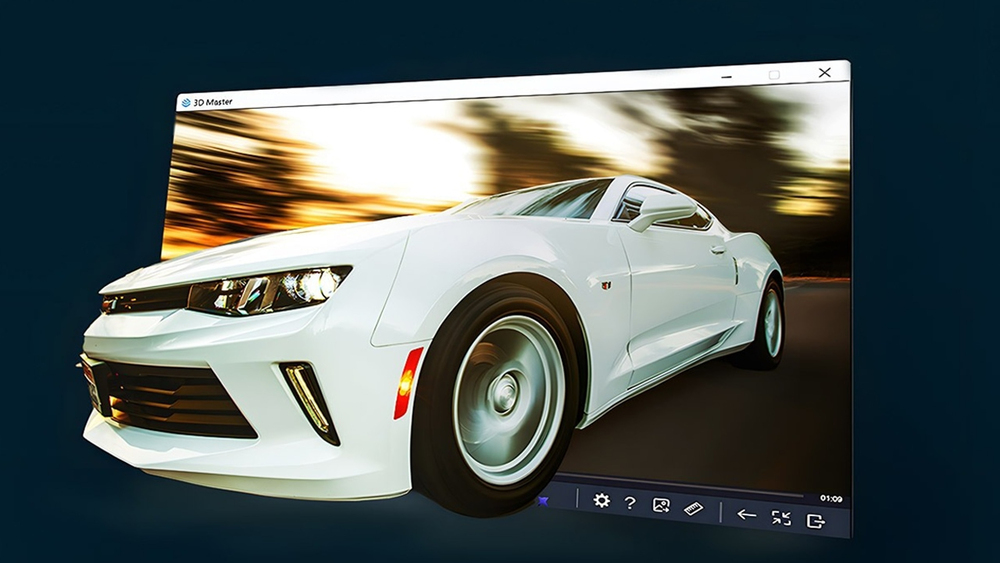

<p>Playing and Viewing 3D Content</p>

3D Master supports users when playing and browsing 3D models, video streams, and image files, presenting them with 3D effects.Formats include : glb, .obj, mp4,.jpg, etc.

<p>Hybrid 2D/3D Design Workflow</p>

The hybrid design workflow enables the use of various tools and engines to enhance 3D design work.*Third-party Software Support: <br>Autodesk 3ds Max, PTC Creo, Autodesk Maya, Blender, SketchUp Pro, etc.

<p>2D-to-3D Converter</p>

The 2D-to-3D converter is a powerful tool that transforms standard 2D images and videos into immersive 3D content up to 4K in real time.

<p>Development</p>

The SDK is designed for developing stereoscopic 3D apps and games for various displays.*Third-party Software Support: Unity and C++ & Unreal.

Specifications

Audio
Built-in speaker(s)Yes
RMS rated power10 W
Performance
Built-in speaker(s)Yes
RMS rated power10 W
Built-in microphoneNo
Built-in cameraNo
AMD FreeSyncNo
Compatible operating systemsWindows 11 Windows 10
NVIDIA G-SYNCNo
Windows operating systems supportedWindows 10, Windows 11
Display
Display brightness (typical)310 cd/m²
Screen shapeFlat
Display number of colours16.7 million colours
Native aspect ratio16:9
Pixel density163 ppi
Colour gamut99%
Maximum refresh rate60 Hz
sRGB coverage (typical)100%
Adobe RGB coverage99%
HD type4K Ultra HD
Display technologyLED
Contrast ratio (dynamic)3000000:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Pixel pitch0.155 x 0.155 mm
Viewable size, horizontal59.7 cm
Viewable size, vertical33.6 cm
Backlight typeW-LED
Display resolution3840 x 2160 pixels
Response time6 ms
Display diagonal68.6 cm (27")
Contrast ratio (typical)1200:1
Response time (fast)4 ms
TouchscreenNo
High Dynamic Range (HDR) supportedYes
Panel typeIPS
Colour depth8 bit
DCI-P3 coverage99%
High Dynamic Range (HDR) technologyHigh Dynamic Range 10 (HDR10)
LED backlightYes
BT.2020 coverage83%
Colour gamut standardDCI-P3
Response time measurement typeGTG (Gray to Gray)
Anti-glare screenYes
Network
Ethernet LAN (RJ-45) ports1
Ethernet LANYes
Multimedia
Number of speakers2
Built-in speaker(s)Yes
RMS rated power10 W
Built-in microphoneNo
Built-in cameraNo
Power
Power cable length1.8 m
Power supply typeInternal
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)246 W
Power consumption (standby)0.5 W
Power consumption (typical)43.8 W
Power consumption (off)0.5 W
Energy efficiency scaleA to G
Energy efficiency class (SDR)G
Energy efficiency class (HDR)G
Energy consumption (SDR) per 1000 hours41 kWh
Energy consumption (HDR) per 1000 hours53 kWh
Design
Feet colourBlack
CertificationEU Energy Label Exempt (G-class) RoHS (2011/65/EU) TÜV Rheinland® Eye Comfort Certification
Product colourBlack
Detachable standYes
Colour nameRaven Black
Stand adjustmentTilt, Swivel, Pivot, Height Adjust Stand
Camera
Built-in cameraNo
Ports & interfaces
Built-in USB hubYes
USB hub version3.2 Gen 1 (3.1 Gen 1)
USB upstream port typeUSB Type-C
Number of upstream ports1
USB Type-A downstream ports quantity4
USB Type-C downstream ports quantity1
HDMI ports quantity2
DisplayPorts quantity1
Audio outputYes
PC Audio outYes
HDMIYes
HDMI version2.1
DisplayPort version1.4
USB Power Delivery (USB PD)Yes
USB Power Delivery up to100 W
USB Type-C DisplayPort Alternate ModeYes
Number of USB Type-C upstream ports quantity1
DisplayPort out quantity0
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Technical details
Height (without stand)390 mm
Depth (without stand)72.3 mm
Width (without stand)614.8 mm
Feet colourBlack
Cable lock slotYes
HDMIYes
Display viewable area (HxV)596.7 x 335.7 mm
Built-in microphoneNo
Product colourBlack
Compatible operating systemsWindows 11 Windows 10
Power supply typeInternal
Weight (with stand)8.9 kg
TouchscreenNo
Software
Windows operating systems supportedWindows 10, Windows 11
Ergonomics
VESA mountingYes
Cable lock slotYes
Panel mounting interface100 x 100 mm
SwivellingYes
Swivel angle range-45 - 45°
Tilt angle range-5 - 23.5°
PivotYes
Pivot angle-90 - 90°
Height adjustmentYes
Cable lock slot typeKensington
Cable managementYes
Tilt adjustmentYes
Adjustable height (max)15.5 cm
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)8 - 80%
Storage relative humidity (H-H)5 - 95%
Weight & dimensions
Height (without stand)390 mm
Depth (without stand)72.3 mm
Width (without stand)614.8 mm
Width (with stand)614.8 mm
Depth (with stand)222.7 mm
Height (with stand)568 mm
Bezel width (side)8 mm
Bezel width (top)8 mm
Bezel width (bottom)4.43 cm
Weight (with stand)8.9 kg
Weight (without stand)6.6 kg
Package width720 mm
Package depth165 mm
Package height520 mm
Package weight12.4 kg
Packaging data
Package width720 mm
Package depth165 mm
Package height520 mm
Package weight12.4 kg
Package typeBox
Stand includedYes
Power cable length1.8 m
Quick start guideYes
Cables includedAC, DisplayPort, HDMI, USB Type-A to USB Type-C, USB Type-C
DisplayPort cable length1.8 m
HDMI cable length1.8 m
Packaging content
Stand includedYes
Power cable length1.8 m
Quick start guideYes
Cables includedAC, DisplayPort, HDMI, USB Type-A to USB Type-C, USB Type-C
DisplayPort cable length1.8 m
HDMI cable length1.8 m
Other features
Compatible operating systemsWindows 11 Windows 10
Display viewable area (HxV)596.7 x 335.7 mm
CertificationEU Energy Label Exempt (G-class) RoHS (2011/65/EU) TÜV Rheinland® Eye Comfort Certification
Ethernet LAN (RJ-45) ports1
DCI-P3 coverage99%
Factory calibration reportYes
Height (without stand)390 mm
Depth (without stand)72.3 mm
Width (without stand)614.8 mm
Power consumption (max)246 W
Quick start guideYes
HDMIYes
USB Power Delivery up to100 W
Energy efficiency scaleA to G
USB Type-C DisplayPort Alternate ModeYes
Power supply typeInternal
Power cable length1.8 m
Ethernet LANYes
TouchscreenNo
USB Power Delivery (USB PD)Yes
Package typeBox
Certificates
CertificationEU Energy Label Exempt (G-class) RoHS (2011/65/EU) TÜV Rheinland® Eye Comfort Certification
