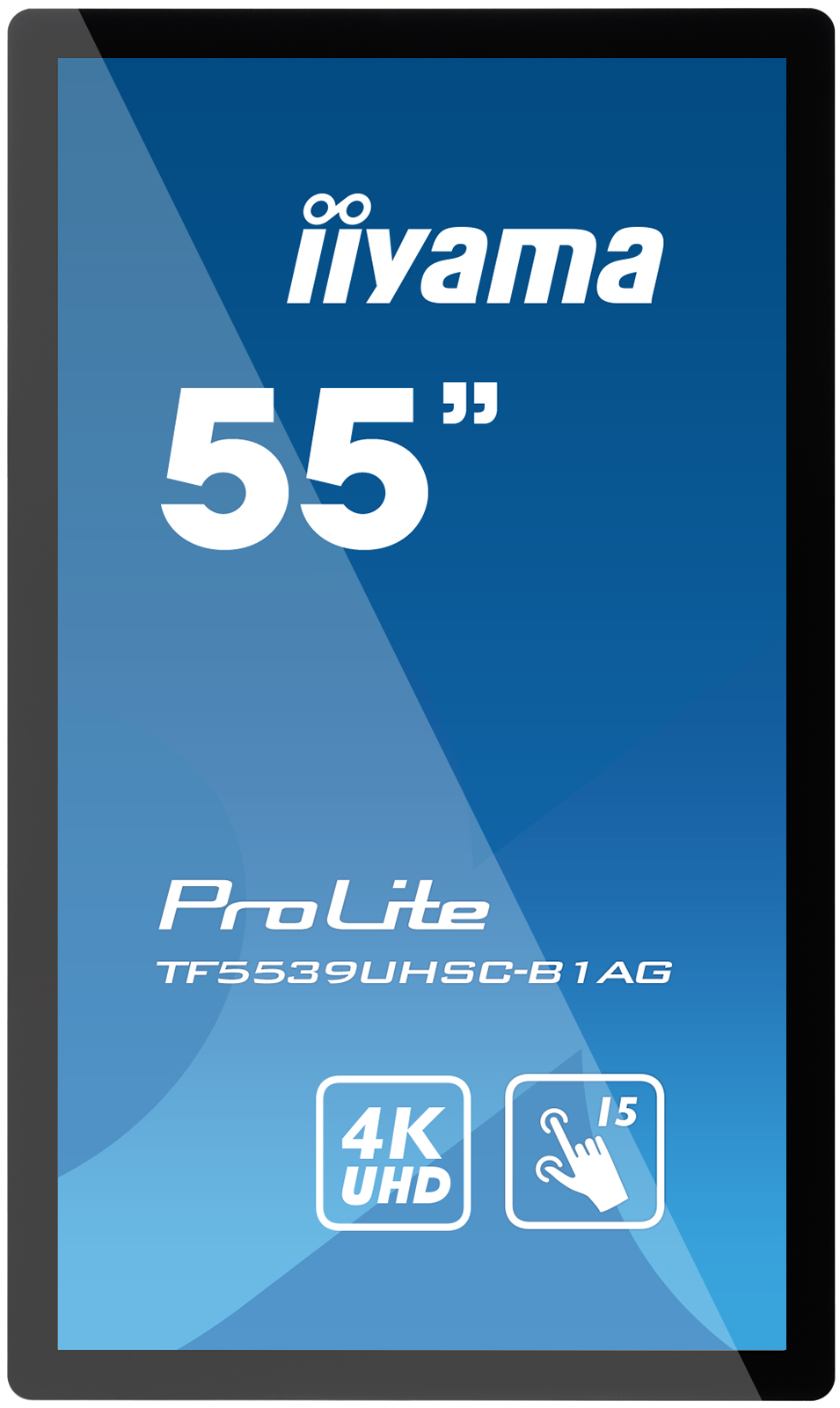

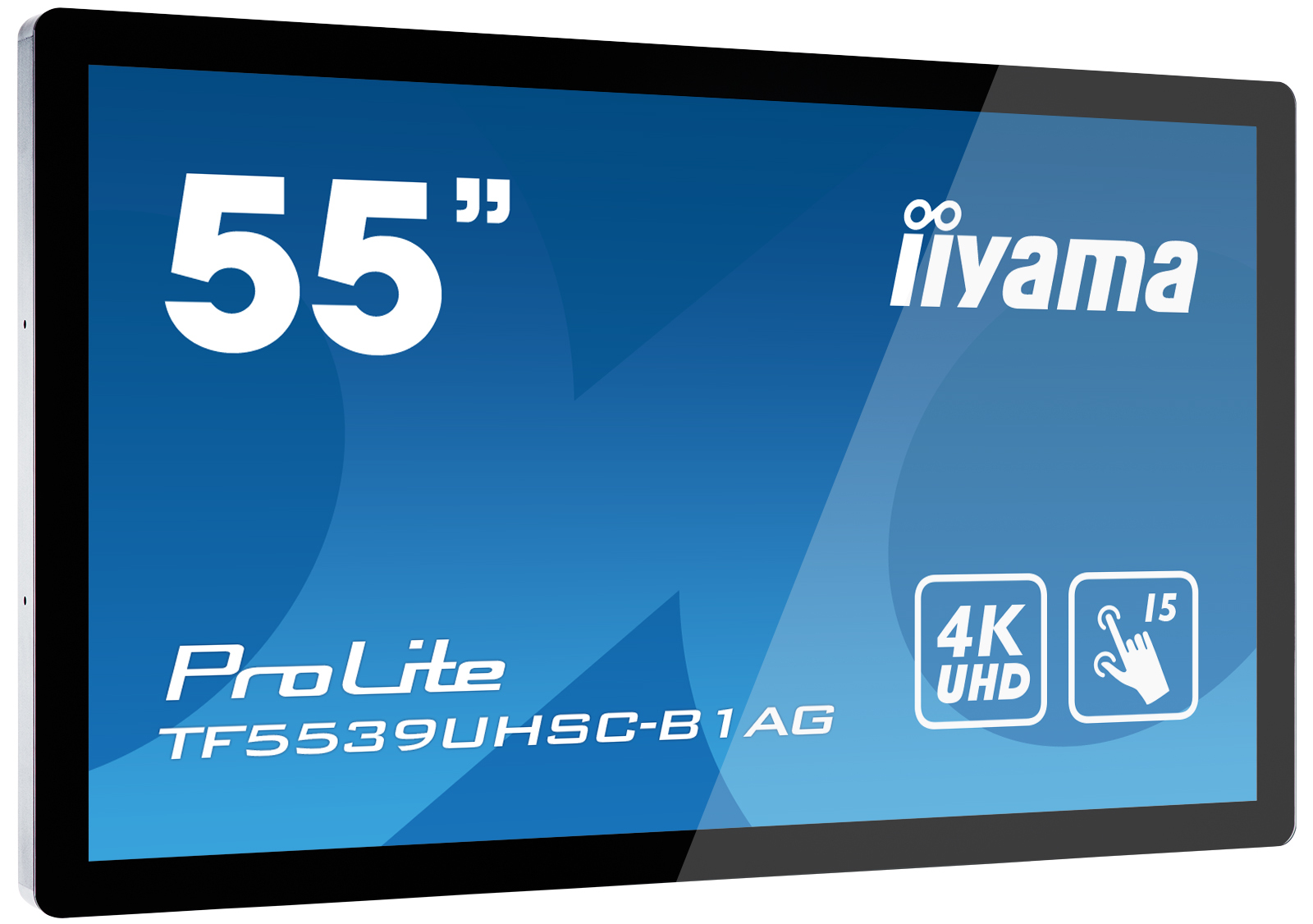

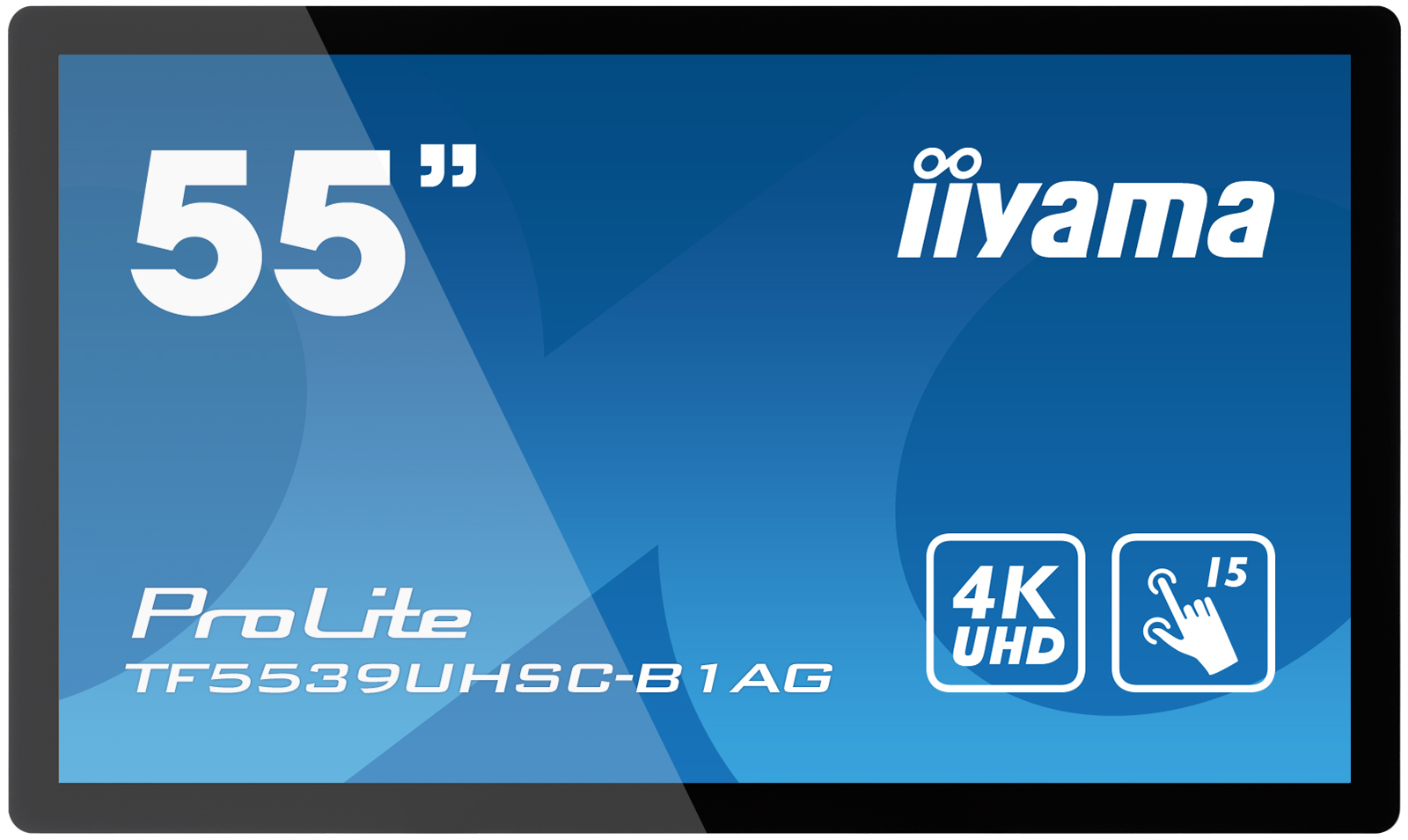

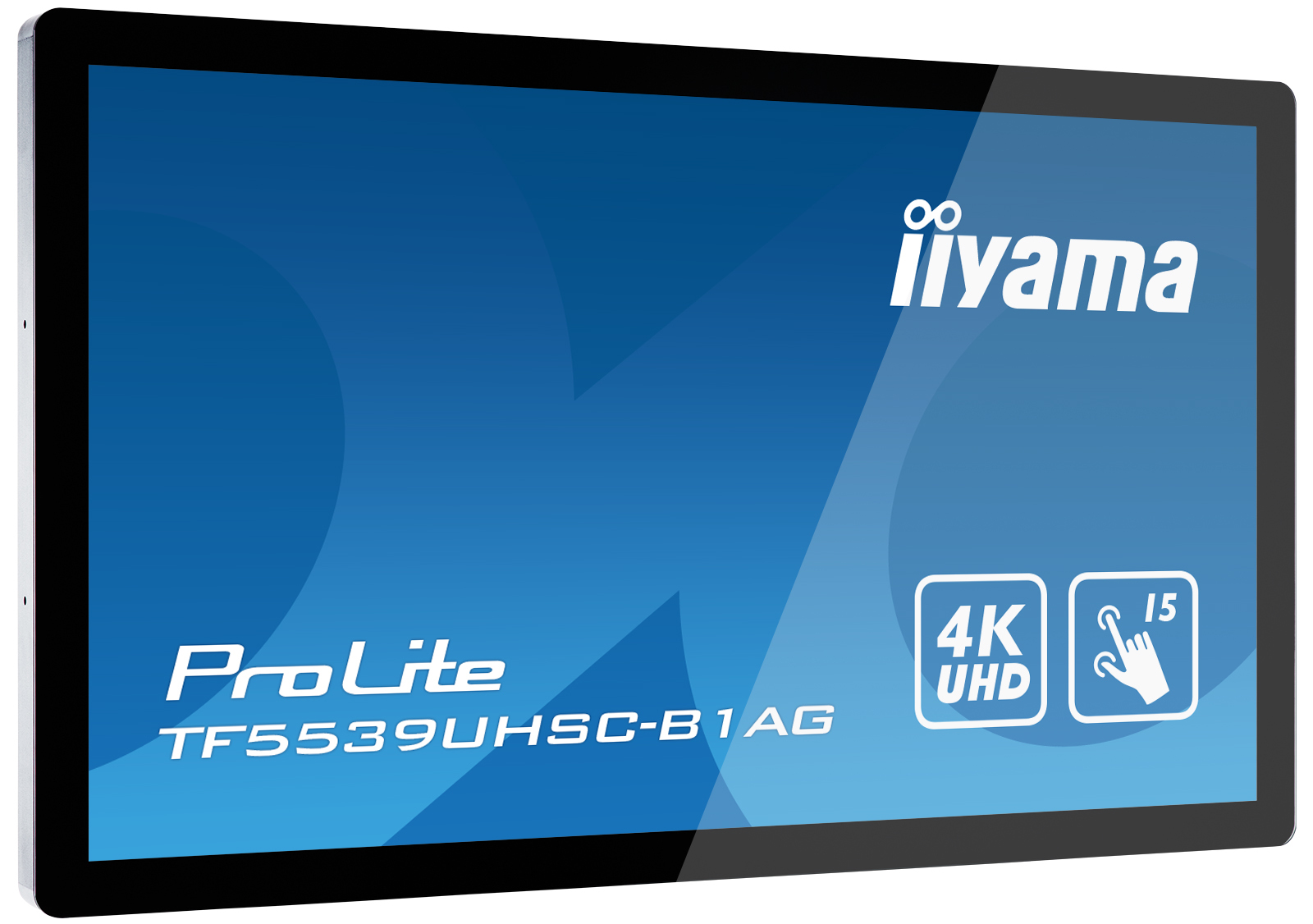

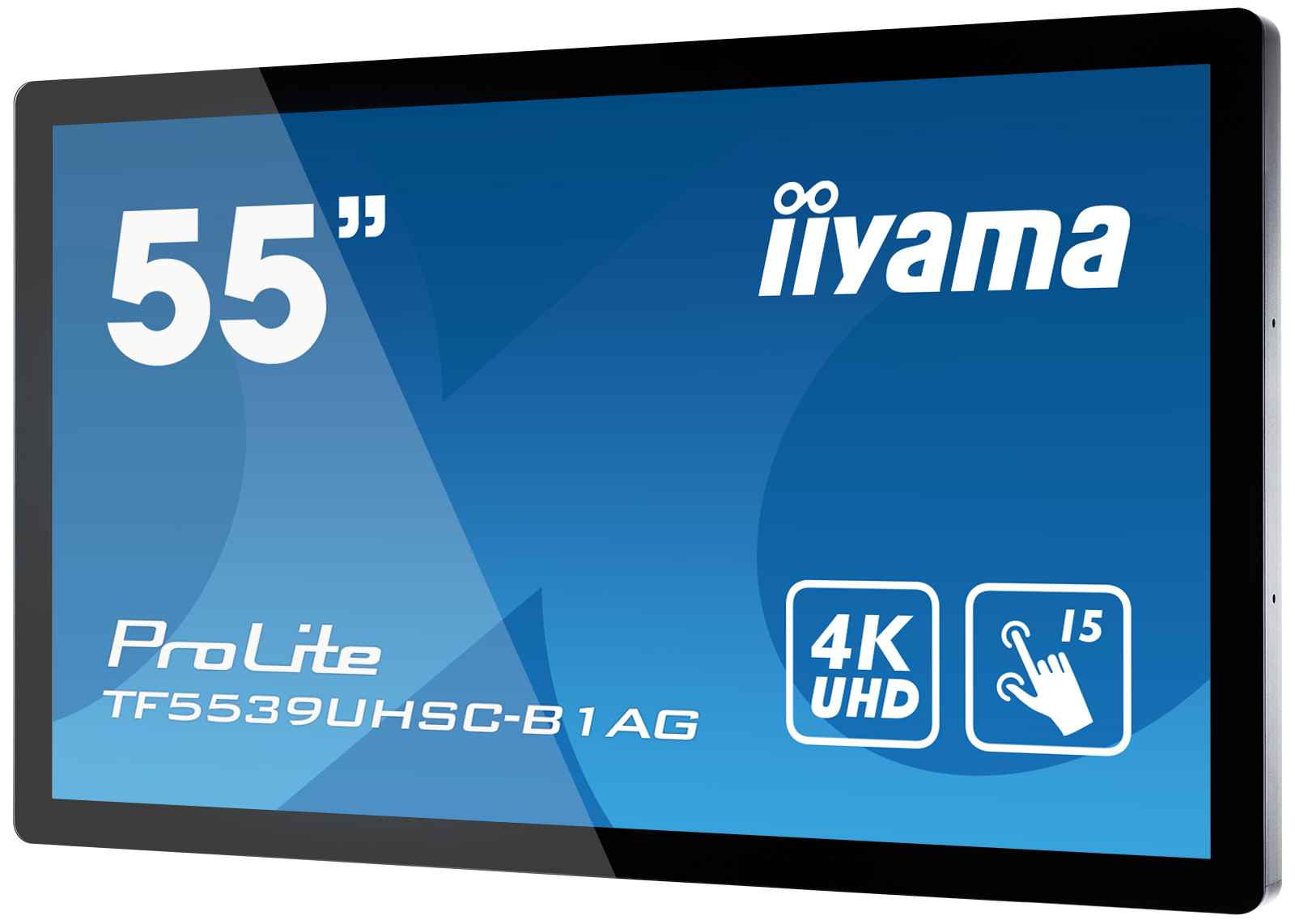

iiyama TF5539UHSC-B1AG Signage Display 139.7 cm (55") LED 500 cd/m² 4K Ultra HD Black Touchscreen

iiyama TF5539UHSC-B1AG Signage Display 139.7 cm (55") LED 500 cd/m² 4K Ultra HD Black Touchscreen

  • Brand: iiyama
  • Category:
  • SKU: TF5539UHSC-B1AG
  • EAN: 5715063110249

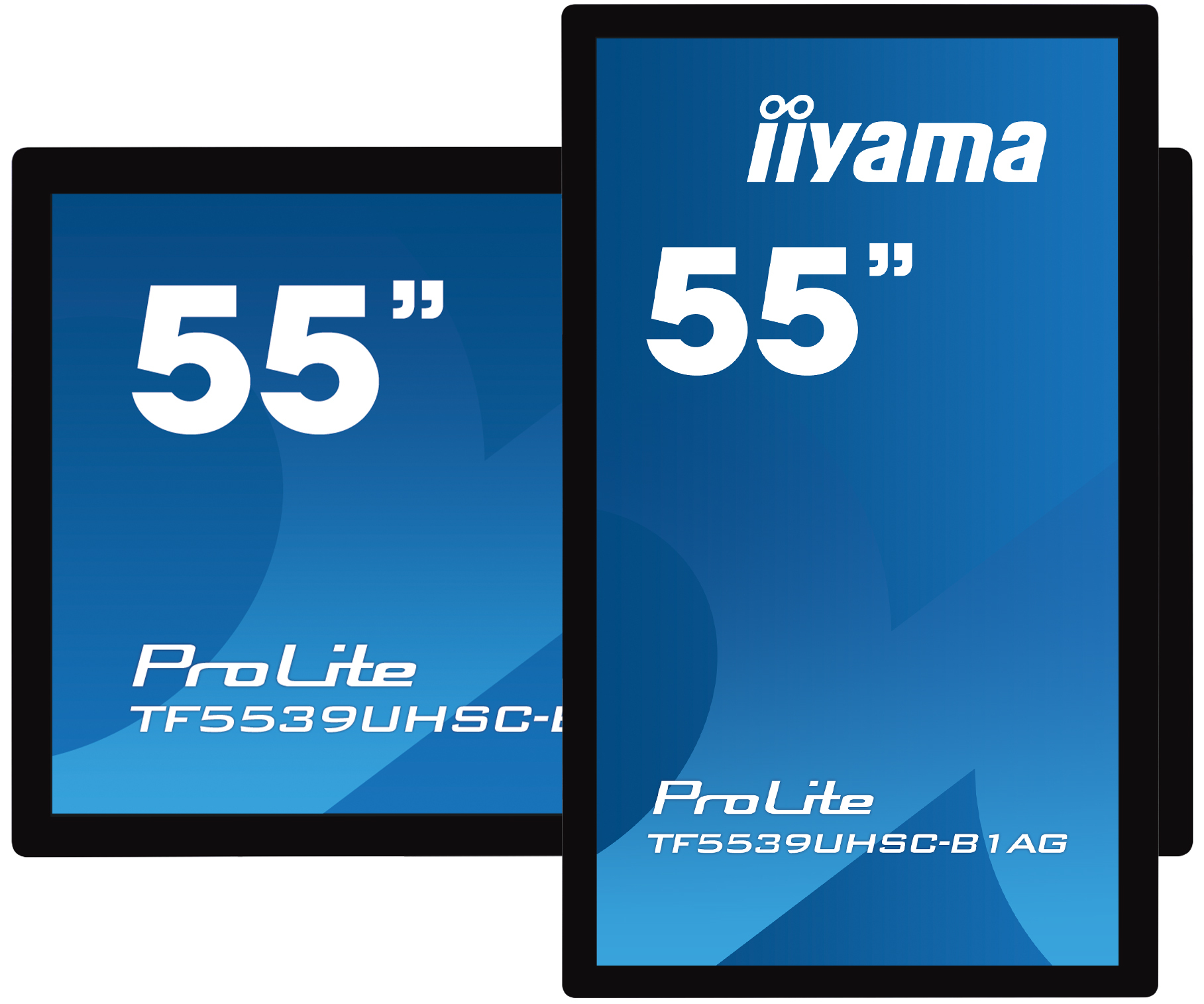

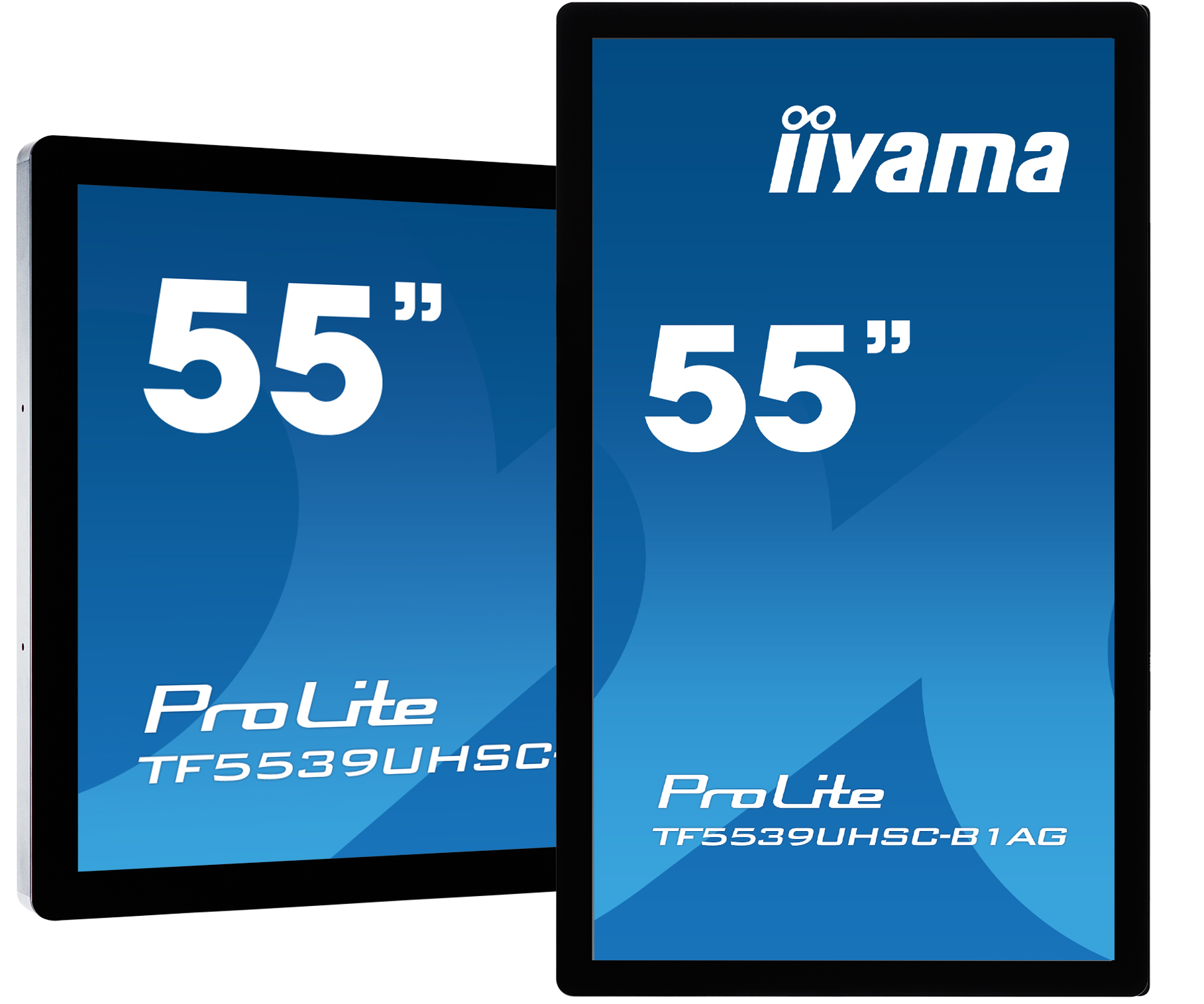

55" Open Frame PCAP interactive large format display with 15pt touch capability, IPS panel technology and touch through glass function for landscape, portrait or face up use

Trade Prices

Distributor Product SKU Stock Updated Price
Mentor (IE)

ProLite TF5539UHSC-B1AG 55" Open Frame IPS 15pt PCAP IPS 4K Touch Screen with Anti Glare

 TF5539UHSC-B1AG Register free see stock
Mentor (UK)

- 55' Open Frame PCAP touch

 TF5539UHSC-B1AG

Retail Prices

Merchant Product Condition Updated Price
Amazon New £3,122.00
Amazon New £2,730.00
Amazon New £2,784.60
Amazon New £2,784.60
Amazon New £3,122.00
Amazon New £2,730.00

Reasons To Buy

IPS Technology

IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

Touch through-glass

This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

Touch technology - Capacitive

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

AG Coating

The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

24/7

24/7 displays are designed for a continuous operation.

Description

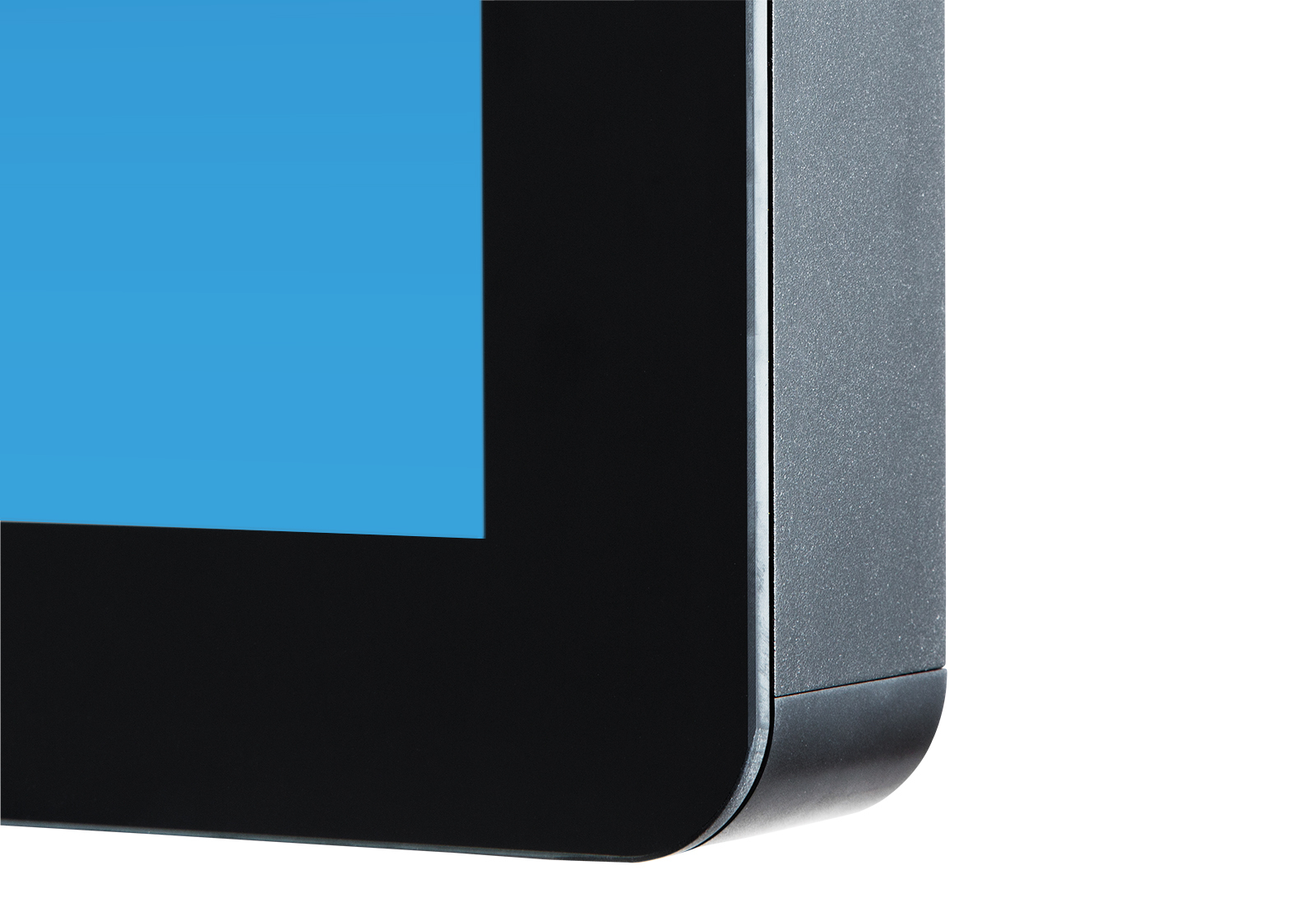

The 4K UHD (3840x2160) Open Frame TF5539UHSC-B1AG with Touch-Through-Glass function guarantees a seamless and accurate touch response for true kiosk integration or interactive behind-glass-retail applications. The IPS panel technology offers exceptional colour performance and wide viewing angles, making it a perfect solution for interactive shop windows, education, kiosks and in-store communications. Featuring a metal housing with 60950-1 ball-drop proof, scratch-resistant and edge-to-edge glass, this display can be installed in the most demanding environments for an 24/7 usage and in different set-ups as a result of its Open Frame side mounting holes. For ease of integration, the TF5539UHSC-B1AG can be equipped with optional external mounting brackets ( OMK4-2 ) making it an ideal solution for kiosk integrators and interactive multimedia.

Specifications

Display
Panel typeIPS
Display number of colours1.073 billion colours
Number of simultaneous touchpoints15
TouchscreenYes
Display technologyLED
Display diagonal139.7 cm (55")
Display resolution3840 x 2160 pixels
Display brightness500 cd/m²
HD type4K Ultra HD
Response time8 ms
Contrast ratio (typical)1100:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Pixel pitch0.315 x 0.315 mm
Display diagonal (metric)139 cm
Native aspect ratio16:9
Horizontal scan range30 - 83 kHz
Maximum refresh rate60 Hz
Touchscreen technologyProjected capacitive system
Surface hardness7H
Native refresh rate60 Hz
Glass thickness4 mm
Ports & interfaces
DisplayPort version1.2
HDMI version1.4/2.0
RS-232CYes
Microphone inYes
DisplayPorts quantity1
HDMI ports quantity2
Ethernet LAN (RJ-45) ports1
Audio
RMS rated power16 W
Built-in speaker(s)Yes
Design
Placement supportedHorizontal/Vertical
Housing materialMetal
Product colourBlack
Panel mounting interface600 x 400 mm
CertificationCB, CE, EAC, RoHS, ErP, WEEE, cULus, REACH
VESA mountingYes
Screen shapeFlat
Wall mountableYes
Performance
International Protection (IP) codeIP54
Mean time between failures (MTBF)50000 h
On Screen Display (OSD) languagesGerman, Dutch, English, Spanish, French, Italian, Polish, Russian
On Screen Display (OSD)Yes
Number of OSD languages8
HDCPYes
Power
Power consumption (off)0.3 W
Power consumption (typical)155 W
Power consumption (standby)0.5 W
AC input voltage100-240 V
AC input frequency50 - 60 Hz
Energy efficiency scaleA to G
Energy efficiency class (SDR)G
Energy efficiency class (HDR)Not available
Energy consumption (SDR) per 1000 hours151 kWh
Packaging data
Package width1400 mm
Package depth245 mm
Package height930 mm
Package weight46.5 kg

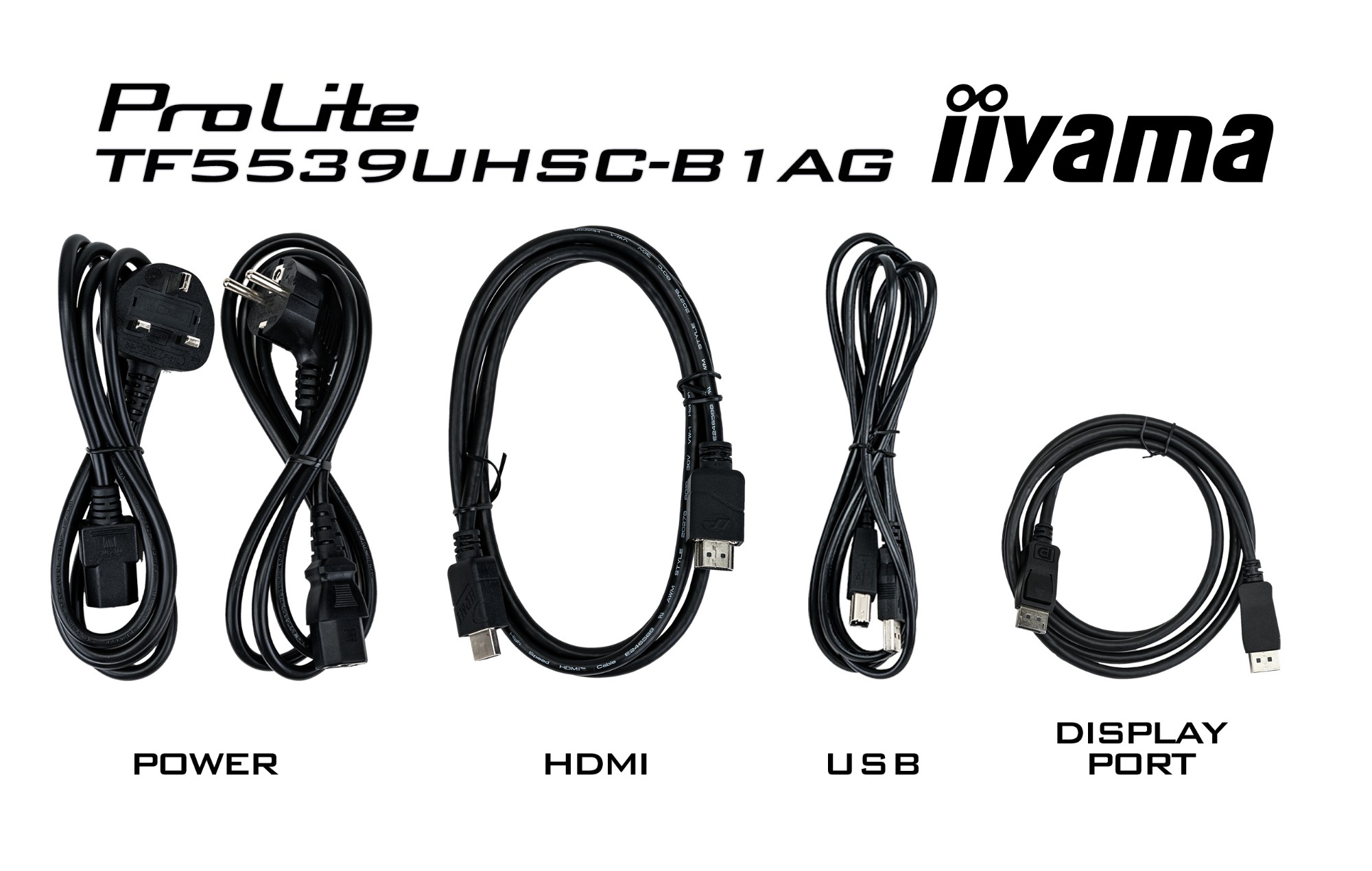

Cables includedAC, DisplayPort, HDMI, USB
Packaging content
Cables includedAC, DisplayPort, HDMI, USB
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Certificates
CertificationCB, CE, EAC, RoHS, ErP, WEEE, cULus, REACH
Technical details
VESA mountingYes
Power supply typeInternal
Panel typeIPS
DisplayPort version1.2
Depth (without stand)68 mm
Number of simultaneous touchpoints15
Weight (without stand)41 kg
Height (without stand)749.4 mm
Display viewable area (HxV)1209.6 x 680.4 mm
Compliance certificatesCE, REACH, RoHS, WEEE
Logistics data
Harmonized System (HS) code85285210
Sustainability
European Product Registry for Energy Labelling (EPREL) code431973
Features
Harmonized System (HS) code85285210
Wall mountableYes
Other features
Power supply typeInternal
Panel typeIPS
DisplayPort version1.2
Housing materialMetal
Depth (without stand)68 mm
Number of simultaneous touchpoints15
Weight (without stand)41 kg
Height (without stand)749.4 mm
Display viewable area (HxV)1209.6 x 680.4 mm
Microphone inYes
Mean time between failures (MTBF)50000 h
Display technologyLED
Built-in microphoneNo
Built-in cameraNo
Audio output1
Audio input1
Maximum refresh rate60 Hz
Energy efficiency scaleA to G
