iiyama TF3239MSC-B1AG Signage Display 80 cm (31.5") LED 500 cd/m² Full HD Black Touchscreen

iiyama TF3239MSC-B1AG Signage Display 80 cm (31.5") LED 500 cd/m² Full HD Black Touchscreen

  • Brand: iiyama
  • Category:
  • SKU: TF3239MSC-B1AG
  • EAN: 5715063110256 5715063707173
32" 12pt Open Frame PCAP interactive large format display

Trade Prices

Distributor Product SKU Stock Updated Price
Mentor (IE)

TF3239MSC 32" Open Frame Capacitive Touch Screen Black

 TF3239MSC-B1AG Register free see stock

Reasons To Buy

Touch technology - Capacitive

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

Touch through-glass

This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

Open frame LFD

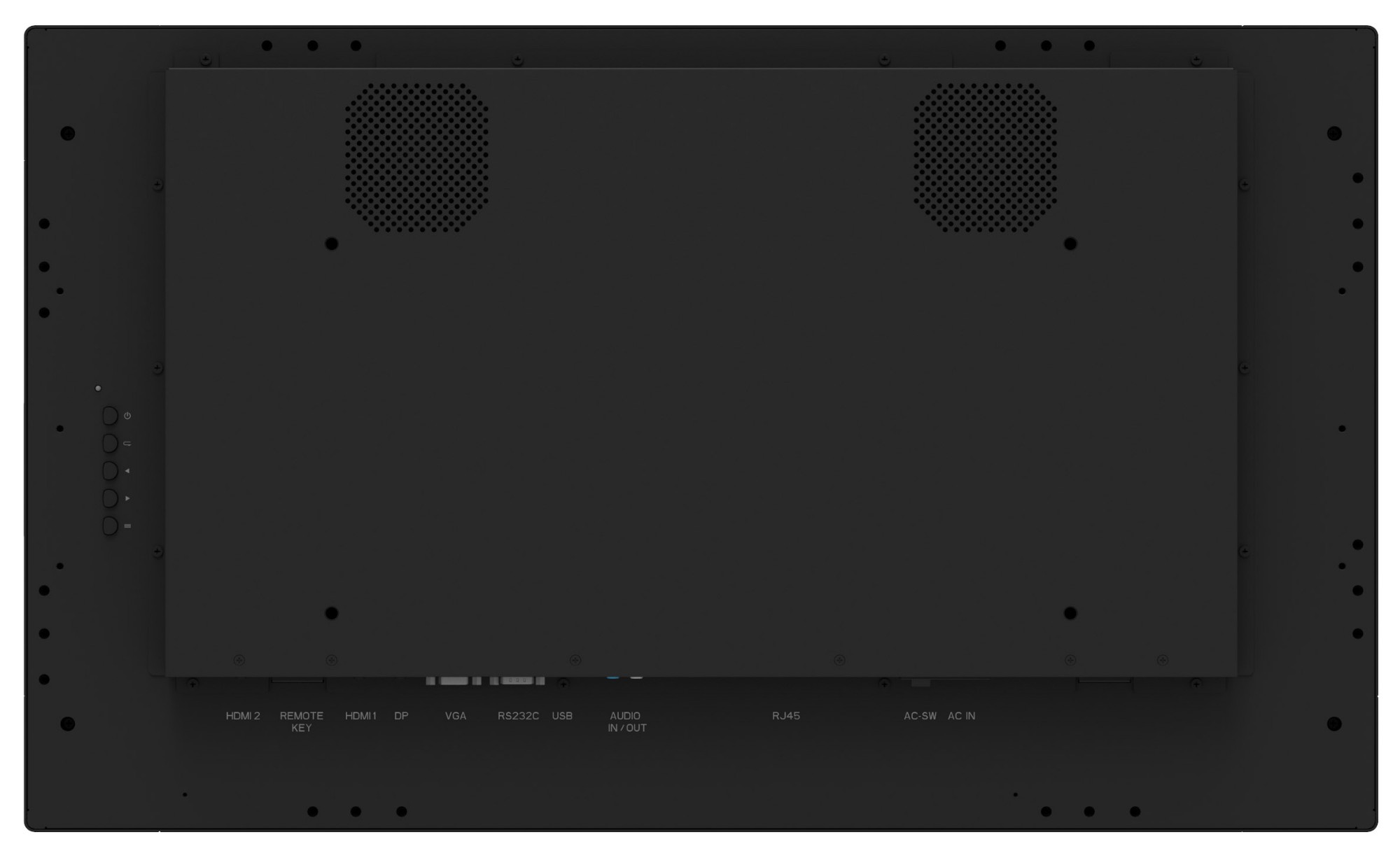

Open frame monitors feature special mounting screw holes on all sides of the monitor that can be used for installing the monitor. Open Frame monitors are an ideal solution for kiosk integrators and Instore Retail.

AG Coating

The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

24/7

24/7 displays are designed for a continuous operation.

Description

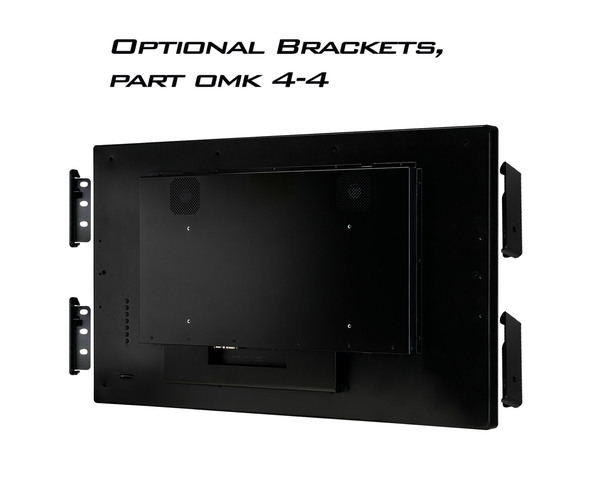

The Full HD (1920x1080) TF3239MSC Open Frame monitor with slim borders is the ideal display solution for interactive shop windows, education, kiosks and in-store communications. The Projective Capacitive (PCAP) touch technology with 12 touch points ensures a seamless and accurate touch response. Thanks to the touch-through-glass technology it’s possible to turn glass surfaces into touchscreens. It can be installed in landscape, portrait and face-up orientation for maximum flexibility and accessibility. With its AMVA3 LED panel, it offers exceptional colour performance, high contrast and wide viewing angles. Featuring a metal housing with a 60950-1 ball-drop proof, scratch-resistant, edge-to-edge glass, this display can be installed in the most demanding environments and build in different set-ups as a result of its Open Frame side mounting holes. For ease of integration, the TF3239MSC can be equipped with optional external mounting brackets ( OMK4-4 ) making it an ideal solution for kiosk integrators and interactive multimedia.

Specifications

Display
LED backlightYes
Panel typeAMVA3
Display number of colours16.78 million colours
Number of simultaneous touchpoints12
TouchscreenYes
Display technologyLED
Display diagonal80 cm (31.5")
Display resolution1920 x 1080 pixels
Display brightness500 cd/m²
HD typeFull HD
Response time8 ms
Contrast ratio (typical)3000:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Pixel pitch0.3637 x 0.3637 mm
Display diagonal (metric)80 cm
Native aspect ratio16:9
Maximum refresh rate60 Hz
Touchscreen technologyProjected capacitive system
Native refresh rate60 Hz
Glass thickness2 mm

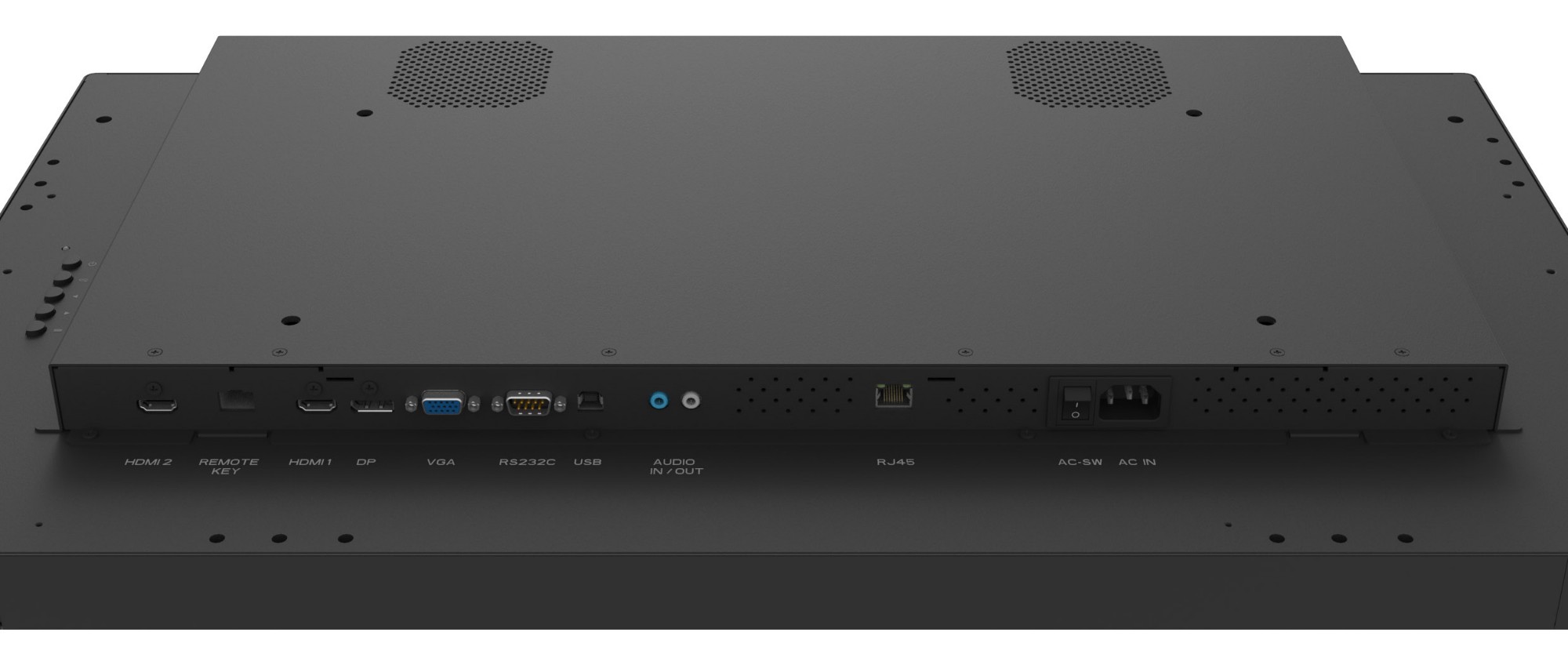

Ports & interfaces
RS-232CYes
DisplayPorts quantity1
Ethernet LANNo
HDMI ports quantity2
DVI portNo
Ethernet LAN (RJ-45) ports1
Audio
RMS rated power16 W
Built-in speaker(s)Yes
Design
Housing materialMetal
Product colourBlack
Panel mounting interface400 x 200 mm
CertificationCB, CE, EAC, RoHS, ErP, WEEE, cULus, REACH
VESA mountingYes
Screen shapeFlat
Wall mountableYes
Performance
International Protection (IP) codeIP54
Mean time between failures (MTBF)50000 h
On Screen Display (OSD) languagesGerman, Dutch, English, Spanish, French, Italian, Polish, Russian
On Screen Display (OSD)Yes
Number of OSD languages8
HDCPYes
Plug and PlayYes
Power
Power consumption (off)0.3 W
Power consumption (typical)60 W
Power consumption (standby)0.5 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Energy efficiency scaleA to G
Energy efficiency class (SDR)G
Energy efficiency class (HDR)Not available
Energy consumption (SDR) per 1000 hours55 kWh
Packaging data
Package width187 mm
Package depth590 mm
Package height900 mm
Package weight17.2 kg

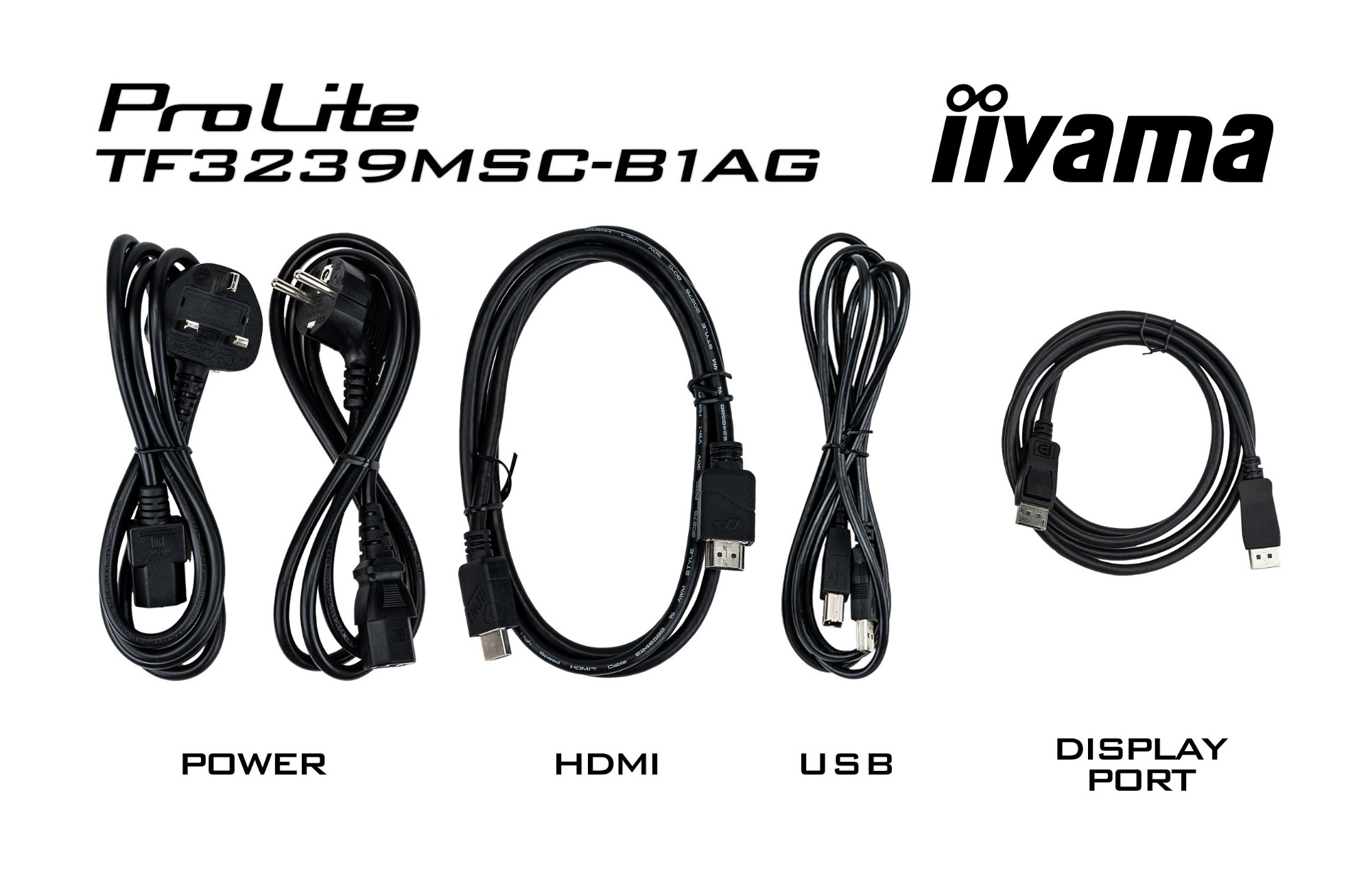

Cables includedAC, DisplayPort, HDMI, USB
Packaging content
Cables includedAC, DisplayPort, HDMI, USB
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Certificates
CertificationCB, CE, EAC, RoHS, ErP, WEEE, cULus, REACH
Technical details
VESA mountingYes
Power supply typeInternal
Panel typeAMVA3
Depth (without stand)67 mm
Number of simultaneous touchpoints12
Weight (without stand)13.8 kg
Height (without stand)439.9 mm
Sustainability complianceYes
Compliance certificatesCE, REACH, RoHS
Network
Ethernet LANNo
Logistics data
Harmonized System (HS) code85285210
Sustainability
European Product Registry for Energy Labelling (EPREL) code396170
Features
Harmonized System (HS) code85285210
Wall mountableYes
Other features
Power supply typeInternal
Panel typeAMVA3
Housing materialMetal
Depth (without stand)67 mm
Number of simultaneous touchpoints12
Weight (without stand)13.8 kg
Height (without stand)439.9 mm
Viewable size, vertical39.3 cm
Viewable size, horizontal69.8 cm
Mean time between failures (MTBF)50000 h
LED indicatorsYes
Display technologyLED
Digital vertical frequency50 - 76 Hz
Digital horizontal frequency30 - 83 kHz
Built-in microphoneNo
Built-in cameraNo
Audio output1
Audio input1
Plug and PlayYes
Maximum refresh rate60 Hz
Energy efficiency scaleA to G
