DrayTek VigorAP 912C 866 Mbit/s White Power over Ethernet (PoE)

DrayTek VigorAP 912C 866 Mbit/s White Power over Ethernet (PoE)

Ceiling Mesh Wireless 802.11ac Range Extender & Access Point, white

Trade Prices

Distributor Product SKU Stock Updated Price
Cables Direct

Ceilingmount Wireless Access Point

VAP912C-K Register free see stock
CMS Distribution

VigorAP912C WLAN Access Point

246704
CMS Distribution (Ireland)

VigorAP912C WLAN Access Point

000000000000246704
Habitech

AP912C Wi-Fi 5 Ceiling Mounted Dual Band, Mesh Access Point

DRA-AP912C
Midwich

VAP912C-K

DRAYVAP912CK
Nimans

VIGOR AP 912C ACCESS POINT

66830
ProVu

Vigor AP 912C Access Point (Supersedes AP910c)

VigorAP912C
Servers Plus

VAP912C-K VigorAP 912C Wireless 5 AC1200 Ceiling Mounted Mesh Access Point

NPDRA-VAP912C
SquareOne Ireland

VAP912C-K

DRAYVAP912CK
Target Components

VAP912C-K VigorAP 912C Wireless 5 AC1200 Ceiling Mounted Mesh Access Point

NPDRA-VAP912C
Alternative Suppliers
Buy IT Direct

VigorAP 912C 866 Mbit/s White PoE Wireless Access Point

1501404 Register free see stock
ECPROF

VigorAP912C WLAN Access Point

VAP912C-K
Memory Bank

VIGOR AP 912C ACCESS POINT

NS66830

Retail Prices

Merchant Product Condition Updated Price
Amazon New 10994 hours ago £111.20
Amazon New 10994 hours ago £96.00
Amazon New 10994 hours ago £108.22
Amazon New 10994 hours ago £121.99
Amazon New 10994 hours ago £106.39
Amazon New 10994 hours ago £108.83
Amazon New 10994 hours ago £108.00
Amazon New 10994 hours ago £96.00
Amazon New 10994 hours ago £114.18
Amazon New 10994 hours ago £190.00
Amazon New 10994 hours ago £120.12
Amazon New 10994 hours ago £137.24
Amazon New 10994 hours ago £108.07
Amazon New 10994 hours ago £105.99
Amazon New 10994 hours ago £97.39

Description

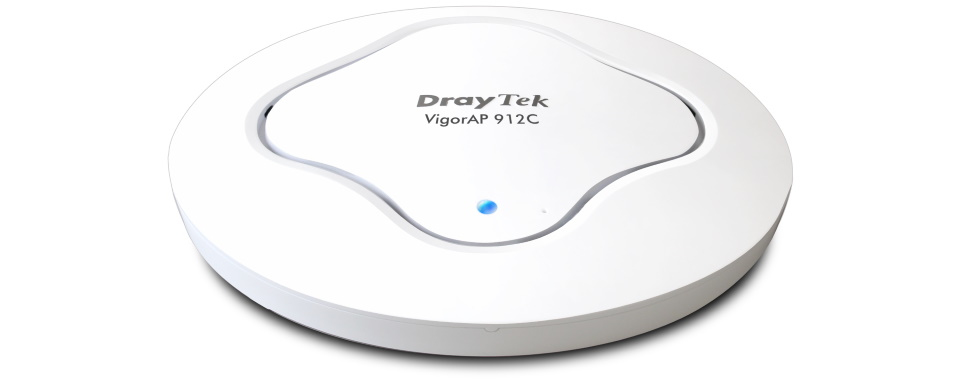

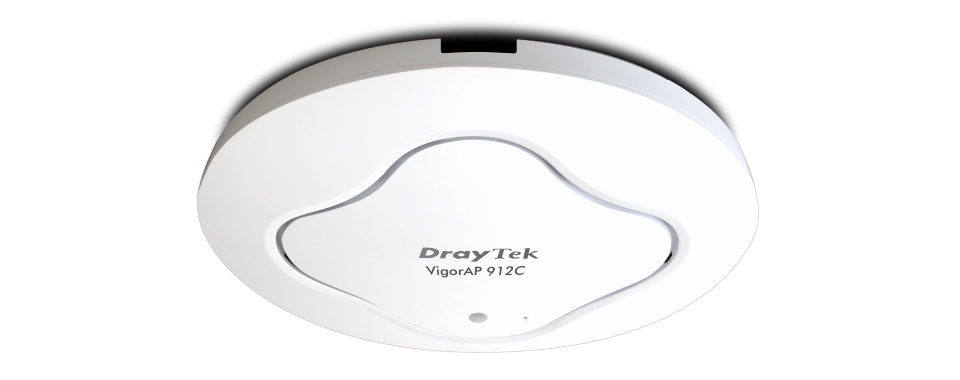

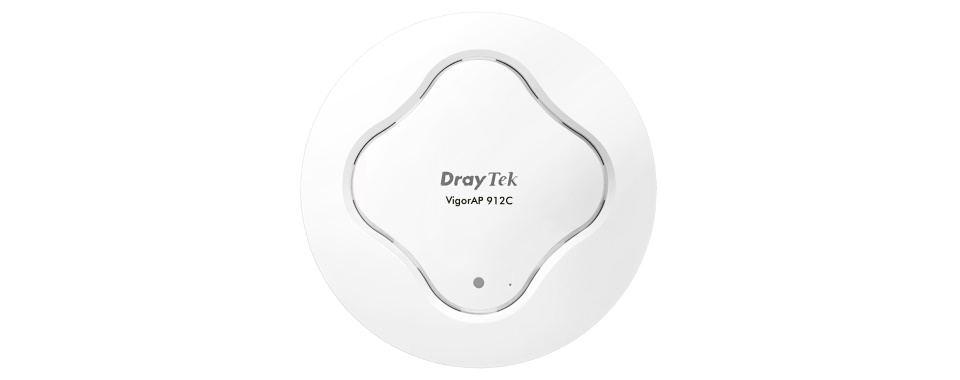

VigorAP 912C is a high-performance Mesh Wireless solution, designed to expand the wireless coverage, eliminate Wi-Fi dead zones and significantly reduce the cost of network deployments. It can also be used as a traditional access point either managed or stand alone so has the flexibility to be used how you need it.

The VigorAP 912C is a dual-band 802.11ac Wave 2 Mesh Wireless solution, designed to eliminate wireless drop outs, stuttering videos, slow download speeds, poor signal and Wi-Fi dead zones. One access point acts as the controller (Mesh root) and in total up to 8 access points create an easy to manage wireless mesh. Extend coverage without running expensive cabling.

Initial setup of the VigorAP 912C is easy with the DrayTek Wireless app, whether it's creating a new Mesh network or being set up in AP and Range Extender modes, the Quick Start Wizard assists throughout.

Manage the VigorAP 912C centrally through the VigorACS central management platform, VigorConnect, Router AP Management, or simply on its own as a stand-alone access point. The VigorAP 912C has the flexibility to be used how you need it.

Specifications

Data transmission
Maximum data transfer rate866 Mbit/s
Performance
2.4 GHzYes
5 GHzYes
Wireless isolationYes
Wi-Fi Multimedia (WMM)/(WME)Yes
SyslogYes
Reset buttonYes
Firmware upgradeableYes
Web-based managementYes
VLAN supportYes
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Channels quantity3 channels
Maximum data transfer rate866 Mbit/s
MIMO typeMulti User MIMO
MIMOYes
Wireless LAN features
Channels quantity3 channels
Network
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Security
Cable lock slotYes
IP address filteringYes
Security algorithmsHTTPS, WEP, WPA, WPA2, WPA3
MAC address filteringYes
Service Set Identifier (SSID) featuresHidden SSID, Multiple SSIDs
Management features
VLAN supportYes
SyslogYes
Firmware upgradeableYes
Web-based managementYes
Local AP managementTelnet
Command-line interface (CLI)Yes
Features
2.4 GHzYes
5 GHzYes
Wireless isolationYes
Wi-Fi Multimedia (WMM)/(WME)Yes
VLAN supportYes
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Channels quantity3 channels
Maximum data transfer rate866 Mbit/s
MIMO typeMulti User MIMO
MIMOYes
Maximum data transfer rate (2.4 GHz)300 Mbit/s
Maximum data transfer rate (5 GHz)866 Mbit/s
WLAN channel featuresWLAN channel management
Protocols
DHCP serverYes
DHCP clientYes

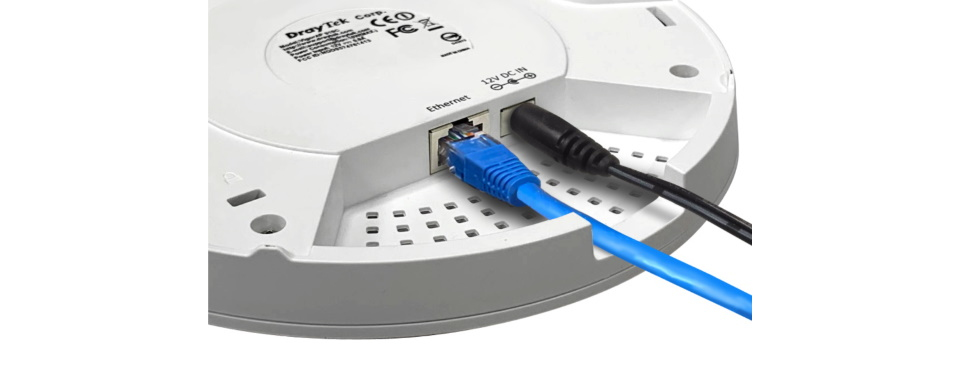

Ports & interfaces
Internal RJ-45 ports quantity1
Ethernet LAN (RJ-45) ports1
Power
Power consumption (max)10 W
Output voltage12 V
Power over Ethernet (PoE)Yes
AC input voltage100 - 240 V
Design
PlacementCeiling, Wall
Product colourWhite
Reset buttonYes
Cable lock slotYes
Technical details
Reset buttonYes
Firmware upgradeableYes
Harmonized System (HS) code85176990
Compliance certificatesRoHS
Software
Local AP managementTelnet
Weight & dimensions
Width162 mm
Weight300 g
Height42 mm
Packaging data
Quick start guideYes
Mounting kitYes
Cables includedLAN (RJ-45)
AC adapter includedYes
Packaging content
Quick start guideYes
Mounting kitYes
Cables includedLAN (RJ-45)
AC adapter includedYes
Operational conditions
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 45 °C
Logistics data
Quantity per pack1 pc(s)
Harmonized System (HS) code85176990
