iiyama TF1215MC-B1 computer monitor 30.7 cm (12.1") 1024 x 768 pixels LCD Touchscreen Black

iiyama TF1215MC-B1 computer monitor 30.7 cm (12.1") 1024 x 768 pixels LCD Touchscreen Black

  • Brand: iiyama
  • Category:
  • SKU: TF1215MC-B1
  • EAN: 4948570118007
12.1’’ PCAP 10pt touchscreen solution for pick-up points

Trade Prices

Distributor Product SKU Stock Updated Price
CMS Distribution (Ireland)

TF1215MC-B1 12.1" BLK Touch

 000000000000261674 Register free see stock
Ingram Micro

12.1IN 1024X768 16:9 25MS

View on Xvantage open_in_new 		CA61000
Mentor (IE)

ProLite TF1215MC-B1 12.1" IPS Touch Screen Monitor

 TF1215MC-B1
Mentor (UK)

- 12.1' PCAP 10pt touchscreen

 TF1215MC-B1
TD Synnex UK

ProLite TF1215MC-B1 - LED monitor - 12.1" - open frame - touchscreen - 1024 x 768 - IPS - 540 cd/m? - 1000:1 - 25 ms - HDMI, VGA, DisplayPort - black

View on InTouch open_in_new 		6194584
EET

ProLite TF1215MC-B1 touch

 TF1215MC-B1
Fourcom

ProLite TF1215MC-B1 - LED-Skærm

 231805
Ingram Micro CS

12.1IN 1024X768 16:9 25MS

 CA61000
Jarltech

ProLite TF1215MC-B1, 30.5 cm (12''), Projected Capacitive, 10 TP, kit (USB), black

 iiytf1215mc
SYNAXON

ProLite TF1215MC-B1 - LED monitor - 12.1

 STD10219894
Alternative Suppliers
ECPROF

12.1' PCAP 10pt touchscreen

 TF1215MC-B1 Register free see stock

Retail Prices

Merchant Product Condition Updated Price
Amazon New £541.00
Amazon New £583.37
Amazon New £769.76

Reasons To Buy

Touch Through-Glass

This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

Anti-fingerprint coating

This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.

Touch technology - Capacitive

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

Open frame brackets

This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.

Description

Built into a rugged, edge-to-edge glass bezel the ProLite TF1215MC-B1 guarantees high durability and scratch-resistance, making it perfect for high use semi-outdoor public facing applications. Landscape, portrait and face-up orientation ensure flexibility in any type of installation. It can operate in temperatures ranging from -20˚C-to 60˚C and is IP65 rated, resulting in dust and water resistance from the front making it a reliable solution for pick-up points and kiosks. For ease of integration, the TF1215MC-B1 can be equipped with optional external mounting brackets ( OMK3-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Specifications

Display
HDCPYes
Display brightness (typical)540 cd/m²
Screen shapeFlat
Display number of colours16.2 million colours
Native aspect ratio4:3
Display technologyLCD
Viewing angle, horizontal178°
Viewing angle, vertical178°
Pixel pitch0.24 x 0.24 mm
Horizontal scan range31.4 - 60 kHz
Vertical scan range56 - 75 Hz
Viewable size, horizontal24.6 cm
Viewable size, vertical18.4 cm
Display resolution1024 x 768 pixels
Response time25 ms
Display diagonal30.7 cm (12.1")
Contrast ratio (typical)1000:1
Surface hardness7H
TouchscreenYes
Number of simultaneous touchpoints10
Panel typeIPS
Display diagonal (metric)31 cm
Touch technologyMulti-touch
Touchscreen technologyProjected capacitive system
Display brightness540 cd/m²
Performance
Built-in cameraNo
AMD FreeSyncNo
NVIDIA G-SYNCNo
Windows operating systems supportedYes
Linux operating systems supportedYes
Management features
On Screen Display (OSD)Yes
Number of OSD languages7
On Screen Display (OSD) languagesSimplified Chinese, German, English, Spanish, French, Italian, Japanese
Plug and PlayYes
Multimedia
Built-in cameraNo
Design
CertificationCE, EAC, RoHS, ErP, WEEE, cULus, REACH
Product colourBlack
Front bezel colourBlack
International Protection (IP) codeIP65
Glass thickness3.15 mm
Camera
Built-in cameraNo

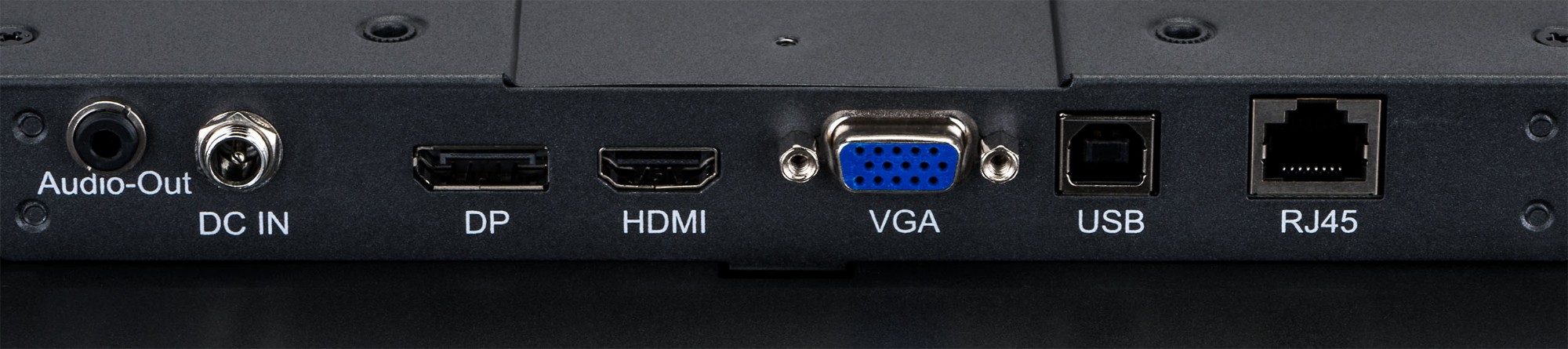

Ports & interfaces
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DisplayPorts quantity1
HDCPYes
Audio output1
HDMIYes
USB Touch portYes
Technical details
Height (without stand)248 mm
Depth (without stand)41.5 mm
Width (without stand)308.5 mm
HDMIYes
Display viewable area (HxV)245.8 x 184.3 mm
Product colourBlack
Front bezel colourBlack
Sustainability complianceYes
Sustainability certificatesErP
Compliance certificatesCE, RoHS
Power supply typeExternal
Weight (with stand)2.1 kg
Surface hardness7H
TouchscreenYes
Number of simultaneous touchpoints10
Software
Windows operating systems supportedYes
Linux operating systems supportedYes
Ergonomics
Wall mountableYes
VESA mountingYes
Panel mounting interface100 x 100 mm
LED indicatorsYes
On Screen Display (OSD)Yes
Number of OSD languages7
On Screen Display (OSD) languagesSimplified Chinese, German, English, Spanish, French, Italian, Japanese
Plug and PlayYes
Power
Power supply typeExternal
Power consumption (standby)0.55 W
Power consumption (typical)10 W
Power consumption (off)0.5 W
Energy efficiency scaleA to G
AC adapter output voltage12 V
Energy efficiency class (SDR)F
Energy consumption (SDR) per 1000 hours11 kWh
Operational conditions
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-20 - 60 °C
Weight & dimensions
Height (without stand)248 mm
Depth (without stand)41.5 mm
Width (without stand)308.5 mm
Width (with stand)308.5 mm
Depth (with stand)41.5 mm
Height (with stand)248 mm
Weight (with stand)2.1 kg
Weight (without stand)2.1 kg
Package width435 mm
Package depth435 mm
Package height355 mm
Package weight3.9 kg
Packaging data
Package width435 mm
Package depth435 mm
Package height355 mm
Package weight3.9 kg
Quick start guideYes
Cables includedAC, DisplayPort, HDMI, USB
Packaging content
Quick start guideYes
Cables includedAC, DisplayPort, HDMI, USB
Indication
LED indicatorsYes
Sustainability
Sustainability complianceYes
Sustainability certificatesErP
Other features
Display viewable area (HxV)245.8 x 184.3 mm
CertificationCE, EAC, RoHS, ErP, WEEE, cULus, REACH
International Protection (IP) codeIP65
Compliance certificatesCE, RoHS
Height (without stand)248 mm
Depth (without stand)41.5 mm
Width (without stand)308.5 mm
Quick start guideYes
HDMIYes
Surface hardness7H
Energy efficiency scaleA to G
Power supply typeExternal
TouchscreenYes
Number of simultaneous touchpoints10
Front bezel colourBlack
Certificates
CertificationCE, EAC, RoHS, ErP, WEEE, cULus, REACH
Logistics data
Harmonized System (HS) code85285210
