iiyama ProLite TF1615MC-B1 computer monitor 39.6 cm (15.6") 1920 x 1080 pixels Full HD Touchscreen Black

iiyama ProLite TF1615MC-B1 computer monitor 39.6 cm (15.6") 1920 x 1080 pixels Full HD Touchscreen Black

  • Brand: iiyama
  • Category:
  • SKU: TF1615MC-B1
  • EAN: 4948570121793
Open Frame PCAP 10 point touch screen equipped with touch through glass function

Trade Prices

Distributor Product SKU Stock Updated Price
CMS Distribution (Ireland)

TF1615MC-B1 15.6" Tch Screen

 000000000000330414 Register free see stock
Ingram Micro

PROLITE TF1615MC-B1 15.6IN PCAP

View on Xvantage open_in_new 		CG36307
Mentor (IE)

ProLite TF1615MC-B1 15.6" PCAP IP65 Anti Fingerprint Open Frame Touch Screen Display

 TF1615MC-B1
Mentor (UK)

- PROLITE TF1615MC-B1 Open Frame PCAP

 TF1615MC-B1
Midwich

16" ProLite TF1615MC-B1 Touch Screen Monitor

 IIYTF1615MCB1
SquareOne Ireland

16" ProLite TF1615MC-B1 Touch Screen Monitor

 IIYTF1615MCB1
DSM Distribution

ProLite TF1615MC-B1 - LED monitor - Full HD (1080p) - 15.6"

 IIYTF1615MCB1
EET

15,6" 16:9 PCAP 10P Touch

 TF1615MC-B1
Fourcom

39.5cm (15,6") TF1615MC-B1 16:

 457805
Ingram Micro CS

PROLITE TF1615MC-B1 15.6IN PCAP

 CG36307
Jarltech

ProLite TF1615MC-B1, 39.6 cm (15,6''), Projected Capacitive, 10 TP, Full HD, kit (USB), black

 iiy1615
Nimans

TF1615MC-B1

 79014
SYNAXON

ProLite TF1615MC-B1 computer monitor 39.6 cm (15.6') 1920 x 1080 pixels Full HD Touchscreen B

 STD10210120
Travion IT Distribution

ProLite 16 inch Touchscreen - Full HD - 1920x1080

 TF1615MCB1
Alternative Suppliers
ECPROF

EU Product - ProLite Open Frame PCAP 10 point touch screen equipped with touch through glass function - 39.6 cm (15.6) - 1920 x 1080 pixels - Full HD - 25 ms - Black

 TF1615MC-B1 Register free see stock
Memory Bank

TF1615MC-B1

 NS79014

Retail Prices

Merchant Product Condition Updated Price
Amazon New £408.53
Amazon New £476.72
Amazon New 12274 hours ago £508.21
Amazon New 12274 hours ago £399.82
Amazon New 12274 hours ago £405.85
Amazon New £434.50
Amazon New 12274 hours ago £423.07
Amazon New 12274 hours ago £628.45

Reasons To Buy

Touch Through-Glass

This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

Foam Seal

A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.

Touch technology - Capacitive

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

Anti-fingerprint coating

This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.

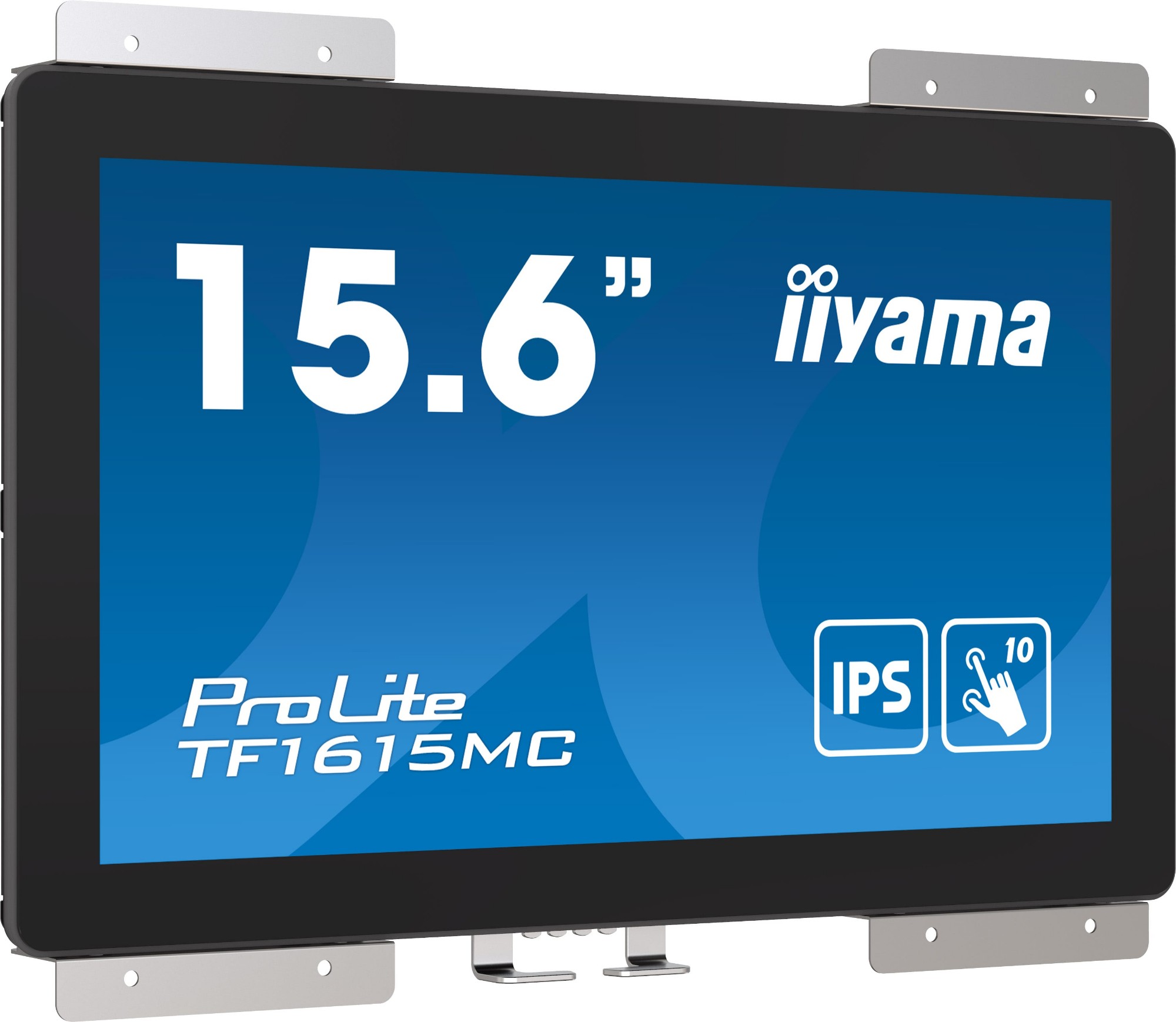

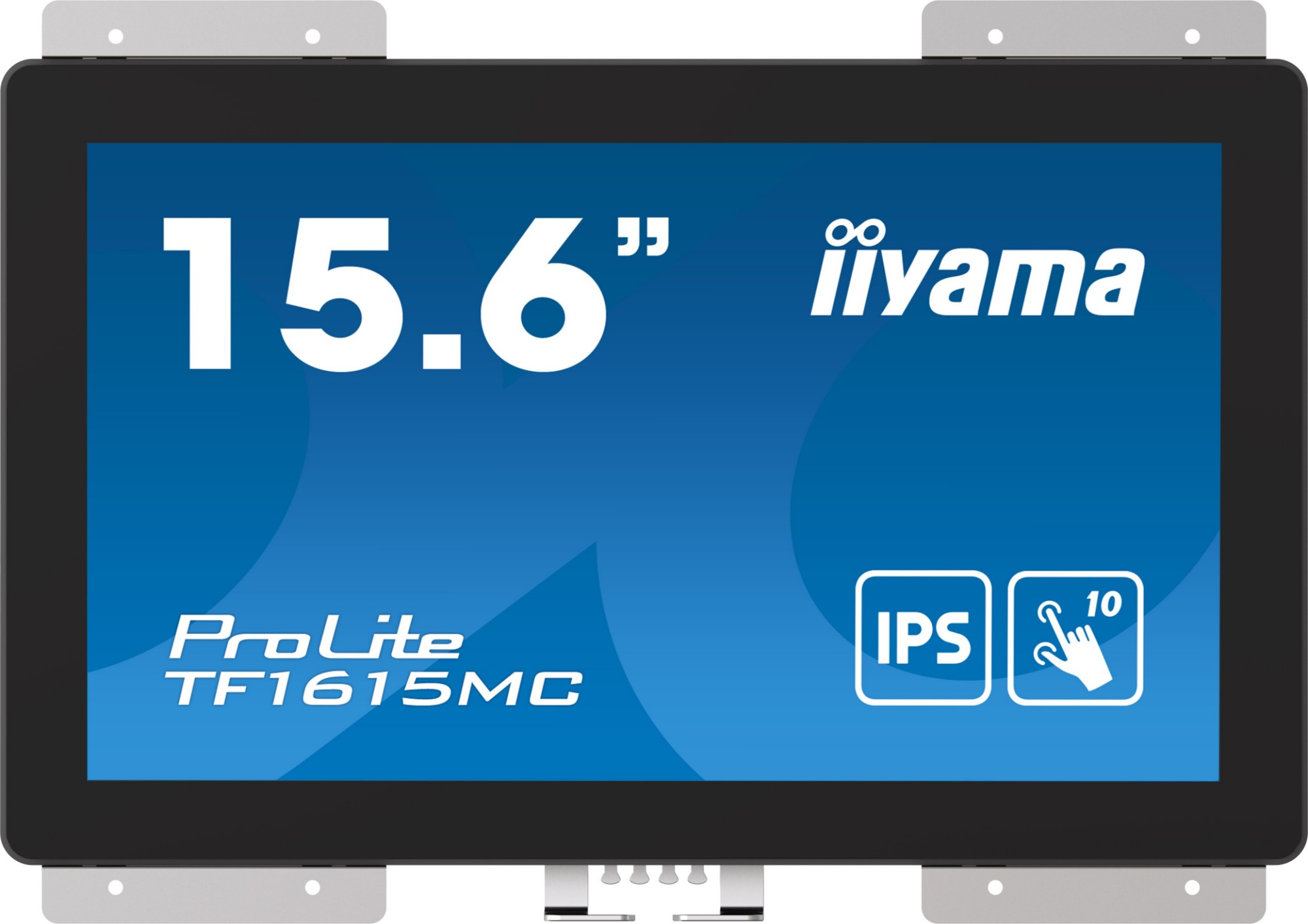

Open frame brackets

This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.

Description

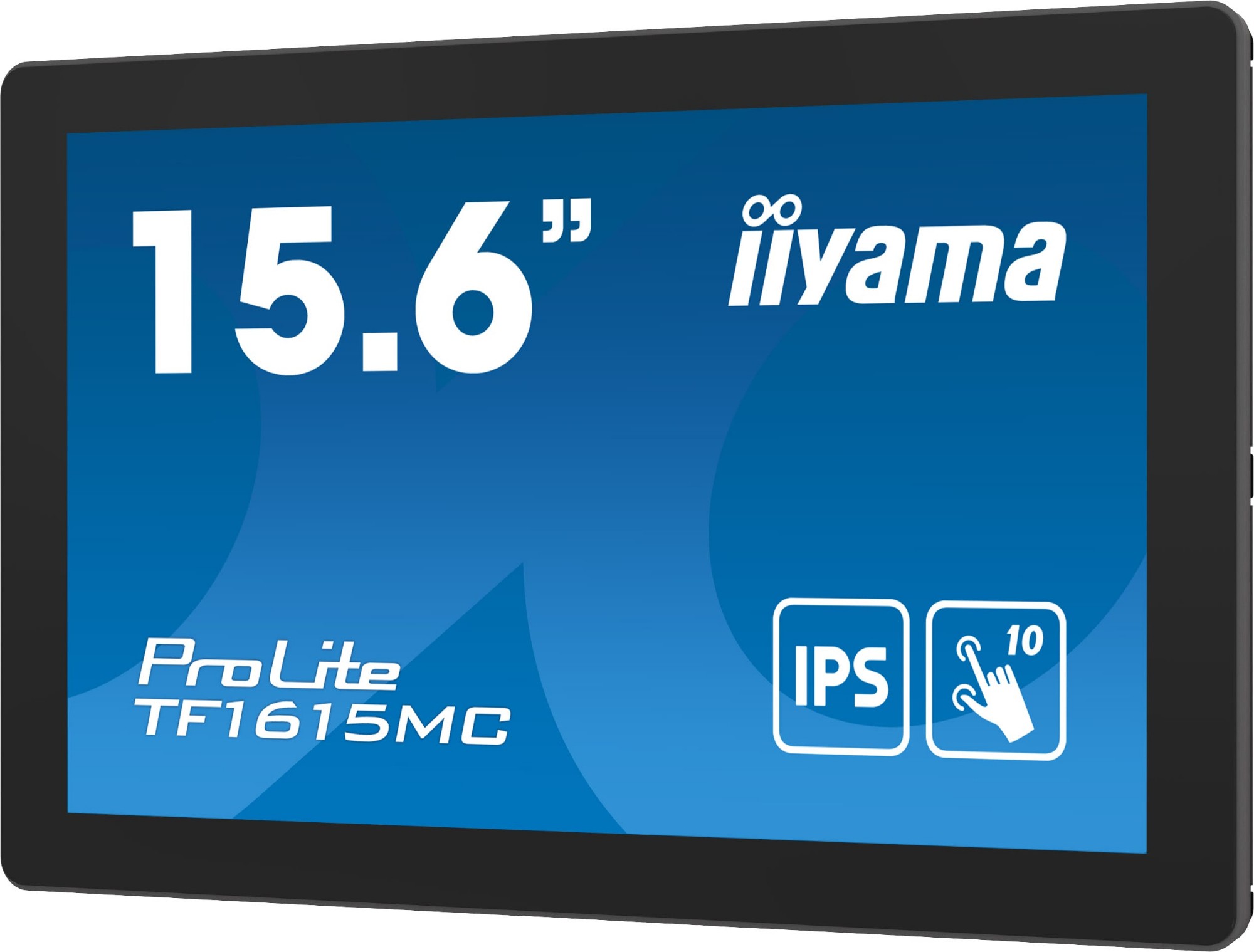

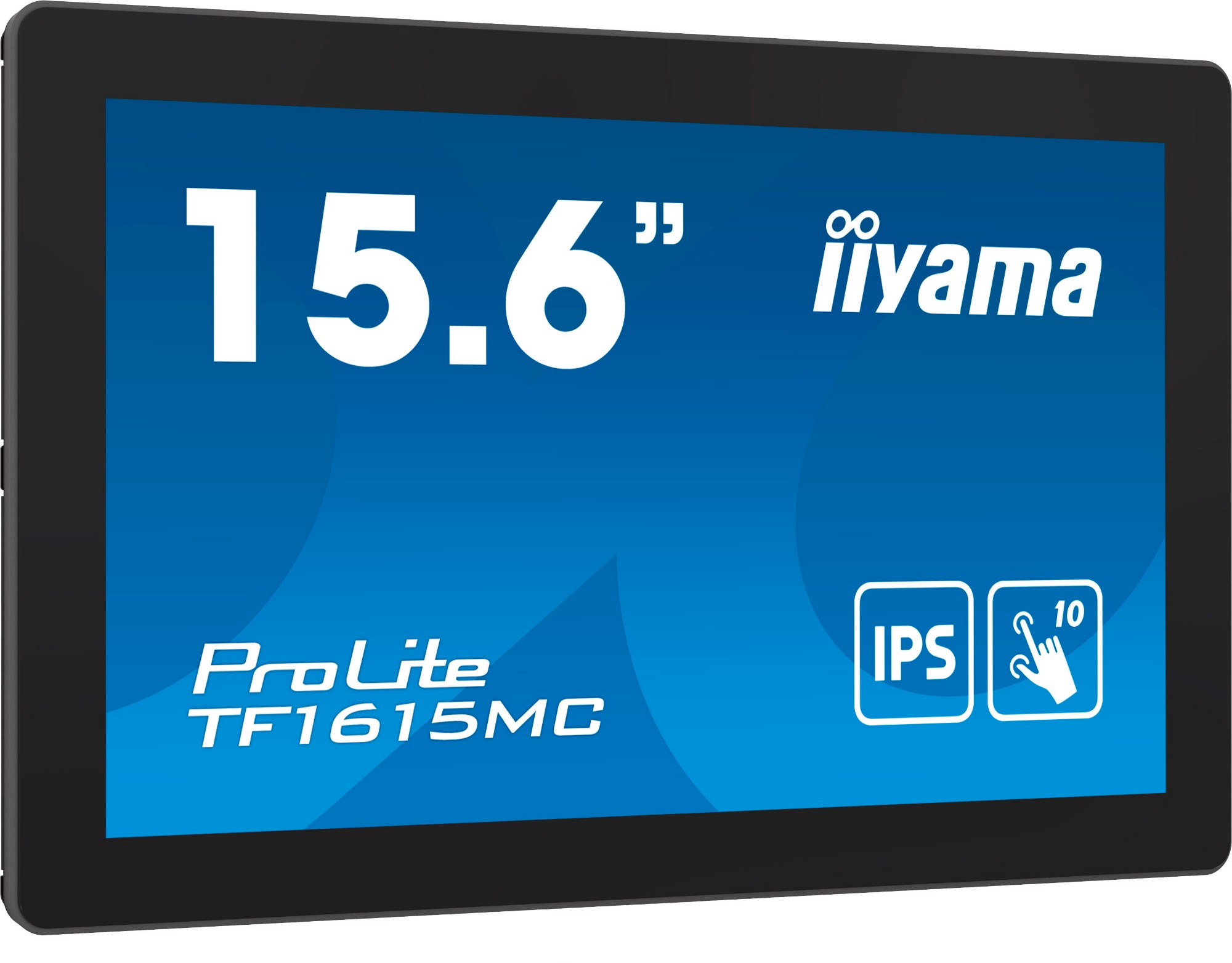

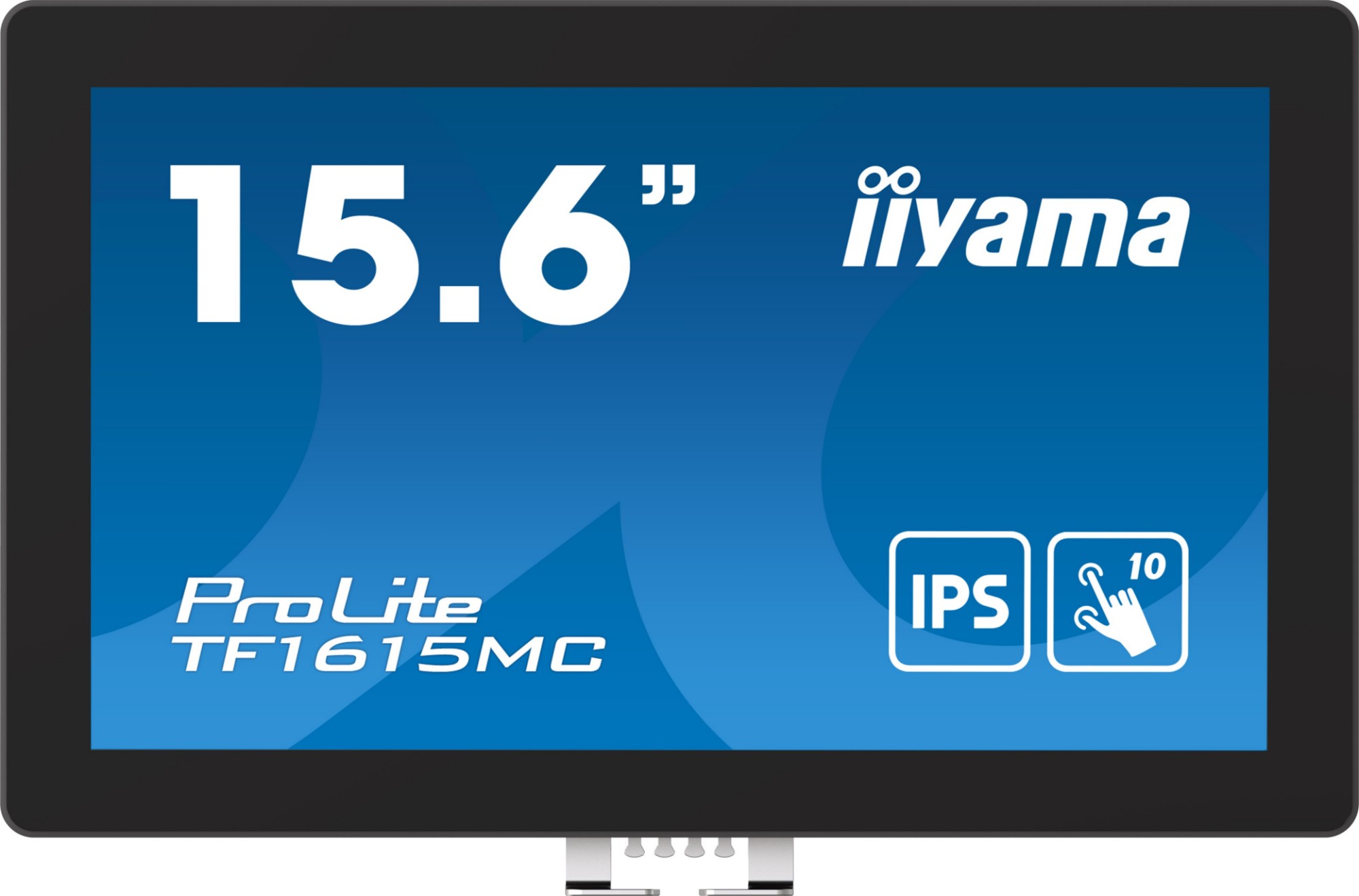

The ProLite TF1615MC-B1 (15.6 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the ProLite TF1615MC-B1 can be equipped with optional external mounting brackets ( OMK5-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Specifications

Display
HDCPYes
Display brightness (typical)450 cd/m²
Screen shapeFlat
Native aspect ratio16:9
HD typeFull HD
Viewing angle, horizontal178°
Viewing angle, vertical178°
Pixel pitch0.17925 x 0.17925 mm
Horizontal scan range31.5 - 67.5 kHz
Aspect ratio16:9
Viewable size, horizontal34.5 cm
Viewable size, vertical19.5 cm
Display resolution1920 x 1080 pixels
Response time25 ms
Display diagonal39.6 cm (15.6")
Contrast ratio (typical)1000:1
Surface hardness7H
Display brightness (peak)450 cd/m²
TouchscreenYes
Number of simultaneous touchpoints10
Panel typeIPS
Display diagonal (metric)39.5 cm
Touchscreen technologyProjected capacitive system
Performance
Mean time between failures (MTBF)50000 h
Management features
On Screen Display (OSD)Yes
On Screen Display (OSD) languagesGerman, English, Spanish, French, Italian, Japanese
Design
Market positioningBusiness
CertificationCE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Product colourBlack
Front bezel colourBlack
International Protection (IP) codeIP65
Mean time between failures (MTBF)50000 h

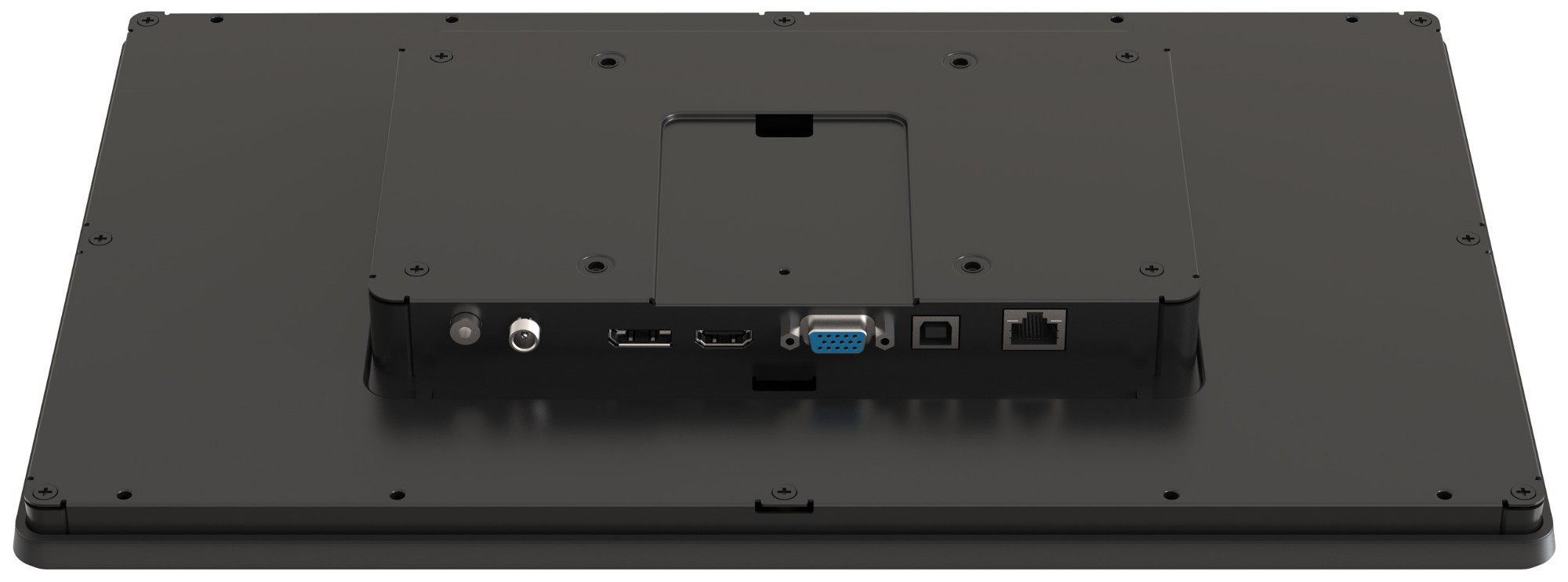

Ports & interfaces
Built-in USB hubYes
Headphone outYes
VGA (D-Sub) ports quantity1
DisplayPorts quantity1
HDCPYes
HDMIYes
USB Touch portYes
Technical details
Height (without stand)246 mm
Depth (without stand)42 mm
Width (without stand)398.5 mm
Mean time between failures (MTBF)50000 h
HDMIYes
Product colourBlack
Front bezel colourBlack
Power supply typeExternal
Weight (with stand)2.5 kg
Surface hardness7H
TouchscreenYes
Number of simultaneous touchpoints10
Ergonomics
VESA mountingYes
Panel mounting interface100 x 100 mm
On Screen Display (OSD)Yes
On Screen Display (OSD) languagesGerman, English, Spanish, French, Italian, Japanese
Power
Power supply typeExternal
Power consumption (standby)1.5 W
Power consumption (typical)18 W
Power consumption (off)0.3 W
Energy efficiency scaleA to G
AC adapter output voltage12 V
Energy efficiency class (SDR)E
Energy efficiency class (HDR)Not available
Energy consumption (SDR) per 1000 hours11 kWh
European Product Registry for Energy Labelling (EPREL) code1355204
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Weight & dimensions
Height (without stand)246 mm
Depth (without stand)42 mm
Width (without stand)398.5 mm
Width (with stand)398.5 mm
Depth (with stand)42 mm
Height (with stand)246 mm
Weight (with stand)2.5 kg
Weight (without stand)2.5 kg
Package width470 mm
Package depth470 mm
Package height145 mm
Package weight4.3 kg
Packaging data
Package width470 mm
Package depth470 mm
Package height145 mm
Package weight4.3 kg
Package typeBox
Quick start guideYes
Cables includedDC, DisplayPort, HDMI
Power adapter includedYes
Packaging content
Quick start guideYes
Cables includedDC, DisplayPort, HDMI
Power adapter includedYes
Sustainability
European Product Registry for Energy Labelling (EPREL) code1355204
Other features
Mean time between failures (MTBF)50000 h
CertificationCE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
International Protection (IP) codeIP65
Height (without stand)246 mm
Depth (without stand)42 mm
Width (without stand)398.5 mm
Quick start guideYes
HDMIYes
Surface hardness7H
Energy efficiency scaleA to G
Power supply typeExternal
Display brightness (peak)450 cd/m²
TouchscreenYes
Number of simultaneous touchpoints10
Package typeBox
Front bezel colourBlack
Certificates
CertificationCE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
