iiyama ProLite 15.6" PCAP 10 points multi-touch open frame monitor with edge-to-edge glass and IPS panel technology

iiyama ProLite 15.6" PCAP 10 points multi-touch open frame monitor with edge-to-edge glass and IPS panel technology

  • Brand: iiyama
  • Category:
  • SKU: TF1633MSC-B1
  • EAN: 4948570122530

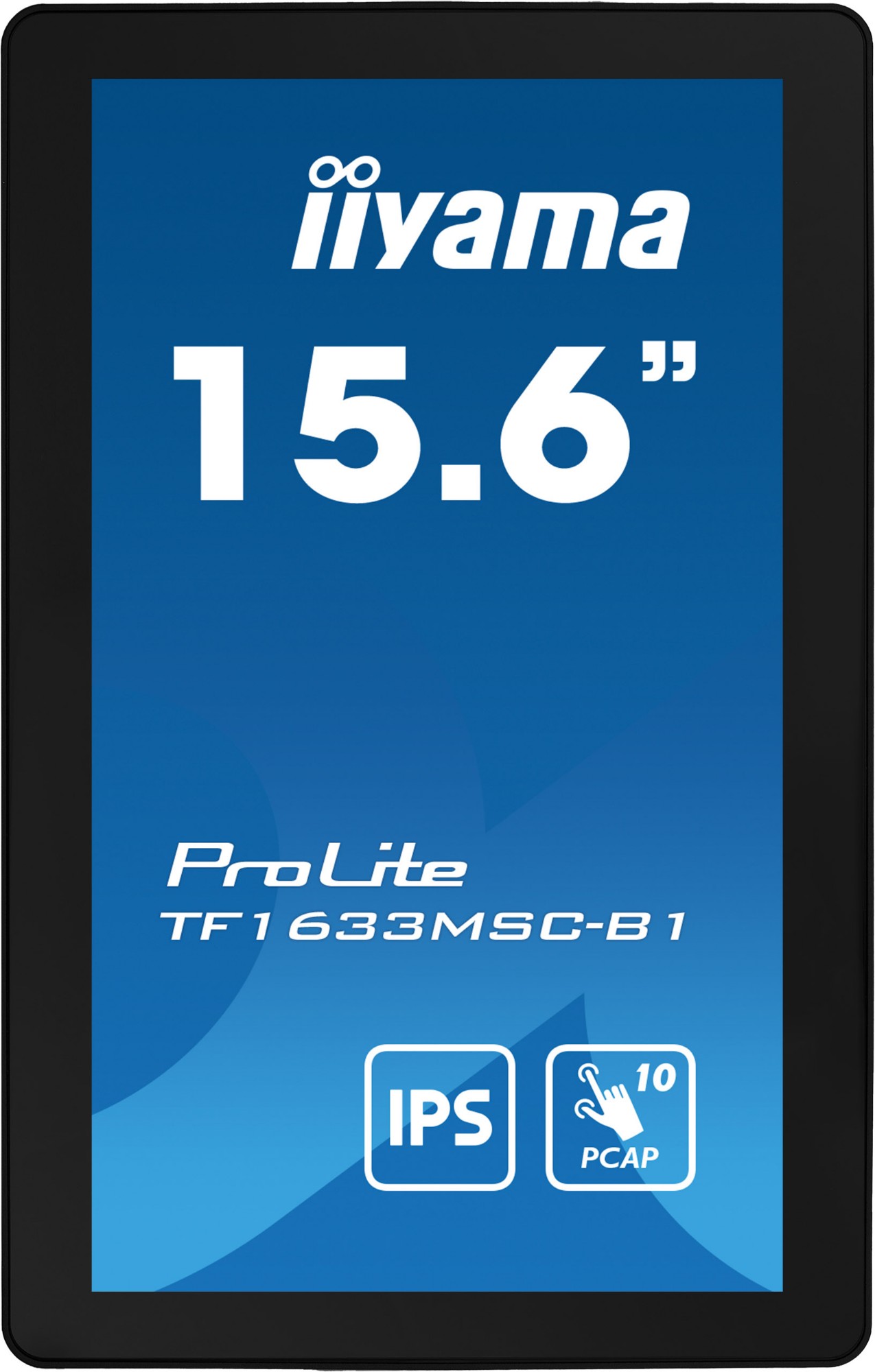

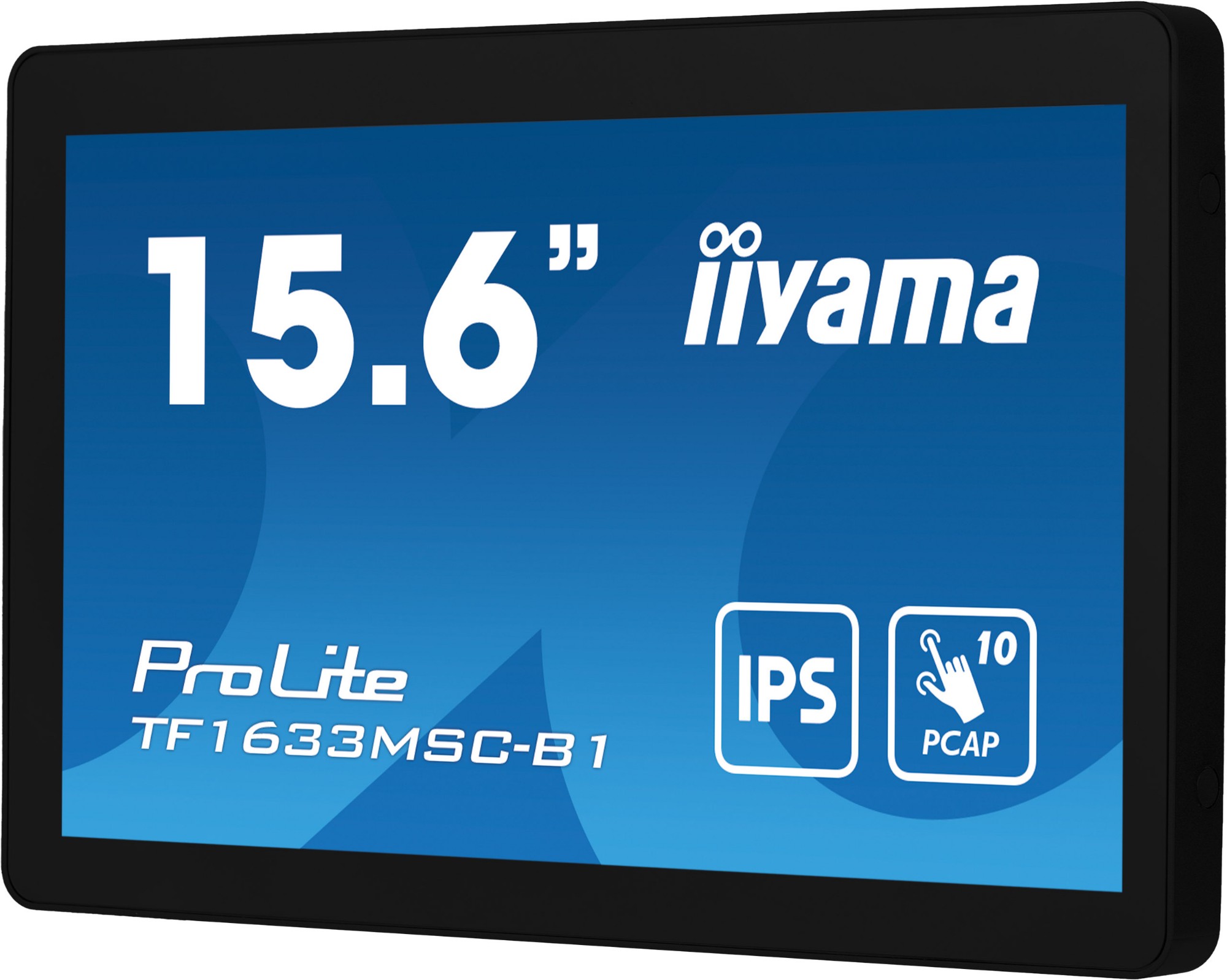

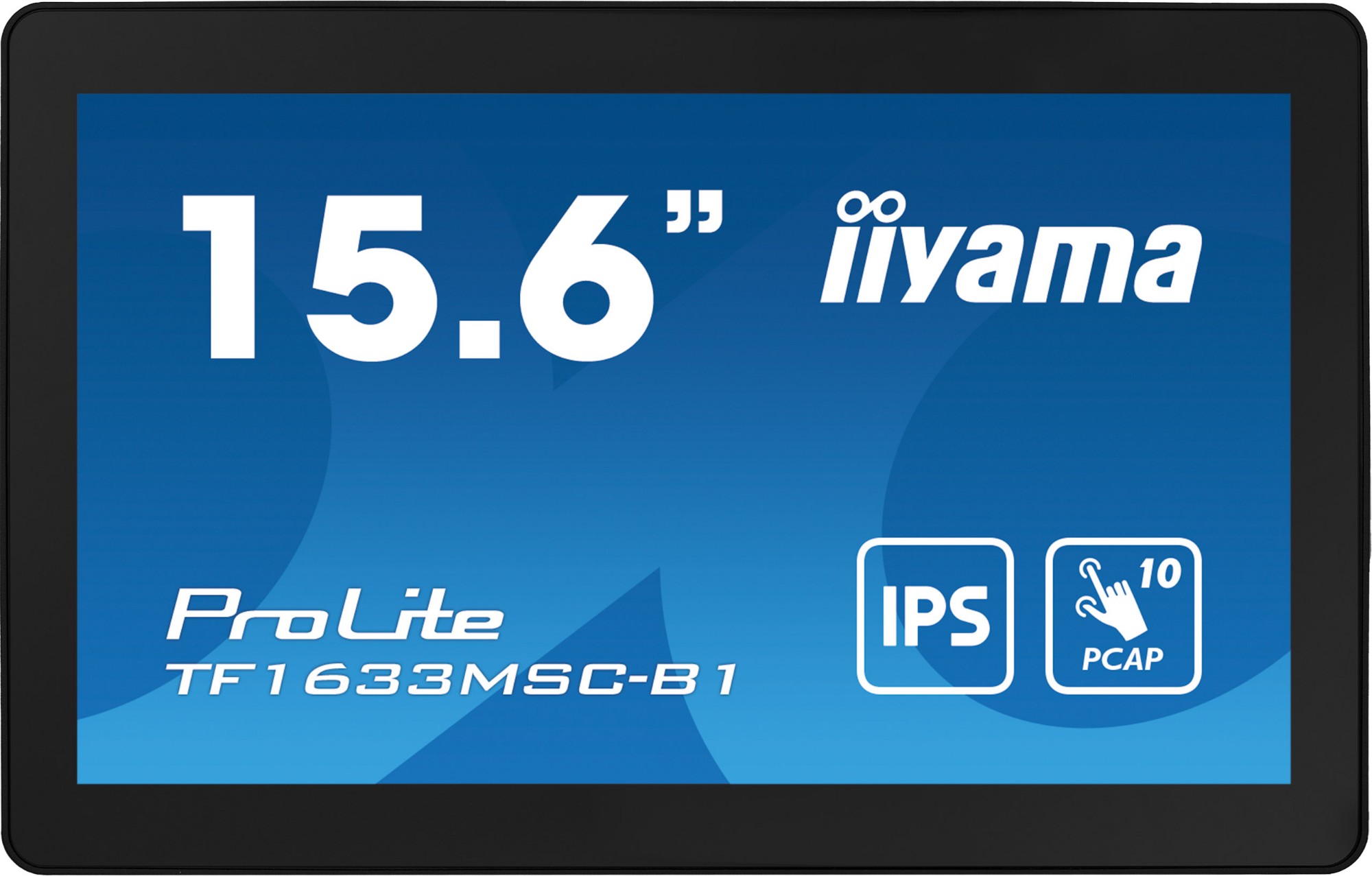

15.6" PCAP 10 points multi-touch open frame monitor with edge-to-edge glass and IPS panel technology

Trade Prices

Distributor Product SKU Stock Updated Price
CMS Distribution (Ireland)

TF1633MSC-B1 15.6"

 000000000000324519 Register free see stock
Ingram Micro

TF1633MSC-B1 15.6IN TOUCH PCAP

View on Xvantage open_in_new 		CI87010
Mentor (UK)

ProLite TF1633MSC-B1 15.6' PCAP Full HD Touch Screen Display

 TF1633MSC-B1
Midwich

15.6" PROLITE TF1633MSC-B1 Touch Monitor

 IIYTF1633MSCB1
SquareOne Ireland

15.6" PROLITE TF1633MSC-B1 Touch Monitor

 IIYTF1633MSCB1
TD Synnex UK

ProLite TF1633MSC-B1 - LED monitor - 15.6" - open frame - touchscreen - 1920 x 1080 Full HD (1080p) @ 60 Hz - IPS - 450 cd/m? - 1000:1 - 5 ms - HDMI, DisplayPort - speakers - black, matte finish

View on InTouch open_in_new 		8691845
DSM Distribution

ProLite TF1633MSC-B1 - LED monitor - Full HD (1080p) - 15.6"

 324519
EET

15,6" PCAP 10P Touch / Open

 TF1633MSC-B1
Ingram Micro CS

TF1633MSC-B1 15.6IN TOUCH PCAP

 CI87010
Jarltech

ProLite TF1633MSC-B1, 39.6 cm (15,6''), Projected Capacitive, Full HD, USB, kit (USB), black

 iiytf1633
Alternative Suppliers
ECPROF

EU Product - ProLite TF1633MSC-B1 15.6' PCAP Full HD Touch Screen Display

 TF1633MSC-B1 Register free see stock

Retail Prices

Merchant Product Condition Updated Price
Amazon New £429.15
Amazon New £562.81
Amazon New £429.15
Amazon New £429.14
Amazon New £417.14

Reasons To Buy

Touch technology - Capacitive

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

Scratch resistance

Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

IP54

The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.

LED-backlit

A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO 2 emission into the environment making this LCD a true ECO-Friendly product.

Description

The ProLite TF1633MSC-B1 uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. The screen guarantees high durability, scratch-resistance, clarity and a perfect picture performance. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The integrated cable management system hides all the cables. In addition to the superb image quality, the screen comes with an IP54 rating, which means the screen and bezel is dust and water resistant from the front. A perfect solution for kiosk integrators and Instore Retail.

Specifications

Display
HDCPYes
Display brightness (typical)450 cd/m²
Screen shapeFlat
Display number of colours16.7 million colours
Native aspect ratio16:9
DDC/CIYes
Maximum refresh rate60 Hz
HD typeFull HD
Viewing angle, horizontal178°
Viewing angle, vertical178°
Pixel pitch0.179 x 0.179 mm
Horizontal scan range30 - 68 kHz
Viewable size, horizontal34.4 cm
Viewable size, vertical19.4 cm
Display resolution1920 x 1080 pixels
Response time5 ms
Display diagonal39.6 cm (15.6")
Contrast ratio (typical)1000:1
TouchscreenYes
Number of simultaneous touchpoints10
Panel typeIPS
Display diagonal (metric)39.5 cm
Touchscreen technologyProjected capacitive system
Response time measurement typeGTG (Gray to Gray)
Audio
Built-in speaker(s)Yes
RMS rated power4 W
Performance
Built-in speaker(s)Yes
RMS rated power4 W
Built-in cameraNo
AMD FreeSyncNo
Low Blue Light technologyYes
Management features

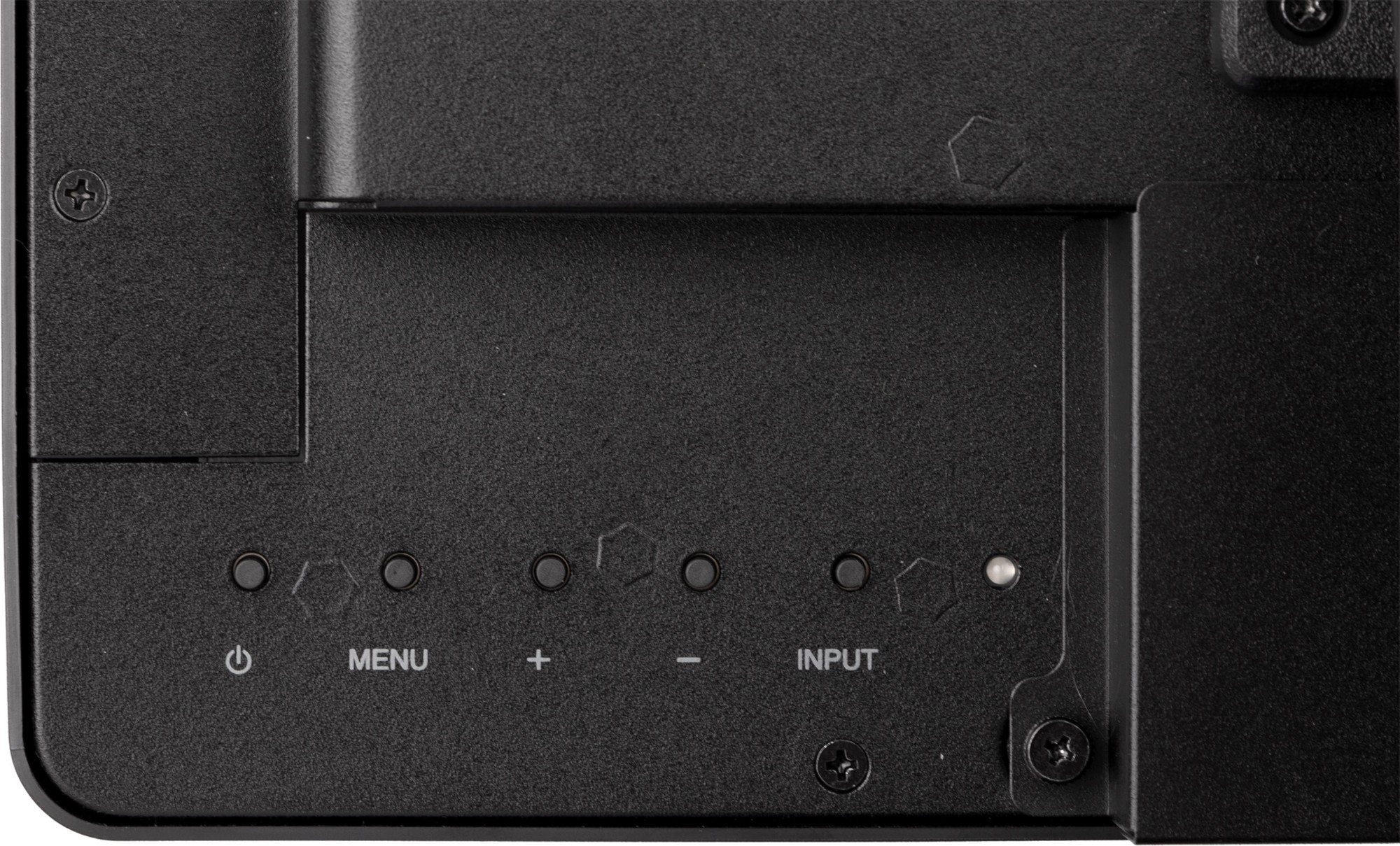

On Screen Display (OSD)Yes
Number of OSD languages12
On Screen Display (OSD) languagesTraditional Chinese, Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian
Multimedia
Number of speakers2
Built-in speaker(s)Yes
RMS rated power4 W
Built-in cameraNo
Design
Market positioningHome
CertificationCE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA
Product colourBlack
Front bezel colourBlack
International Protection (IP) codeIP54
Camera
Built-in cameraNo

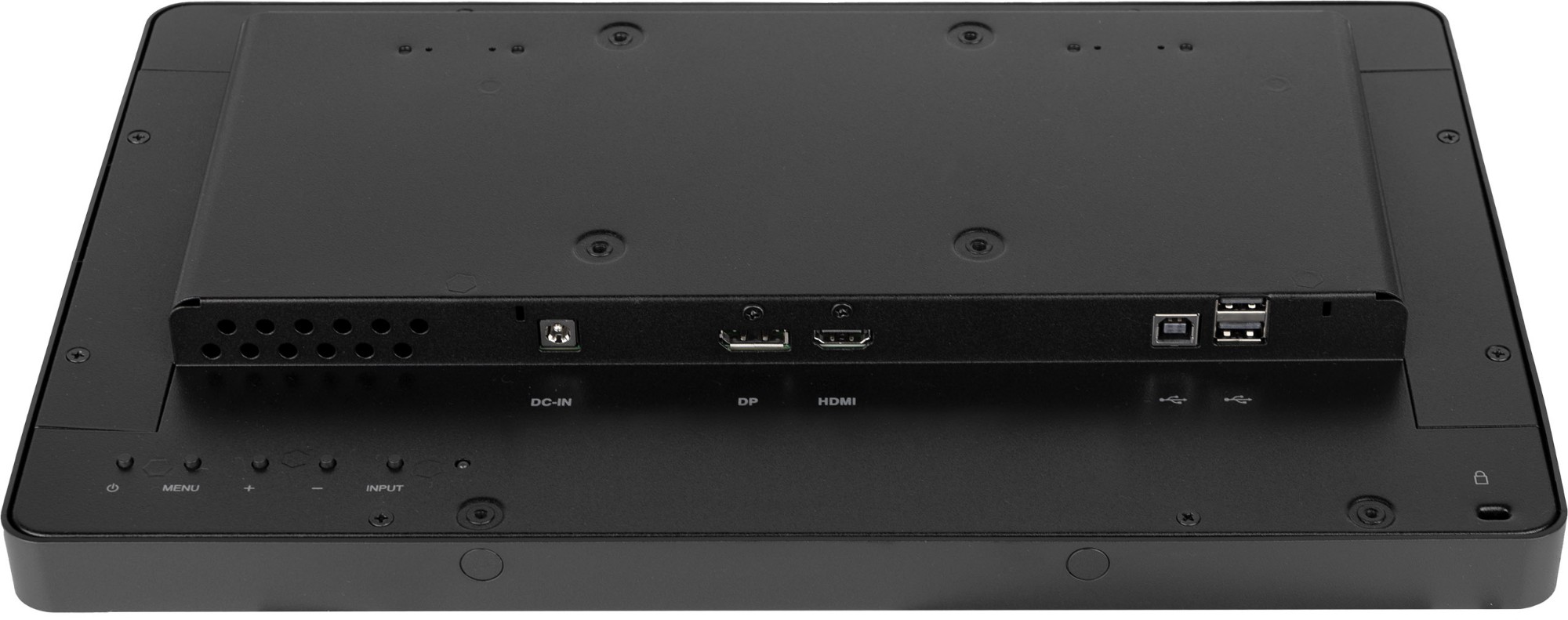

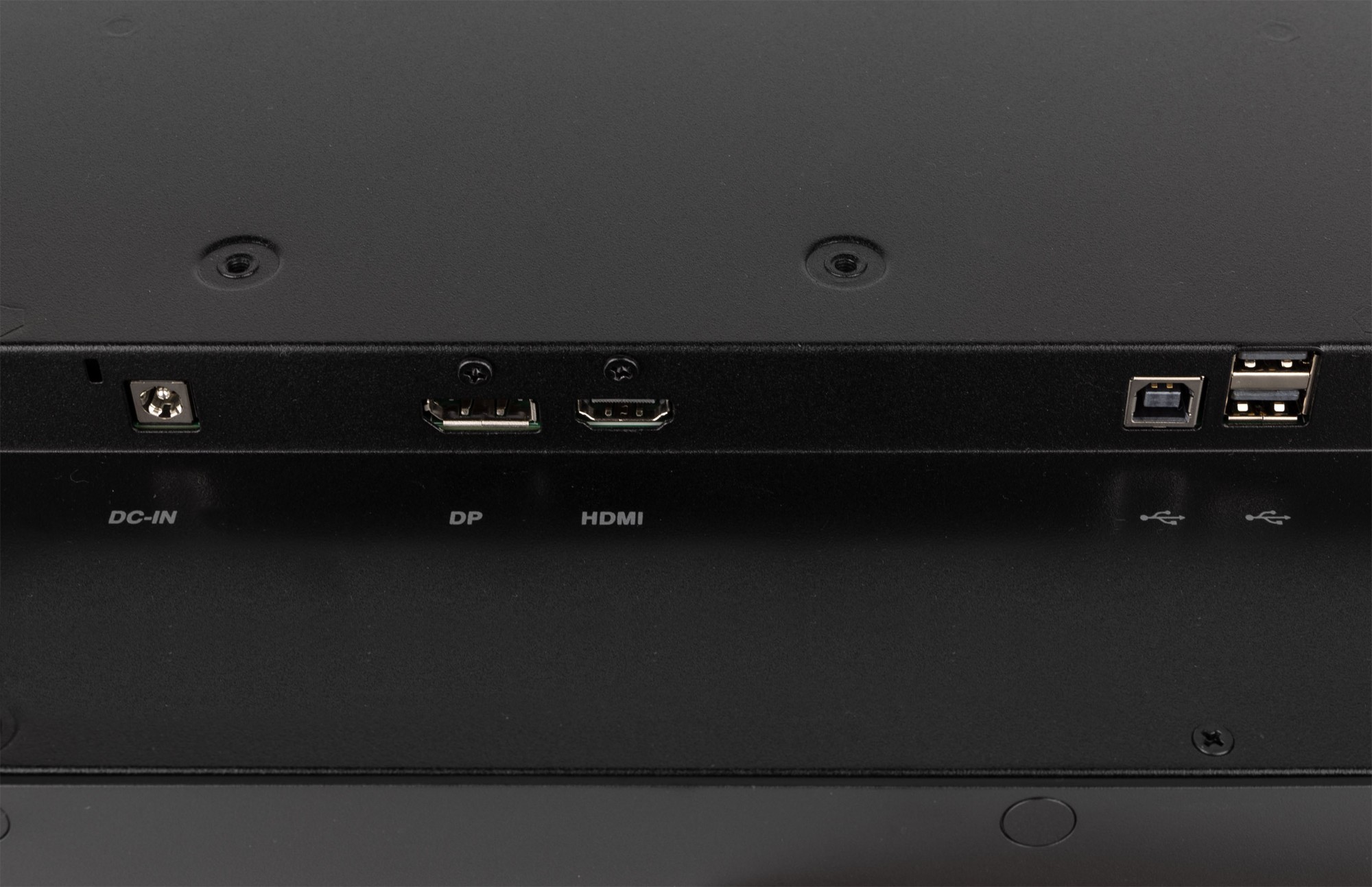

Ports & interfaces
Built-in USB hubYes
USB hub version2.0
DisplayPorts quantity1
HDCPYes
HDMIYes
Technical details
Height (without stand)246.5 mm
Depth (without stand)45.5 mm
Width (without stand)389 mm
Cable lock slotYes
HDMIYes
Product colourBlack
Front bezel colourBlack
Power supply typeExternal
Weight (with stand)2 kg
TouchscreenYes
Number of simultaneous touchpoints10
Ergonomics

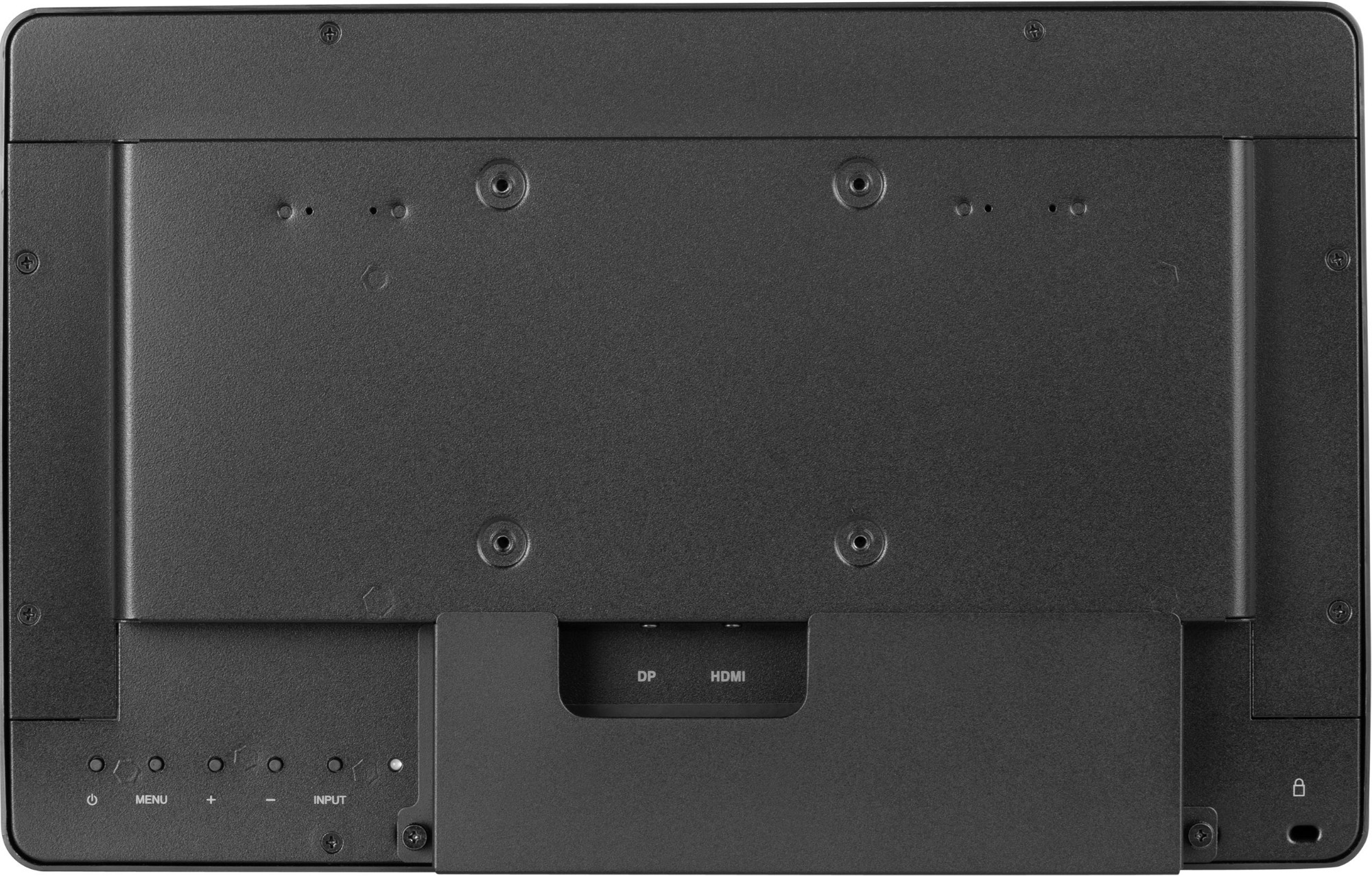

VESA mountingYes
Cable lock slotYes
Panel mounting interface100 x 100 mm
Tilt angle range90 - 5°
On Screen Display (OSD)Yes
Number of OSD languages12
On Screen Display (OSD) languagesTraditional Chinese, Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian
Height adjustmentNo
Cable lock slot typeKensington

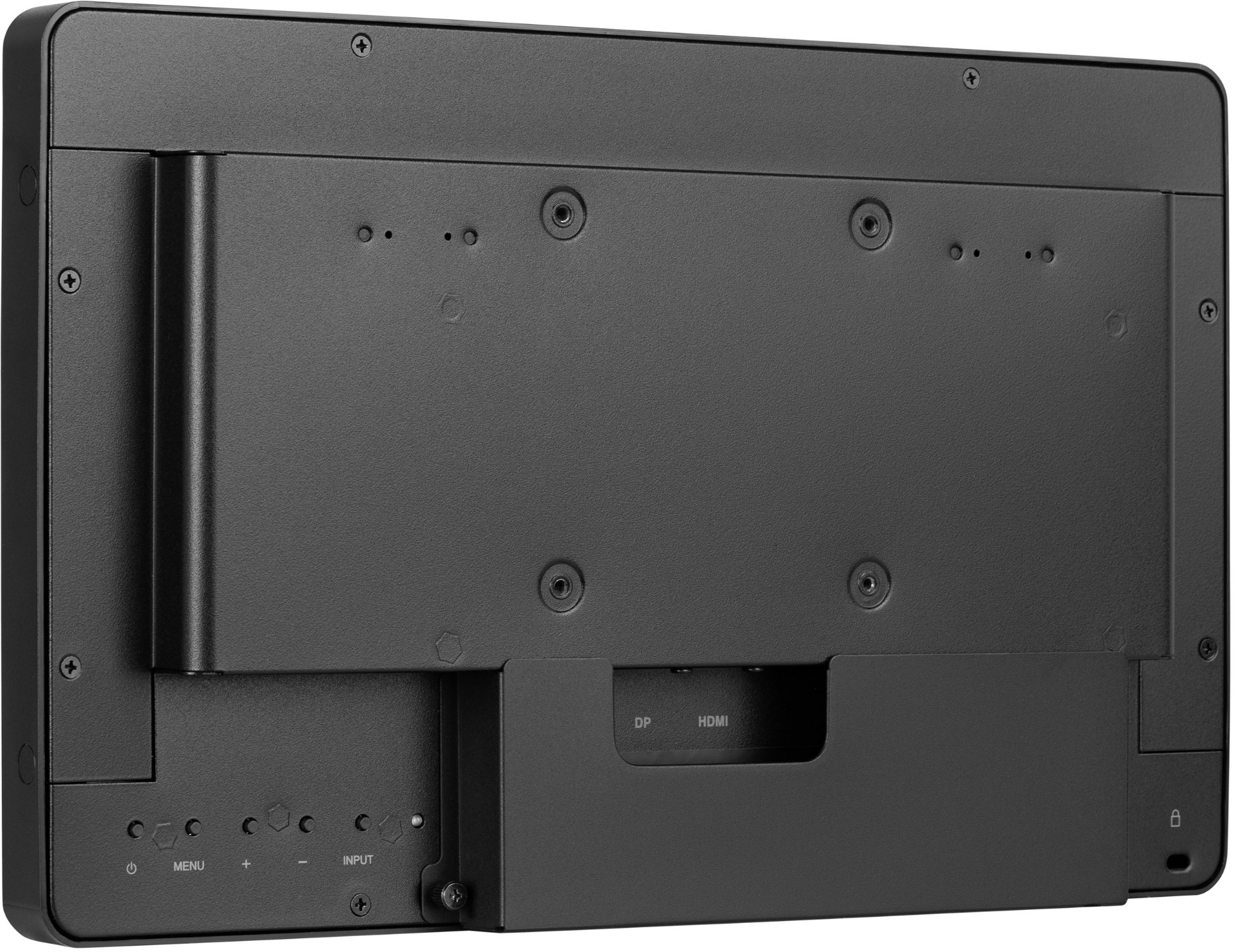

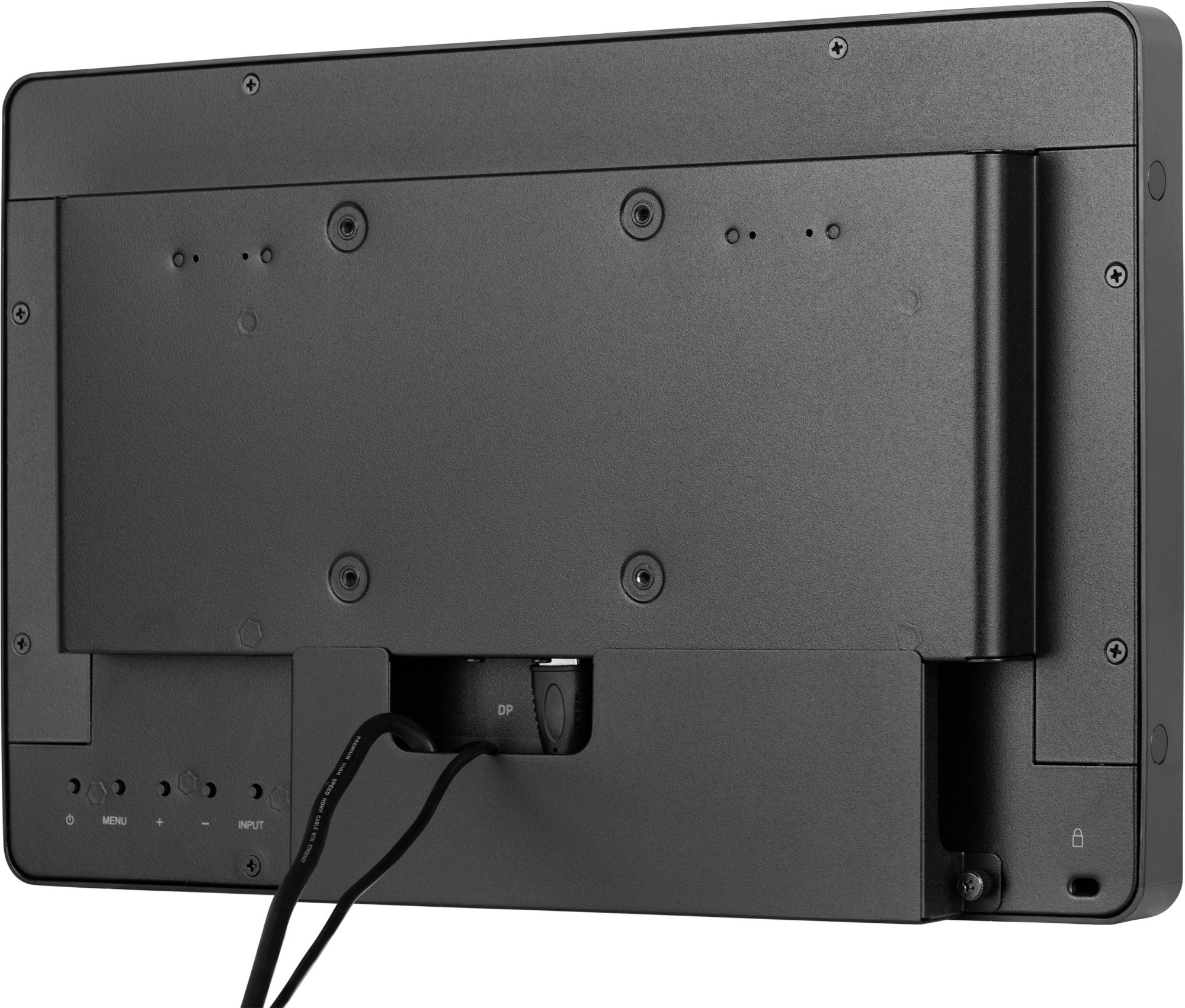

Cable managementYes
Tilt adjustmentYes
Power
Power supply typeExternal
Power consumption (standby)8 W
Power consumption (typical)12 W
Power consumption (off)0.5 W
Energy efficiency scaleA to G
AC adapter output voltage12 V
Energy efficiency class (SDR)C
Energy consumption (SDR) per 1000 hours8 kWh
European Product Registry for Energy Labelling (EPREL) code1629699
Weight & dimensions
Height (without stand)246.5 mm
Depth (without stand)45.5 mm
Width (without stand)389 mm
Width (with stand)389 mm
Depth (with stand)45.5 mm
Height (with stand)246.5 mm
Weight (with stand)2 kg
Weight (without stand)2 kg
Package width475 mm
Package depth475 mm
Package height343 mm
Package weight3.9 kg
Packaging data
Package width475 mm
Package depth475 mm
Package height343 mm
Package weight3.9 kg
Package typeBox
Quick start guideYes
Cables includedAC, HDMI, USB
Power adapter includedYes
Packaging content
Quick start guideYes
Cables includedAC, HDMI, USB
Power adapter includedYes
Sustainability
European Product Registry for Energy Labelling (EPREL) code1629699
Other features
CertificationCE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA
International Protection (IP) codeIP54
Height (without stand)246.5 mm
Depth (without stand)45.5 mm
Width (without stand)389 mm
Quick start guideYes
HDMIYes
Energy efficiency scaleA to G
Power supply typeExternal
TouchscreenYes
Number of simultaneous touchpoints10
Package typeBox
Front bezel colourBlack
Certificates
CertificationCE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA
