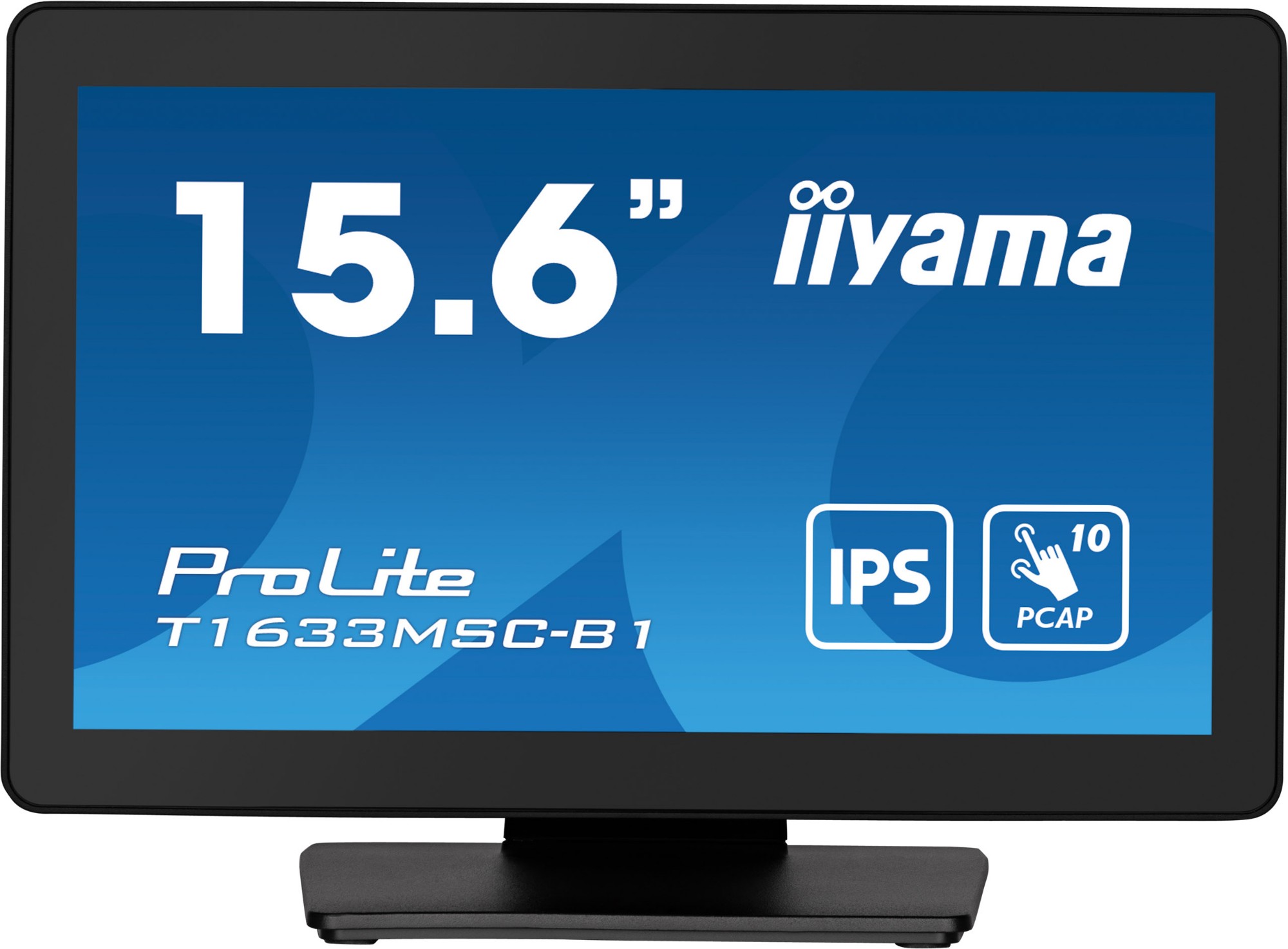

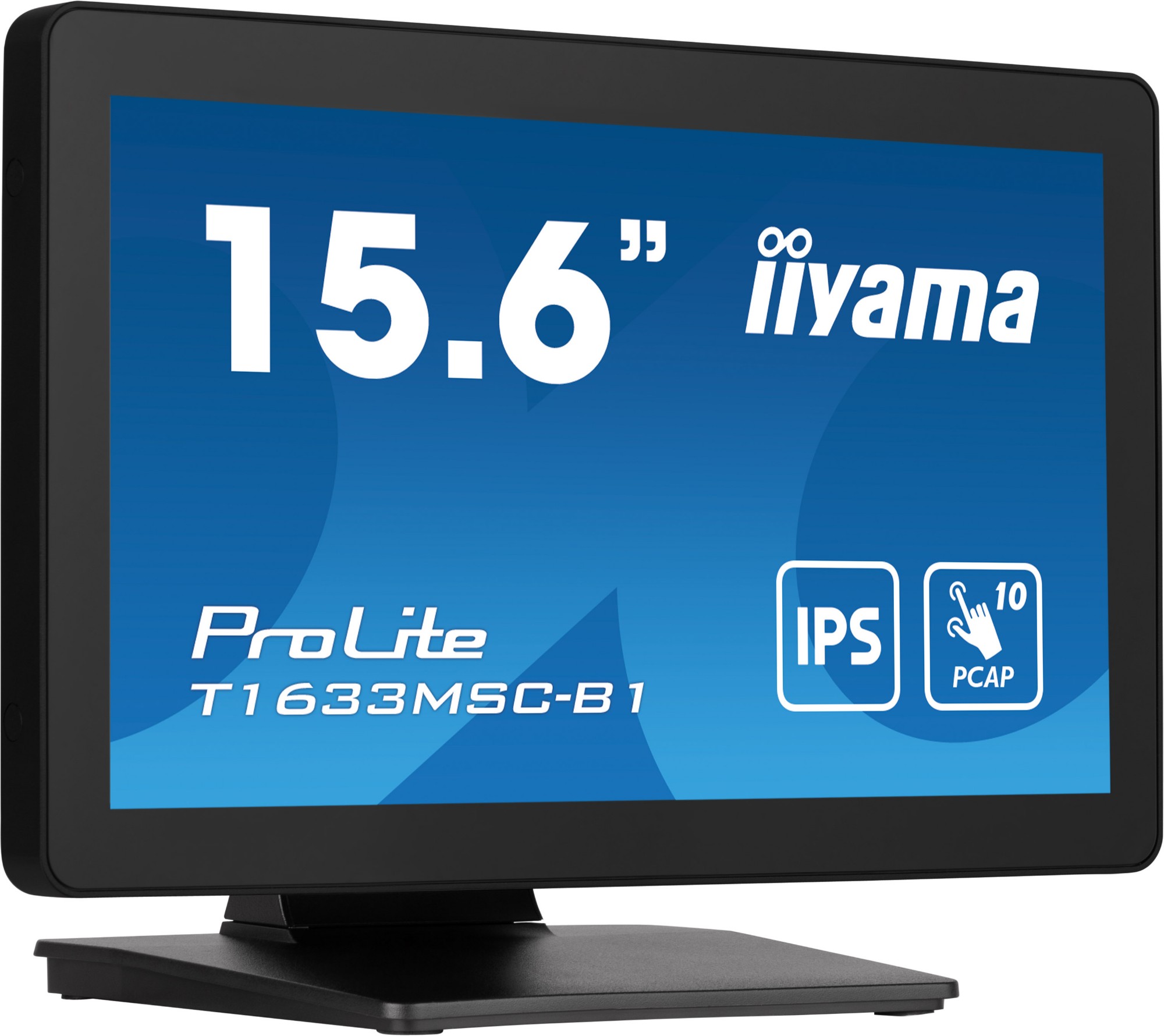

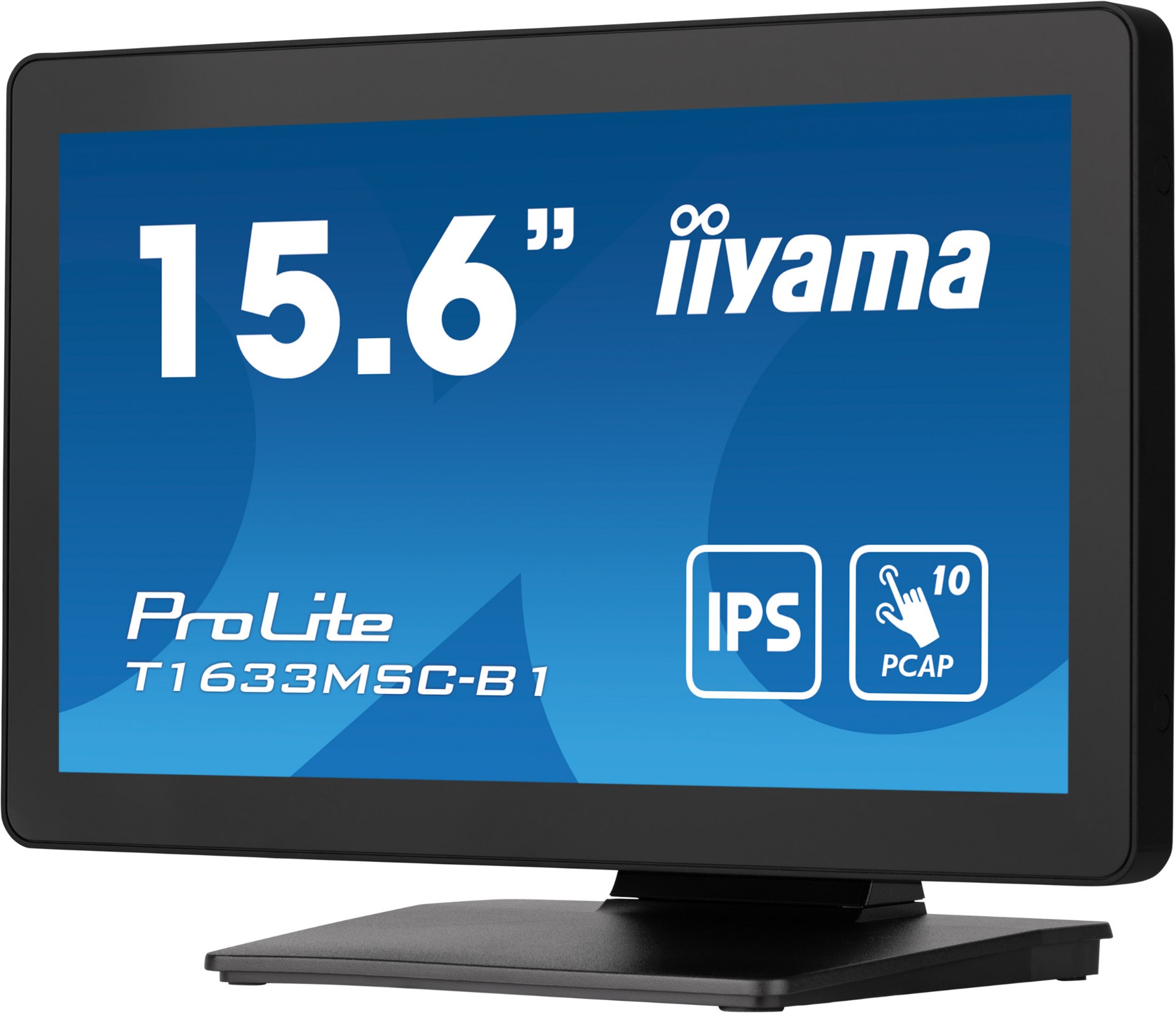

iiyama ProLite 15.6" PCAP 10 points multi-touch monitor with edge-to-edge glass and IPS panel technology

iiyama ProLite 15.6" PCAP 10 points multi-touch monitor with edge-to-edge glass and IPS panel technology

  • Brand: iiyama
  • Category:
  • SKU: T1633MSC-B1
  • EAN: 4948570122523
15.6" PCAP 10 points multi-touch monitor with edge-to-edge glass and IPS panel technology

Trade Prices

Distributor Product SKU Stock Updated Price
CMS Distribution (Ireland)

T1633MSC-B1 15.6" Black 16:9

 000000000000324518 Register free see stock
Ingram Micro

T1633MSC-B1 15.6IN BLACK 16:9

View on Xvantage open_in_new 		CI87011
Mentor (UK)

ProLite T1633MSC-B1 computer monitor 39.6 cm (15.6') 1920 x 1080 pixels Full HD LCD Touchscreen Black

 T1633MSC-B1
TD Synnex UK

ProLite T1633MSC-B1 - LED monitor - 15.6" - touchscreen - 1920 x 1080 Full HD (1080p) @ 60 Hz - IPS - 450 cd/m? - 1000:1 - 5 ms - HDMI, DisplayPort - speakers - black, matte finish

View on InTouch open_in_new 		8691844
DSM Distribution

ProLite T1633MSC-B1 - LED monitor - Full HD (1080p) - 15.6"

 CI87011
EET

15,6" PCAP 10P Touch

 T1633MSC-B1
Fourcom

T1633MSC-B1

 498064
Ingram Micro CS

T1633MSC-B1 15.6IN BLACK 16:9

 CI87011
Jarltech

ProLite T1633MSC-B1, 39.6 cm (15,6''), Projected Capacitive, 10 TP, Full HD, USB, kit (USB), black

 iiy1633
Smithie UK

ProLite T1633MSC-B1 - LED monitor - 15.6 - touchscre

 T1633MSC-B1
SYNAXON

ProLite T1633MSC-B1 - LED monitor - 15.6" - touchscreen - 1920 x 1080 Full HD (1080p) @ 60 Hz

 STD10221023

Retail Prices

Merchant Product Condition Updated Price
Amazon New £506.90
Amazon New £340.05
Amazon New £481.30

Reasons To Buy

Touch technology - Capacitive

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

Scratch resistance

Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

IP54

The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.

LED-backlit

A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO 2 emission into the environment making this LCD a true ECO-Friendly product.

Description

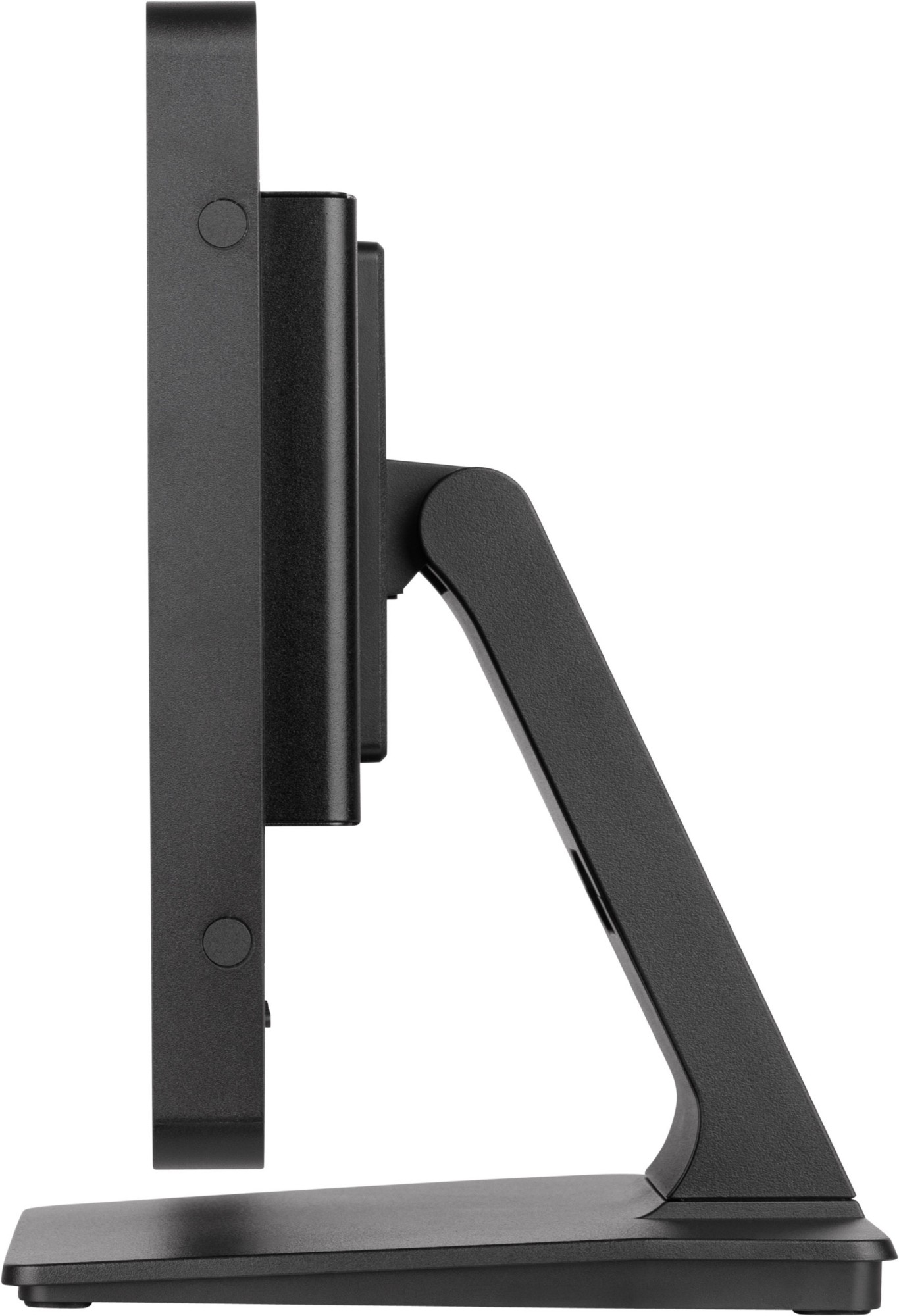

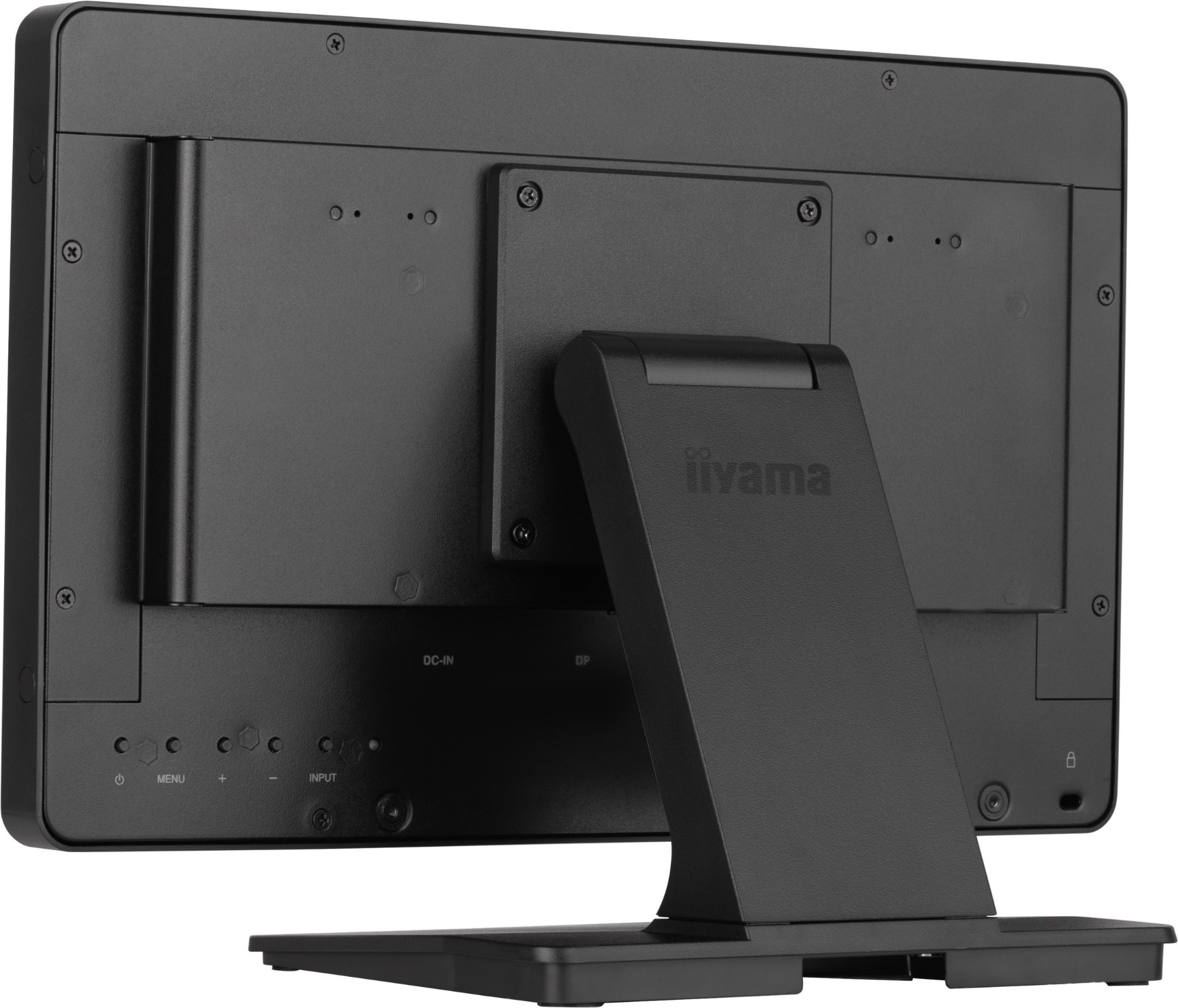

The ProLite T1633MSC-B1 uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. The screen guarantees high durability, scratch-resistance, clarity and a perfect picture performance. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition to the superb image quality, the screen comes with an IP54 rating, which means the screen and bezel is dust and water resistant from the front. A perfect solution for retail applications.

Specifications

Display
HDCPYes
Display brightness (typical)450 cd/m²
Screen shapeFlat
Display number of colours16.7 million colours
Native aspect ratio16:9
Maximum refresh rate60 Hz
HD typeFull HD
Display technologyLCD
Viewing angle, horizontal178°
Viewing angle, vertical178°
Pixel pitch0.179 x 0.179 mm
Horizontal scan range30 - 68 kHz
Viewable size, horizontal34.4 cm
Viewable size, vertical19.4 cm
Display resolution1920 x 1080 pixels
Response time5 ms
Display diagonal39.6 cm (15.6")
Contrast ratio (typical)1000:1
TouchscreenYes
Number of simultaneous touchpoints10
Panel typeIPS
Display diagonal (metric)39.5 cm
Touchscreen technologyProjected capacitive system
Response time measurement typeGTG (Gray to Gray)
Audio
Built-in speaker(s)Yes
RMS rated power4 W
Performance
Built-in speaker(s)Yes
RMS rated power4 W
Built-in cameraNo
AMD FreeSyncNo
NVIDIA G-SYNCNo
Low Blue Light technologyYes
Management features
On Screen Display (OSD)Yes
Number of OSD languages12
On Screen Display (OSD) languagesTraditional Chinese, Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian
Multimedia
Number of speakers2
Built-in speaker(s)Yes
RMS rated power4 W
Built-in cameraNo
Design
Market positioningHome
CertificationCE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA
Product colourBlack
Front bezel colourBlack
International Protection (IP) codeIP54
Camera
Built-in cameraNo
Ports & interfaces
Built-in USB hubYes
USB hub version2.0
HDMI ports quantity1
DisplayPorts quantity1
HDCPYes
HDMIYes
USB Touch portYes
Technical details
Cable lock slotYes
HDMIYes
Product colourBlack
Front bezel colourBlack
Power supply typeExternal
Weight (with stand)3.4 kg
TouchscreenYes
Number of simultaneous touchpoints10
Ergonomics
VESA mountingYes
Cable lock slotYes
Panel mounting interface100 x 100 mm
Tilt angle range90 - 5°
On Screen Display (OSD)Yes
Number of OSD languages12
On Screen Display (OSD) languagesTraditional Chinese, Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian
Height adjustmentNo
Cable lock slot typeKensington
Cable managementYes
Tilt adjustmentYes
Power
Power supply typeExternal
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (standby)8 W
Power consumption (typical)12 W
Power consumption (off)0.5 W
Energy efficiency scaleA to G
AC adapter output voltage12 V
Energy efficiency class (SDR)C
Energy consumption (SDR) per 1000 hours8 kWh
European Product Registry for Energy Labelling (EPREL) code1629639
Weight & dimensions
Width (with stand)389 mm
Depth (with stand)200 mm
Height (with stand)284 mm
Weight (with stand)3.4 kg
Weight (without stand)5.3 kg
Package width475 mm
Package depth475 mm
Package height343 mm
Package weight5.3 kg
Packaging data
Package width475 mm
Package depth475 mm
Package height343 mm
Package weight5.3 kg
Package typeBox
Quick start guideYes
Cables includedAC, HDMI, USB
Power adapter includedYes
Packaging content
Quick start guideYes
Cables includedAC, HDMI, USB
Power adapter includedYes
Sustainability
European Product Registry for Energy Labelling (EPREL) code1629639
Other features
CertificationCE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA
International Protection (IP) codeIP54
Quick start guideYes
HDMIYes
Energy efficiency scaleA to G
Power supply typeExternal
TouchscreenYes
Number of simultaneous touchpoints10
Package typeBox
Front bezel colourBlack
Certificates
CertificationCE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA
