Ubiquiti U7 Pro XGS 8600 Mbit/s White Power over Ethernet (PoE)
- Brand: Ubiquiti
- Category:
- SKU: U7-Pro-XGS
- EAN: 0810084698341
WiFi 7 (802.11a/b/g/n/ac/ax/be), 6 GHz, 160 m² (1,750 ft²), 10/5/2.5/1 GbE, PoE++, 500+ clients, 215 x 32.5 mm, 800 g
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Ceiling-mounted 8-stream WiFi |
U7-PRO-XGS | |||
|
UniFi U7 Pro XGS WiFi 7 Access Point - U7-Pro-XGS |
18245 | |||
|
U7-PRO-XGS UniFi 7 Pro XGS Ceiling Mounted 8 Stream WiFi 7 6GHz 10GbE Access Point - White |
NPUBI-U7-PRO-XGS | |||
|
UniFi U7 Pro XGS - trådløs fo |
556101 | |||
|
Access-Point UniFi U7-Pro-XGS White 802.11be WiFi 7 |
U7-PRO-XGS | |||
|
Ubiquiti Access-Point UniFi U7-Pro-XGS White 802.11be WiFi 7 (ohne PoE-Adapter) Ohne/without PoE Adapter |
3710221 |
| Alternative Suppliers | |||||
|---|---|---|---|---|---|
|
U7-PRO-XGS UniFi 7 Pro XGS Ceiling Mounted 8 Stream WiFi 7 6GHz 10GbE Access Point - White |
NPUBI-U7-PRO-XGS | |||
Description
Ceiling-mounted 8-stream WiFi 7 AP with dedicated spectral scanning radio and 10/5/2.5/1 GbE support.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 1000,2500,5000,10000 Mbit/s |
| Maximum data transfer rate | 8600 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Reset button | Yes |
| Frequency band | 2.4, 5, 6 GHz |
| Number of users | 500 user(s) |
| VLAN support | Yes |
| Rate limiting | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Ethernet LAN data rates | 1000,2500,5000,10000 Mbit/s |
| Maximum data transfer rate | 8600 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Wireless LAN features | |
| Frequency band | 2.4, 5, 6 GHz |
| Network | |
| Number of users | 500 user(s) |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Management features | |
| VLAN support | Yes |
| Rate limiting | Yes |
| Access point management | Wi-Fi schedule |
| Features | |
| 6 GHz | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Frequency band | 2.4, 5, 6 GHz |
| Number of users | 500 user(s) |
| VLAN support | Yes |
| Rate limiting | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Ethernet LAN data rates | 1000,2500,5000,10000 Mbit/s |
| Maximum data transfer rate | 8600 Mbit/s |
| Fast roaming | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (5 GHz) | 8600 Mbit/s |
| Fit AP mode features | Hotspot 2.0 |
| Maximum data transfer rate (6 GHz) | 5800 Mbit/s |
| Spatial streams | 8 |
| Coverage area | 160 m² |
| Wireless meshing | Yes |
| Maximum Tx power (2.4 GHz) | 23 dBmW |
| Maximum Tx power (5 GHz) | 29 dBmW |
| Maximum Tx power (6 GHz) | 24 dBmW |
| Security | |
| Security algorithms | PPSK |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (max) | 29 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Design | |
| Housing material | Metal, Polycarbonate (PC) |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Status |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 6 dBi |
| Technical details | |
| Reset button | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Indication | |
| LED indicators | Status |
| Software | |
| Fast roaming | Yes |
| Weight & dimensions | |
| Width | 215 mm |
| Depth | 32.5 mm |
| Weight | 800 g |
| Height | 215 mm |
| Packaging data | |

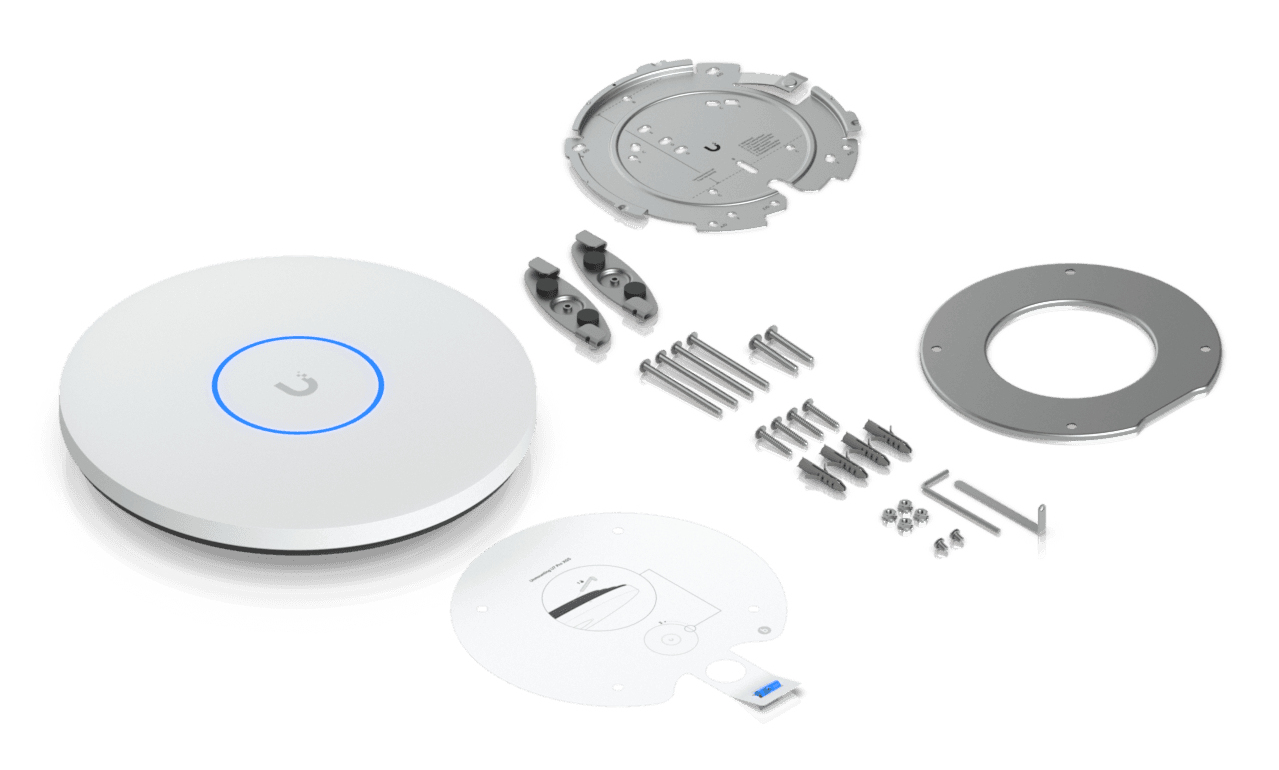

| Mounting kit | Yes |
| Packaging content | |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 40 °C |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
