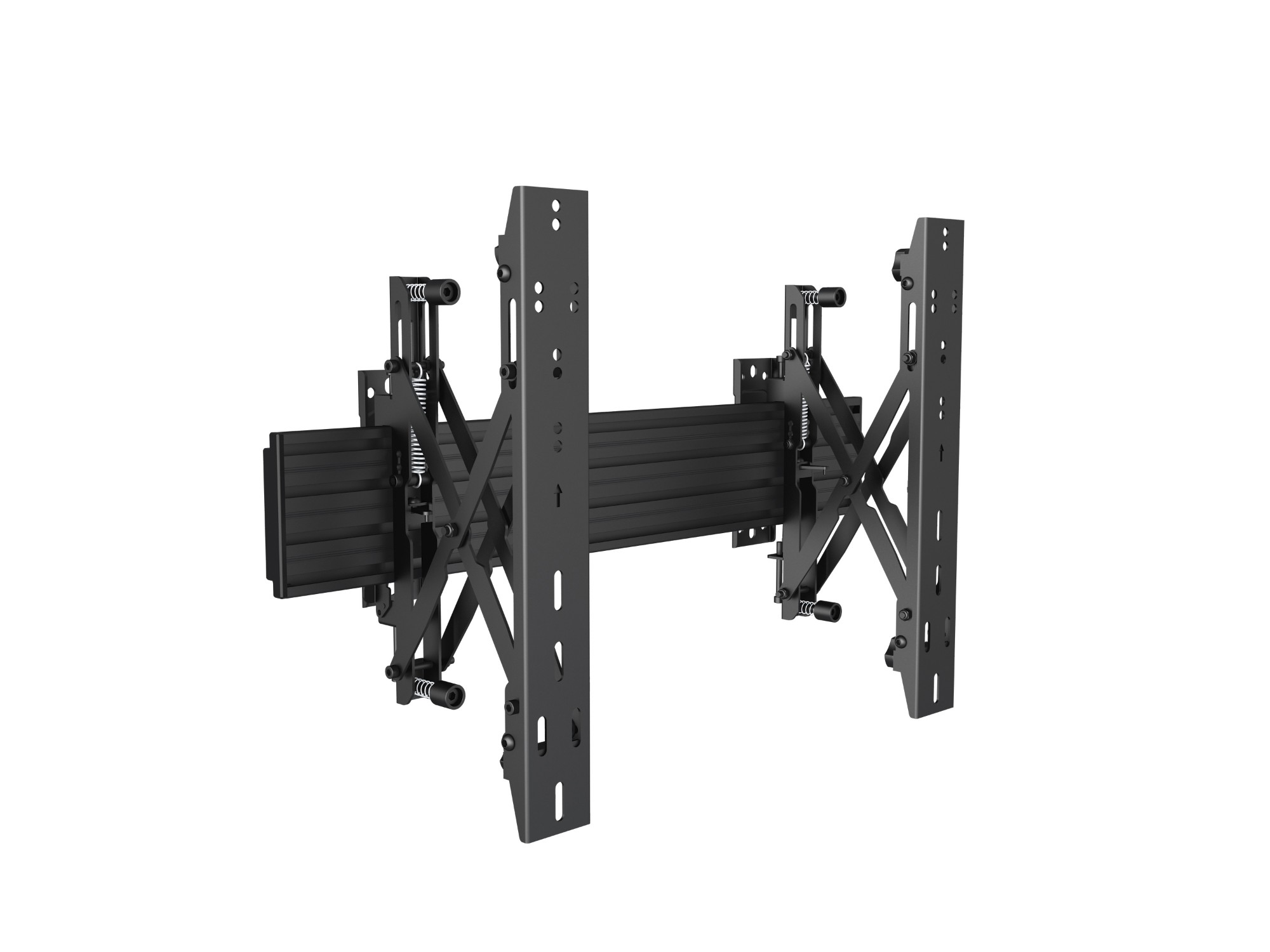

Equip 37"-65" Modular Push-In Pop-Out TV Wall Mount Bracket
- Brand: Equip
- Category:
- SKU: 650355
- EAN: 4015867207963
37"-65" Modular Push-In Pop-Out TV Wall Mount Bracket
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
32"-65" Modular Push-In |
650355 | |||
|
650355 32-65 Modular Push-In Pop-Out TV Wall Mount Bracket. |
650355 | |||
|
37 inch - 65 inch Modular Push - In Pop - Out Wall Mount TV Bracket |
650355 |
| Alternative Suppliers | |||||
|---|---|---|---|---|---|
|
EU Product - Wandhalterung 37-65/1TFT Popout 1Gelenk 30Kg sw lite Retail |
650355 | |||
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £304.41 |
Related Products
-
Category: Signage Display Mounts -
Category: Signage Display Mounts -
Category: Signage Display Mounts -
Category: Signage Display Mounts
Description

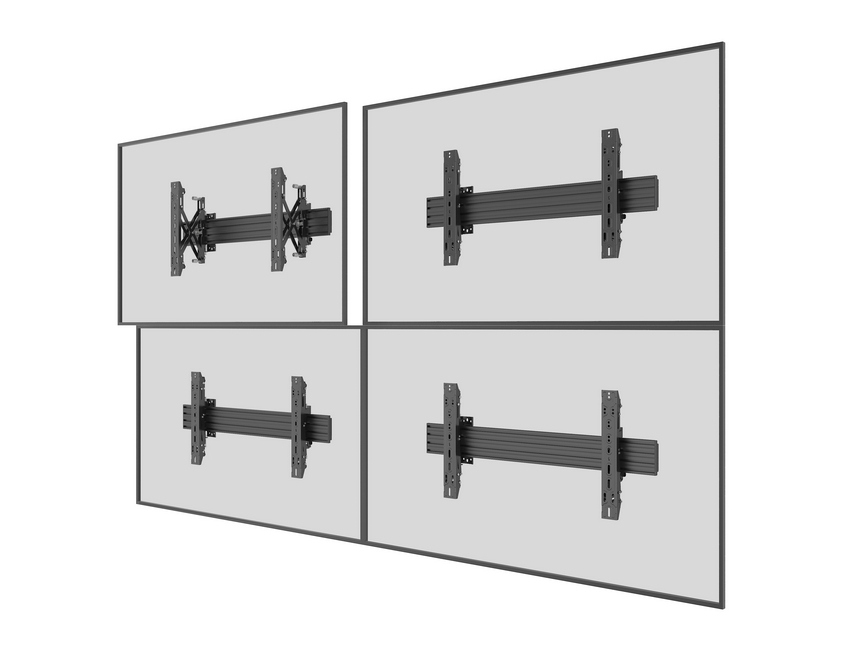

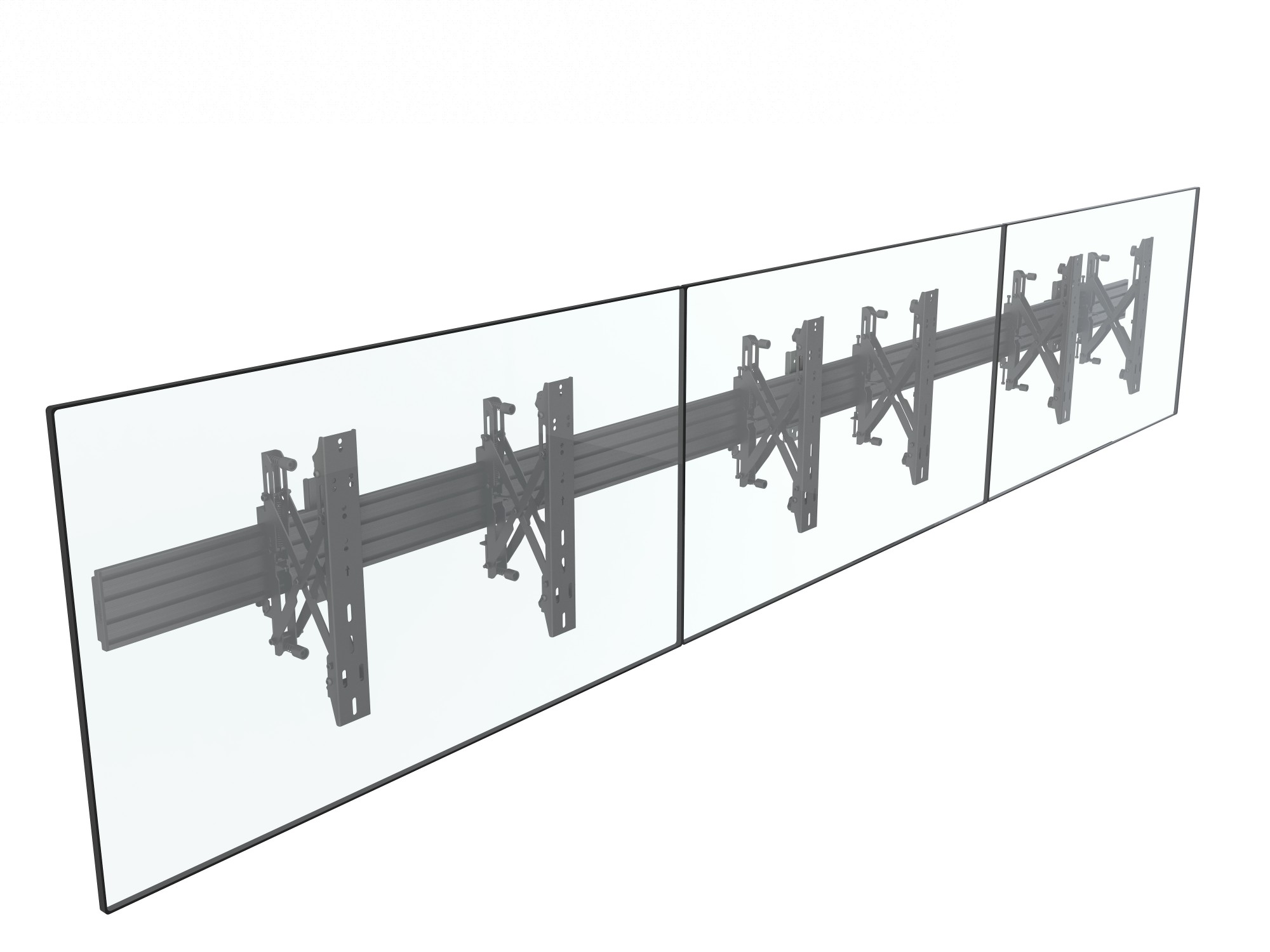

The equip® Push-In Pop-Out TV Wall Mount Bracket is a video wall solution quick to install, and easy to configure. Made especially for video wall applications. This is a professional mount focusing on multiple screen installations, easy and fast installation and simplified maintenance. The Push-In Pop-out feature gives easy-access to any display for quick serviceability. This is one of the major functions needed when building a video wall mounting solution or when integrating a single screen into the wall. Saving installation time and cost
Specifications
| Mounting | |
|---|---|
| Minimum screen size | 94 cm (37") |
| Maximum weight capacity | 30 kg |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 600 x 400 mm |
| Maximum screen size | 165.1 cm (65") |
| Ergonomics | |
| Tilt angle range | -3 - 3° |
| Angle of rotation | 180° |
| Distance to the wall (min) | 6.5 cm |
| Distance to the wall (max) | 23.7 cm |
| Cable management | Yes |
| Design | |
| Housing material | Steel |
| Certification | CE |
| Product colour | Black |

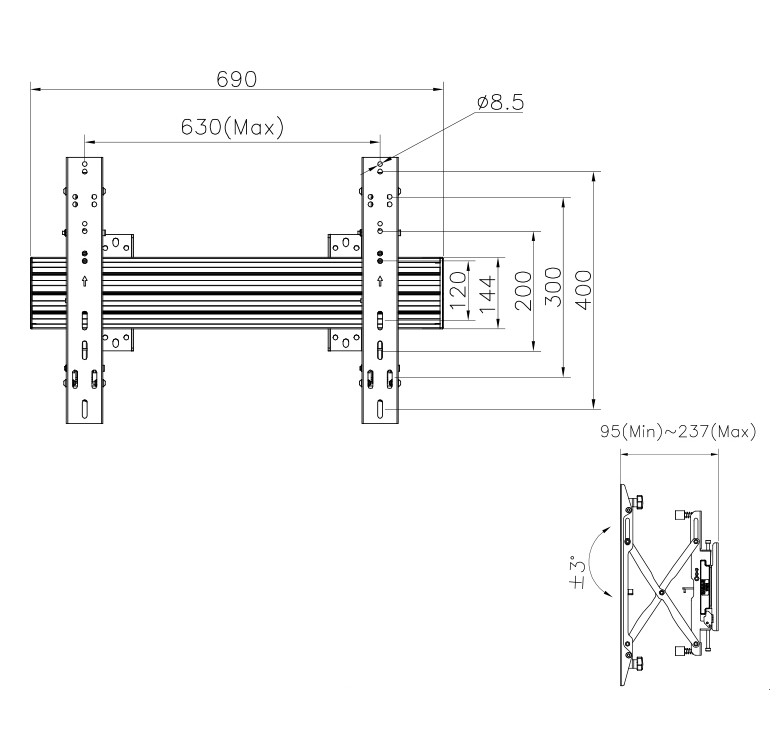

| Weight & dimensions | |
| Width | 420 mm |
| Depth | 95 mm |
| Height | 690 mm |
| Weight | 7 kg |
| Depth (max) | 9.5 cm |
| Package width | 240 mm |
| Package depth | 140 mm |
| Package height | 700 mm |
| Package weight | 8 kg |
| Package type | Box |
| Packaging data | |
| Package width | 240 mm |
| Package depth | 140 mm |
| Package height | 700 mm |
| Package weight | 8 kg |
| Package type | Box |
| Packaging content | |
| Mounting kit | Yes |
| Manual | Yes |
| Technical details | |
| Angle of rotation | 180° |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Distance to the wall (min) | 6.5 cm |
| Distance to the wall (max) | 23.7 cm |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
| Certificates | |
| Certification | CE |
| Other features | |
| Country of origin | China |
| Logistics data | |
| Master (outer) case width | 240 mm |
| Master (outer) case length | 140 mm |
| Master (outer) case height | 700 mm |
| Master (outer) case gross weight | 8 kg |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85299097 |
