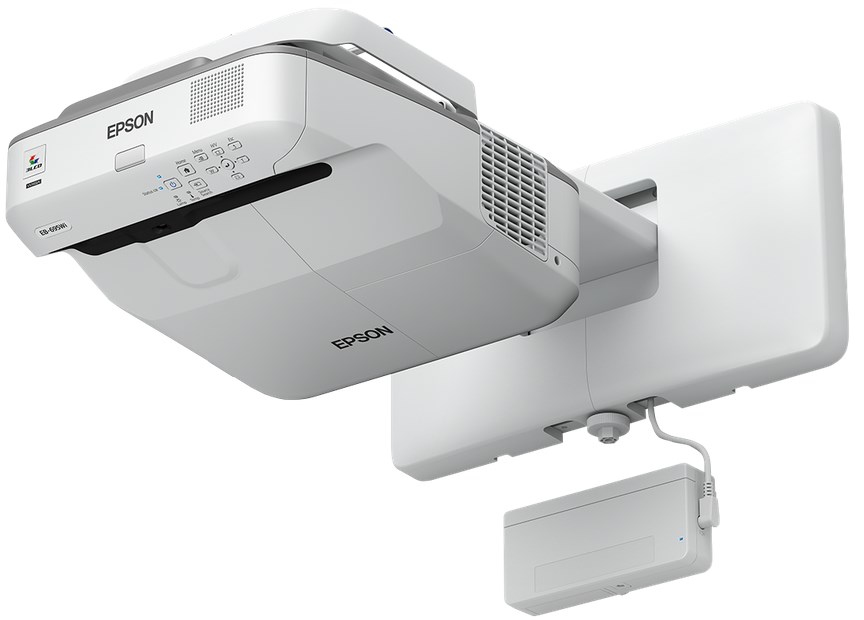

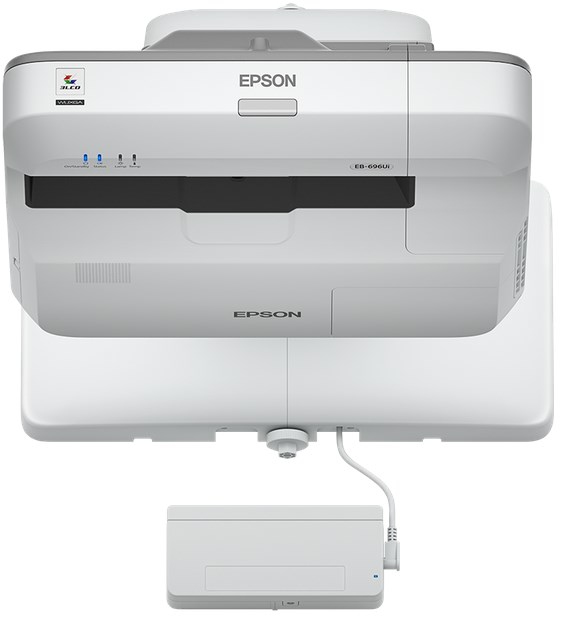

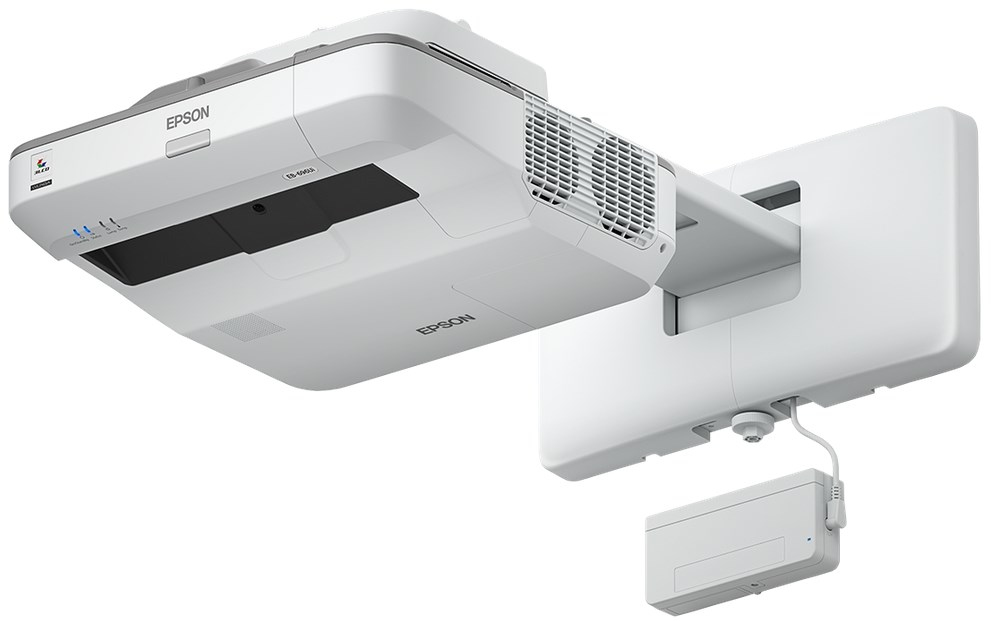

Epson EB-696Ui Ultra short throw projector 3800 ANSI lumens 3LCD WUXGA (1920x1200) Grey, White

Epson EB-696Ui Ultra short throw projector 3800 ANSI lumens 3LCD WUXGA (1920x1200) Grey, White

  • Brand: Epson
  • Category:
  • SKU: V11H728041
  • EAN: 5057454547242 8715946605128
0.67" MLA, 3LCD, WUXGA 1920x1200, 3800 Lumen, 267W, 16000:1, 3x HDMI, White/Grey

Trade Prices

Distributor Product SKU Stock Updated Price
Exertis Ireland

EB-696Ui Ultra short throw projector 3800 ANSI lumens 3LCD WUXGA (1920x1200) Grey, White

V11H728041 Register free see stock

Retail Prices

Merchant Product Condition Updated Price
Amazon Used £1,299.00
Amazon New £2,770.42
Amazon New £4,163.79
Amazon Used £1,659.99
Amazon New £2,764.34
Amazon New £3,733.62
Amazon New £2,948.66

Related Products

Description

This new projector offers ultimate interactivity by combining finger-touch with dual pen capability. With a brightness level of 3,800 lumens and FullHD WUXGA resolution, the EB-696Ui's ultra-short-throw design allows you to present large images from a very short distance with minimised shadows and glare. A 16,000:1 contrast ratio and HDMI input means that students benefit from sharp, clear images.

Quality image
Epson’s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than leading competitive projectors1. With a scalable display size of up to 100 inches, two types of content can be displayed using the split-screen without compromising on quality.

Finger-touch and dual pen
Use your fingers to annotate directly onto the screen. Epson's interactive pens are now even more responsive and easy to use. With the new dual pens, teacher and student or two students can work simultaneously using different attributes.

Reliable
Project for longer with improved reliability and a longer lamp life of up to 10,000 hours in eco mode.

Save time
Simply plug in and turn on – there's no warm-up time and the PC-free annotation mode means that teachers don't even need to power up their computers. The interactive function does not require drivers to be installed and it auto-calibrates.

Interact and enhance learning
Multi-PC projection software allows teachers and students to share content simultaneously. The moderator function allows teachers to remain in control, choosing what content to display. Combine two projectors to create one large interactive display.

Specifications

Projector
Number of colours1.073 billion colours
White light output3800 ANSI lumens
Colour light output3800 ANSI lumens
Projector native resolutionWUXGA (1920x1200)
Projection distance (wide)0 - 0.4 m
Projection distance (tele)0 - 0.6 m
Native aspect ratio16:10
Supported aspect ratios16:10
Screen size compatibility1778 - 2540 mm (70 - 100")
Contrast ratio (typical)300:1
Contrast ratio (dynamic)16000:1
Zoom ratio1.35:1
Projector brightness (economic mode)2700 ANSI lumens
Vertical synchronization (min)0.192 kHz
Vertical synchronization (max)0.24 kHz
Matrix size1.7 cm (0.67")
Keystone correction, vertical±3°
Keystone correction, horizontal±3°
Projection technology3LCD
Projector brightness3800 ANSI lumens
Lamps
Lamp power267 W
Light source typeLamp
Service life of light source5000 h
Service life of light source (economic mode)10000 h
Light source
Lamp power267 W
Light source typeLamp
Service life of light source5000 h
Service life of light source (economic mode)10000 h
Lens system
Zoom ratio1.35:1
FocusManual
Throw ratio0.27 - 0.37:1
Digital zoom1.35x
Video
Video processing10 bit
Full HDYes
3DNo
Supported graphics resolutions1920 x 1200 (WUXGA)
Audio
Built-in speaker(s)Yes
RMS rated power16 W
Ports & interfaces
RS-232CYes
VGA (D-Sub) ports quantity3
HDMI ports quantity3
Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity3
Composite video in1
Audio (L/R) in1
Headphone outputs1
Microphone inYes
S-Video inputs quantity1
Serial interface typeRS-232C
RS-232 ports1
DVI portNo
Component video (YPbPr/YCbCr) in0
AC (power) inYes
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Storage
Card reader integratedNo
Sound emission
Noise level37 dB
Noise level (economic mode)30 dB
Technical details
Product colourGrey, White
RS-232CYes
Lamp power267 W
Products per pallet12 pc(s)
Quantity per pack1 pc(s)
Pallet gross width80 cm
Pallet gross length120 cm
Pallet gross height15 cm
Products per pallet layer (UK)2 pc(s)
Products per pallet layer2 pc(s)
Products per pallet (UK)12 pc(s)
Pallet width (UK)100 cm
Pallet length (UK)120 cm
Pallet height (UK)15 cm
Performance
Mac compatibilityYes
Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supportedYes
Noise level37 dB
Noise level (economic mode)30 dB
Features
Noise level37 dB
Noise level (economic mode)30 dB
Country of originPhilippines
Multimedia
Built-in speaker(s)Yes
RMS rated power16 W
Design
Product typeUltra short throw projector
Cable lock slot typeKensington
Product colourGrey, White
LED indicatorsYes
Cable lock slotYes
PlacementWall
Display
Built-in displayNo
Power
AC input voltage220 - 240 V
AC input frequency50 - 60 Hz
Power sourceAC
Power consumption (typical)400 W
Power consumption (standby)0.5 W
Packaging data
Package width580 mm
Package depth785 mm
Package height335 mm
Package weight25 kg
Security
Cable lock slot typeKensington
Cable lock slotYes
Indication
LED indicatorsYes
Software
Mac compatibilityYes
Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supportedYes
Operational conditions
Operating relative humidity (H-H)20 - 80%
Storage temperature (T-T)-10 - 60 °C
Storage relative humidity (H-H)10 - 90%
Operating temperature (T-T)5 - 35 °C
Weight & dimensions
Package width580 mm
Package depth785 mm
Package height335 mm
Weight8.3 kg
Width474 mm
Depth447 mm
Height130 mm
Package weight25 kg
Packaging content
Remote control includedNo
ManualYes
Logistics data
Products per pallet12 pc(s)
Quantity per pack1 pc(s)
Pallet gross width80 cm
Pallet gross length120 cm
Pallet gross height15 cm
Products per pallet layer (UK)2 pc(s)
Products per pallet layer2 pc(s)
Products per pallet (UK)12 pc(s)
Pallet width (UK)100 cm
Pallet length (UK)120 cm
Pallet height (UK)15 cm
Other features
RS-232CYes
RS-232 ports1
