Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
RACK PDU BASIC 1U View on Xvantage |
2705287 | |||
|
RACK PDU, BASIC, 1U, 14.4KW, 208V, (6) C19 |
AP7516 | |||
|
Basic Rack PDU - Power distribution strip (rack-mountable) - AC 208 V - 3-phase - input: Hubbell CS8365C - output connectors: 6 (IEC 60320 C19) - 1U - 2.4 m cord - for P/N: SCL500RM1U, SCL500RMI1U, SMTL750RM2UCNC, SMX2KR2UX145, SMX3KR2UNCX145, SMX750CUS View on InTouch |
1860367 | |||
|
RACK PDU BASIC 1U 14.4KW 208V (6) C1 View on Webshop |
AP7516 | |||
|
Rck PDU, sic, 1U, 14.4kW, |
AP7516 | |||
| Ingram Micro CS |
RACK PDU BASIC 1U |
2705287 | |||
|
Basic Rack PDU - power distribution strip |
STD10219831 | |||
|
Rack PDU 14.4kW Power Distribution Unit 6x iEC C19, CS8365C, AP7516 |
AP7516 |
| Alternative Suppliers | |||||
|---|---|---|---|---|---|
|
RACK PDU BASIC 1U 14.4KW 208V (6) C1 |
CLAP7516 | |||
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £2,554.13 |
Related Products
- Warranty & Support Extensions
- Uninterruptible Power Supplies (UPSs)
- Network Equipment Spare Parts
- Rack Cabinets
- Power Rack Enclosures
-
Category: Warranty & Support Extensions
-
Category: Uninterruptible Power Supplies (UPSs) -
Category: Uninterruptible Power Supplies (UPSs) -
Category: Uninterruptible Power Supplies (UPSs) -
Category: Uninterruptible Power Supplies (UPSs) -
Category: Uninterruptible Power Supplies (UPSs)
-
Category: Uninterruptible Power Supplies (UPSs) -
Category: Uninterruptible Power Supplies (UPSs) -
Category: Uninterruptible Power Supplies (UPSs)
-
Category: Network Equipment Spare Parts
-
Category: Rack Cabinets -
Category: Rack Cabinets -
Category: Rack Cabinets -
Category: Rack Cabinets -
Category: Rack Cabinets -
Category: Rack Cabinets -
Category: Rack Cabinets -
Category: Rack Cabinets -
Category: Rack Cabinets
Reasons To Buy
Enables a quick recovery from overload events.
Leveling feet can be quickly adjusted through the use of a screwdriver or drill, eliminating the need to reach underneath with a wrench.
Description

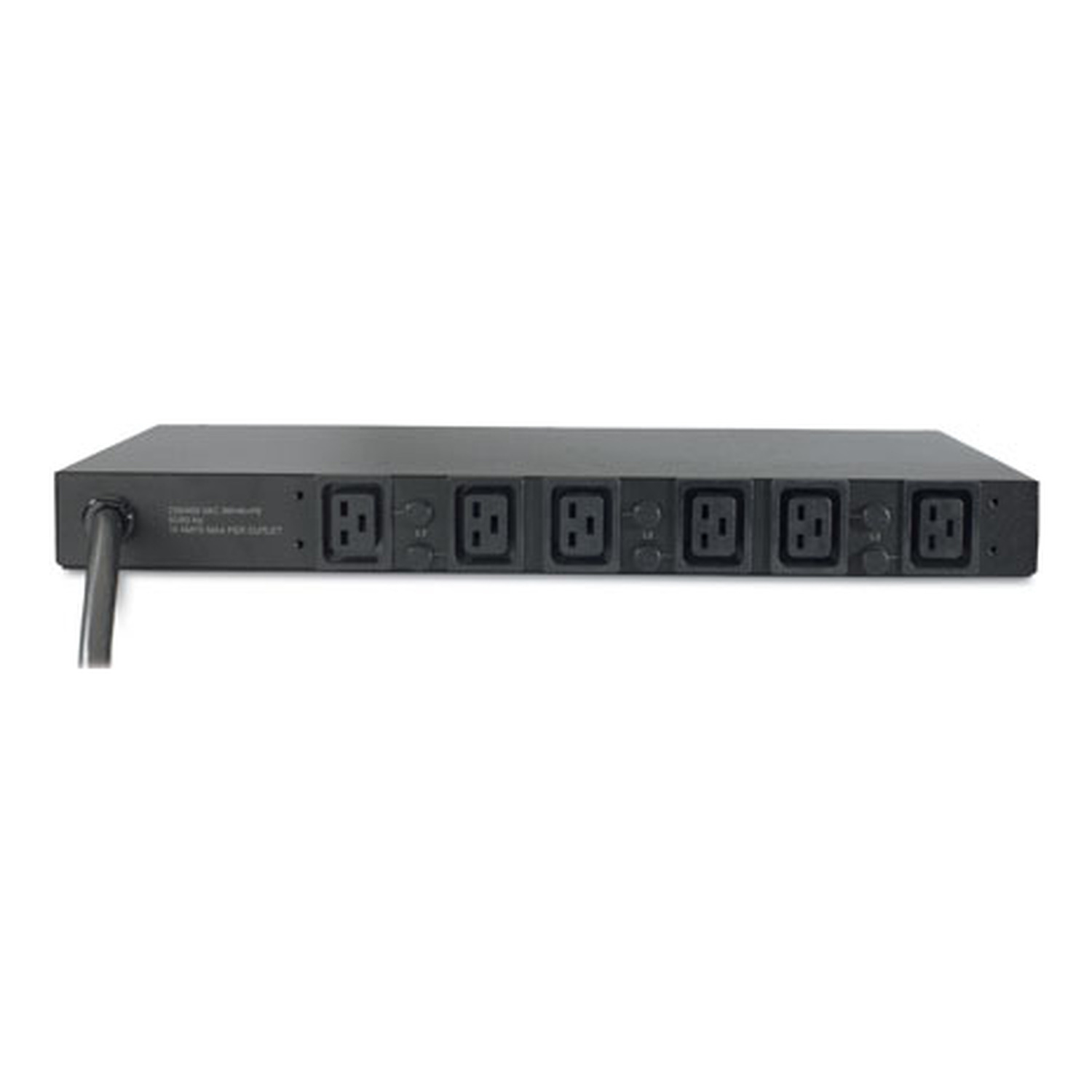

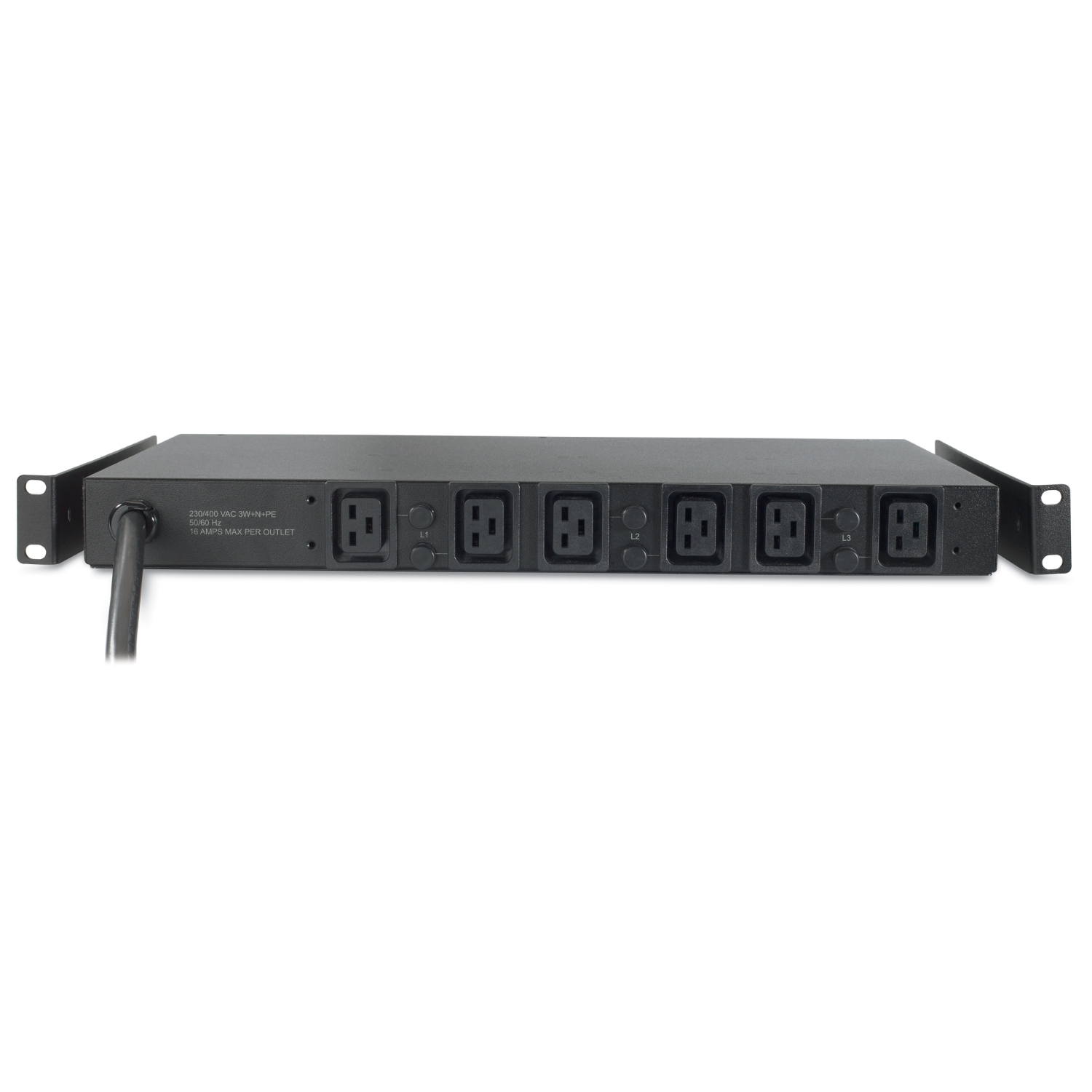

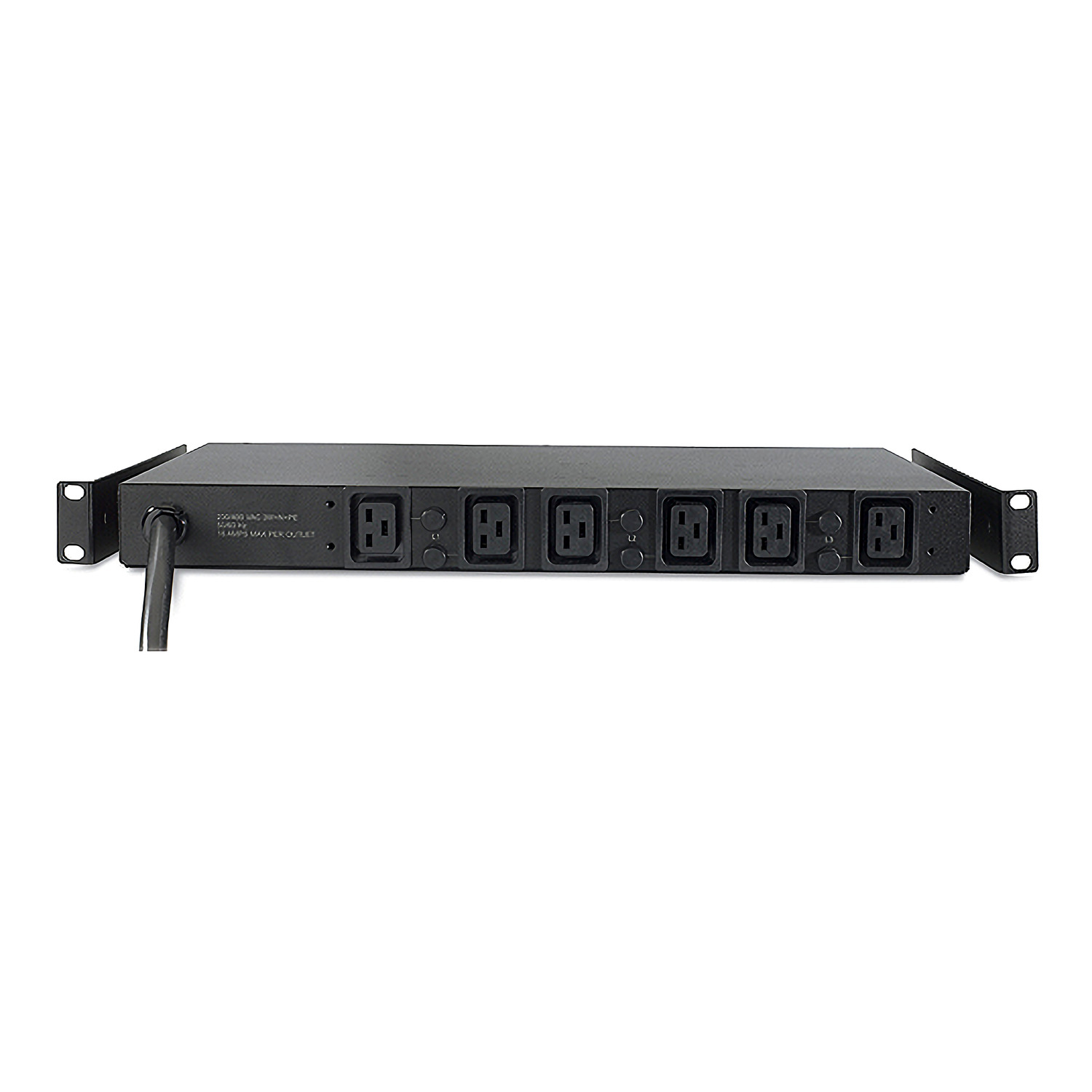

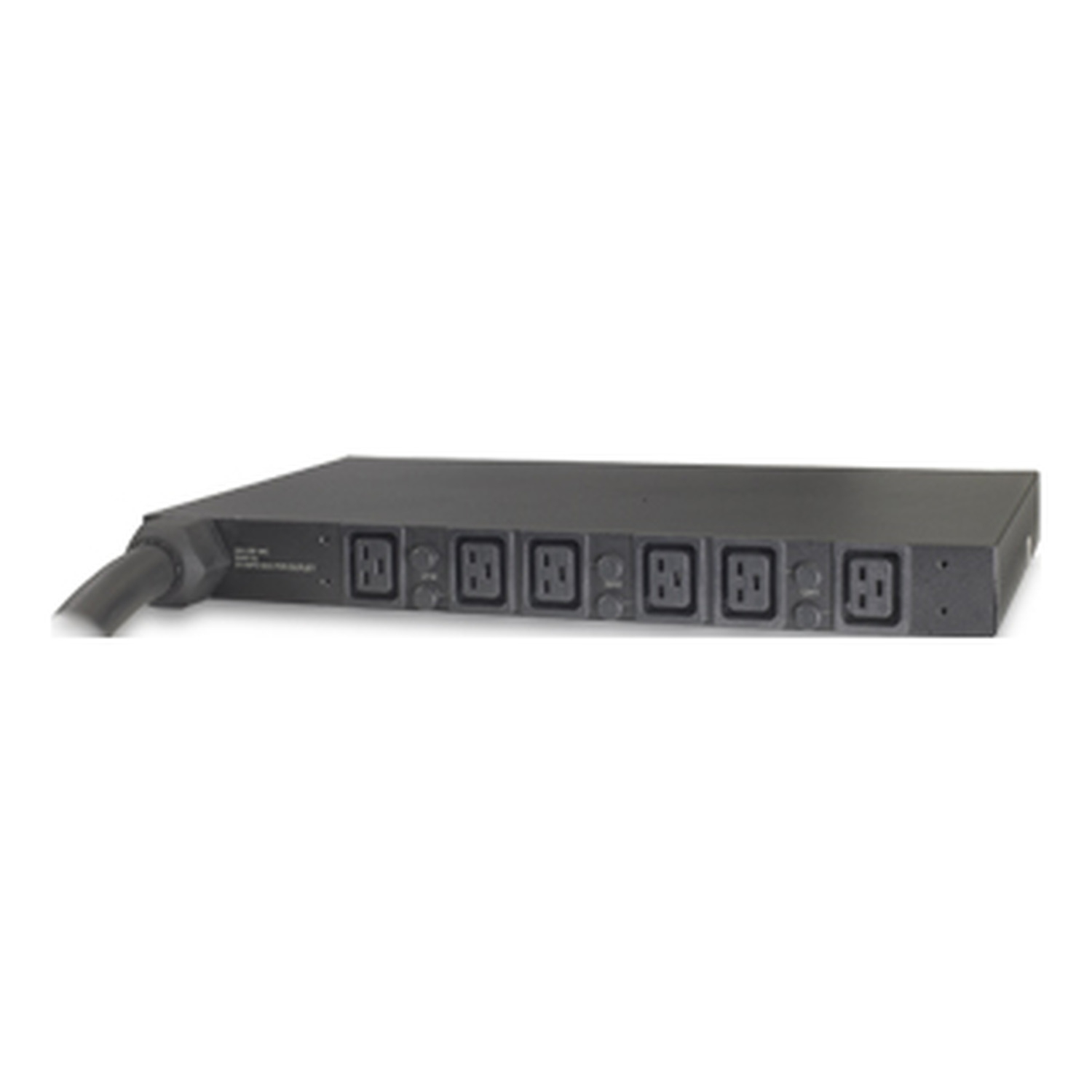

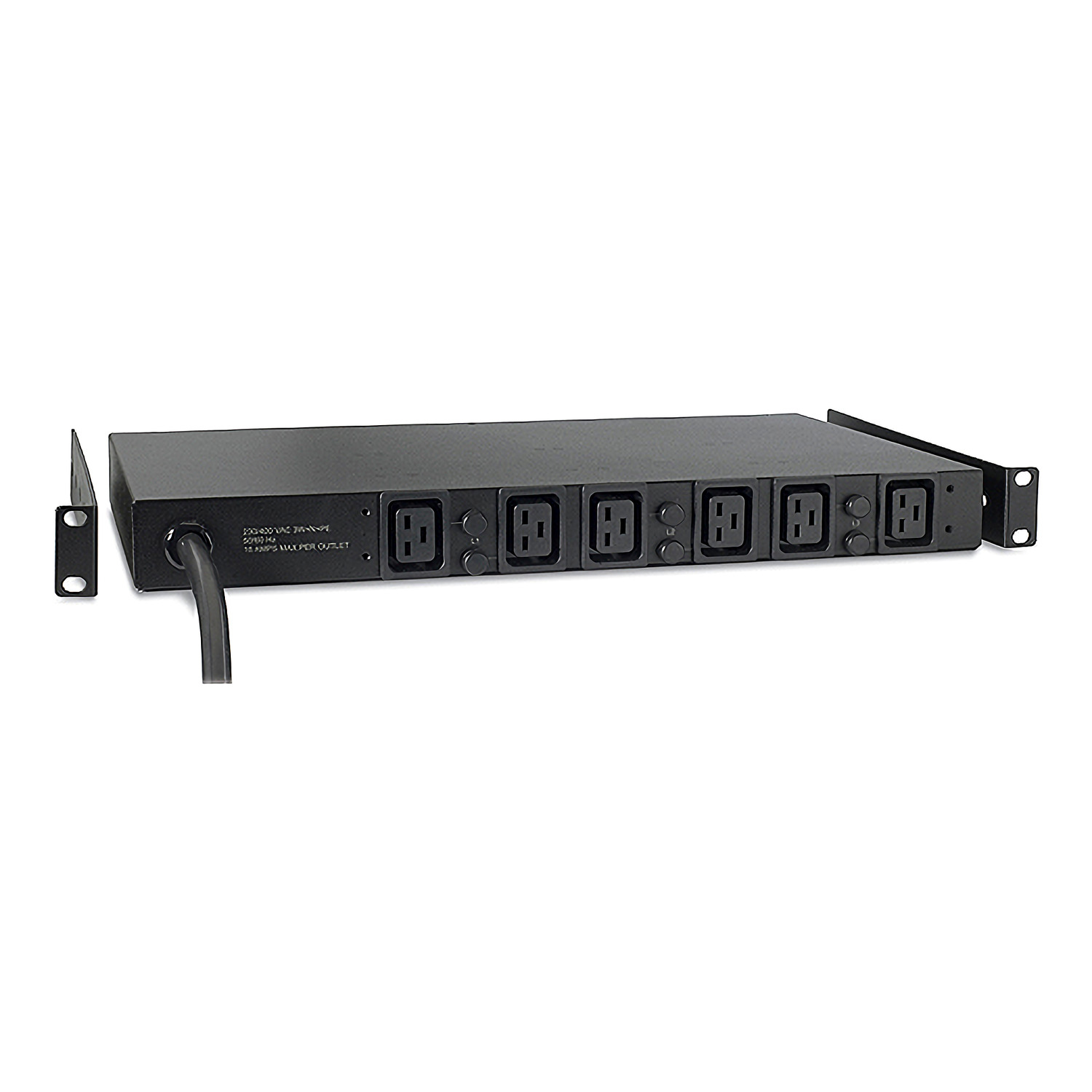

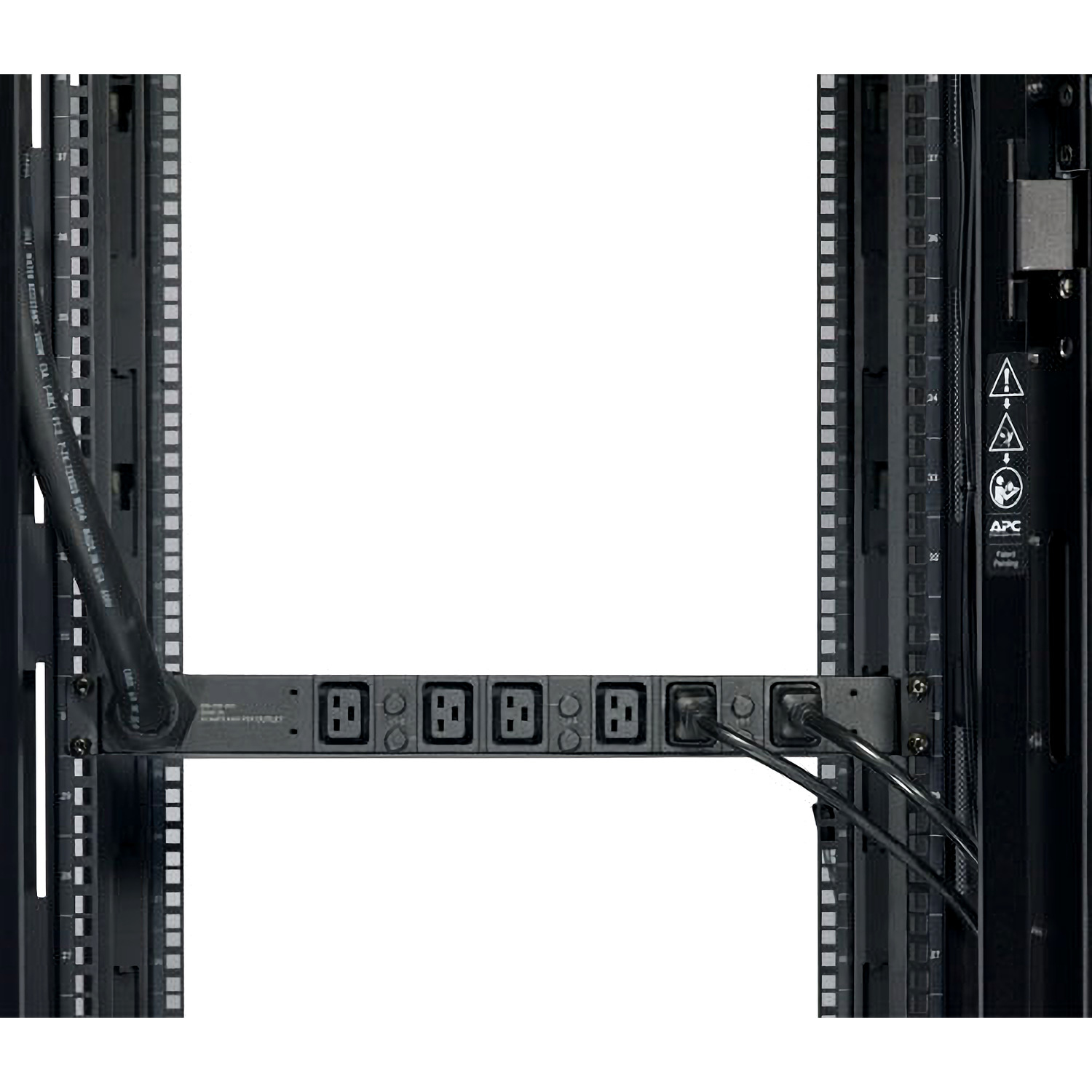

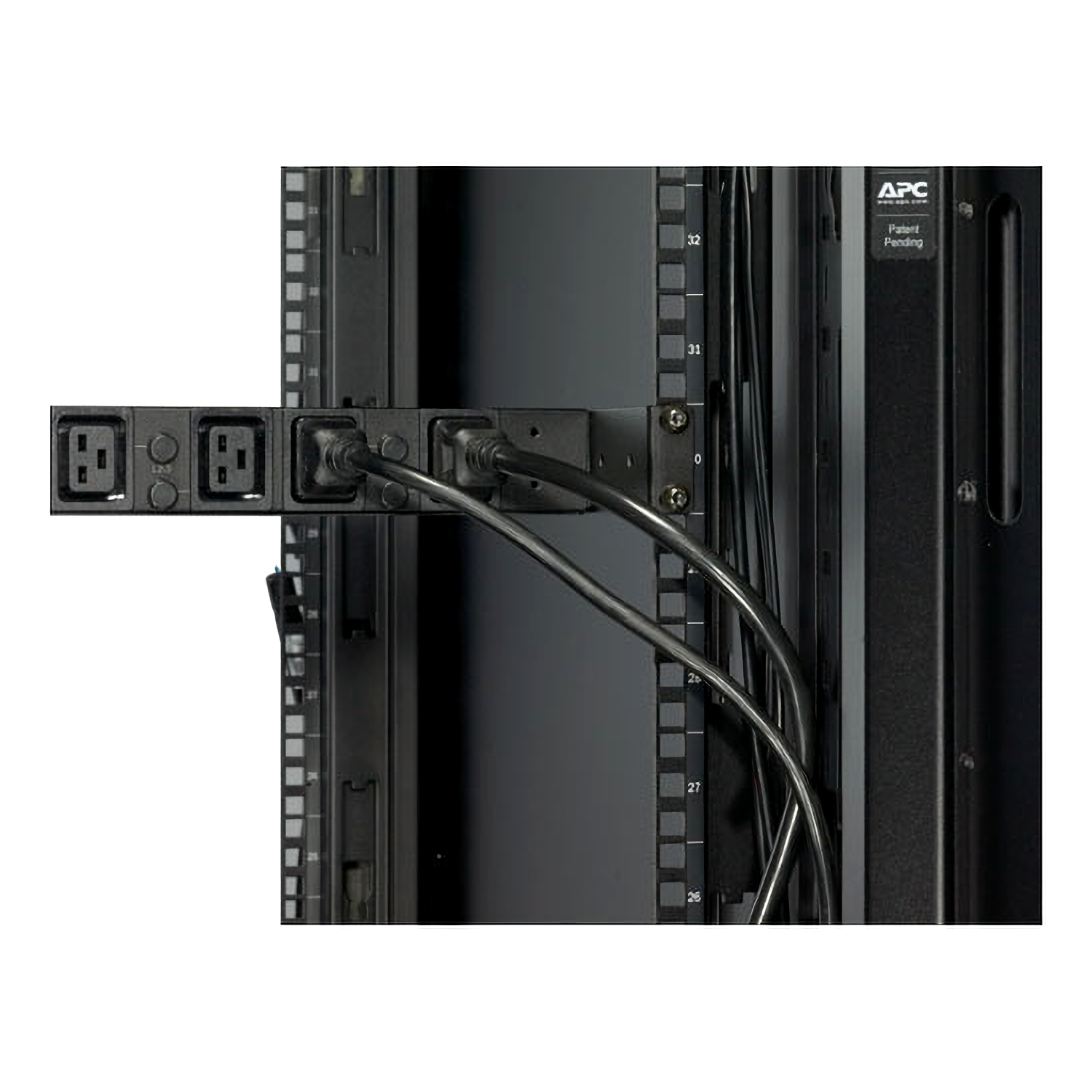

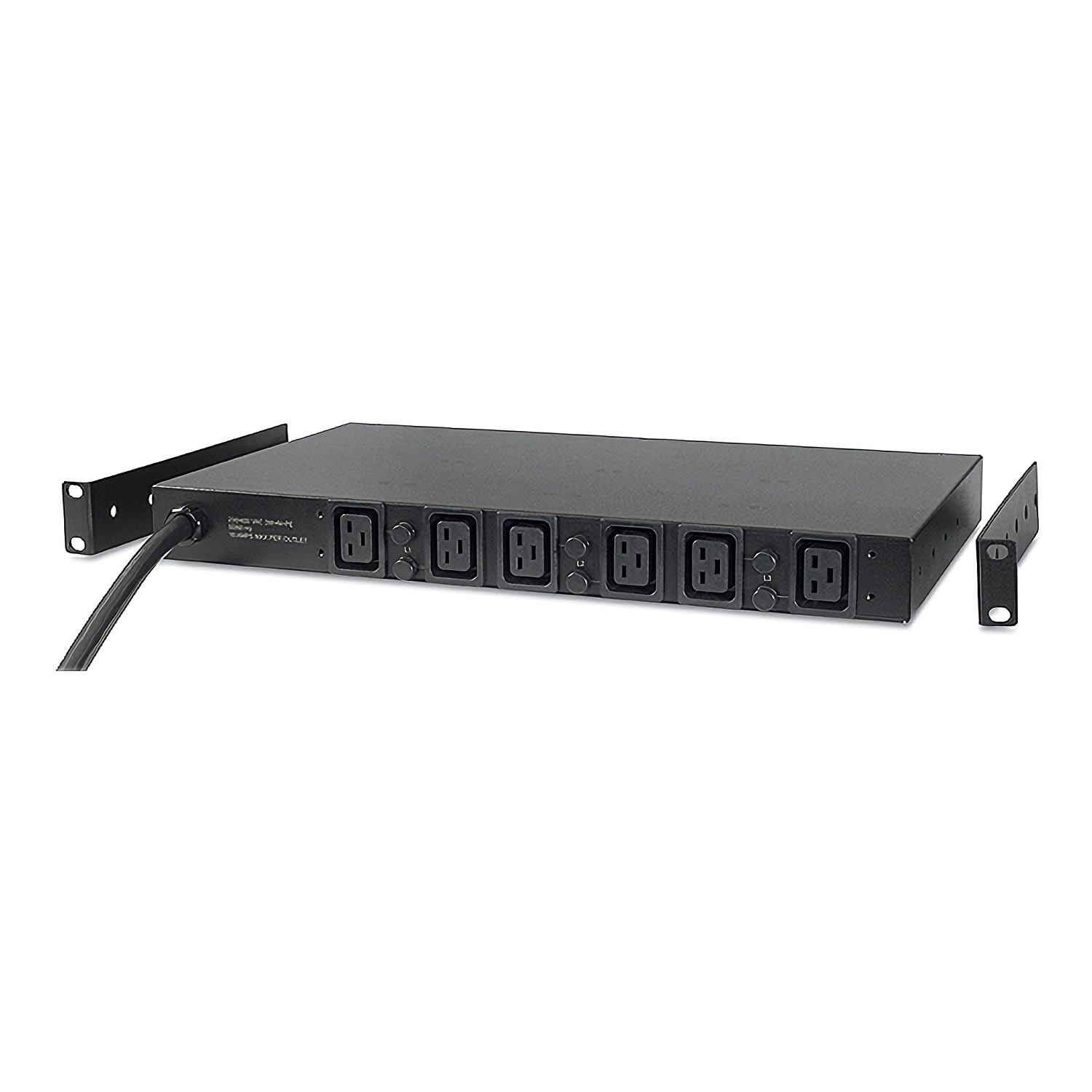

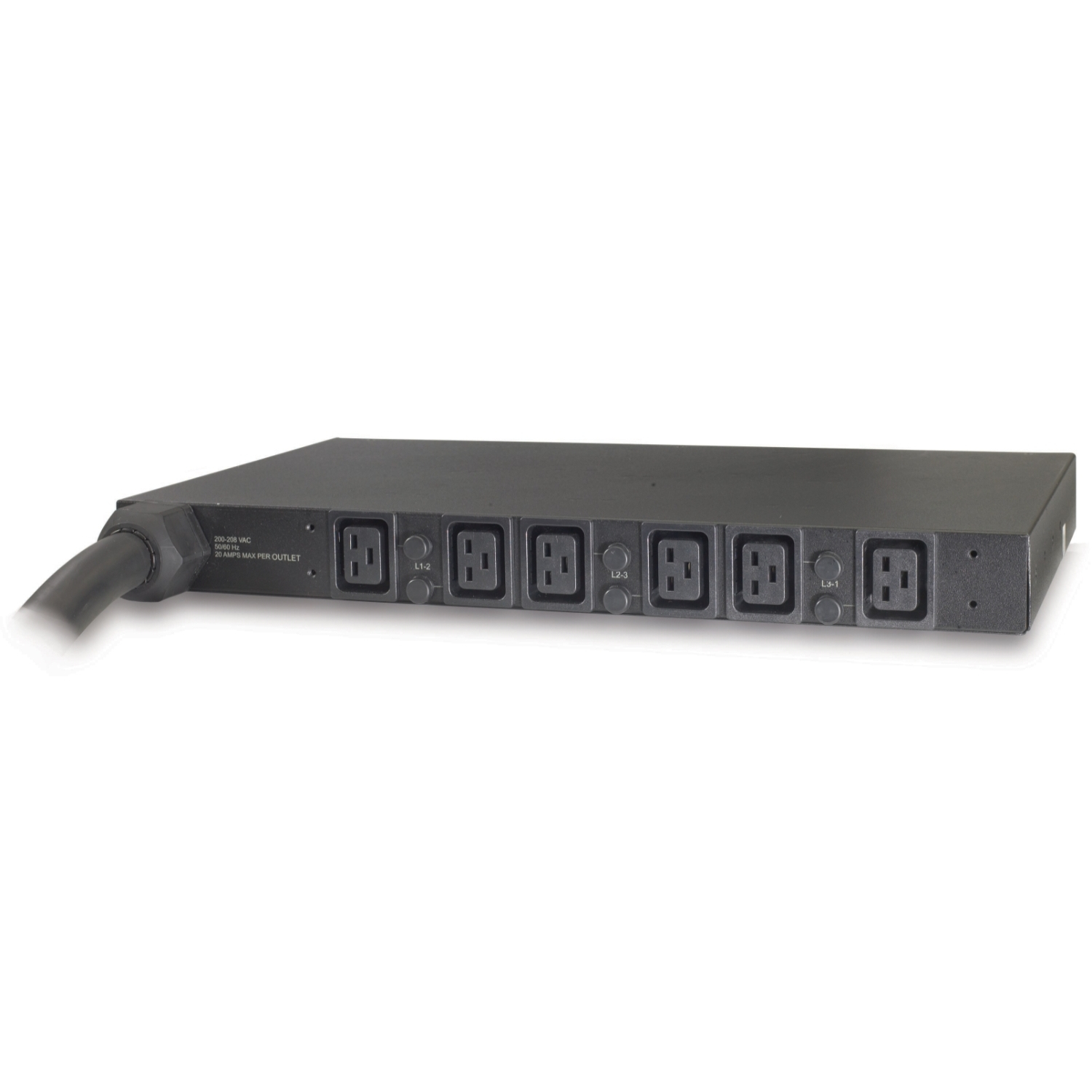

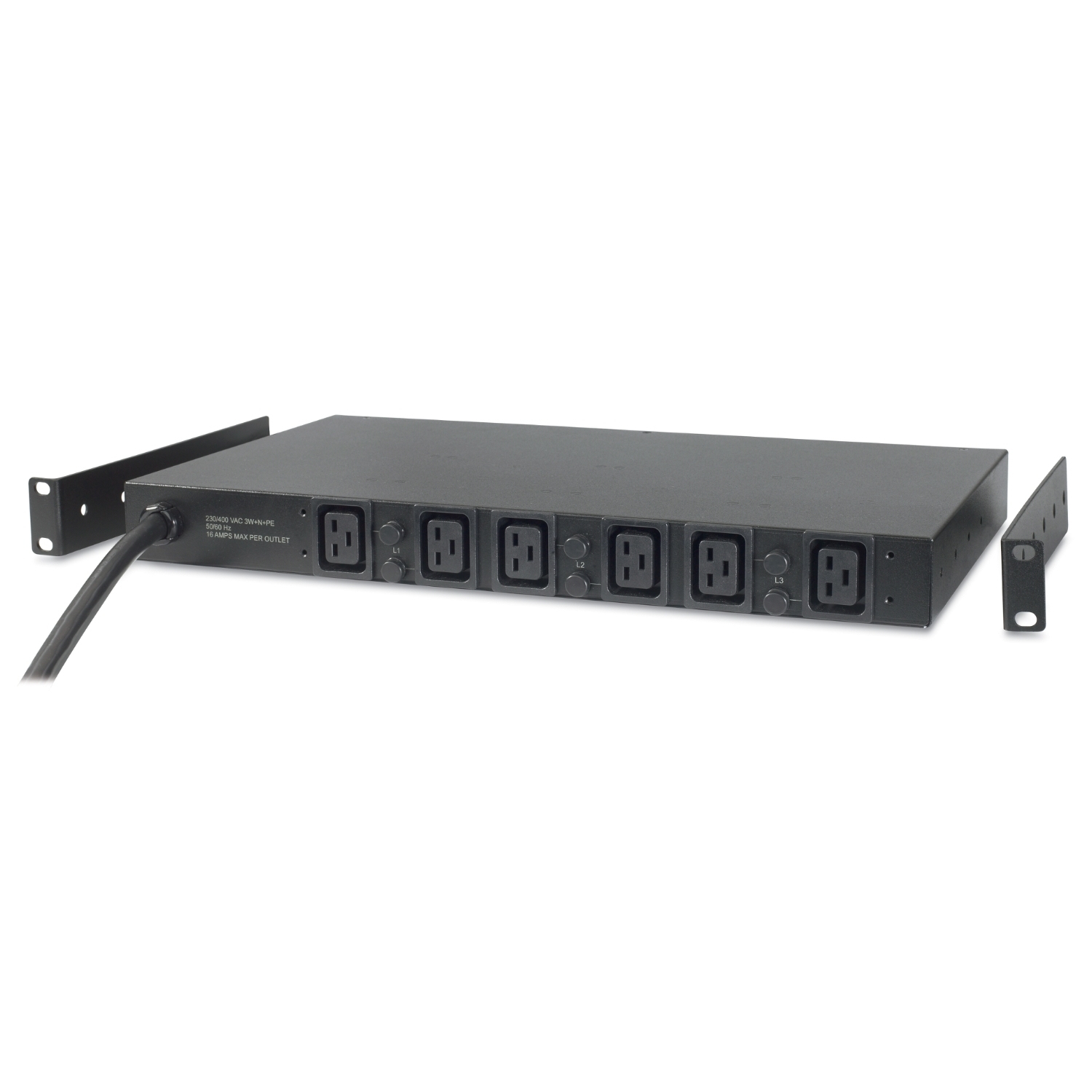

It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 50A and operates at 200-208V. The PDU features 6 IEC 60320 C19 outlets and is equipped with a CS8365 input connector. It has an 8-foot (2.44 meters) power cord for flexible installation. The unit is designed to fit in a 1U rack space. It is compliant with RoHS and REACh regulations, ensuring it meets environmental standards.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Certification | cUL listed; METI Denan; UL listed |
| Rack capacity | 1U |
| Ports & interfaces | |
| Output connections | (6) IEC 320 C19 |
| Input connection type | Hubbell CS8365C |
| Features | |
| Cable length | 2.4 m |
| Certification | cUL listed; METI Denan; UL listed |
| Ergonomics | |
| Cable length | 2.4 m |
| Power | |
| Nominal input voltage | 208 3 phases |
| Output voltage | 200 V; 208 V |
| Maximum total current draw per phase | 40 A |
| Maximum input current per phase | 50 A |
| AC input frequency | 50 - 60 Hz |
| Number of phases | 3 |
| Certificates | |
| Certification | cUL listed; METI Denan; UL listed |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS, REACH, WEEE |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 7.98 kg |
| Width | 437 mm |
| Depth | 254 mm |
| Height | 44 mm |
| Technical details | |
| Total carbon footprint (kg of CO2e) | 23327.5911925625 |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Logistics data | |
| Country of origin | India |
| Customs product code (TARIC) | 8544429090 |
| Total carbon footprint (kg of CO2e) | 23327.5911925625 |
