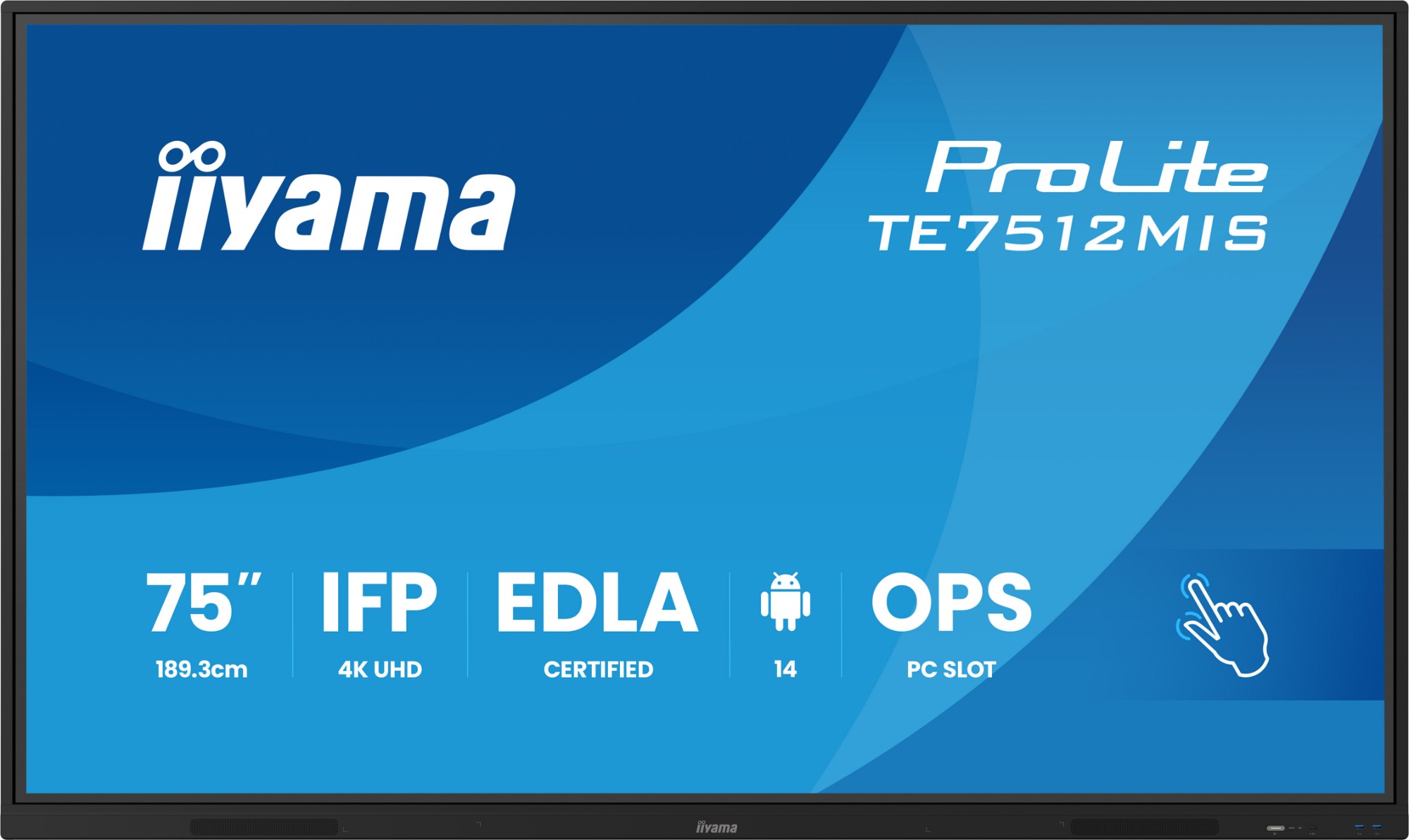

iiyama TE7512MIS-B4AG Signage Display Interactive flat panel 190.5 cm (75") LCD Wi-Fi 400 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 24/7

iiyama TE7512MIS-B4AG Signage Display Interactive flat panel 190.5 cm (75") LCD Wi-Fi 400 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 24/7

  • Brand: iiyama
  • Category:
  • SKU: TE7512MIS-B4AG
  • EAN: 4948570125494
75" Interactive 4K UHD Touchscreen elevating interactive collaboration

Trade Prices

Distributor Product SKU Stock Updated Price
Midwich

75" TE7512MIS-B4AG Interactive Display

 IIYTE7512B4AG Register free see stock
SquareOne Ireland

75" TE7512MIS-B4AG Interactive Display

 IIYTE7512B4AG
Nimans

75inch DISPLAY TE7512MIS-B4AG

 93104
Travion IT Distribution

ProLite 75 inch Touch - 4K Ultra HD VA DLED Interactive Display - 3840x2160

 TE7512MIS4
Alternative Suppliers
Memory Bank

75inch DISPLAY TE7512MIS-B4AG

 NS93104 Register free see stock

Reasons To Buy

Google EDLA Certified

Google Enterprise Device License Agreement allows Google apps, accounts, files, and collaborative tools to be easily accessed directly from the Google EDLA certified iiyama displays, offering seamless integration with the Google ecosystem and the entire Microsoft 365 suite for enhanced user experience, productivity, and collaboration in all environments, especially the education and enterprise sectors alike.

iiyama DMS

iiyama DMS provides organizations with a convenient and fast unified management solution for terminal equipment, builds an efficient and real-time equipment management system, helps digitize the campus/office estate environment and makes device management ultra convenient. iiyama DMS is committed to maintaining compliance with GDPR.

iiyama Share

Connect up to 9 devices and easily share, stream and edit content from your device to your interactive display and vice versa, back to your laptop, tablet or phone. iiyama Share supports AirPlay, Chromecast and Miracast.

iiWare 13E

Empower your presentations with iiWare 13E, featuring Google EDLA, iiyama DMS, iiyama Share, Note, Browser, Cloud Drive via an intuitive and user-friendly software that allows you to effortlessly manage, customize, and access various applications with ease.

PureTouch-IR

Delivers 1mm Touch accuracy for the smoothest and fastest annotation with 40pt infrared Touch technology.

Multi-Window Mode

You can easily read and control your content when standing in front of your audience. Simply can drag and drop information between the apps. The windows are flexible, easy-to-use, designed specifically for large screen presentation and education.

Built-in speakers

The built-in front-facing speakers support conferencing configurations.

Standalone Solution

Unlock all of the security and flexibility of Windows IoT with the optional OPS Slot PC.

USB-C Connection

Delivers the latest in video, audio and Touch signal, all through one port and even charges your device with 65W power delivery.

Description

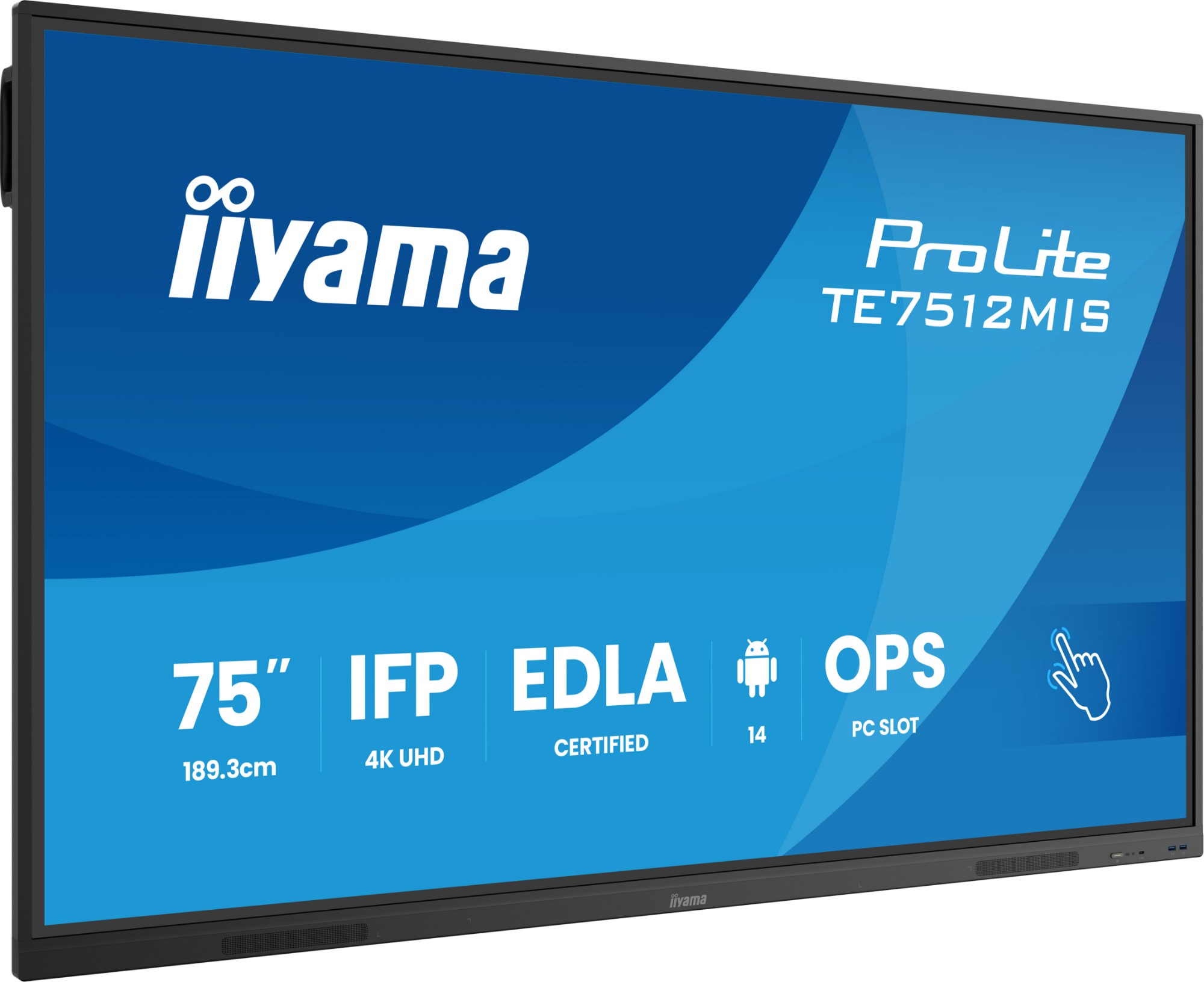

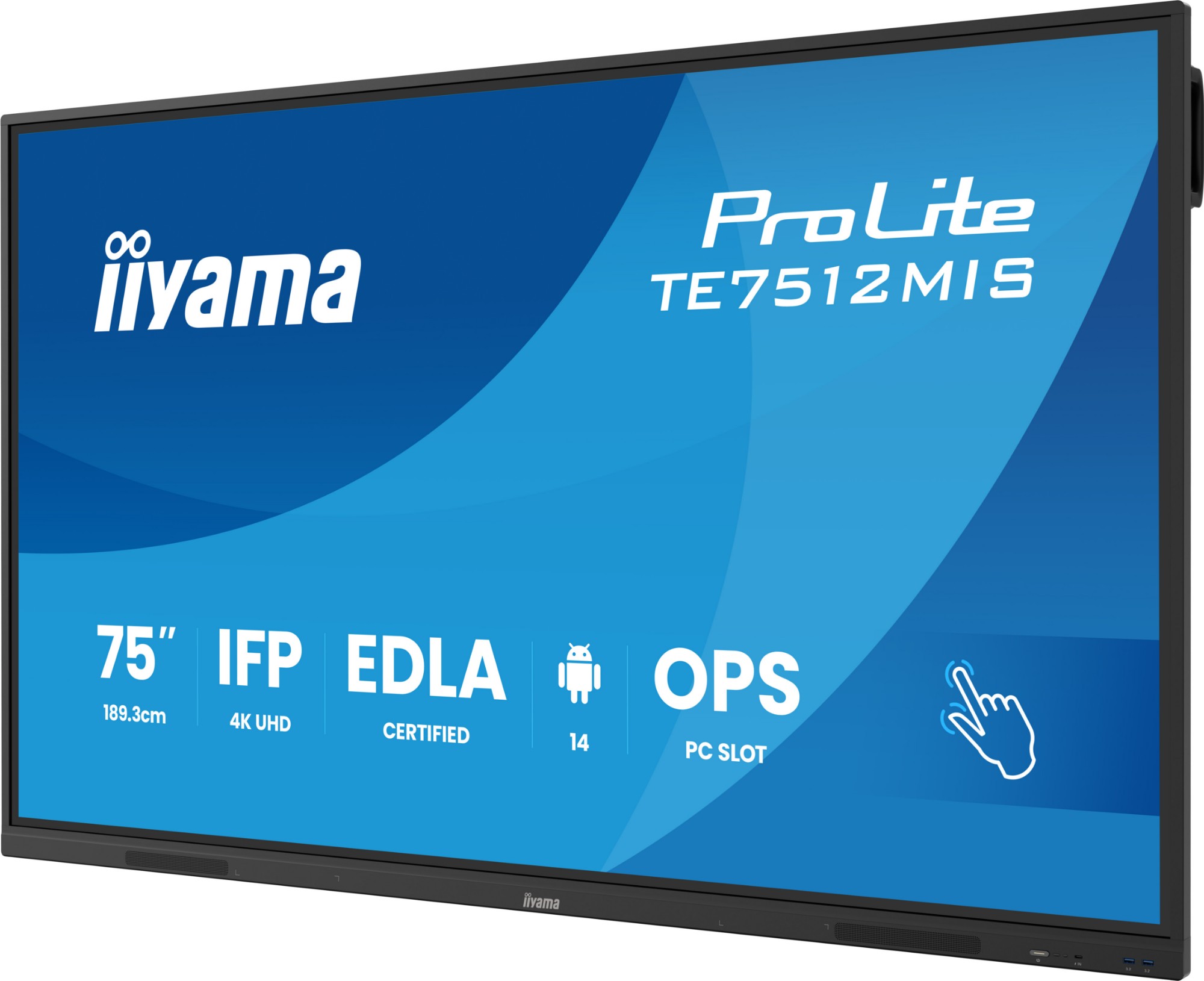

The TE7512MIS-B4AG is an exceptional 4K UHD interactive display designed by iiyama to enhance collaboration, communication, and engagement. With key features like Zero Airgap LCD DLED screen eliminating parallax, accurate PureTouch-IR, iiWare 13E with Android 14, WiFi and the iiyama DMS (Device management System), this display transforms the way you engage with content, making it an indispensable tool for modern workspaces and educational settings. Boasting a new 4K Interface with User Profiles for simple login and access to your very own bespoke application and Cloud Drives or harmonize with your existing estate and unleash the true power of Windows and Office applications. iiyama TE7512MIS-B4AG becomes a highly personalised & flexible device within a busy hybrid environment for multiple users. Share wirelessly more easily than ever before with iiyama Share and EShare app, bringing effortless ideation and efficient collaboration in your enterprise or school. This affordable display transforms the modern workplaces, educational institutions, dynamic meeting spaces and beyond. Elevate your interactive experience with the iiyama TE12 SERIES displays and embrace the future of visual communication.

Specifications

Display
LED backlightYes
Panel typeVA
Display number of colours1.07 billion colours
Number of simultaneous touchpoints40
LED backlighting typeDirect-LED
TouchscreenYes
Active display area (W x H)1650 x 928 mm
Display technologyLCD
Display diagonal190.5 cm (75")
Display resolution3840 x 2160 pixels
Display brightness400 cd/m²
HD type4K Ultra HD
Response time6.5 ms
Contrast ratio (typical)5000:1
Contrast ratio (dynamic)8000:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Pixel pitch0.43 x 0.43 mm
Display diagonal (metric)189.3 cm
Native aspect ratio16:9
Horizontal scan range30 - 135 kHz
Anti-glare screenYes
Touchscreen technologyPureTouch-IR
Surface hardness7H
Native refresh rate60 Hz
Multi-touchYes
Glass thickness3 mm

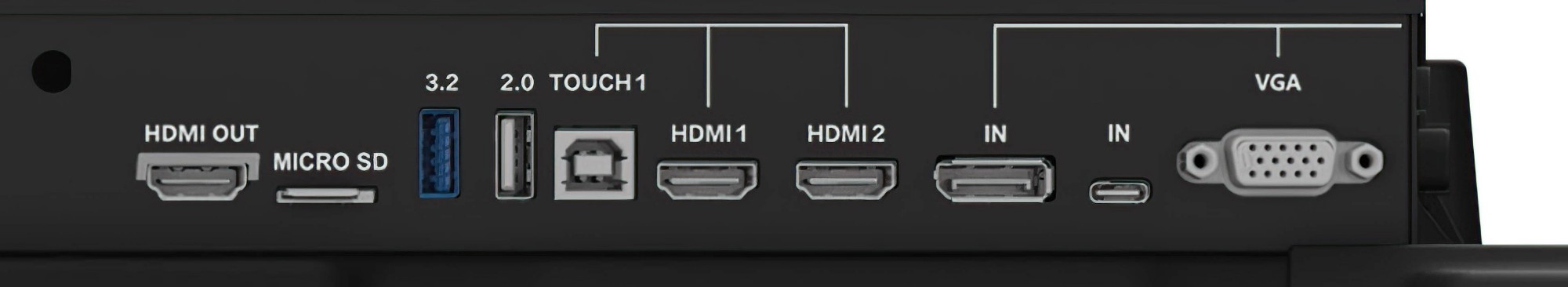

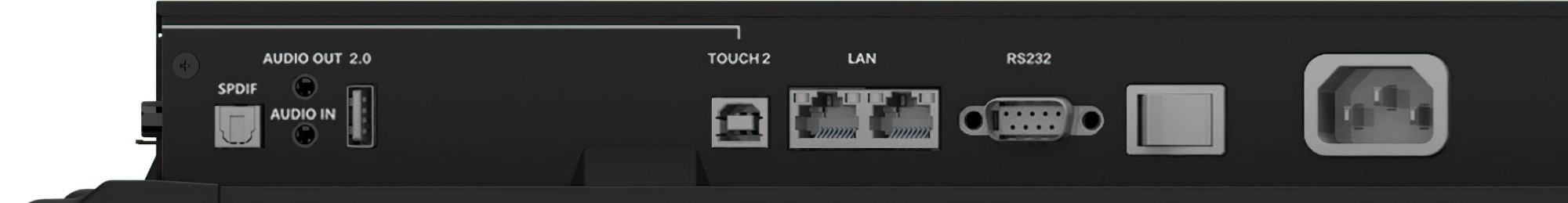

Ports & interfaces
USB connector typeUSB Type-A, USB Type-C
Remote (IR) input1
DisplayPort version1.2
USB portYes
DisplayPorts in1
HDMI version2.0
RS-232CYes
Wi-Fi standardsWi-Fi 6 (802.11ax)
Wi-FiYes
PC Audio inYes
DisplayPorts quantity1
Compatible memory cardsMicroSD (TransFlash)
Card reader integratedYes
Ethernet LANYes
HDMI ports quantity3
Ethernet LAN data rates1000 Mbit/s
VGA (D-Sub) input ports1
Ethernet LAN (RJ-45) ports1
USB version3.2 Gen 1 (3.1 Gen 1)
USB ports quantity5
OPS module slotYes
HDMI input ports quantity1
HDMI output ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity2
USB Power Delivery (USB PD)Yes
USB Power Delivery up to65 W
Audio Return Channel (ARC)Yes
Audio
Number of built-in speakers2
RMS rated power32 W
Built-in speaker(s)Yes
Design
Product designInteractive flat panel
Placement supportedIndoor
OrientationHorizontal
Housing materialMetal
Bezel width (top)1.65 cm
Bezel width (side)1.65 cm
Bezel width (bottom)4.5 cm
Product colourBlack

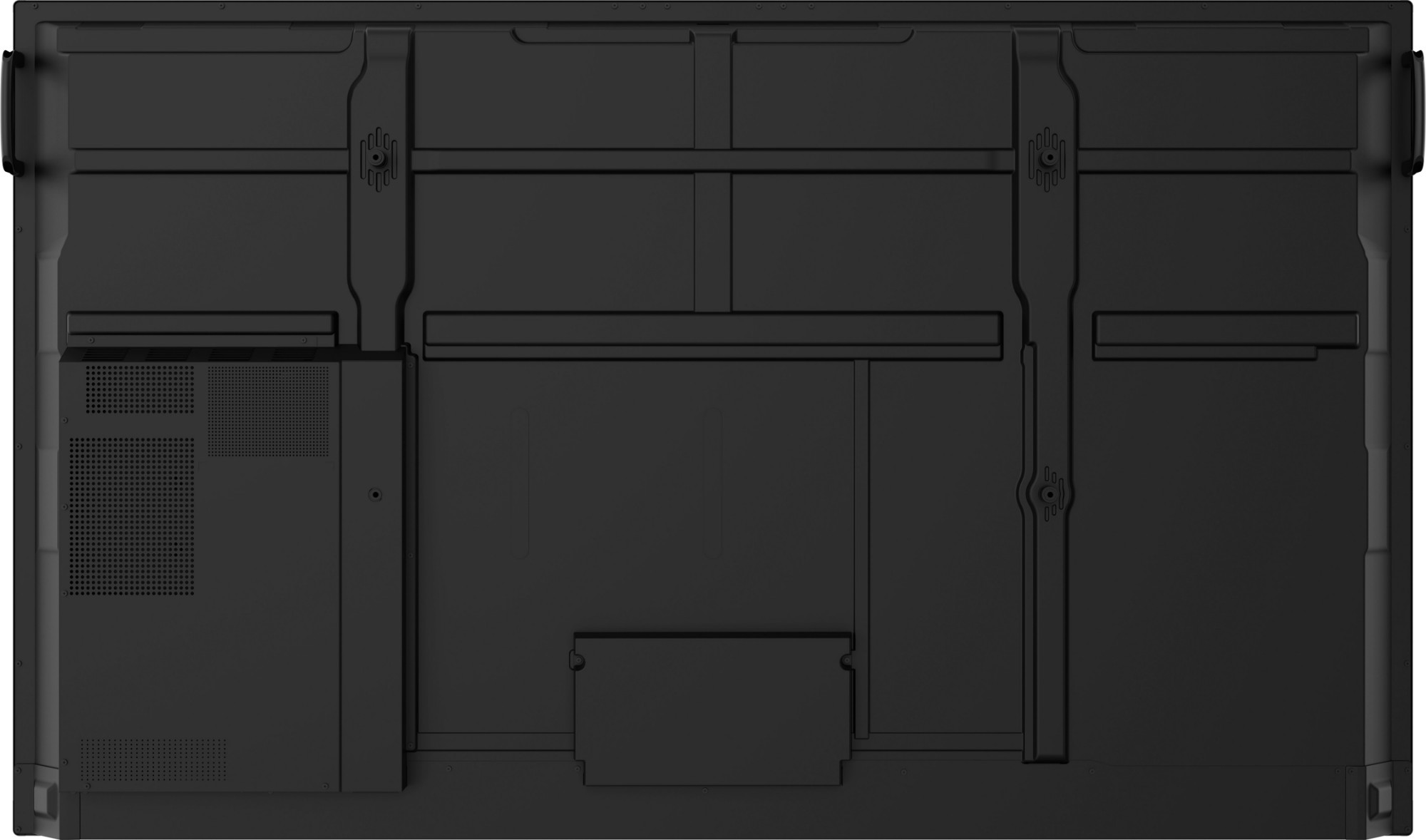

Panel mounting interface800 x 400 mm
CertificationCB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH
VESA mountingYes
Anti-glare screenYes
Mounting typeWall
Bezel colourBlack
Performance
PurposeUniversal
Operating hours (hours/days)24/7
Mean time between failures (MTBF)50000 h
On Screen Display (OSD) languagesCzech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Polish, Russian, Swedish
On Screen Display (OSD)Yes
Number of OSD languages14
HDCPYes
Plug and PlayYes
HDCP version2.2
Wi-FiYes
Power
Power consumption (off)0.3 W
Power consumption (typical)174 W
Power consumption (standby)0.4 W
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Energy efficiency scaleA to G
Energy efficiency class (SDR)G
Energy efficiency class (HDR)Not available
Energy consumption (SDR) per 1000 hours174 kWh
Computer system
Computer systemYes
Processor familyARM Cortex
Operating system installedAndroid
Internal memory8 GB
Internal storage capacity128 GB
Processor manufacturerARM
Built-in processorYes
On-board graphics card modelARM Mali-G52
Processor architectureARM Cortex-A53+Cortex-A72
Operating system version14
Weight & dimensions
Display width1709 mm

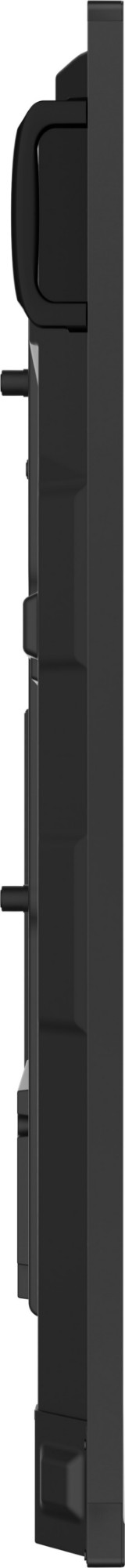

Display depth98 mm
Display height1020 mm
Display weight39 kg
Packaging data
Package width1863 mm
Package depth1863 mm
Package height1148 mm
Package weight51.5 kg
Quick start guideYes
Batteries includedYes
Remote control includedYes

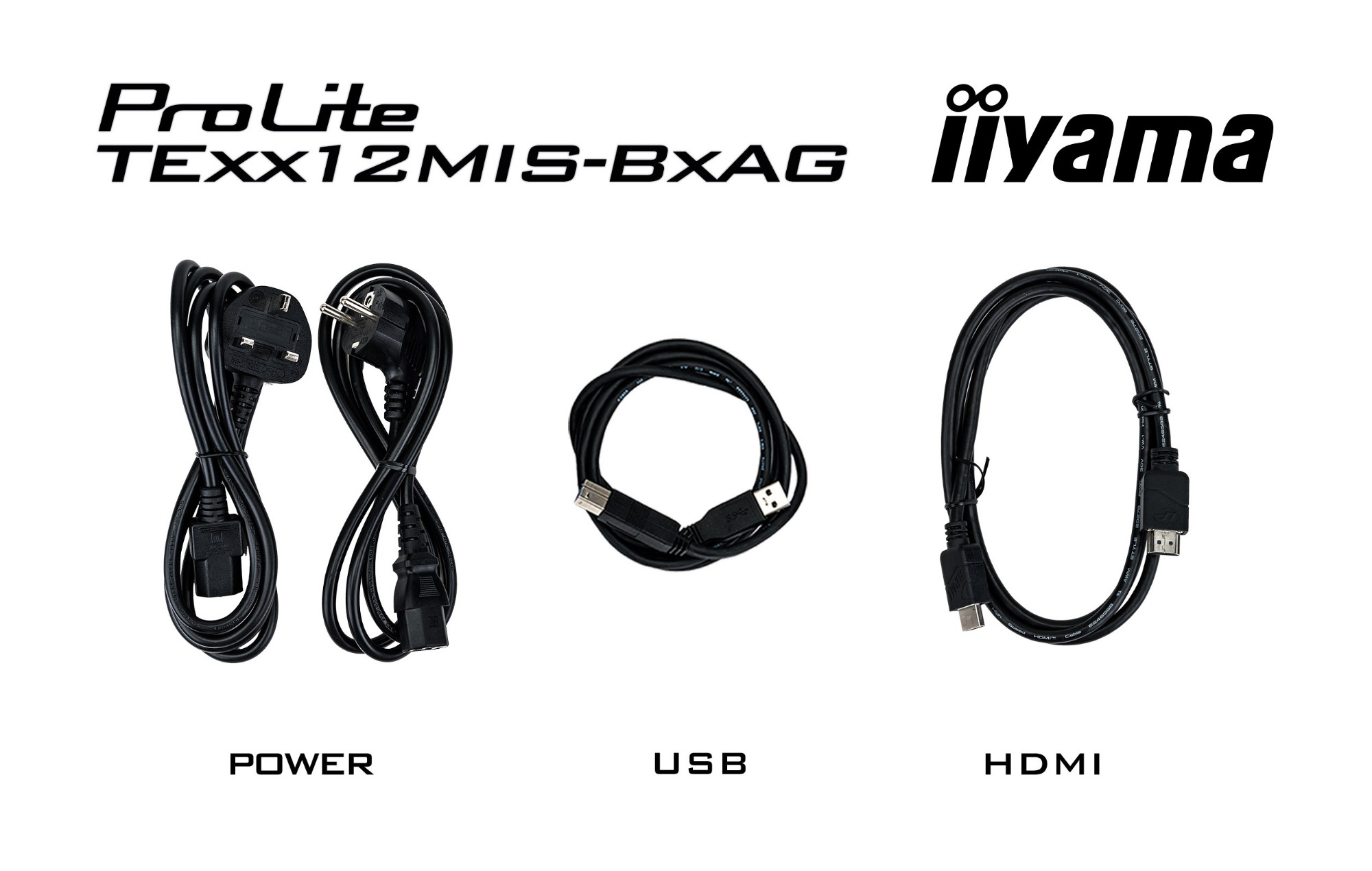

Cables includedAC, HDMI, RS-232
Packaging content
Quick start guideYes
Batteries includedYes
Remote control includedYes
Cables includedAC, HDMI, RS-232
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Certificates
CertificationCB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH
Technical details
VESA mountingYes
USB connector typeUSB Type-A, USB Type-C
Power supply typeInternal
Panel typeVA
DisplayPort version1.2
DisplayPorts in1
Number of simultaneous touchpoints40
LED backlighting typeDirect-LED
OPS slot1
Warranty period5 year(s)
Compliance certificatesRoHS
Network
Wi-Fi standardsWi-Fi 6 (802.11ax)
Wi-FiYes
Ethernet LANYes
Ethernet LAN data rates1000 Mbit/s
Thin Client
Processor familyARM Cortex
Operating system installedAndroid
Internal memory8 GB
Internal storage capacity128 GB
Other features
USB connector typeUSB Type-A, USB Type-C
Power supply typeInternal
Panel typeVA
DisplayPort version1.2
Housing materialMetal
DisplayPorts in1
Number of simultaneous touchpoints40
Wi-Fi standardsWi-Fi 6 (802.11ax)
Wi-FiYes
Mean time between failures (MTBF)50000 h
Headphone outputs1
Headphone connectivity3.5 mm
Display technologyLCD
Compatible memory cardsMicroSD (TransFlash)
Card reader integratedYes
Bezel width (top)1.65 cm
Bezel width (side)1.65 cm
Bezel width (bottom)4.5 cm
Backlight typeDirect LED
Audio output3.5mm
Quick start guideYes
Plug and PlayYes
Energy efficiency scaleA to G
OPS module slotYes
