iiyama ProLite 15.6" Full HD PCAP 10 point touch monitor with edge-to-edge glass, IPS Panel Technology and touch through glass function

iiyama ProLite 15.6" Full HD PCAP 10 point touch monitor with edge-to-edge glass, IPS Panel Technology and touch through glass function

  • Brand: iiyama
  • Category:
  • SKU: T1634MC-B1S
  • EAN: 4948570122110
15.6" Full HD PCAP 10 point touch monitor with edge-to-edge glass, IPS Panel Technology and touch through glass function

Trade Prices

Distributor Product SKU Stock Updated Price
CMS Distribution (Ireland)

T1634MS-B1S 15.6" Tch Screen

 000000000000330411 Register free see stock
Ingram Micro

15.6IN TOUCH PCAP IPS PANEL

View on Xvantage open_in_new 		CI70241
Mentor (UK)

ProLite T1634MC-B1S computer monitor 39.6 cm (15.6') 1920 x 1080 pixels Full HD LED Touchscreen Black

 T1634MC-B1S
Midwich

15.6" PROLITE T1634MC-B1S Monitor

 IIYT1634MCB1S
SquareOne Ireland

15.6" PROLITE T1634MC-B1S Monitor

 IIYT1634MCB1S
TD Synnex UK

ProLite T1634MC-B1S - LED monitor - 15.6" - touchscreen - 1920 x 1080 Full HD (1080p) @ 60 Hz - IPS - 450 cd/m? - 700:1 - 25 ms - HDMI, VGA, DisplayPort - black, matte

View on InTouch open_in_new 		8660337
DSM Distribution

ProLite T1634MC-B1S - LED monitor - Full HD (1080p) - 15.6"

 IIYT1634MCB1S
EET

15,6" PCAP Bezel Free

 T1634MC-B1S
Fourcom

ProLite T1634MC-B1S - LED-Skærm

 494382
Ingram Micro CS

15.6IN TOUCH PCAP IPS PANEL

 CI70241
SYNAXON

15.6IN TOUCH PCAP IPS PANEL

 STD10201900
Alternative Suppliers
Xexos

ProLite 15.6" Full HD PCAP 10 point touch monitor with edge-to-edge glass, IPS Panel Technology and touch through glass function

 T1634MC-B1S Register free see stock

Retail Prices

Merchant Product Condition Updated Price
Amazon New £637.65

Reasons To Buy

IPS Technology

IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

Touch Through-Glass

This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

Touch technology - Capacitive

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

Full HD

With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.

IP65

The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.

Description

The ProLite T1634MC-B1S uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel is totally dust and water resistant, making it a perfect solution for demanding environments. The Touch-Through-Glass function guarantees a seamless and accurate touch response for interactive behind-glass-retail applications.

Specifications

Display
HDCPYes
Display brightness (typical)450 cd/m²
Screen shapeFlat
Display number of colours16.2 million colours
Native aspect ratio16:9
Colour gamut90%
Maximum refresh rate60 Hz
Display surfaceMatt
HD typeFull HD
Display technologyLED
Viewing angle, horizontal178°
Viewing angle, vertical178°
Pixel pitch0.179 x 0.179 mm
Horizontal scan range30 - 84 kHz
Viewable size, horizontal34.4 cm
Viewable size, vertical19.4 cm
Digital horizontal frequency30 - 84 kHz
Display resolution1920 x 1080 pixels
Response time25 ms
Display diagonal39.6 cm (15.6")
Contrast ratio (typical)700:1
Surface hardness7H
Response time (fast)25 ms
Display brightness (peak)450 cd/m²
TouchscreenYes
Number of simultaneous touchpoints10
Panel typeIPS
Colour depth6 bit
Display diagonal (metric)39.5 cm
Touchscreen technologyProjected capacitive system
Second display effective viewing area344.2 x 193.6 mm
Response time measurement typeGTG (Gray to Gray)
Management features
On Screen Display (OSD)Yes
Design
Market positioningOffice
Product colourBlack
Front bezel colourBlack
International Protection (IP) codeIP65
Glass thickness2.4 mm
Ports & interfaces
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DisplayPorts quantity1
HDCPYes
HDMIYes
USB Touch portYes
Technical details
HDMIYes
Product colourBlack
Front bezel colourBlack
Power supply typeExternal
Weight (with stand)3.4 kg
Surface hardness7H
TouchscreenYes
Number of simultaneous touchpoints10
Ergonomics
VESA mountingYes
Panel mounting interface100 x 100 mm
Tilt angle range90 - 5°
On Screen Display (OSD)Yes
Tilt adjustmentYes
Power
Power supply typeExternal
Power consumption (standby)1.5 W
Power consumption (typical)18 W
Power consumption (off)0.3 W
Energy efficiency scaleA to G
AC adapter output voltage12 V
Energy efficiency class (SDR)F
Energy efficiency class (HDR)Not available
Energy consumption (SDR) per 1000 hours10 kWh
European Product Registry for Energy Labelling (EPREL) code1530736
Weight & dimensions
Width (with stand)381 mm
Depth (with stand)200 mm
Height (with stand)285.5 mm
Weight (with stand)3.4 kg
Package width445 mm
Package depth445 mm
Package height355 mm
Package weight5.18 kg
Packaging data
Package width445 mm
Package depth445 mm
Package height355 mm
Package weight5.18 kg
Quick start guideYes

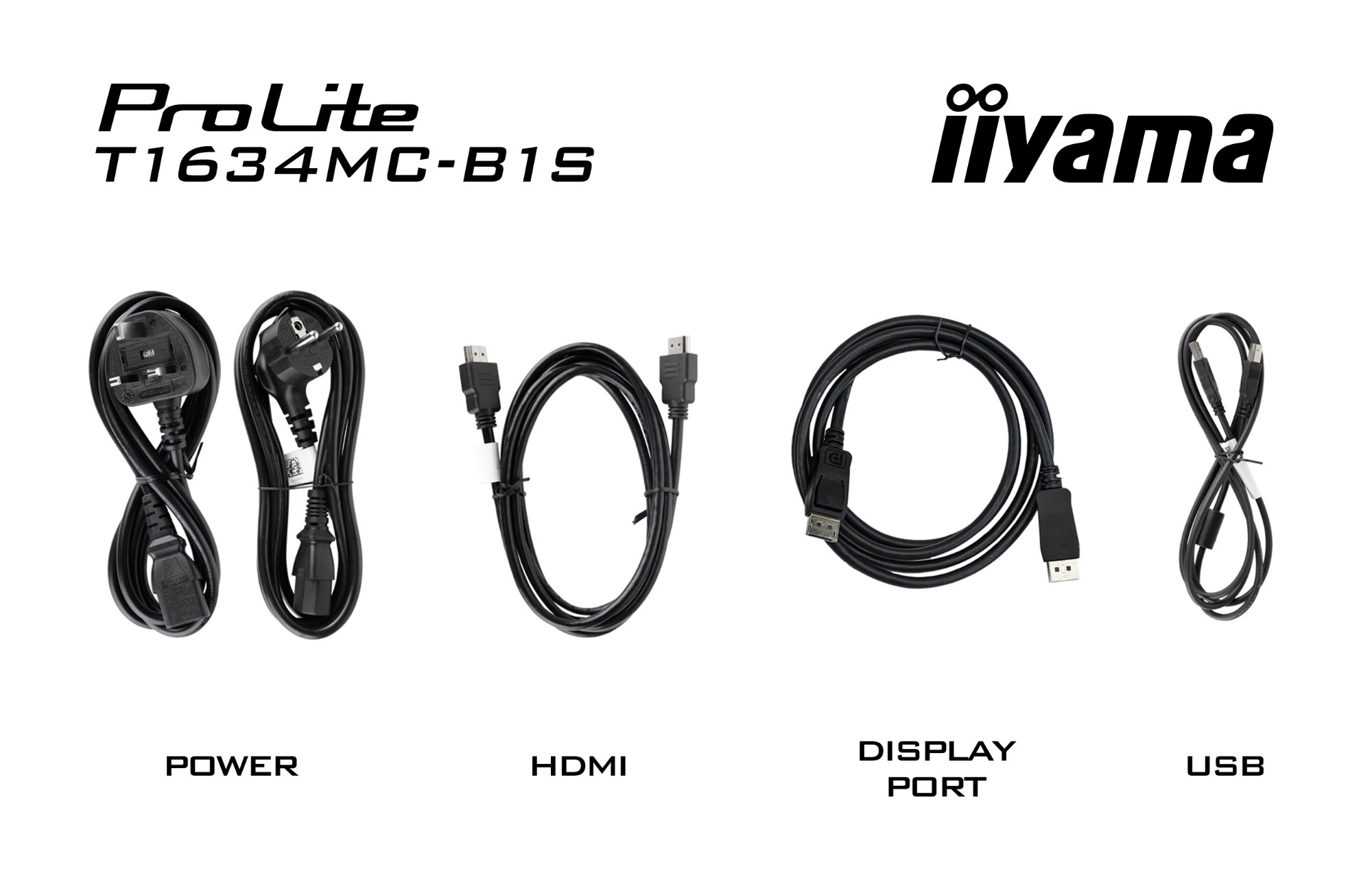

Cables includedAC, DisplayPort, HDMI, USB
Packaging content
Quick start guideYes
Cables includedAC, DisplayPort, HDMI, USB
Sustainability
European Product Registry for Energy Labelling (EPREL) code1530736
Other features
International Protection (IP) codeIP65
Second display effective viewing area344.2 x 193.6 mm
Quick start guideYes
HDMIYes
Surface hardness7H
Energy efficiency scaleA to G
Power supply typeExternal
Display brightness (peak)450 cd/m²
TouchscreenYes
Number of simultaneous touchpoints10
Front bezel colourBlack
