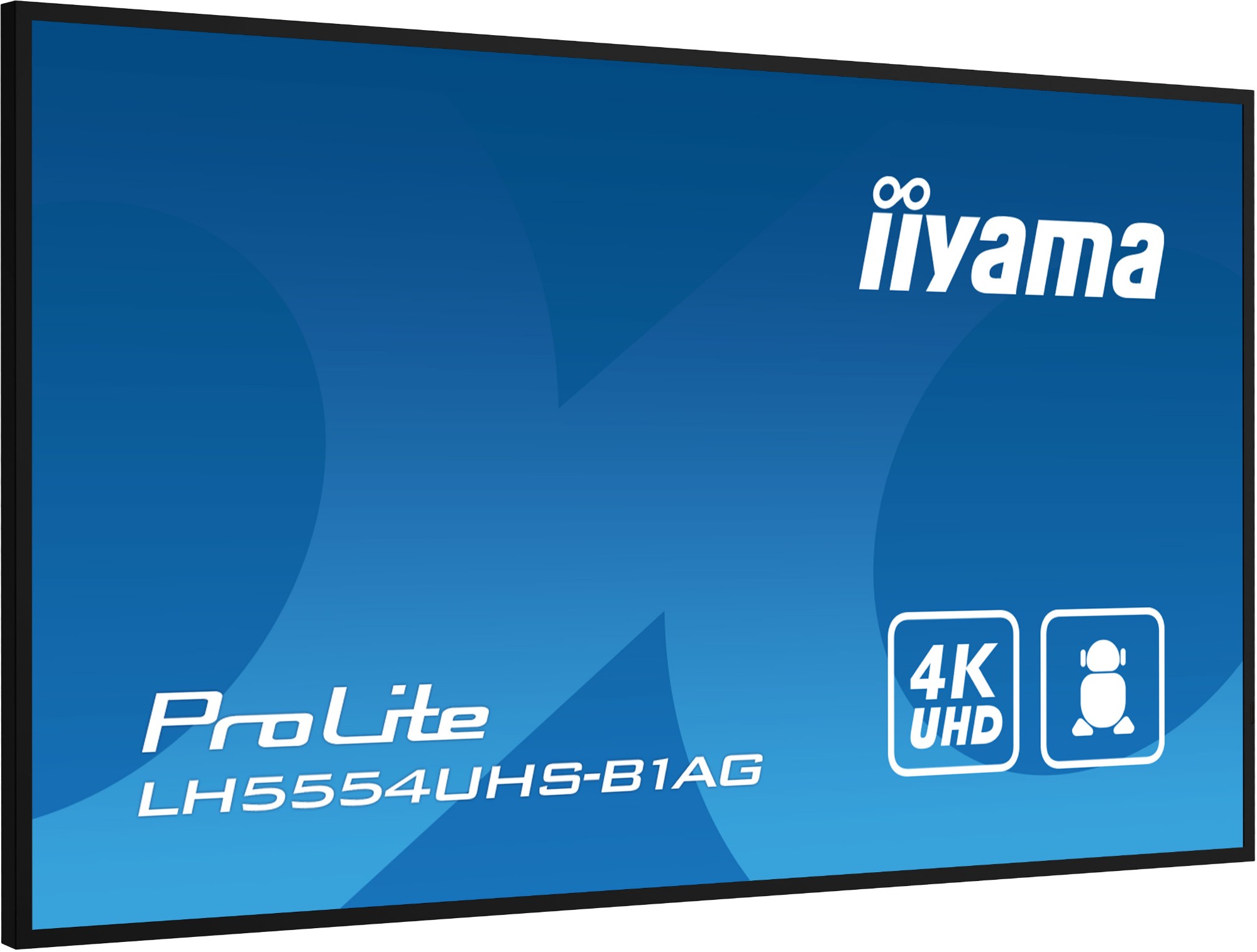

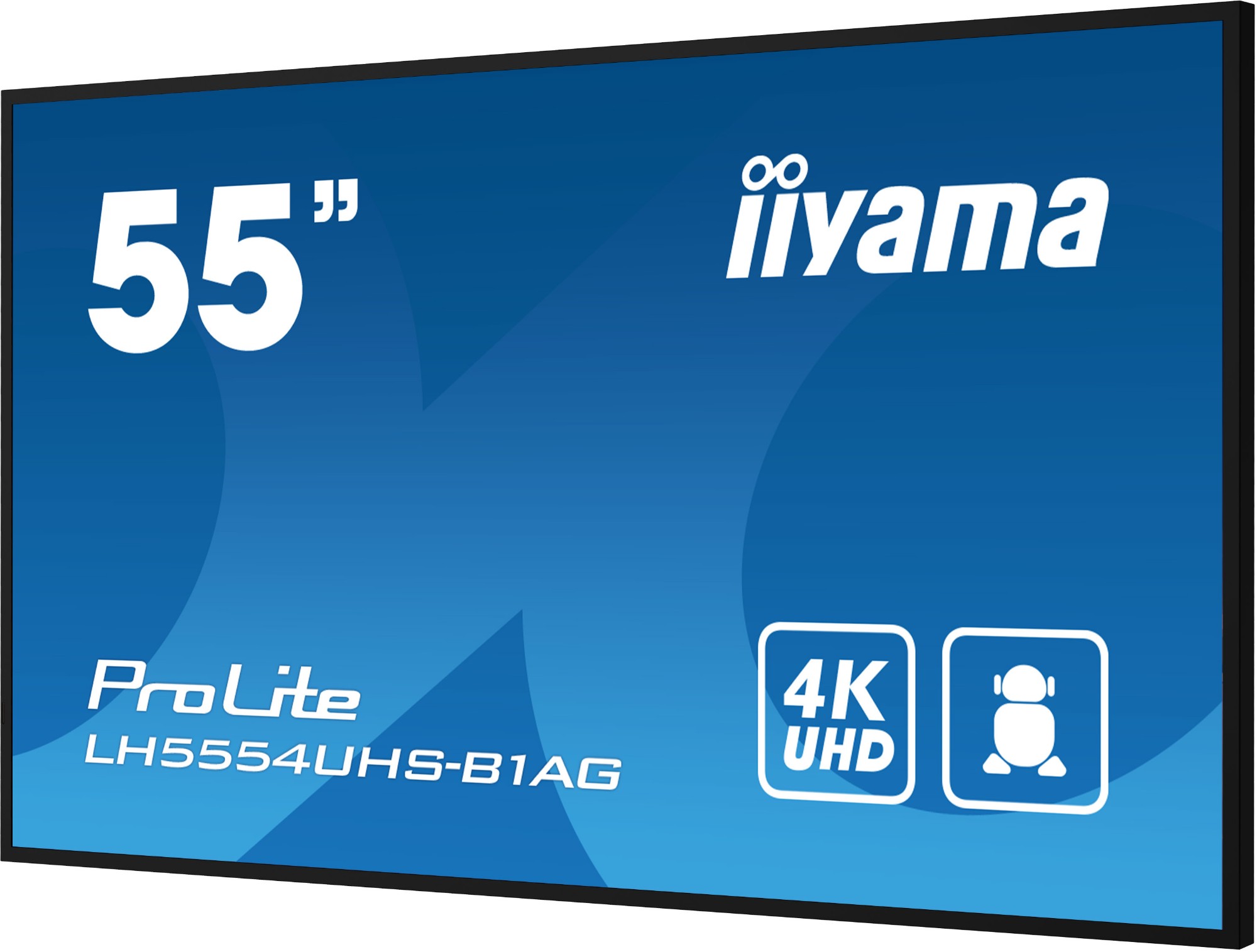

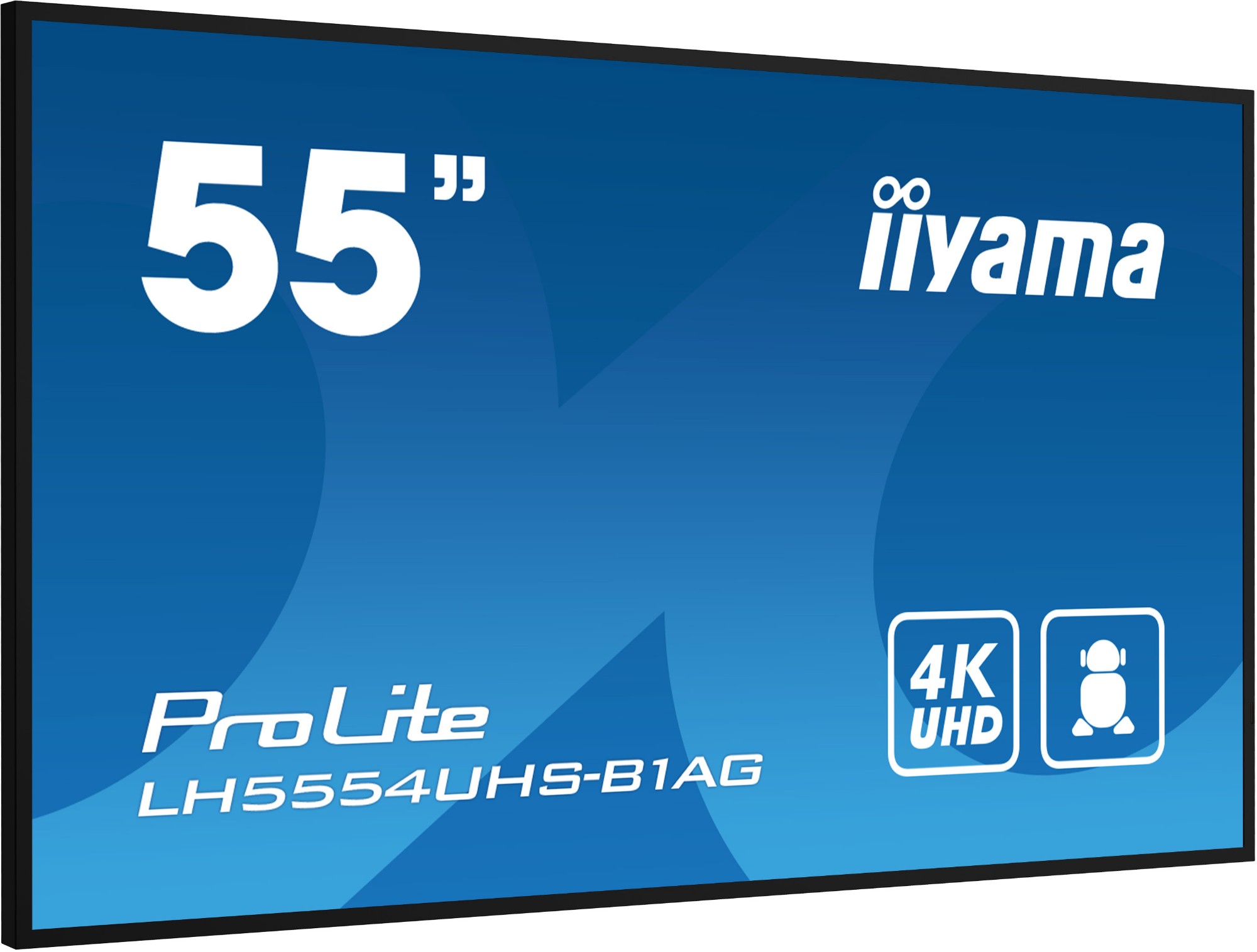

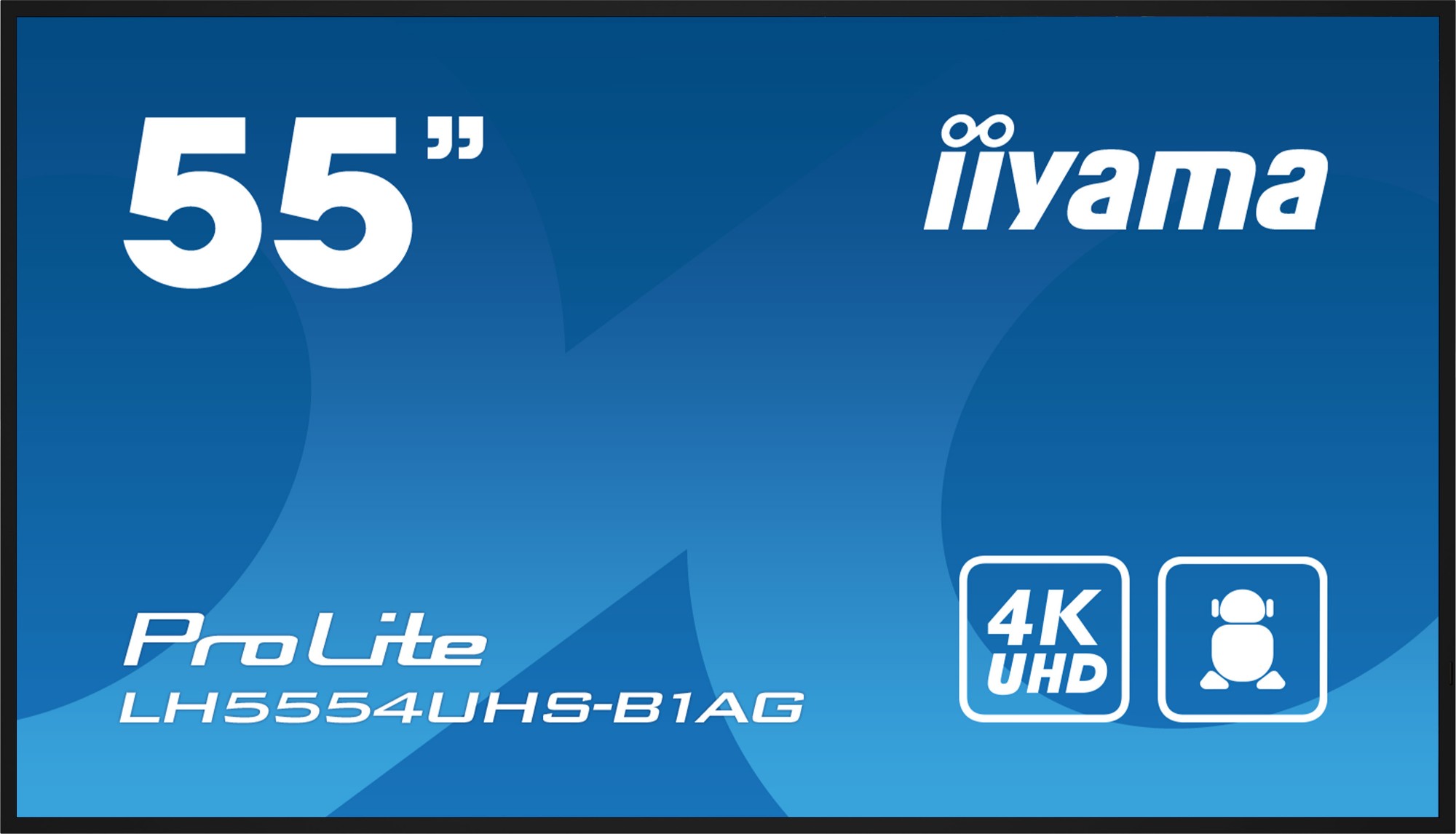

iiyama 55" 4K UHD Professional Digital Signage 24/7 display featuring Android OS, FailOver and Intel® SDM slot

iiyama 55" 4K UHD Professional Digital Signage 24/7 display featuring Android OS, FailOver and Intel® SDM slot

  • Brand: iiyama
  • Category:
  • SKU: LH5554UHS-B1AG
  • EAN: 4948570120994
55" 4K UHD Professional Digital Signage 24/7 display featuring Android OS, FailOver and Intel® SDM slot

Trade Prices

Distributor Product SKU Stock Updated Price
Mentor (IE)

- PROLITE LH5554UHS-B1AG 55" 4K UHD Professional

 LH5554UHS-B1AG Register free see stock
Mentor (UK)

ProLite LH5554UHS-B1AG 55' 4K UHD Professional Digital Signage 24/7 display with Android OS & FailOver

 LH5554UHS-B1AG

Retail Prices

Merchant Product Condition Updated Price
Amazon New £860.63

Reasons To Buy

4K

UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

Smart Display Module

A Smart Display Module (Small/Large) is a plug-in module which can easily be inserted into the most stylish and ultra-slim displays. This small sized module delivers great performance with minimum implementation and management. Available as optional.

Signal FailOver

FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

iiSignage²

iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

Description

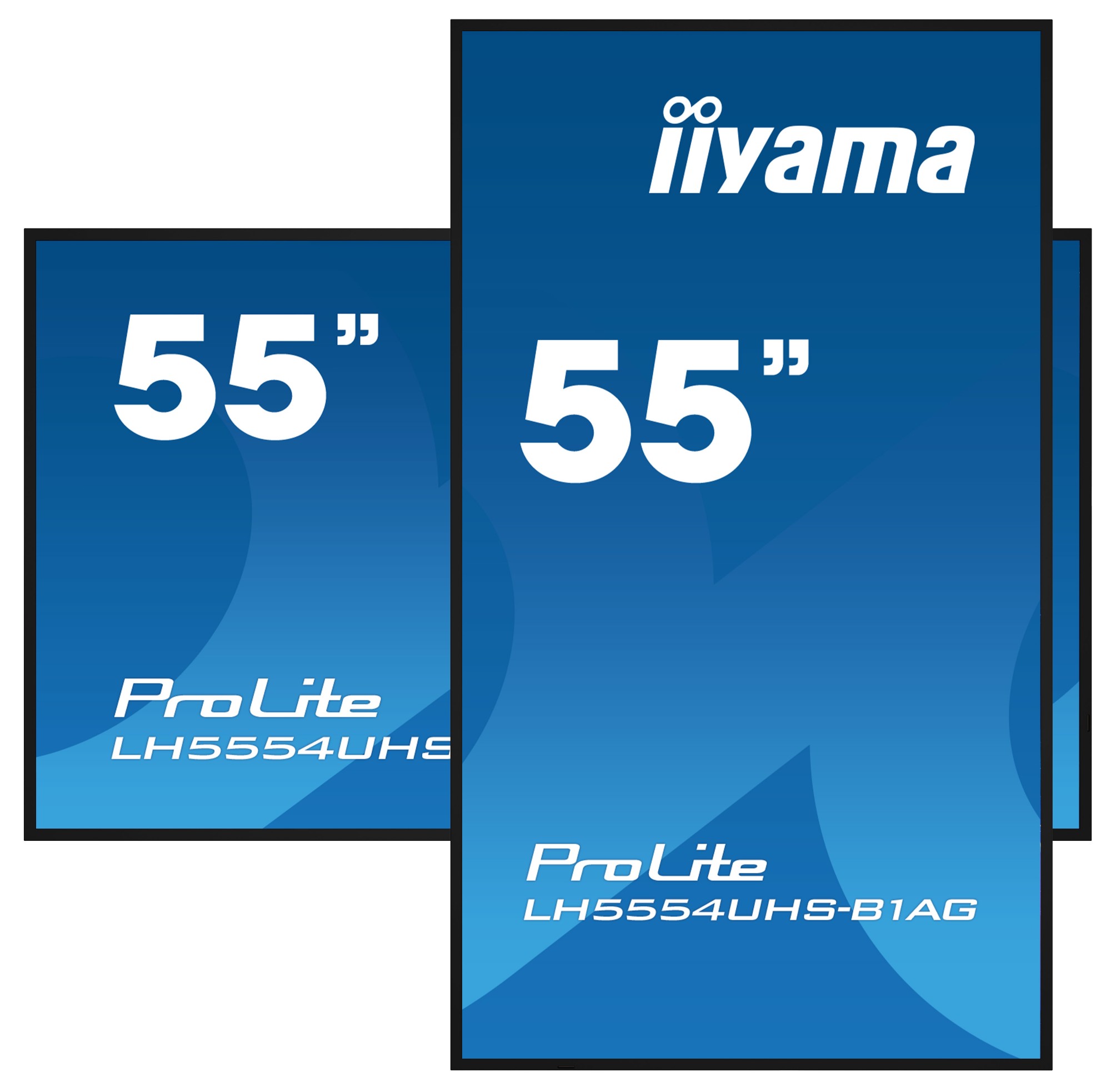

Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH5554UHS from iiyama is a 500cd/m² high brightness professional large format display and can be operated in landscape or portrait orientation in continual around the clock environments 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android OS means you can customize the display to your needs and install applications directly to it. The on-board CMS (Content Management Software) gives you total control of your messaging and advertising remotely and safely. The SDM Slot provides embedded PC option for total flexibility, security and control, while the Signal FailOver feature ensures your content is always actively displayed through your choice of inputs. WiFi enabled, this series is ready for remote content delivery using your network or you can choose to utilise LAN control. With the EShare app you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.

Specifications

Display
Panel typeIPS
Display number of colours1.07 billion colours
TouchscreenNo
Active display area (W x H)1209.6 x 680.4 mm
Display technologyLCD
Display diagonal138.7 cm (54.6")
Display resolution3840 x 2160 pixels
Display brightness500 cd/m²
HD type4K Ultra HD
Response time8 ms
Contrast ratio (typical)1200:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Pixel pitch0.315 x 0.315 mm
Display diagonal (metric)139 cm
Horizontal scan range28 - 160 kHz
Maximum frame rate60 fps
Haze rate25%

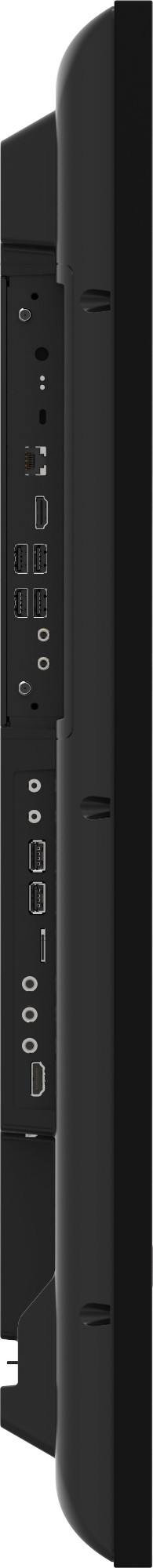

Ports & interfaces
Remote (IR) output1
Remote (IR) input1
USB portYes
HDMI version2.0
RS-232CYes
Wi-FiYes
DisplayPorts quantity1
Compatible memory cardsMicroSD (TransFlash)
Card reader integratedYes
Ethernet LANYes
HDMI ports quantity3
DVI portYes
DVI-I ports quantity1
VGA (D-Sub) input ports1
Audio (L/R) in1
Audio (L/R) out1
Ethernet LAN (RJ-45) ports1
USB version2.0
USB ports quantity2
Audio
Number of built-in speakers2
RMS rated power10 W
Built-in speaker(s)Yes
Design
Product designDigital signage flat panel

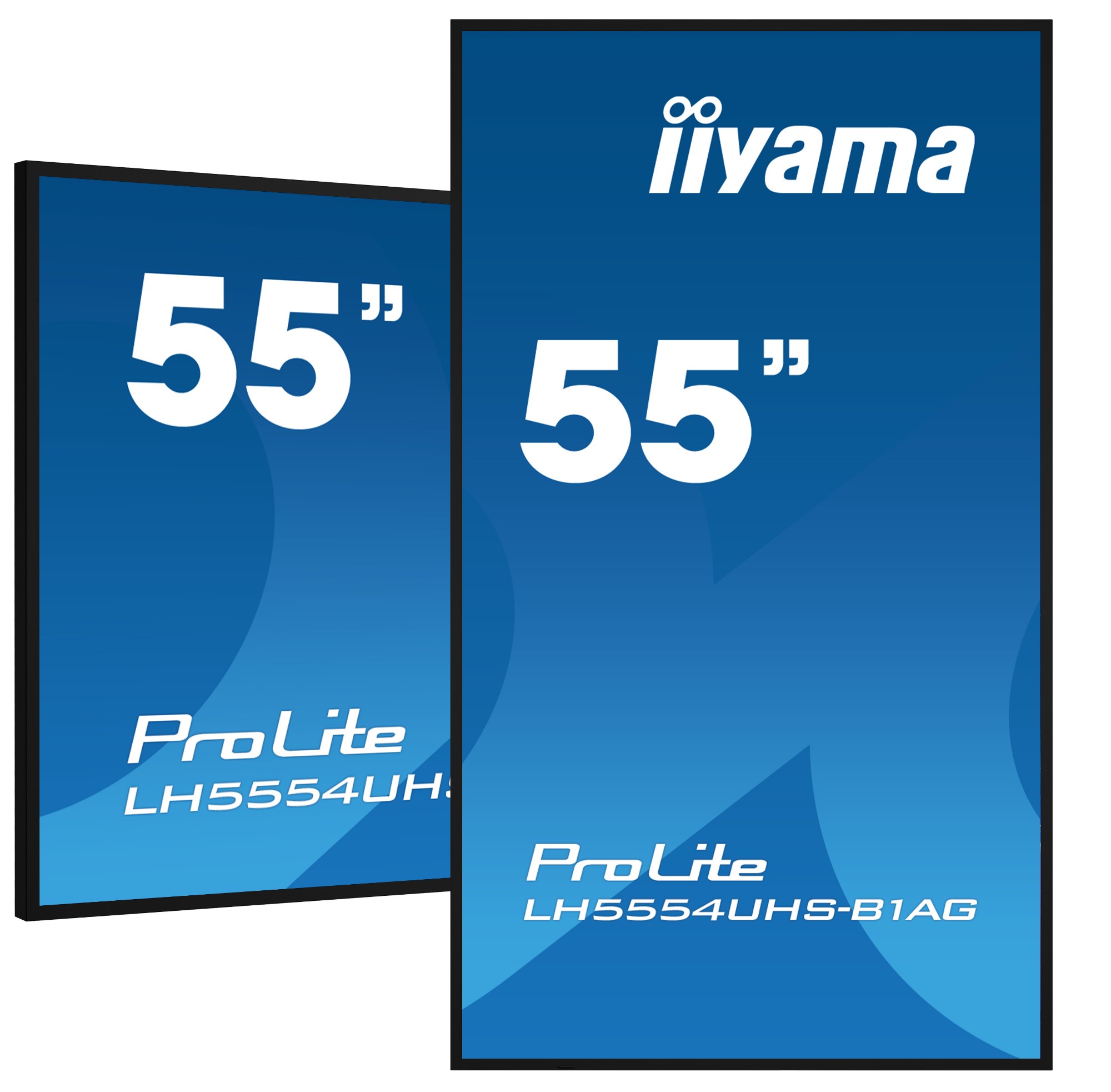

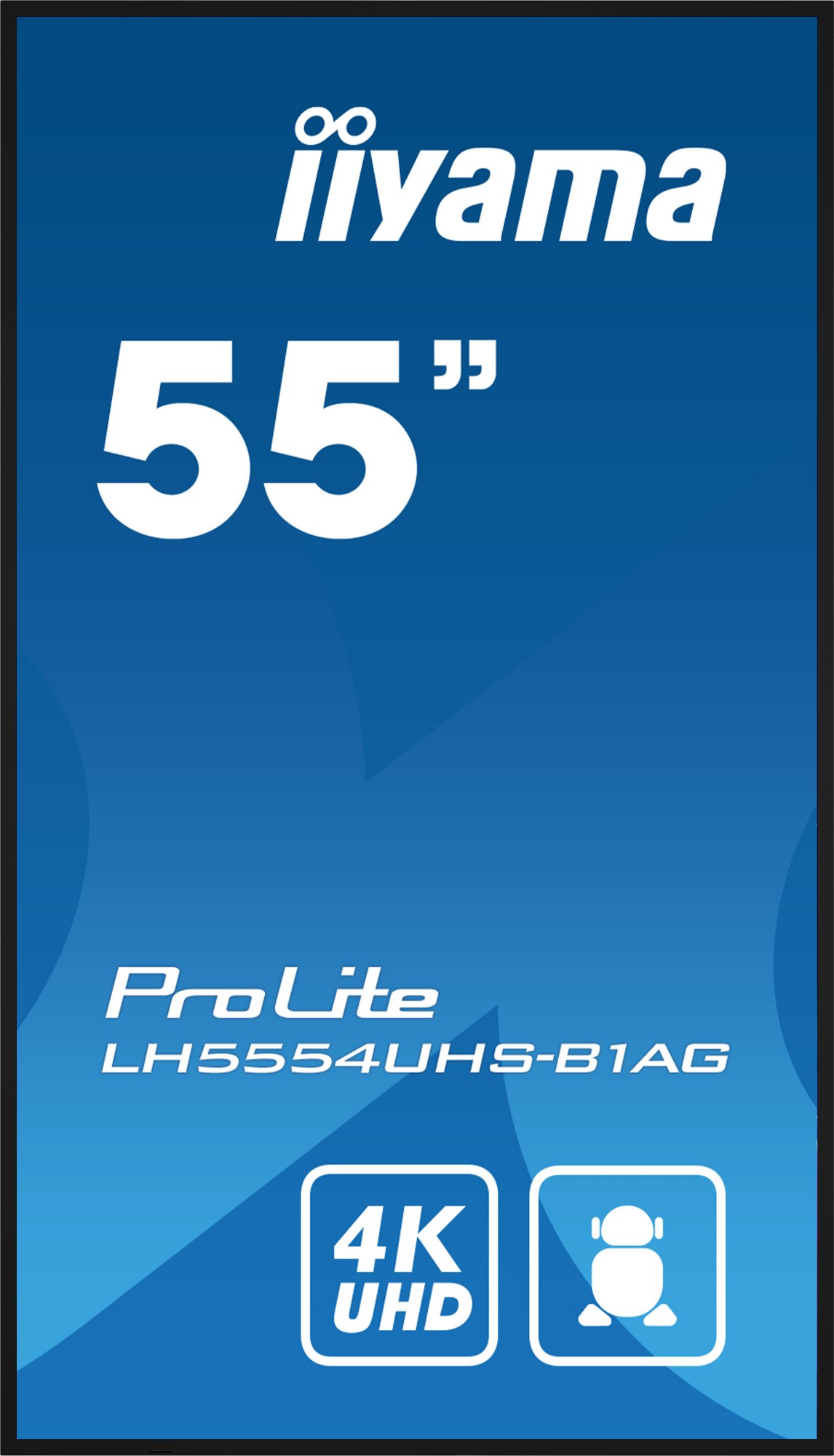

OrientationHorizontal/Vertical
Product colourBlack

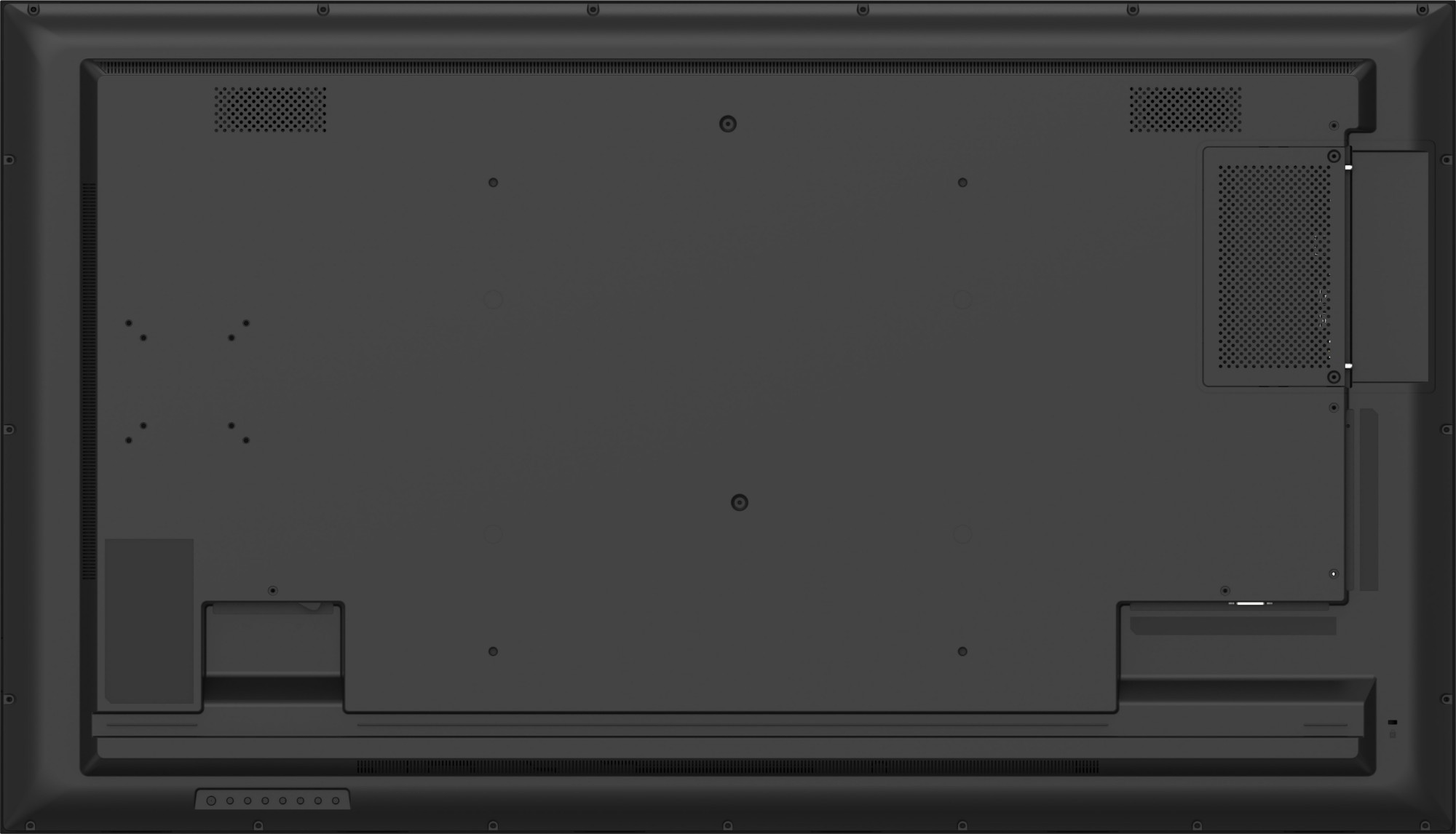

Panel mounting interface400 x 400 mm
VESA mountingYes
Screen shapeFlat
Performance
Operating hours (hours/days)24/7
Mean time between failures (MTBF)50000 h
On Screen Display (OSD) languagesSimplified Chinese, Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish
On Screen Display (OSD)Yes
HDCPYes
HDCP version2.0
Wi-FiYes
Power
Power consumption (off)0.3 W
Power consumption (typical)151 W
Power consumption (standby)0.5 W
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Energy efficiency scaleA to G
Energy efficiency class (SDR)G
Energy consumption (SDR) per 1000 hours151 kWh
Computer system
Processor cores4
Operating system installedAndroid 11
Internal memory4 GB
Internal storage capacity32 GB
Built-in processorYes
On-board graphics card modelARM Mali-G52
Processor architectureARM Cortex-A53+Cortex-A73
Weight & dimensions
Display width1240.6 mm
Display depth69 mm
Display height711.7 mm
Display weight15 kg
Packaging data
Package width1370 mm
Package depth156 mm
Package height850 mm
Package weight20.5 kg
Batteries includedYes
Remote control includedYes

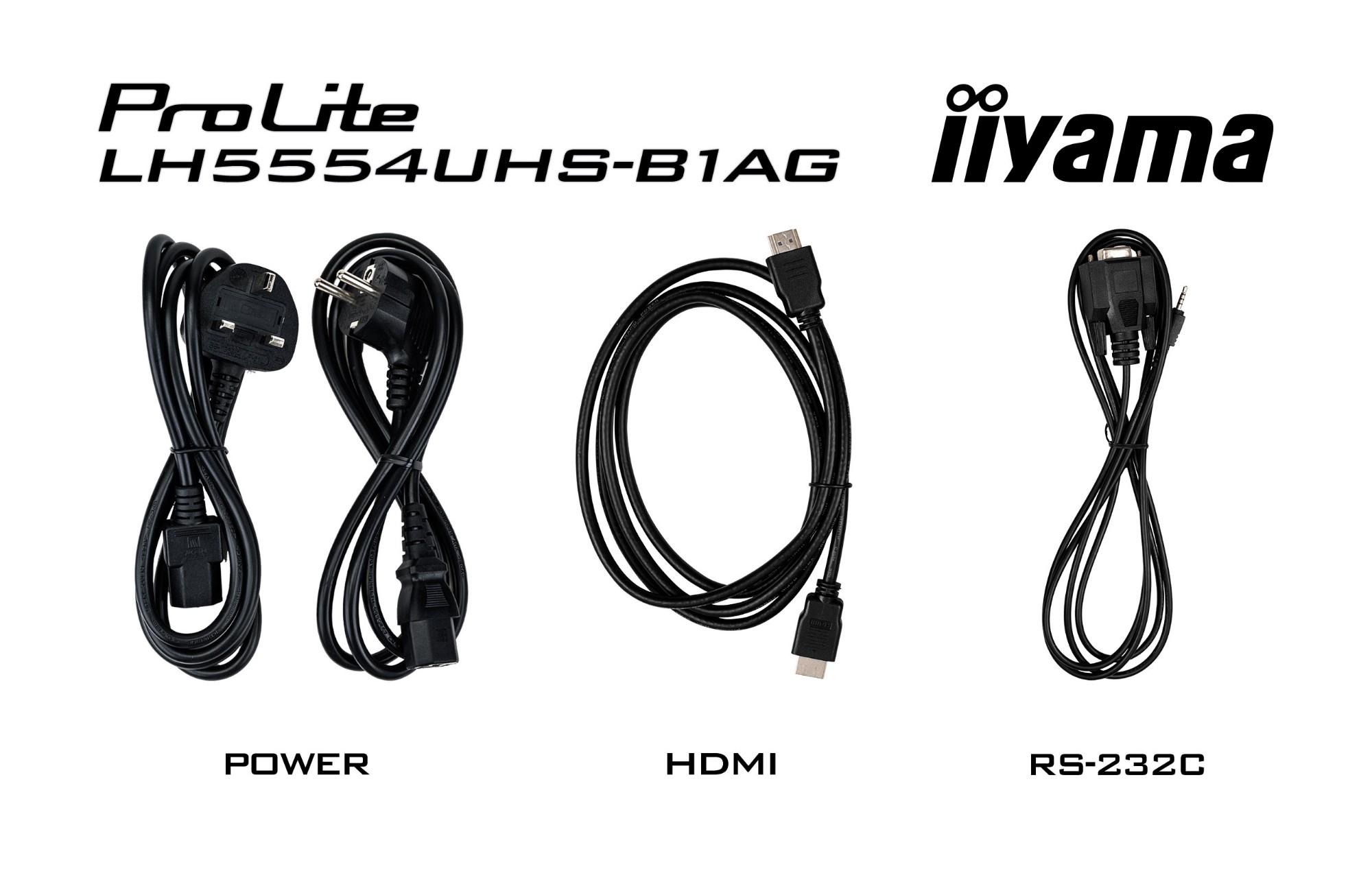

Cables includedHDMI, Power, RS-232
Packaging content
Batteries includedYes
Remote control includedYes
Cables includedHDMI, Power, RS-232
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Technical details
VESA mountingYes
Panel typeIPS
Thin Client
Operating system installedAndroid 11
Internal memory4 GB
Internal storage capacity32 GB
Other features
Panel typeIPS
Wi-FiYes
Mean time between failures (MTBF)50000 h
Display technologyLCD
Compatible memory cardsMicroSD (TransFlash)
Card reader integratedYes
Energy efficiency scaleA to G
