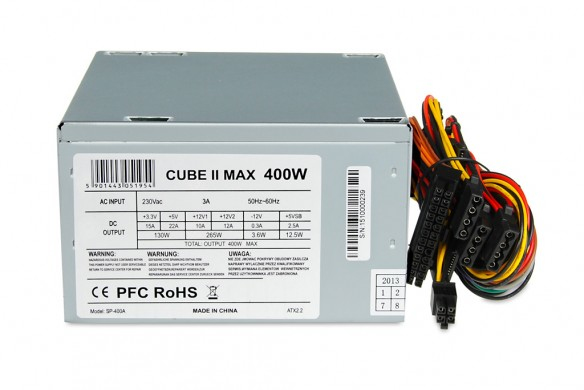

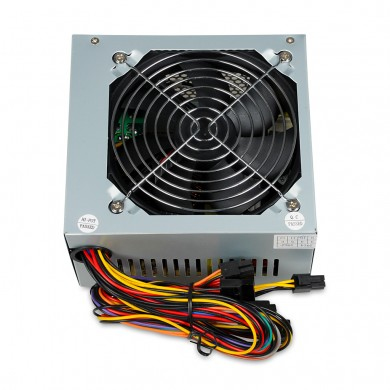

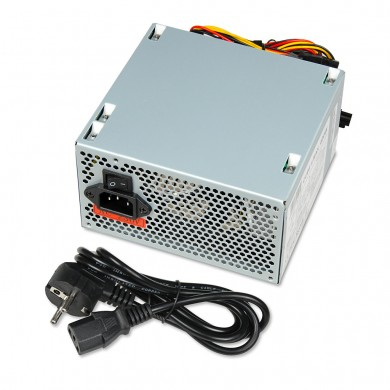

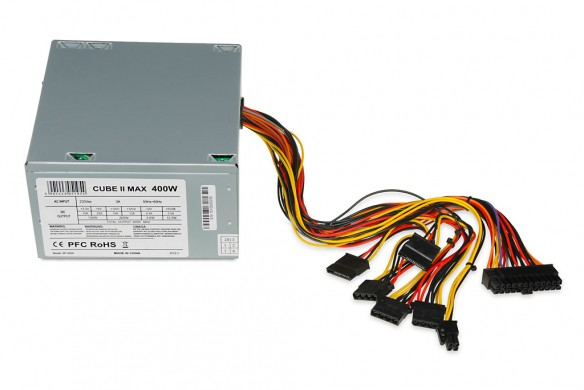

iBox CUBE II power supply unit 400 W 20+4 pin ATX ATX Silver
- Brand: IBOX
- Category:
- SKU: ZIC2400W12CMFA
- EAN: 5901443051954
400W, ATX 2.2, 120mm fan, 20dB, 20+4 pin ATX, 3x molex, 2x SATA, ATX 12V
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
CUBE II - strømforsyning - 400W |
296448 |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £79.85 |
Description
Power supply ATX 2.2 400W. A large number of security features, including: UVP (under-voltage) / OVP (overvoltage) / SCP (short circuit) / OPP (overload) / OCP (overcurrent) / OTP (thermal) and AFC (automatic control of the fan speed). It has detachable power connector (20 + 4) for connecting to the motherboard power 20-pin and 24-pin connector.
Specifications
| Cooling | |
|---|---|
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Side |
| Cooling type | Active |
| Design | |
| Safety | UVP / OVP / SCP / OPP / OCP / OTP |
| Certification | CE |
| Product colour | Silver |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Side |
| Cooling type | Active |
| Power | |
| Total power | 400 W |
| Power consumption (max) | 400 W |
| AC input voltage | 230 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 3 A |
| Power Factor Correction (PFC) type | Passive |
| Combined power (+3.3V) | 130 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 15 A |
| Max output current (+12V1) | 10 A |
| Max output current (+12V2) | 12 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over current, Over voltage, Overload, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
| Performance | |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.2 |
| Safety | UVP / OVP / SCP / OPP / OCP / OTP |
| Noise level | 20 dB |
| Certification | CE |
| Weight & dimensions | |
| Width | 140 mm |
| Depth | 85 mm |
| Height | 150 mm |
| Technical details | |
| Compliance certificates | RoHS |
| Certificates | |
| Safety | UVP / OVP / SCP / OPP / OCP / OTP |
| Certification | CE |
