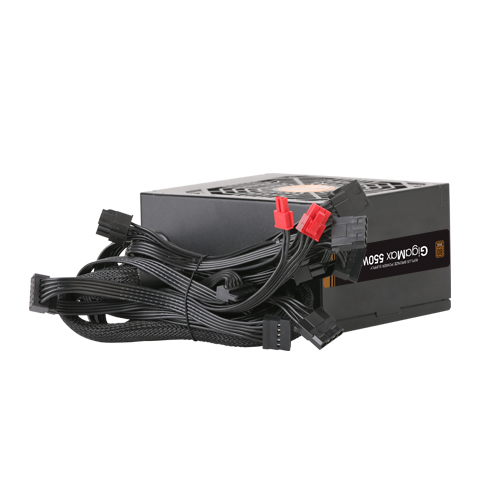

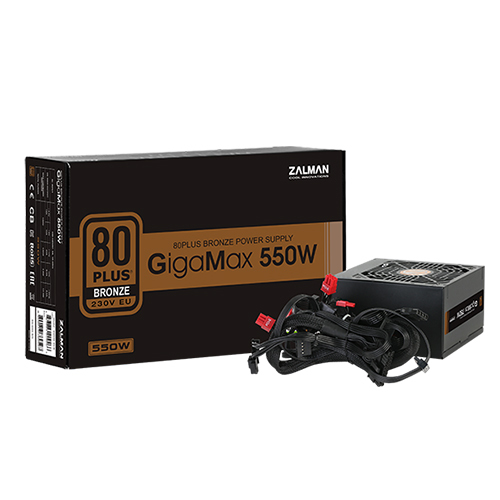

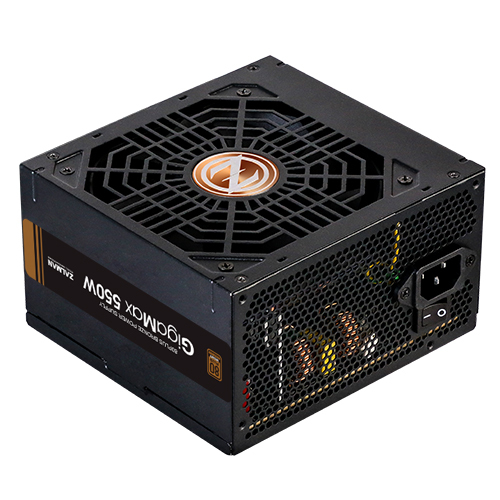

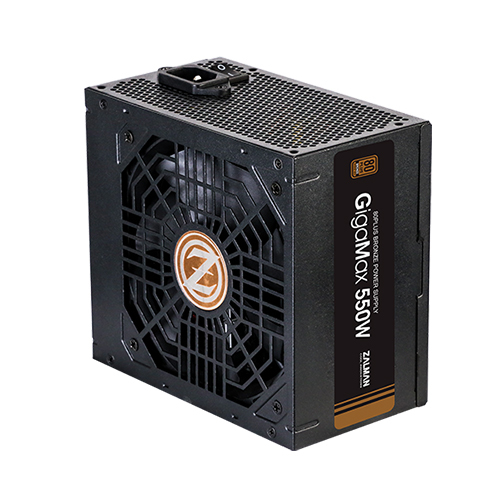

Zalman ZM550-GVII power supply unit 550 W 20+4 pin ATX ATX Black
- Brand: Zalman
- Category:
- SKU: ZM550-GVII
- EAN: 8809213769597 8809213769337
550 W, 220-240 VAC, Active PFC, 50/60 Hz, max 50A
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Power Supply Uni 550 W 20+4 |
ZM550-GVII |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £49.89 | ||
| Amazon | New | £61.19 | ||
| Amazon | New | £104.88 | ||
| Amazon | New | £49.89 |
Description
80 Plus Bronze 230V EU certified Power Supply Unit. It supplies smooth power to the PC while reducing unnecessary power consumption by using high-performance parts that are very durable and reliable.
Specifications
| Cooling | |
|---|---|
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cooling type | Active |
| Performance | |
| On/off switch | Yes |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Safety | CB, CE, KC, EAC, RoHS |
| Mean time between failures (MTBF) | 100000 h |
| Country of origin | China |
| Certification | 80 Plus, CB, CE, KC, EAC, RoHS |
| Bearing technology | FDB |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Design | |
| 80 PLUS certification | 80 PLUS Bronze |
| Safety | CB, CE, KC, EAC, RoHS |
| Certification | 80 Plus, CB, CE, KC, EAC, RoHS |
| Product colour | Black |
| Fan diameter | 12 cm |
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Country of origin | China |
| Cooling type | Active |
| Power | |
| Total power | 550 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 63 Hz |
| Input current | 6 A |
| Power factor | 99 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 540 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 45 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Efficiency | 85% |
| Ports & interfaces | |
| Motherboard power cable length | 55 cm |
| SATA power cable length | 400 mm |
| Peripheral (Molex) power cable length | 400 mm |
| PCI Express power cable length | 50 cm |
| CPU power cable length | 65 cm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express connector | Yes |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Weight & dimensions | |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.95 kg |
| Packaging data | |
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Package type | Box |
| Technical details | |
| Compliance certificates | RoHS |
| Certificates | |
| 80 PLUS certification | 80 PLUS Bronze |
| Safety | CB, CE, KC, EAC, RoHS |
| Certification | 80 Plus, CB, CE, KC, EAC, RoHS |
