Vivitek DH380 data projector Standard throw projector 4000 ANSI lumens DMD 1080p (1920x1080) 3D White
- Brand: Vivitek
- Category:
- SKU: DH380
- EAN: 0813097026132
1-Chip DLP 0.65", Full HD (1920 x1080p), 4000lm, 1.48~1.62 : 1, 1.1x, White
Offer details
Description
The DH380 features a high brightness and 30,000:1 contrast ratio to deliver 300" image even in any bright environment. Compact size, low weight, and quick installation make this series ideal for classrooms and meeting rooms. With top-side cover and energy-saving design, this series is easy to replace lamp and has a long lamp life up to 15,000 hours.
DLP Darkchip3 & BrilliantColor Technology
The DH380 supports DLP® and BrilliantColorTM technologies for distinct and vibrant images. The 6-segment (RGBYCW) color wheel not only makes the image more vivid and saturated, but also reproduces color performance.
Bright Images in Any Environment
Packed with up to 4,000 lumens of brightness and a high contrast ratio 30,000: 1, the DH380 provides sharp and bight images in any environment with ambient light.
Potable & Lightweight
Featured under 3kg, the DH380 is easy to carry and install between home and school or office.
Long Lamp Life
With high-efficiency and energy-saving lamp, this series projector has a long life span of up to 15,000 hours in Eco mode to reduce lamp replacement times.
3D Ready

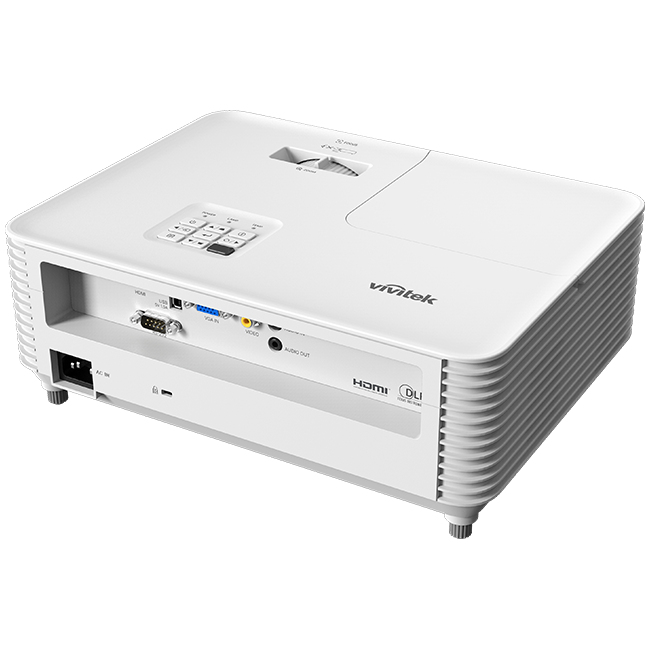

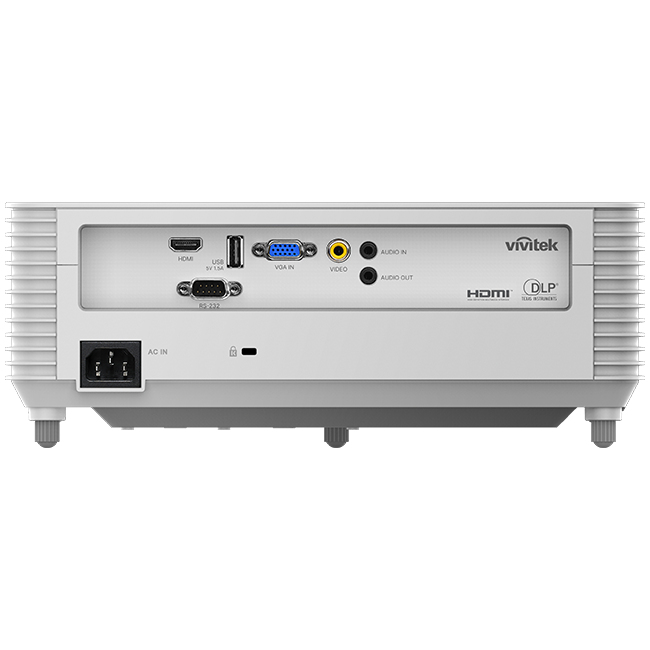

The DH380 features full suite of display connections, including HDMI, composite video, and VGA-in. The HDMI port allows users to project 3D content via DLP Link and Blu-Ray 3D.
DLP Darkchip3 & BrilliantColor Technology
The DH380 supports DLP® and BrilliantColorTM technologies for distinct and vibrant images. The 6-segment (RGBYCW) color wheel not only makes the image more vivid and saturated, but also reproduces color performance.
Bright Images in Any Environment
Packed with up to 4,000 lumens of brightness and a high contrast ratio 30,000: 1, the DH380 provides sharp and bight images in any environment with ambient light.
Potable & Lightweight
Featured under 3kg, the DH380 is easy to carry and install between home and school or office.
Long Lamp Life
With high-efficiency and energy-saving lamp, this series projector has a long life span of up to 15,000 hours in Eco mode to reduce lamp replacement times.
3D Ready
The DH380 features full suite of display connections, including HDMI, composite video, and VGA-in. The HDMI port allows users to project 3D content via DLP Link and Blu-Ray 3D.
Specifications
| Projector | |
|---|---|
| Projector native resolution | 1080p (1920x1080) |
| Native aspect ratio | 4:3 |
| Screen size compatibility | 694.4 - 7620 mm (27.3 - 300") |
| Projection distance | 1.2 - 12 m |
| Contrast ratio (typical) | 30000:1 |
| Zoom ratio | 1.1:1 |
| Zoom capability | Yes |
| Vertical synchronization (min) | 23 kHz |
| Vertical synchronization (max) | 120 kHz |
| Uniformity | 80% |
| Keystone correction, vertical | 40° |
| Horizontal synchronization (min) | 15 kHz |
| Horizontal synchronization (max) | 102 kHz |
| Projection technology | DMD |
| Projector brightness | 4000 ANSI lumens |
| Zoom type | Fixed |
| Lamps | |
| Lamp power | 203 W |
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 15000 h |
| Light source | |
| Lamp power | 203 W |
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 15000 h |
| Lens system | |
| Zoom ratio | 1.1:1 |
| Zoom capability | Yes |
| Focal length range | 22.5 - 25.79 mm |
| Aperture range (F-F) | 2.42 - 2.62 |
| Throw ratio | 1.48 - 1.62 : 1 |
| Offset | 116% |
| Zoom type | Fixed |
| Video | |
| Analog signal format system | NTSC, PAL, SECAM |
| 3D | Yes |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
| Ports & interfaces | |
| HDMI version | 1.4a |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Composite video in | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
| USB 2.0 Type-A ports quantity | 1 |
| Sound emission | |
| Noise level | 31 dB |
| Noise level (economic mode) | 27 dB |
| Technical details | |
| Product colour | White |
| Lamp power | 203 W |
| Quantity per pack | 1 pc(s) |
| Performance | |
| Noise level | 31 dB |
| Noise level (economic mode) | 27 dB |
| Features | |
| Noise level | 31 dB |
| Noise level (economic mode) | 27 dB |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
| Design | |
| Product type | Standard throw projector |
| Cable lock slot type | Kensington |
| Product colour | White |
| Cable lock slot | Yes |
| Display | |
| Built-in display | Yes |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 1.4 cm (0.55") |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Power consumption (typical) | 240 W |
| Power consumption (standby) | 0.5 W |
| Security | |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
| Weight | 2.6 kg |
| Width | 313 mm |
| Depth | 236 mm |
| Height | 120 mm |
| Packaging content | |
| Remote control included | Yes |
| Manual | Yes |
| Cables included | Power, VGA |
| Batteries included | Yes |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
