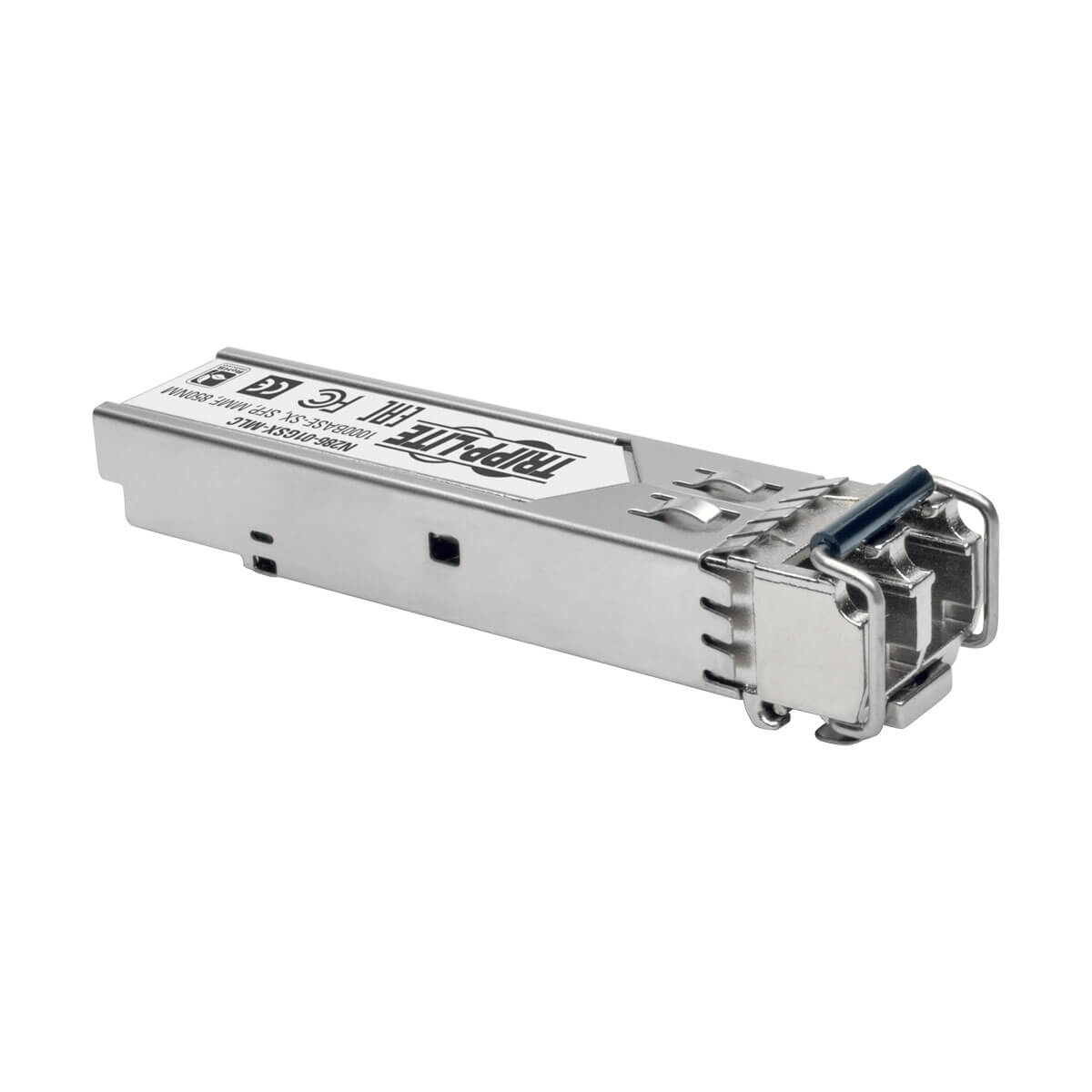

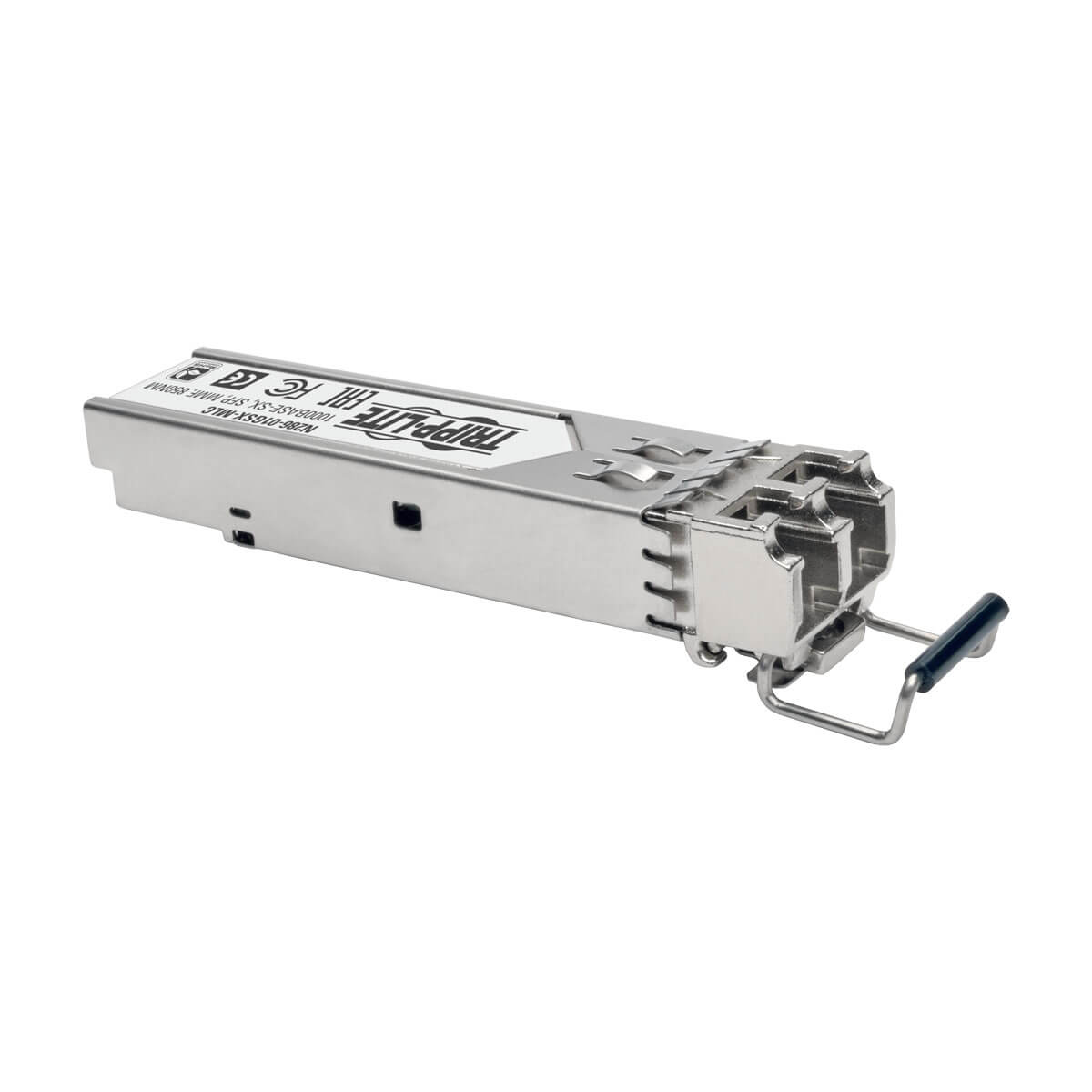

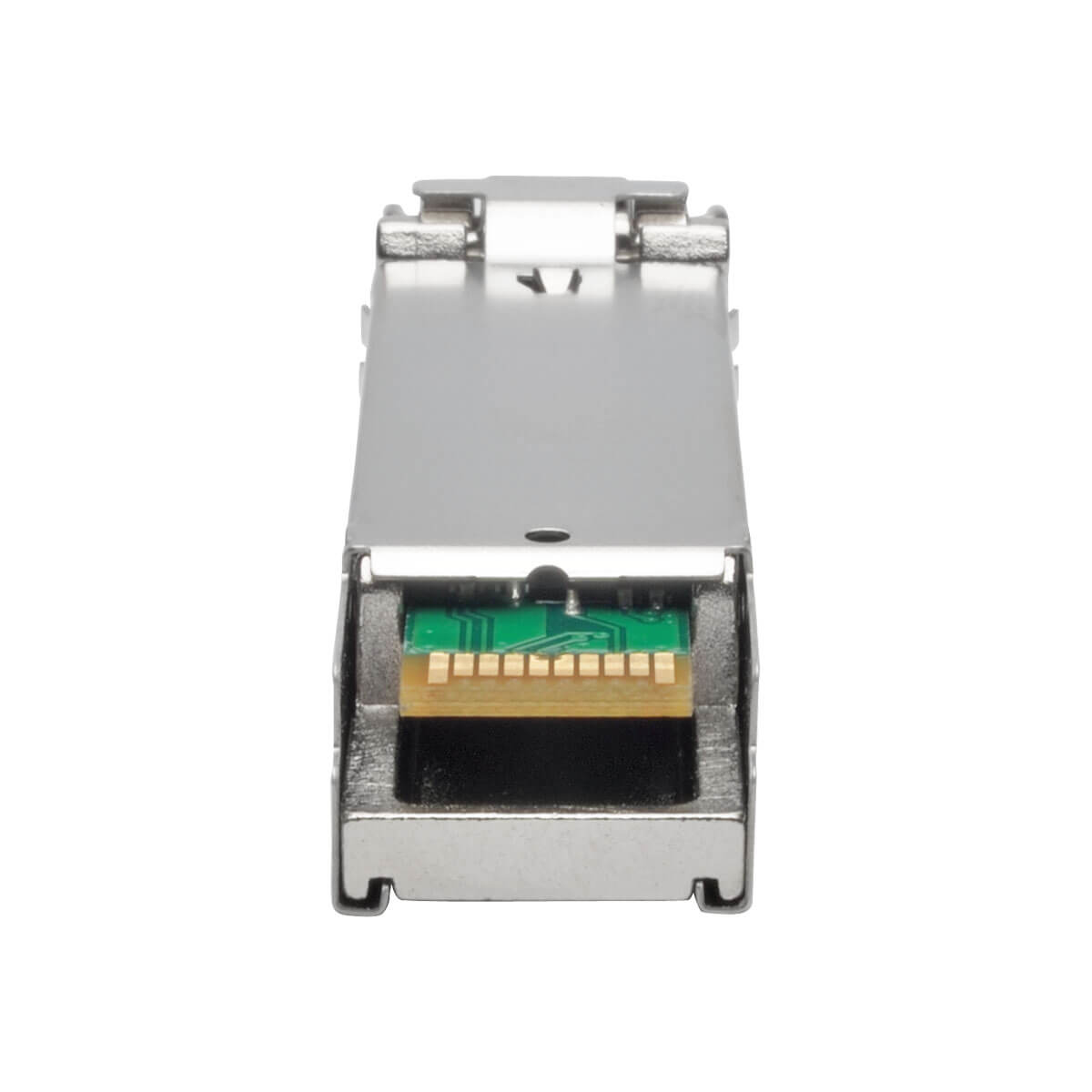

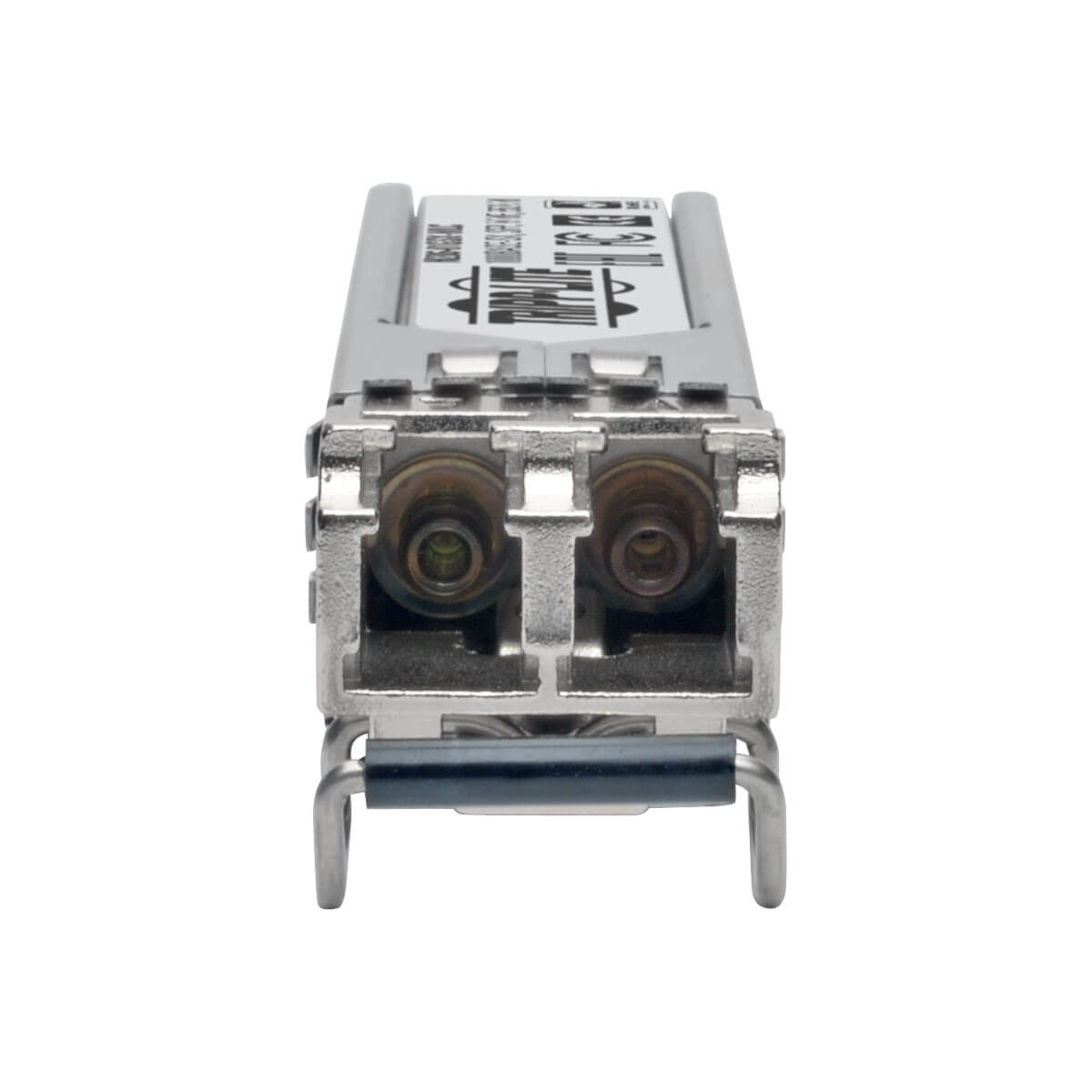

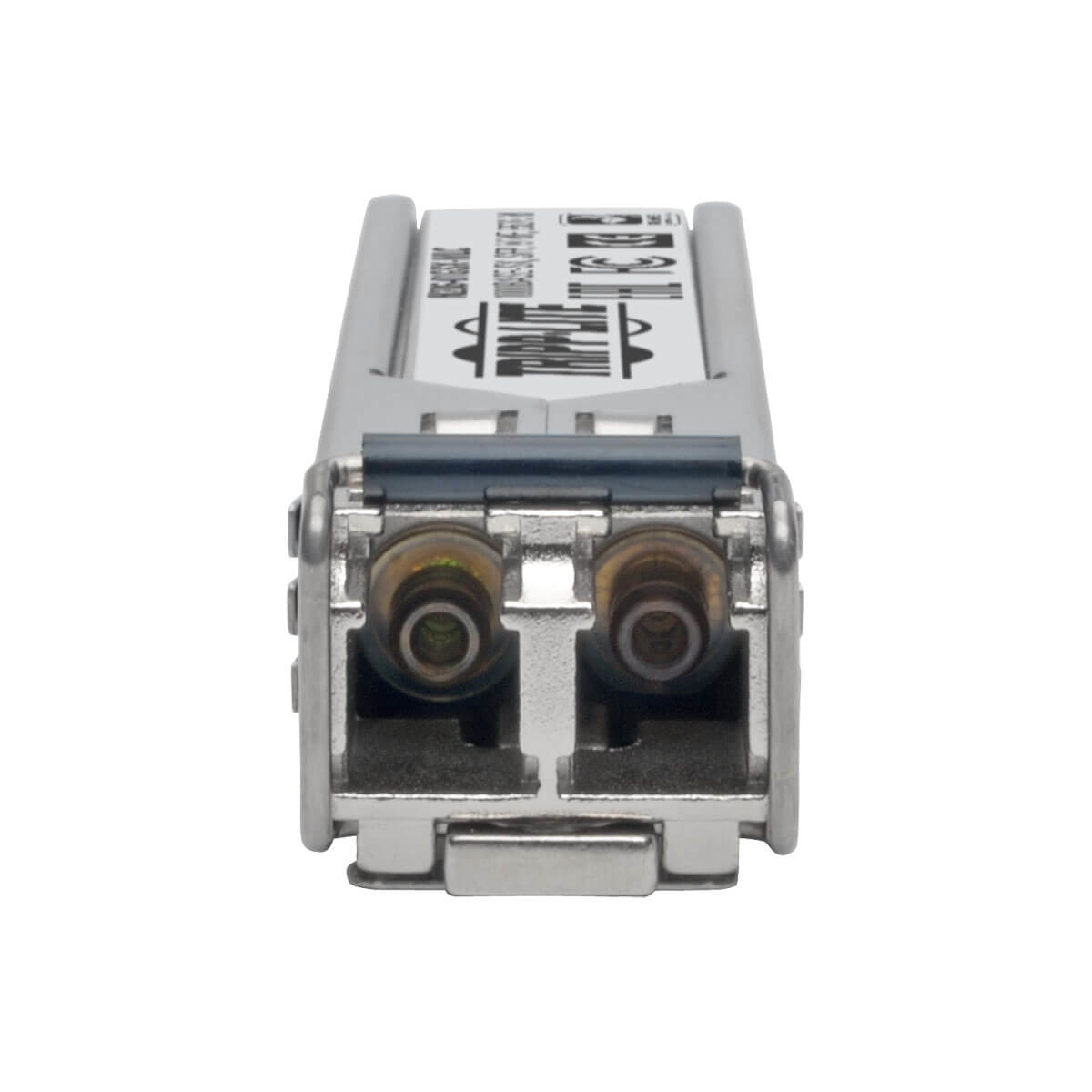

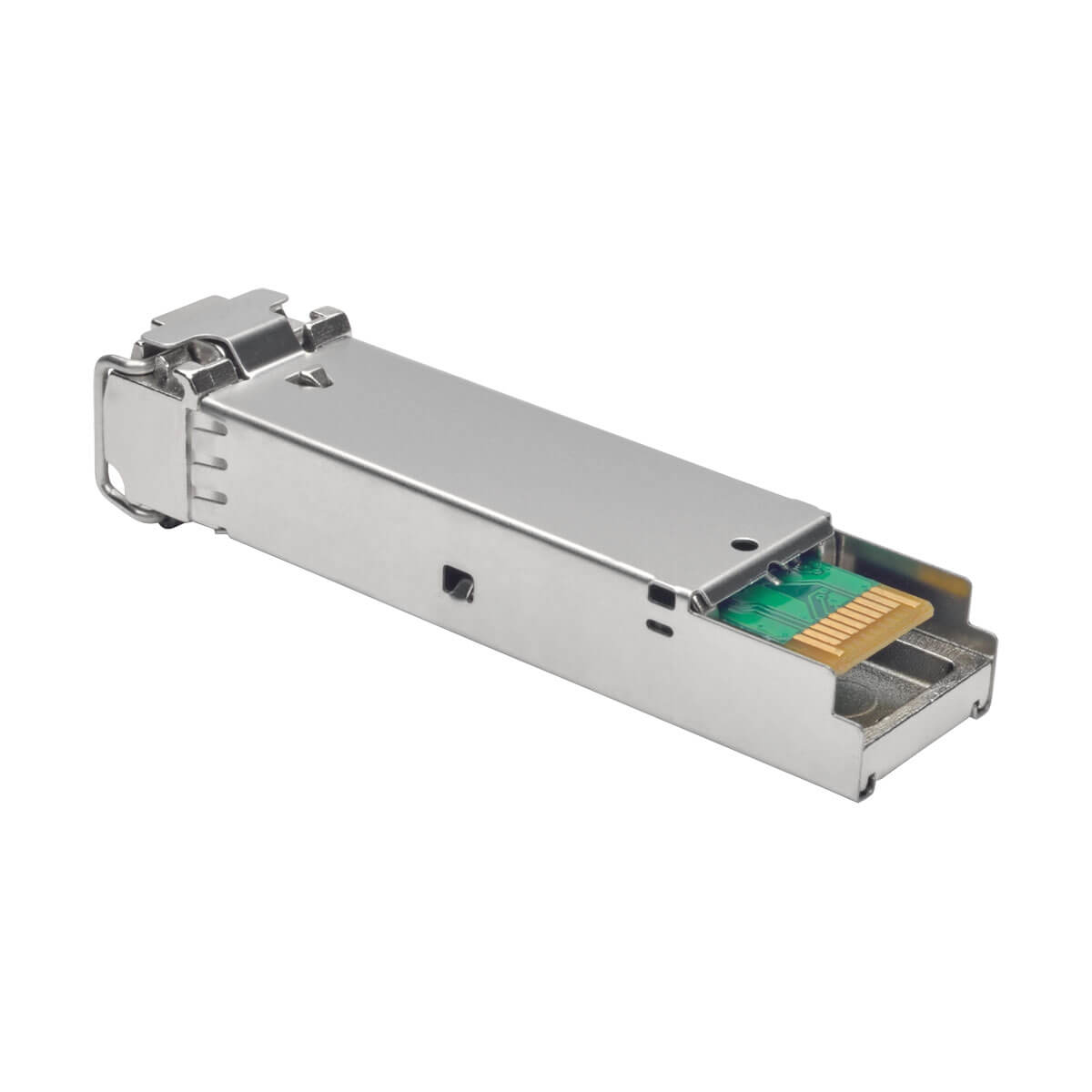

Tripp Lite N286-01GSX-MLC HP J4858C Compatible SFP Transceiver, 1000Base-SX, DDM, Multimode LC, 850 nm, 550 m
- Brand: Tripp Lite
- Category:
- SKU: N286-01GSX-MLC
- EAN: 0037332197443
HP J4858C Compatible SFP Transceiver, 1000Base-SX, DDM, Multimode LC, 850 nm, 550 m
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Hp J4858C Compile Sfp |
N286-01GSX-MLC |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £39.59 |
Related Products
-
Category: Network Transceiver Modules -
Category: Network Transceiver Modules -
Category: Network Transceiver Modules -
Category: Network Transceiver Modules -
Category: Network Transceiver Modules -
Category: Network Transceiver Modules -
Category: Network Transceiver Modules -
Category: Network Transceiver Modules
-
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
Description
The N286-01GSX-MLC HP J4858C Compatible 1000Base-SX LC SFP Transceiver with an LC female connector functions just like the HP J4858C transceiver module and is designed to operate with HP networking equipment. It also meets or exceeds the J4858C’s original specifications and complies with MSA (Multi-Source Agreement) standards.
This 1000Base-SX transceiver is fully hot-pluggable, so you can install it without shutting down the network or rebooting your device. It supports data transfer rates up to 1 Gbps with 850 nm wavelength signaling. It transmits across 1,804 feet (550 meters) of 50/125 MMF cabling or 722 feet (220 meters) of 62.5/125 MMF cabling.
The N286-01GSX-MLC also supports digital diagnostics monitoring (DDM), so you can monitor optical output power, optical input power, temperature, laser bias current and transceiver supply voltage.
This 1000Base-SX transceiver is fully hot-pluggable, so you can install it without shutting down the network or rebooting your device. It supports data transfer rates up to 1 Gbps with 850 nm wavelength signaling. It transmits across 1,804 feet (550 meters) of 50/125 MMF cabling or 722 feet (220 meters) of 62.5/125 MMF cabling.
The N286-01GSX-MLC also supports digital diagnostics monitoring (DDM), so you can monitor optical output power, optical input power, temperature, laser bias current and transceiver supply voltage.
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber cable diameters supported (core/cladding) | 50/125 µm |
| Cabling technology | 1000Base |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SX |
| Country of origin | China |
| Product colour | Metallic |
| Harmonized System (HS) code | 8517.62.0090 |
| Features | |
| Product colour | Metallic |
| Country of origin | China |
| Certificates | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Cabling technology | 1000Base |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP+ |
| Weight & dimensions | |
| Width | 13.2 mm |
| Depth | 56.9 mm |
| Height | 8.4 mm |
| Weight | 20 g |
| Package depth | 45 mm |
| Package width | 114 mm |
| Package height | 21.6 mm |
| Package weight | 30 g |
| Packaging content | |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Package width | 114 mm |
| Package height | 21.6 mm |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber cable diameters supported (core/cladding) | 50/125 µm |
| Cabling technology | 1000Base |
| Master (outer) case GTIN (EAN/UPC) | 10037332197440 |
| Compliance certificates | RoHS |
| Packaging data | |
| Package depth | 45 mm |
| Package width | 114 mm |
| Package height | 21.6 mm |
| Package weight | 30 g |
| Manual | Yes |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Country of origin | China |
| Master (outer) case width | 230.1 mm |
| Master (outer) case length | 130 mm |
| Master (outer) case height | 74.9 mm |
| Master (outer) case gross weight | 430 g |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 8517.62.0090 |
| Master (outer) case GTIN (EAN/UPC) | 10037332197440 |
