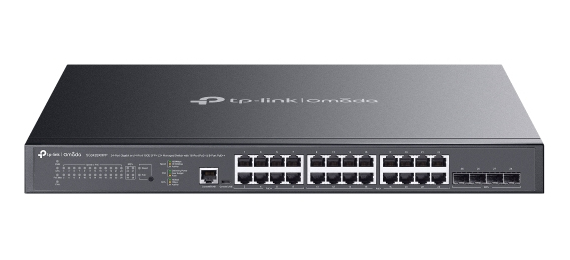

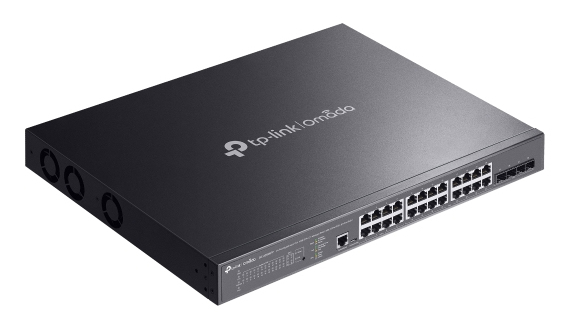

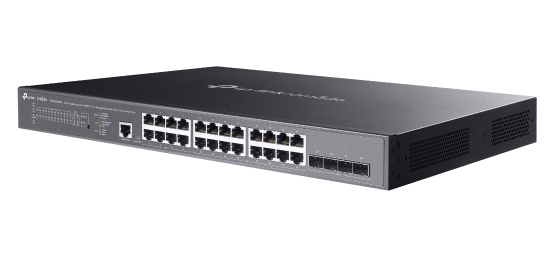

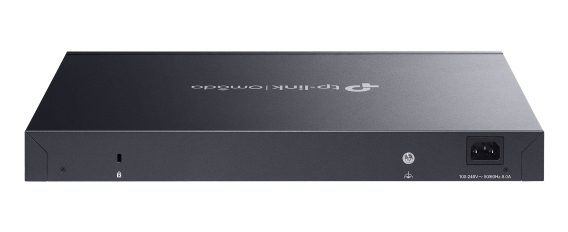

TP-Link Omada SG3428XMPP network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
- Brand: TP-LINK
- Category:
- SKU: SG3428XMPP
- EAN: 8885020620856 8885020620863 08 ...0620863 0810142820400more
Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
24-Port x 4-Port SFP+ L2+ Managed Switch |
10446977 | |||
|
OMADA 24PT GB & 4PT 10GE SFP SWT |
88415 | |||
|
Omada SG3428XMPP V1.8 - Switch - L2+ - Managed - 16 x 10/100/1000 (PoE+) + 8 x 10/100/1000 (PoE++) + 4 x 10Gb Ethernet SFP+ - rack-mountable - PoE++ (500 W) View on InTouch |
10392714 | |||
|
Omada SG3428XMPP 24-Port Gigabit Managed Switch |
EF005049 | |||
|
SWITCH TP-LINK OMADA JETSTREAM 24P SG3428XMPP |
SG3428XMPP | |||
|
24-PORT 1G L2+ MANAGED SWITCH |
566127 | |||
|
Switch SG3428XMPP 24xGBit/4xSFP+ 8x PoE++ (500W) Managed |
3860547 | |||
|
TP-LINK SG3428XMPP SWITCH View on Webshop |
SG3428XMPP |
| Alternative Suppliers | |||||
|---|---|---|---|---|---|
|
Omada SG3428XMPP 24-Port Gigabit Managed Switch |
SG3428XMPP | |||
|
(SG3428XMPP) Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ Rackmountable |
STSWI-24TPOMAL2XPOE-GB | |||
Description
Empowering the High-Power Devices with Gigabit PoE++ Ports
Easily Build a Whole 10G Multi-gigabit Network
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Easily Build a Whole 10G Multi-gigabit Network
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Specifications
| Management features | |
|---|---|
| ARP inspection | Yes |
| Reset button | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2+ |
| Configuring Location Settings (CLI) | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45/Micro-USB |
| Power connector | AC-in jack |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 MB |
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 95.23 Mpps |
| Security | |
| IP-MAC-Port binding | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Auto VLAN, Guest VLAN |
| Static port security | Yes |
| SSH/SSL support | Yes |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Reset button | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | Yes |
| Number of fans | 3 fan(s) |
| Certification | CE, FCC, RoHS |
| Power | |
| Power consumption (max) | 486.2 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 500 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 1658.78 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC |
| Performance | |
| Packet buffer memory | 12 MB |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 12 MB |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Quick start guide | Yes |
| Cables included | AC |
