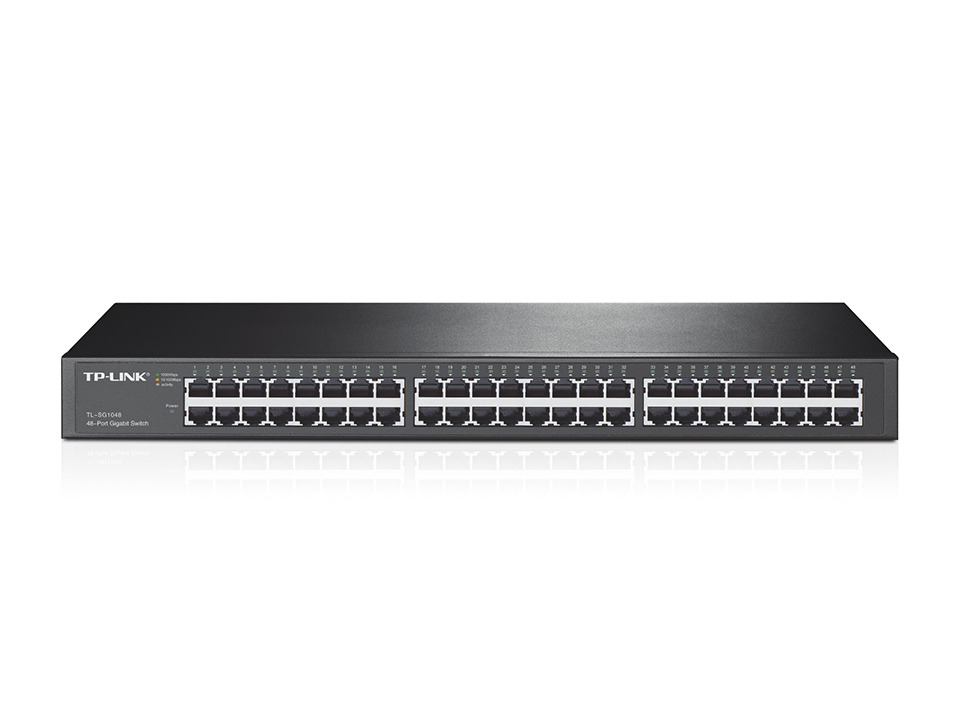

TP-Link 48-Port Gigabit Rackmount Network Switch
- Brand: TP-LINK
- Category:
- SKU: TL-SG1048 V6.0
- EAN: 0845973020637 0168141533334
48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX), IEEE 802.3i/3u/3ab/3x, 440 x 220 x 44 mm, 100-240VAC, 50/60Hz
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
TP-LINK 48-PORT GIGABIT SWITCH 48 10/100/1000M RJ45 PORTS 1U 19-INCH RACK-MOUNTABLE STEEL CASE |
TL-SG1048 V6.0 |
Related Products
-
Category: Networking Cables -
Category: Networking Cables -
Category: Networking Cables
Description
What This Product Does
The 48-Port Gigabit Switch TL-SG1048 is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. A reliable, easy-to-use switch without the complexity of management, the TL-SG1048 provides 48 10/100/1000Mbps ports. The TL-SG1048 combines ease of use with unsurpassed performance resulting in an exceptional value for any cost-conscious network administrator who wants the best possible solution at the best possible price.
TP-LINK Green Technology
This new generation The 48-Port Gigabit Rackmount Switch TL-SG1048 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
Ease of Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also Rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.
High Performance
The TL-SG1048 features non-blocking wire-speed architecture with a 96Gbps switching capacity for maximum data throughput. An 8K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.
The 48-Port Gigabit Switch TL-SG1048 is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. A reliable, easy-to-use switch without the complexity of management, the TL-SG1048 provides 48 10/100/1000Mbps ports. The TL-SG1048 combines ease of use with unsurpassed performance resulting in an exceptional value for any cost-conscious network administrator who wants the best possible solution at the best possible price.
TP-LINK Green Technology
This new generation The 48-Port Gigabit Rackmount Switch TL-SG1048 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
Ease of Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also Rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.
High Performance
The TL-SG1048 features non-blocking wire-speed architecture with a 96Gbps switching capacity for maximum data throughput. An 8K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.
Specifications
| Ports & interfaces | |
|---|---|
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 48 |
| Performance | |
| Auto-negotiation | Yes |
| Harmonized System (HS) code | 85176990 |
| Weight & dimensions | |
| Dimensions (W x D x H) (imperial) | 439.4 x 360.7 x 43.2 mm (17.3 x 14.2 x 1.7") |
| Width | 440 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Rack mounting | Yes |
| Management features | |
| Switch type | Unmanaged |
| Network | |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Half duplex | Yes |
| Data transmission | |
| Jumbo frames | 12000 |
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 96 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Forwarding rate | 71.4 Mpps |
| Protocols | |
| Supported network protocols | CSMA/CD, TCP/IP |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | Yes |
| Compatible products | FCC, CE |
| Indication | |
| LED indicators | Yes |
| System requirements | |
| Compatible products | FCC, CE |
| Power | |
| Power consumption (max) | 32.29 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 32 - 104 °F |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 110.17 BTU/h |
| Packaging data | |
| Package type | Box |
| Rack mount kit | Yes |
| Package width | 528 mm |
| Package depth | 336 mm |
| Package height | 100 mm |
| User guide | Yes |
| Cables included | AC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Dimensions (WxDxH) | 440 x 360 x 44 mm |
| Connectivity technology | Wired |
| Bandwidth | 96 Gbit/s |
| Connectivity LEDs | Yes |
| Dimensions (W x D x H) (imperial) | 439.4 x 360.7 x 43.2 mm (17.3 x 14.2 x 1.7") |
| Packaging content | |
| Rack mount kit | Yes |
| User guide | Yes |
| Cables included | AC |
