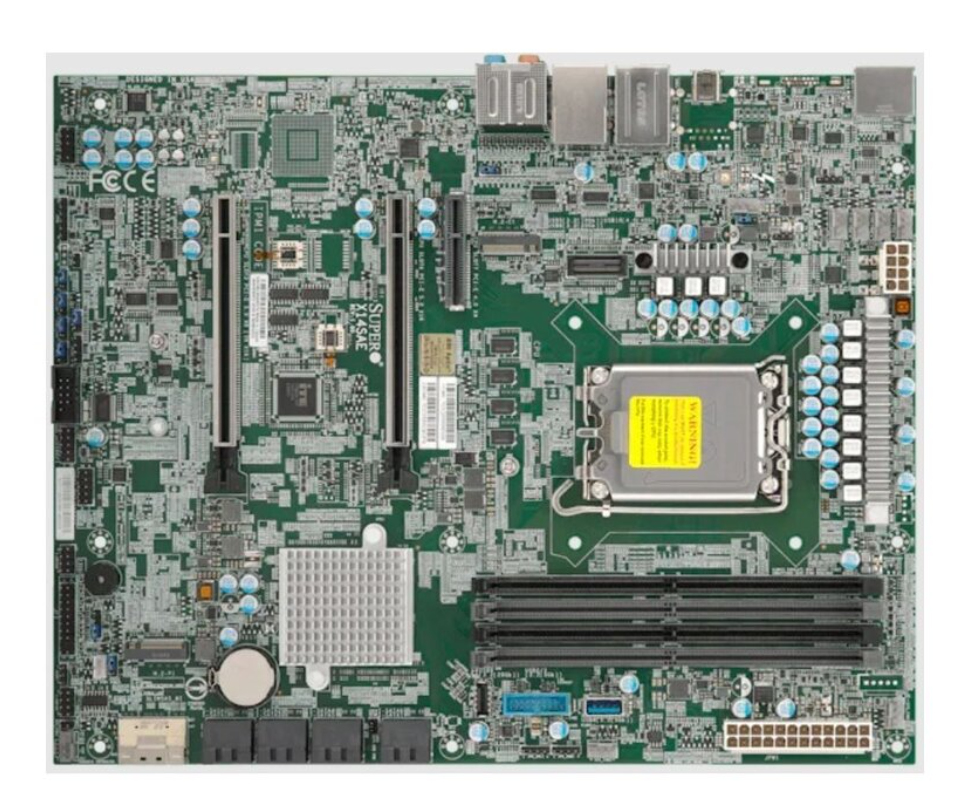

Supermicro X14SAE LGA 1851 (Socket V1) ATX
- Brand: Supermicro
- Category:
- SKU: MBD-X14SAE-006
- EAN: 0672042948222
Intel Core Ultra 9/7/5 Series Processor, Single Socket LGA-1851(Intel V1 Socket) supported, CPU TDP supports Up to 125W TDP Up to 192GB Unbuffered ECC/non-ECC UDIMM
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
X14Se Lg 1851 (Socke V1) |
MBD-X14SAE-006 |
Description
Intel Core Ultra 9/7/5 Series Processor, Single Socket LGA-1851(Intel® V1 Socket) supported, CPU TDP supports Up to 125W TDP Up to 192GB Unbuffered ECC/non-ECC UDIMM, DDR5-5600MHz, in 4 DIMM slots M.2 Interface: 1 PCIe 4.0 x4 and 1 PCIe 5.0x4 (support M.2 Form Factor 2280 only) M.2 Form Factor: 2280/22110 M.2 Key: M-Key 2 M.2 slots (1 PCIe 4.0 x4 from PCH; support 2280/22110, and 1 PCIe5.0 x4 from CPU, support 2280) 2 PCIe 5.0 x16 slots, 1 PCIe 4.0 x4 slot A 2.5 Gigabit LAN with Intel® Ethernet i226LM LAN controller A 1 Gigabit LAN with Intel® Ethernet i219LM LAN controller [AMT/vPro] 1 HDMI 2.1*, 1 DP 2.1**, 1 Thunderbolt™ 4.0 Type-C® *Supports data rates of up to 10 Gbps **Supports data rates of up to 10 Gbps Intel® W880 Controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Supports Thunderbolt 4 Onboard TPM2.0
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Number of SATA III connectors | 8 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 7 |
| EPS power connector (8-pin) | Yes |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Technical details | |
| Motherboard chipset family | Intel |
| Supported processor sockets | LGA 1851 |
| Motherboard form factor | ATX |
| Component for | Server |
| Performance | |
| Number of HDDs supported | 8 |
| Supported storage drive types | HDD & SSD |
| Motherboard chipset family | Intel |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | LGA 1851 |
| Motherboard form factor | ATX |
| Component for | Server |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Processor socket | LGA 1851 (Socket V1) |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory voltage | 1.1 V |
| Supported memory module capacities | 16GB, 24GB, 32GB, 8GB, 48GB |
| Maximum internal memory | 192 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 5600 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 8 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 10 |
| RAID support | Yes |
| Rear panel I/O ports | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Thunderbolt ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | 2.5 Gigabit Ethernet, Gigabit Ethernet |
| Features | |
| Motherboard chipset family | Intel |
| Supported processor sockets | LGA 1851 |
| Motherboard form factor | ATX |
| Component for | Server |
| Audio chip | ALC 888S |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 32 Mbit |
| ACPI version | 6.5 |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
