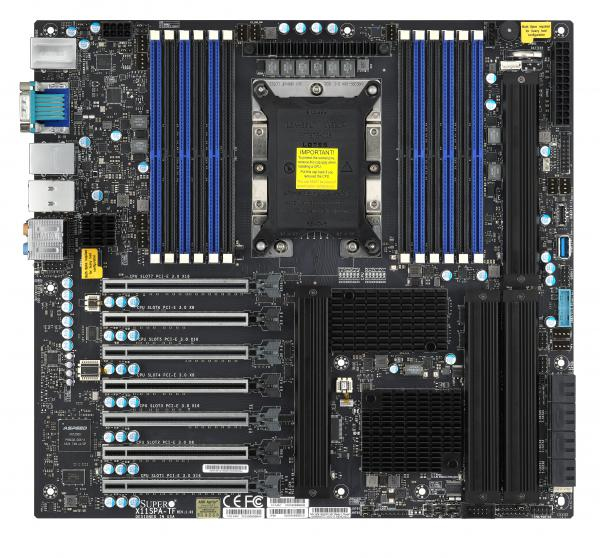

Supermicro MBD-X11SPA-T-O motherboard Intel® C621 LGA 3647 (Socket P) Extended ATX
- Brand: Supermicro
- Category:
- SKU: MBD-X11SPA-T-O
- EAN: 5704174472742 0672042365661
LGA 3647, Intel C621 Chipset, 12 x DDR4-SDRAM, LAN, 2 x RJ-45, 8 x SATA III, 4 x M.2(E), AMI, Extended ATX
Offer details
Trade Prices
| Alternative Suppliers | |||||
|---|---|---|---|---|---|
|
EU Product - FLAGSHIP WS MBD XEON SP PROC BOTH |
MBD-X11SPA-T-O | |||
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £487.08 |
Specifications
| Technical details | |
|---|---|
| Motherboard chipset | Intel® C621 |
| Serial port headers | 2 |
| Number of DIMM slots | 12 |
| Motherboard form factor | Extended ATX |
| Component for | Workstation |
| Thermal Design Power (TDP) | 205 W |
| Compliance certificates | RoHS |
| Performance | |
| Motherboard chipset | Intel® C621 |
| RAID levels | 0, 1, 5, 10 |
| Motherboard form factor | Extended ATX |
| Component for | Workstation |
| Processor | |
| Processor manufacturer | Intel |
| Thermal Design Power (TDP) | 205 W |
| Compatible processor series | Intel Xeon W |
| Processor socket | LGA 3647 (Socket P) |
| Processor number of cores supported | 28 |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 2666,2933 MHz |
| Storage controllers | |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Internal I/O | |
| TPM connector | Yes |
| Serial port headers | 2 |
| Number of SATA III connectors | 8 |
| Chassis intrusion connector | Yes |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Features | |
| Motherboard chipset | Intel® C621 |
| Motherboard form factor | Extended ATX |
| Component for | Workstation |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
| PCI Express x8 (Gen 3.x) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 4 |
| BIOS | |
| BIOS type | AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 4.0 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
| Width | 304.8 mm |
| Depth | 330.2 mm |
| Other features | |
| Thermal Design Power (TDP) | 205 W |
| PCI Express x8 (Gen 3.x) slots | 3 |
| Number of DIMM slots | 12 |
