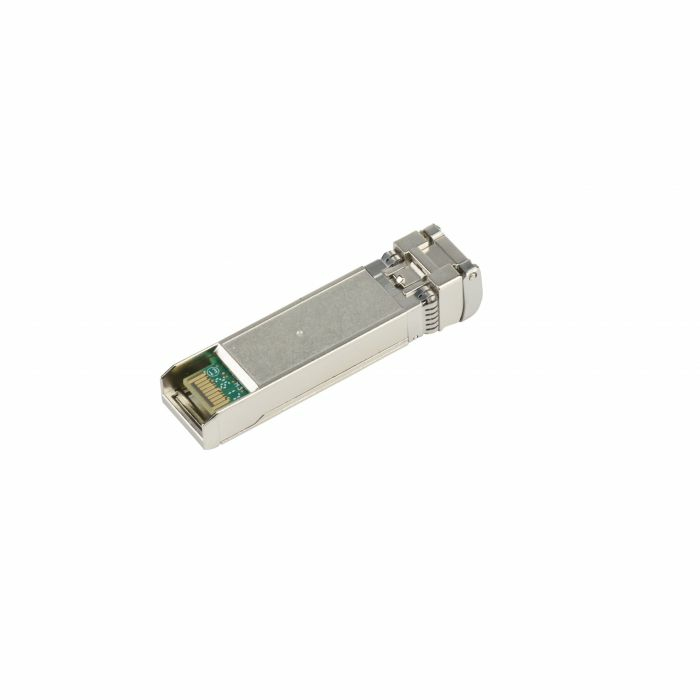

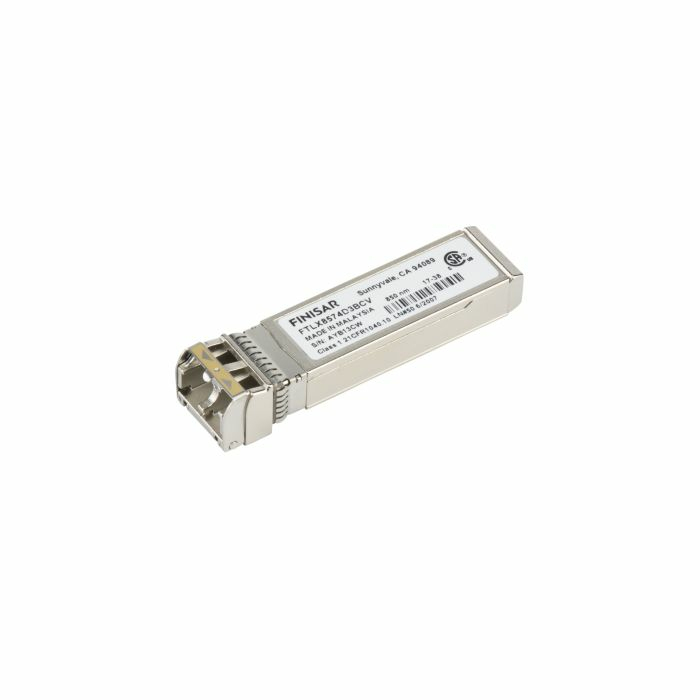

Supermicro AOM-TSR-FS network transceiver module Fiber optic 10000 Mbit/s SFP+ 850 nm
- Brand: Supermicro
- Category:
- SKU: AOM-TSR-FS
- EAN: 0672042250134
10G/1G Ethernet 10GBase-SR/SW 1000Base-SX Dual Rate SFP+ 850nm LC Transceiver
Offer details
Description
The Supermicro AOM-TSR-FS enables SFP+ 10Gb/1Gb dual rate highspeed Ethernet long distance fiber connections for servers, adapter cards, and switches. This transceiver is compliant with IEEE and SFF standard and is verified with Supermicro servers, AOC cards, and switches. The AOC-TSR-FS supports 10G/1G Ethernet 10GBASE-SR/SW 1000BASE-SX. Each Supermicro transceiver is validated to ensure quality and performance.
Specifications
| Network | |
|---|---|
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Technical details | |
| Wavelength | 850 nm |
| Duplex system | Full |
| Performance | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Wavelength | 850 nm |
| Duplex system | Full |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
