Super Flower SF-750F14RG power supply unit 750 W 20+4 pin ATX Black
- Brand: Super Flower
- Category:
- SKU: SF-750F14RG(BK)
- EAN: 4711213444869 4711213444821

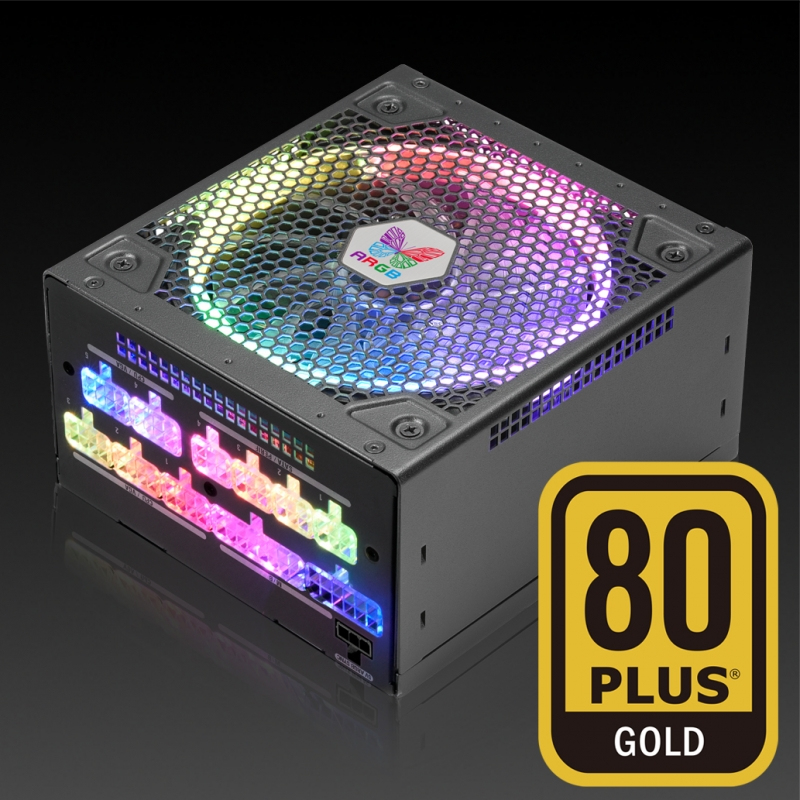

LEADEX III Gold ARGB 750W
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Super Flower Leadex III ARGB 750W 80 PLUS Gold Modular Power Supply - Black |
CA-065-SF |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £163.31 |
Description

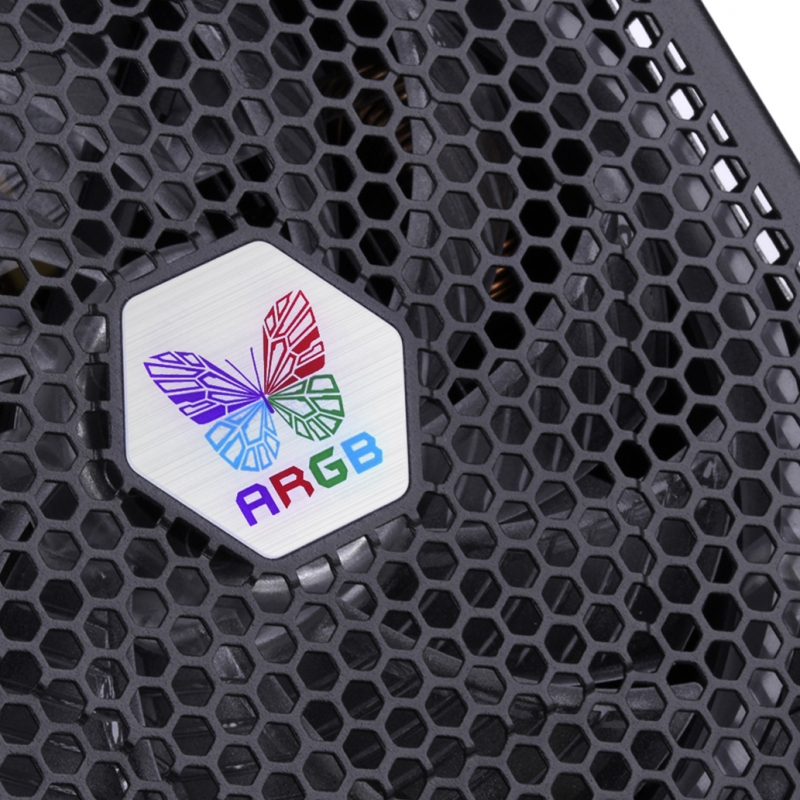

LEADEX III ARGB series, which are based on LEADEX III platform, features RGB lighting. The Led RGB light possesses 16 light modes such as, Rainbow mode, Breathing mode, Blink mode, and single color mode etc..which can be controlled manually through the button.

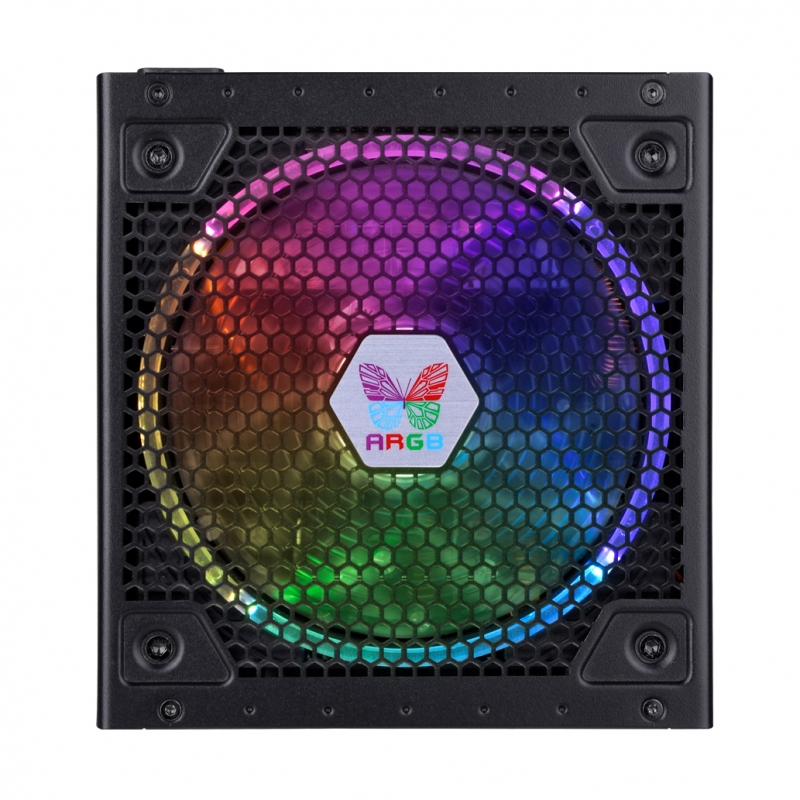

The RGB PSU could also be controlled through the motherboard from ASUS, Gigabyte or MSI with a 5V RGB header. LEADEX III ARGB series PSU provides high efficiency & stable power output and come with a 13cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
The RGB PSU could also be controlled through the motherboard from ASUS, Gigabyte or MSI with a 5V RGB header. LEADEX III ARGB series PSU provides high efficiency & stable power output and come with a 13cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
Specifications
| Cooling | |
|---|---|
| Fan diameter | 13 cm |
| Cooling type | Active |
| Design | |
| 80 PLUS certification | 80 PLUS Gold |
| Product colour | Black |
| Fan diameter | 13 cm |
| Cooling type | Active |
| Power | |

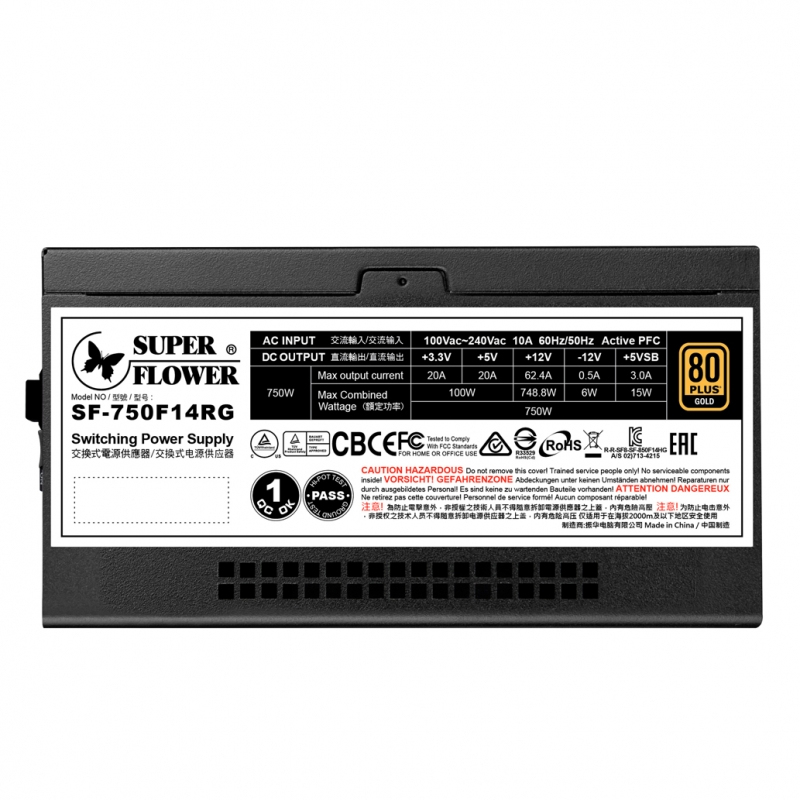

| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 748.8 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.4 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Ports & interfaces | |
| Motherboard power cable length | 60 cm |
| SATA power cable length | 120,550 mm |
| Peripheral (Molex) power cable length | 100,550 mm |
| CPU power cable length | 70 cm |

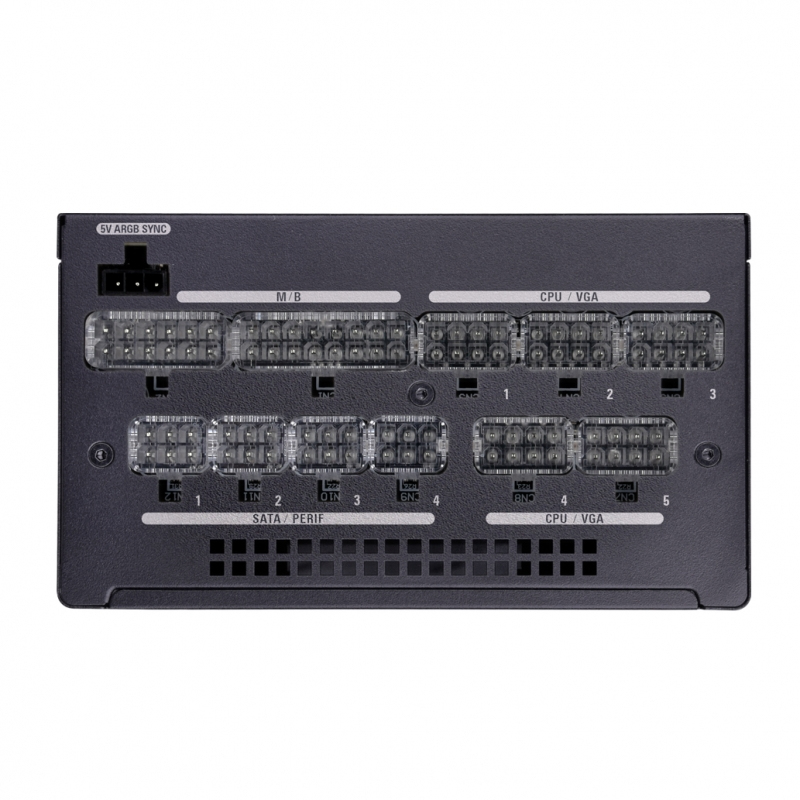

| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |

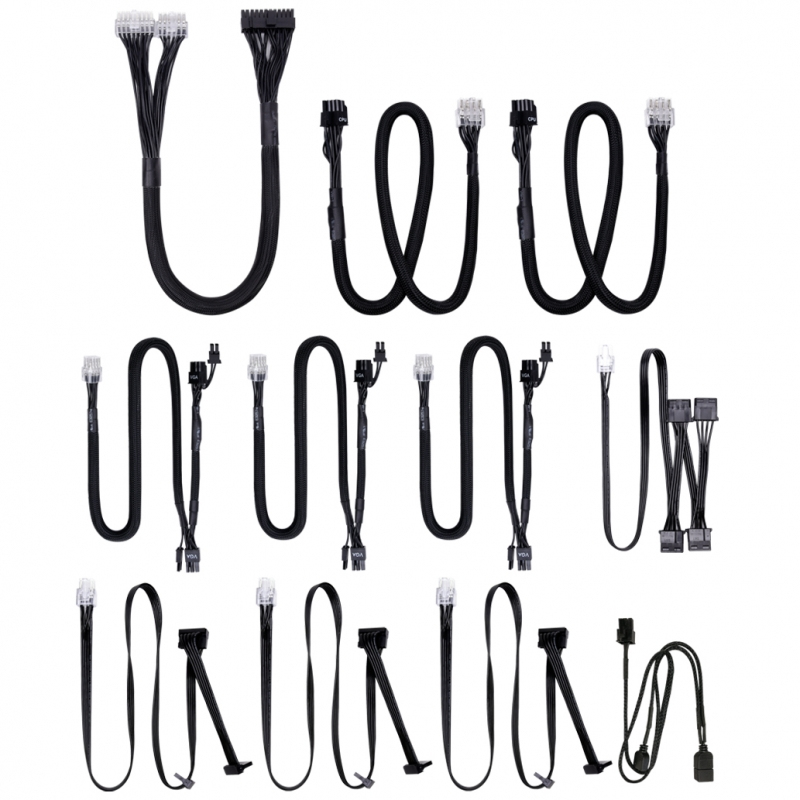

| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Certificates | |
| 80 PLUS certification | 80 PLUS Gold |
