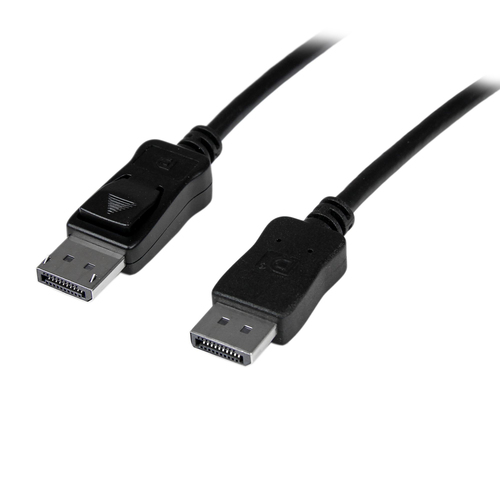

StarTech.com 32ft (10m) Active DisplayPort Cable - 4K Ultra HD DisplayPort Cable - Long DP to DP Cable for Projector/Monitor - DP Video/Display Cord - Latching DP Connectors
- Brand: StarTech.com
- Category:
- SKU: DISPL10MA
- EAN: 0065030854221 0132018340158 57 ...8340158 5706998579362 5054484596493 0163121532499 4058829165833 0172304344255 0803982997333 5054629431825 0115971620239 0807320178477 5054533596498more
StarTech.com 32ft (10m) Active DisplayPort Cable - 4K Ultra HD DisplayPort Cable - Long DP to DP Cable for Projector/Monitor - DP Video/Display Cord - Latching DP Connectors (DISPL10MA)
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
.com 30 ft DisplayPort 1.2 Cable with Latches - Active - 2560x1600 - DPCP & HDCP - Male to Male DP Video Monitor Cable (DISPL10MA) - DisplayPort cable - DisplayPort (M) to DisplayPort (M) - 10 m - active, latched - black - for P/N: DK30C2DPEPUE, DK30C2DPP View on InTouch |
4428248 | |||
|
30 ft DisplayPort 1.2 Cable with Latches - Active - 2560x1600 - DPCP & HDCP - Male to Male DP Video Monitor Cable (DISPL10MA) - DisplayPort cable - DisplayPort (M) to DisplayPort (M) - 10 m - active, latched - black - for P/N: DK30C2DPEPUE, DK30C2DPPDUE, |
V933069 | |||
|
10M ACTIVE DP CABLE |
DISPL10MA |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £73.11 | ||
| Amazon | New | £63.07 | ||
| Amazon | New | £81.72 | ||
| Amazon | New | £100.17 | ||
| Amazon | New | £78.00 | ||
| Amazon | New | £78.06 |
Description
Connect DisplayPort®-equipped devices up to 10m away with no signal loss
The DISPL10MA 10m Active DisplayPort® Cable features a built-in active signal booster for a connection distance of up to 30 feet (10m) between your DisplayPort-enabled devices - almost double the DisplayPort connection distance limitation of 16ft, with no signal loss.
This durable yet lightweight active DP cable features a thinner 32 AWG wire construction that allows for a more flexible installation with minimal clutter. Plus, the cable features built-in amplifier circuitry which actively boosts the DisplayPort signal with no external power needed.
The 10m cable offers a bandwidth of 10.8 Gbps with support for maximum resolutions up to WQXGA (2560×1600) and optional audio support. The cable is both HDCP and DPCP capable, which ensures that digitally protected content is displayed properly.
This 10-meter Active DisplayPort cable is backed by StarTech.com's 2-year Warranty.
Please Note : This cable features unidirectional architecture which requires that the cable is installed in the correct direction. Please refer to the "source" and "display" labels on the DisplayPort connectors, in order to ensure that the display device (monitor, projector etc.) and the DisplayPort source are connected properly.
The StarTech.com Advantage
The DISPL10MA 10m Active DisplayPort® Cable features a built-in active signal booster for a connection distance of up to 30 feet (10m) between your DisplayPort-enabled devices - almost double the DisplayPort connection distance limitation of 16ft, with no signal loss.
This durable yet lightweight active DP cable features a thinner 32 AWG wire construction that allows for a more flexible installation with minimal clutter. Plus, the cable features built-in amplifier circuitry which actively boosts the DisplayPort signal with no external power needed.
The 10m cable offers a bandwidth of 10.8 Gbps with support for maximum resolutions up to WQXGA (2560×1600) and optional audio support. The cable is both HDCP and DPCP capable, which ensures that digitally protected content is displayed properly.
This 10-meter Active DisplayPort cable is backed by StarTech.com's 2-year Warranty.
Please Note : This cable features unidirectional architecture which requires that the cable is installed in the correct direction. Please refer to the "source" and "display" labels on the DisplayPort connectors, in order to ensure that the display device (monitor, projector etc.) and the DisplayPort source are connected properly.
The StarTech.com Advantage
Specifications
| Features | |
|---|---|
| Latching connectors | Yes |
| Cable rating | CMG (CM) |
| Number of conductors | 19 |
| DisplayPort Content Protection (DPCP) | Yes |
| Product colour | Black |
| Cable length | 10 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Nickel |
| Magnetically shielded | Yes |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 32 |
| DisplayPort version | 1.2 |
| Bandwidth | 10800 MB/s |
| Maximum resolution | 2560 x 1600 pixels |
| HDCP | Yes |
| Multi-Stream Transport (MST) | Yes |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Packaging data | |
| Package weight | 466 g |
| Weight | 452 g |
| Package width | 255 mm |
| Package depth | 330 mm |
| Package height | 40 mm |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Package weight | 466 g |
| Weight | 452 g |
| Package width | 255 mm |
| Package depth | 330 mm |
| Package height | 40 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case width | 334 mm |
| Master (outer) case length | 502 mm |
| Master (outer) case height | 239 mm |
| Harmonized System (HS) code | 84733080 |
