Seasonic Focus GX power supply unit 750 W 20+4 pin ATX ATX Black
- Brand: Seasonic
- Category:
- SKU: FOCUS-GX-750-V4
- EAN: 4711173878445
Focus GX 750W, 80 PLUS Gold, 120mm, 100-240 V, 10-5 A, 50-60 Hz
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Focus GX-750 ATX 3.1 750W 80 Gold Modular Power Supply |
POW-SSC-03150 | |||
|
FOCUS-GX-750-V4 |
000000000000378456 | |||
|
Focus Gx Power Supply Uni |
FOCUS-GX-750-V4 | |||
|
|
Focus GX, 750 W, 100 - 240 V, |
FOCUS-GX-750 (V4) | |||
|
ALIMENTATION ATX SEASONIC FOCUS GX ATX 3 (2024) - 750W (NOIR) |
FOCUS-GX-750-V4 | |||
|
FOCUS GX 750 strømforsyning - |
534094 | |||
|
FOCUS GX-750 (ATX 3) |
FOCUS-GX-750-V4 | |||
| Origin Storage UK |
FOCUS GX-750 (ATX 3) |
FOCUS-GX-750-V4 |
Description
The newly upgraded FOCUS PX and GX series are the successors to the FOCUS PLUS Series, which became an instant top seller in the power supply market after its launch in 2017. In 2019, Seasonic engineers have made improvements to the popular series such as removing the inline capacitors on the supplied cables. Besides the small change in the series naming, the PSU housing and its packaging are also updated to be in line with the concept of the OneSeasonic Initiative.
S3FC - Fanless until 30 % load
The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.
Fluid Dynamic Fan Bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces.
As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
S3FC - Fanless until 30 % load
The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.
Fluid Dynamic Fan Bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces.
As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
Specifications
| Cooling | |
|---|---|
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Performance | |
| On/off switch | Yes |
| Power supply unit (PSU) form factor | ATX |
| Silent mode | Yes |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| ATX version | 3.0 |
| Mean time between failures (MTBF) | 100000 h |
| Certification | cTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Bearing technology | FDB |
| Design | |
| 80 PLUS certification | 80 PLUS Gold |
| Certification | cTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Product colour | Black |
| Fan diameter | 12 cm |
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Power | |
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10 - 5 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 744 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power cable length | 61 cm |
| SATA power cable length | 450,810,860 mm |
| Peripheral (Molex) power cable length | 470,690 mm |
| PCI Express power cable length | 75 cm |
| CPU power cable length | 65 cm |
| Motherboard power connector | 20+4 pin ATX |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Certificates | |
| Certification | cTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Compliance certificates | BSMI, CB, CCC, CE, EAC, REACH, RoHS, cTUVus, WEEE |
| 80 PLUS certification | 80 PLUS Gold |
| Packaging content | |

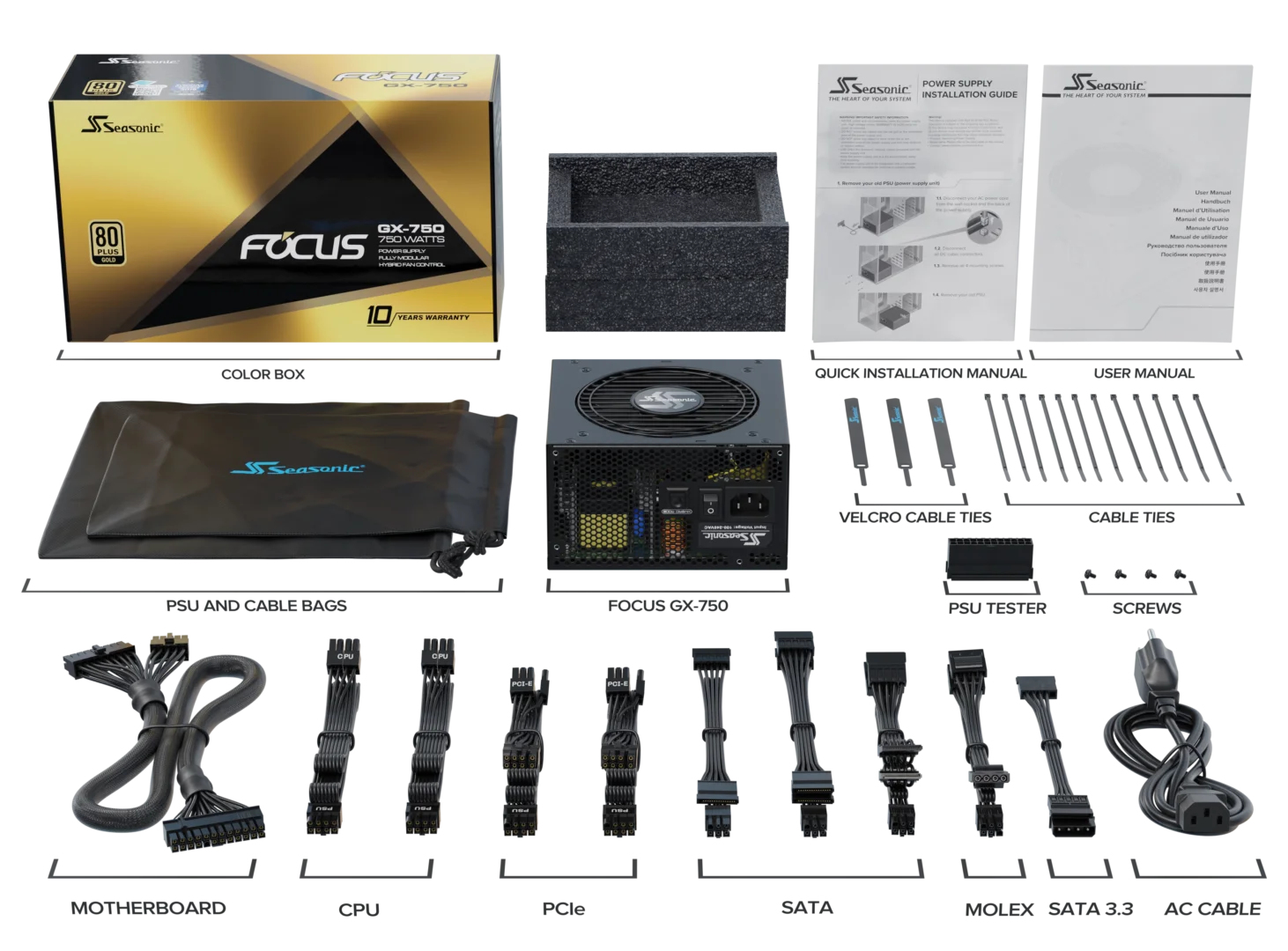

| Cables included | AC, CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA |
| Cable tie(s) included | Yes |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Packaging data | |
| Cables included | AC, CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, ErP |
| Warranty period | 10 year(s) |
| Compliance certificates | BSMI, CB, CCC, CE, EAC, REACH, RoHS, cTUVus, WEEE |
| Logistics data | |
| Warranty period | 10 year(s) |
