Scythe Big Shuriken 3 Rev.B Processor Air cooler 12 cm Black 1 pc(s)
- Brand: Scythe
- Category:
- SKU: SCBSK-3100
- EAN: 4571225058245
Intel LGA 1700/1200/115X/2066 Square ILM/2011(V3) Square ILM, AMD AM4/AM3(+)/AM2(+)/FM2/FM1, 8.16 - 48 CFM, 120 mm, 490 g
Offer details
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | 12191 hours ago | £63.49 |
Description
Scythe low profile superstar Big Shuriken 3 is now equipped with a latest Kaze Flex II Slim fan. Standing only 67mm, the Big Shuriken 3 Rev.B has become a default choice of Mini-ITX PC builders on the market. Assembled with H.P.M.S. IV, the cooler now provides full Intel LGA 1700 support.
Keep a cool Low Profile
One of the best low profile coolers on the PC market, the Big Shuriken 3 Rev.B now goes darker-based style by a new Kaze Flex II PWM fan in black. The newly developed Kaze Flex II 120 Slim PWM fan ramp up to 1800 RPM, now offers improved performance thanks to a new fan frame. The Big Shuriken 3 Rev.B is your best cooling solution for the SFF system (Mini ITX, HTPC).

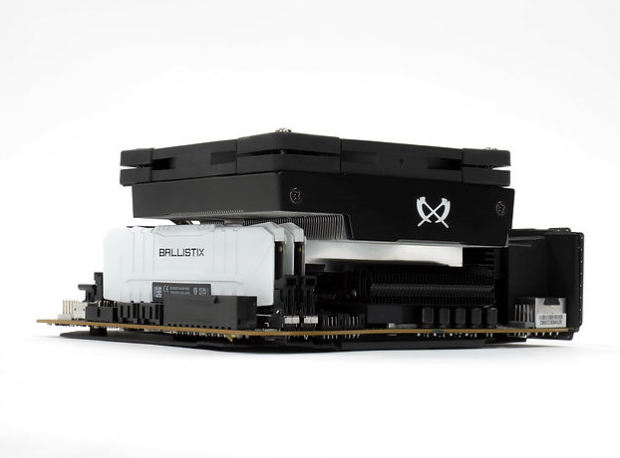

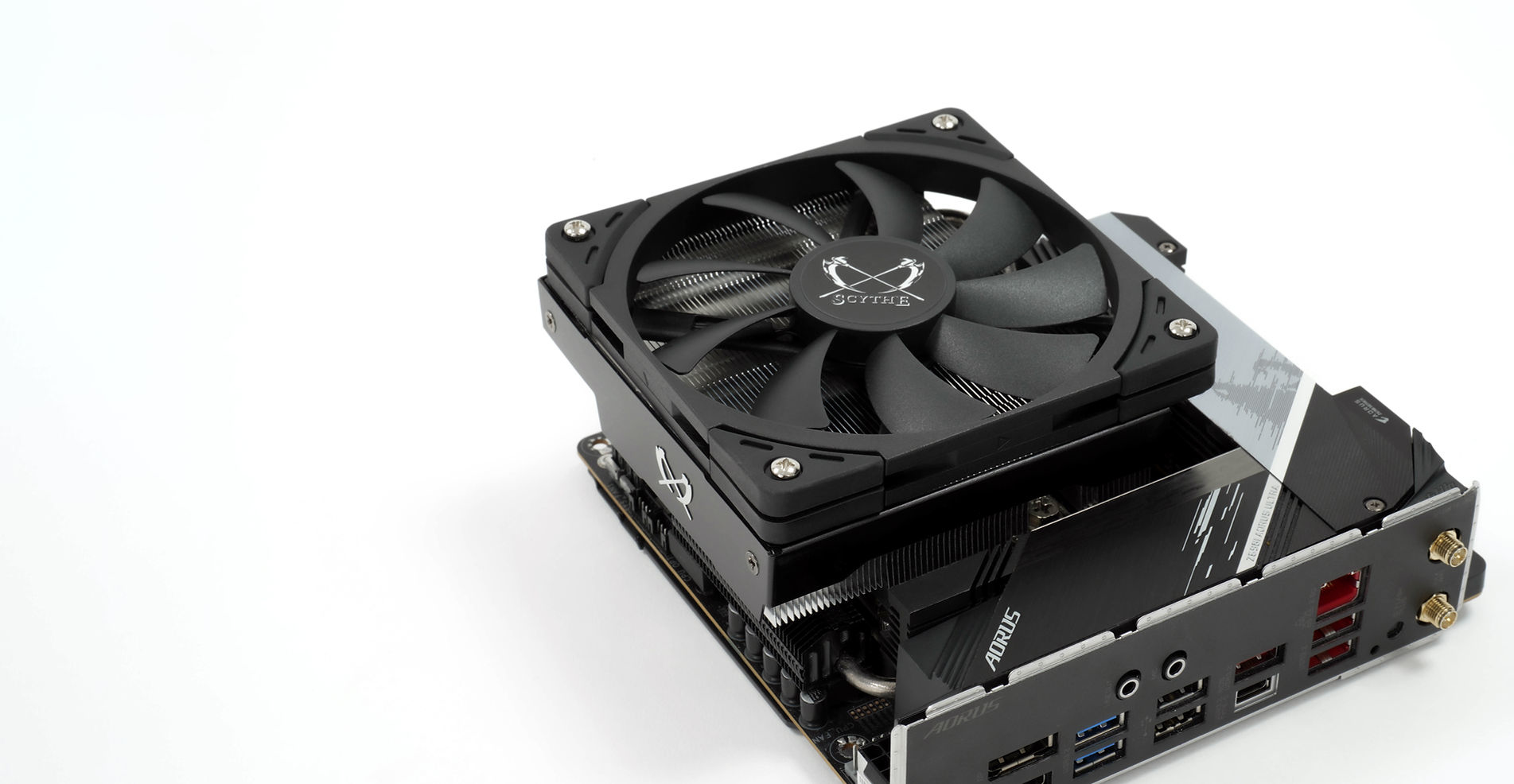

Clearance for back I/O port
Compact Size Design allows the Big Shuriken 3 Rev.B be installed reversely as per users wishes, just like a real Shuriken, works pretty cool in any directions.
Scythe H.P.M.S IV Mounting System
Premium HPMS IV provides Big Shuriken 3 Rev.B with easy-to-install experience and highly secure now ready for CPU cooler socket INTEL LGA 1700.
Additional 25mm fan mounting screws
Additional 25mm fan mounting screws are included for users wishing to replace the Kaze Flex II PWM Slim fan with Scythe 25mm in thickness fan.
Specifications
| Performance | |
|---|---|
| Suitable location | Processor |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (min) | 300 RPM |
| Rotational speed (max) | 1800 RPM |
| Noise level (low speed) | 2.58 dB |
| Noise level (high speed) | 27.8 dB |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011-v3 (Socket R), LGA 2066, Socket AM2+, Socket AM3+, Socket AM4, Socket FM1, Socket FM2 |
| Minimum airflow (imperial) | 8.16 cfm |
| Maximum airflow | 48 cfm |
| Minimum air pressure | 0.045 mmH2O |
| Maximum air pressure | 1.36 mmH2O |
| Quantity per pack | 1 pc(s) |
| Design | |
| Product colour | Black |
| Technical details | |
| Noise level (low speed) | 2.58 dB |
| Noise level (high speed) | 27.8 dB |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011-v3 (Socket R), LGA 2066, Socket AM2+, Socket AM3+, Socket AM4, Socket FM1, Socket FM2 |
| Minimum airflow (imperial) | 8.16 cfm |
| Maximum airflow | 48 cfm |
| Minimum air pressure | 0.045 mmH2O |
| Maximum air pressure | 1.36 mmH2O |
| Power | |
| Fan voltage | 12 V |
| Fan current | 0.18 A |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 120 x 120 x 15 mm |
| Width | 122 mm |
| Depth | 122 mm |
| Height | 67 mm |
| Weight | 490 g |
| Packaging content | |
| Screws included | Yes |
