SCP 22/2ESH-LSZH audio cable 305 m Black
- Brand: SCP
- Category:
- SKU: 22/2ESH-LSZH
- EAN: 0817777013115
305 m, 22 AWG, LSZH, Nylon, grey
Offer details
Description

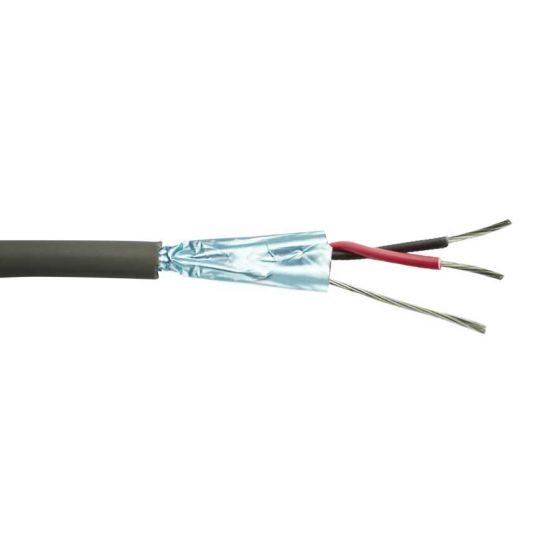

BALANCED LINE LEVEL AUDIO - LOW SMOKE ZERO HALOGEN- 2C/22 AWG TC TWISTED PAIR, EACH PAIR AL FOIL SHIELD W/DRAIN, EN50575 Dca-s1,d2a1 HD LSZH JKT- GRAY BULK CABLE - 1000FT/305M BOX
SCPs Line Level Analog Audio cables are "balanced" high-performing audio and control distribution cables for a wide range of AV applications. These cables provide a superior signal-to-noise ratio and will maintain high signal levels over distance.
SCP Line Level Analog Audio cables are to be used only in permanent or semi-permanent installations. These Line Level Analog cables are available in one or two individually foil-shielded, twisted pairs with color-coded conductors (red/black + green/white); and a flexible LSZH or PVC jacket that is easy to handle, strip, and terminate.
SCP 22/2ESH-LSZH Line Level Analog Audio cables are designed to carry the left and right analog line-level audio signals. These cables are not built to carry a lot of current, because line-level audio is all about fidelity before the audio is amplified to the speaker level. This is why SCPs Line Level Analog Audio cables don't look like speaker cables... because they are really signal cables.
Specifications
| Features | |
|---|---|
| Cable diameter | 4.3 mm |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour | Black |
| Cable length | 305 m |
| Connector 1 | No |
| Connector 2 | No |
| Cable material | Copper |
| Jacket material | Low smoke zero halogen (LSZH) |
| AWG wire size | 22 |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Cable diameter | 4.3 mm |
| Packaging data | |
| Cable diameter | 4.3 mm |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 75 °C |
| Packaging content | |
| Package type | Box |
| Other features | |
| Package type | Box |
