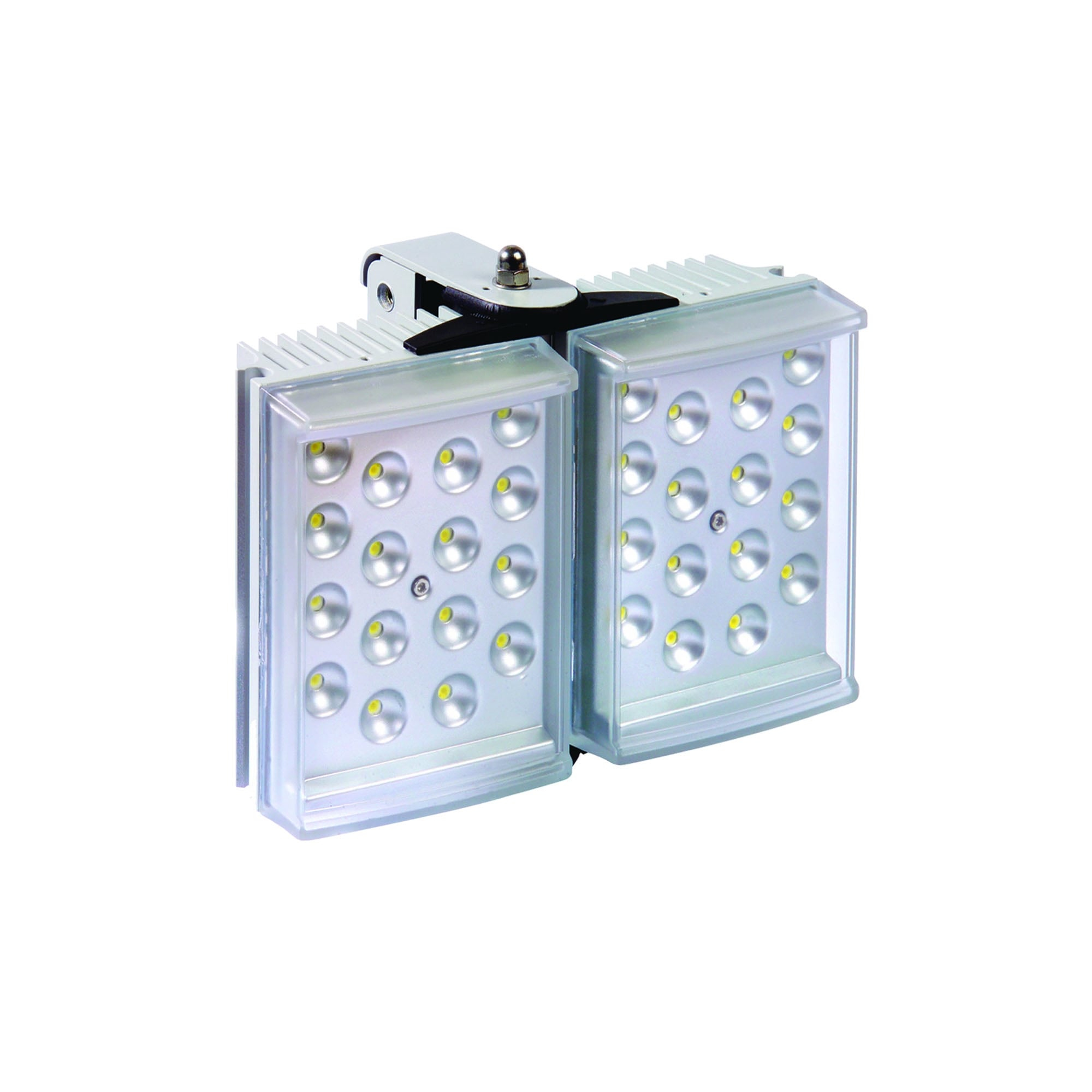

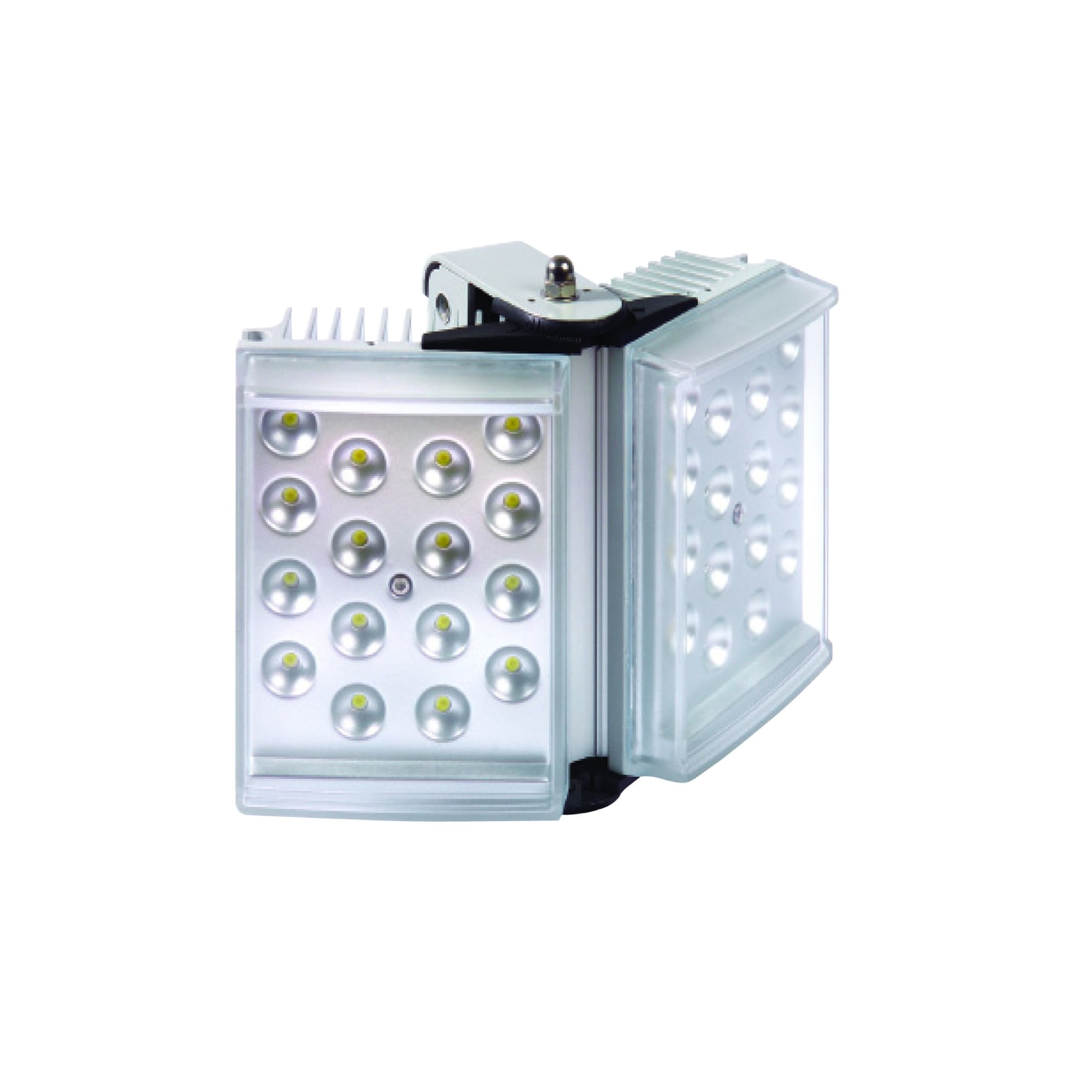

Raytec Raylux 100 Illuminator
- Brand: Raytec
- Category:
- SKU: RL100-AI-30
- EAN: 0000050781485 50781485
32 x Platinum SMT LEDs, 50 W, White Light, 6500k, IP66, 30° - 60°, 65 m
Offer details
Description

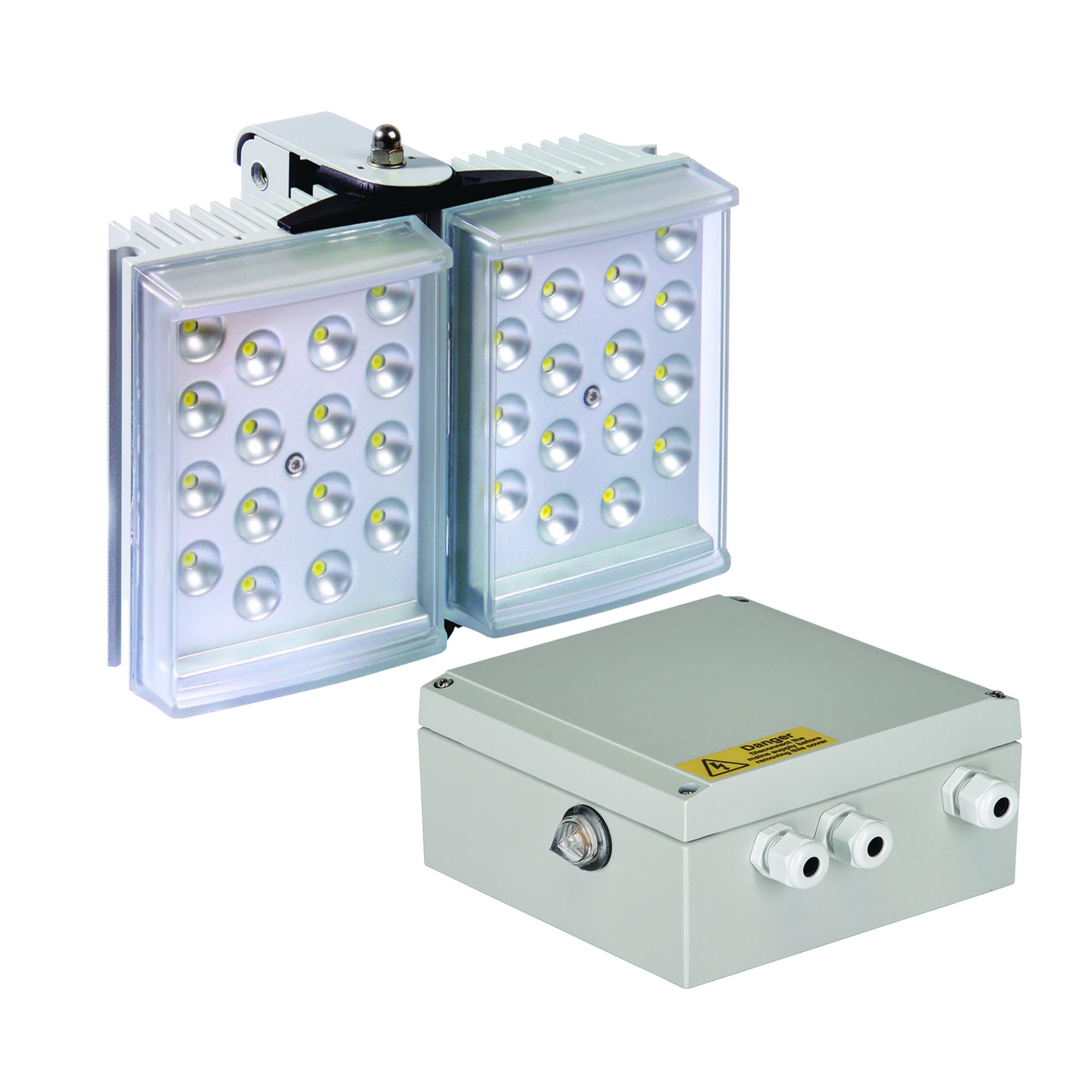

The RAYLUX series of mains powered White-Light illuminators provides class leading night-time performance, long life and requires zero maintenance. They incorporate the very latest surface mount LEDs to deliver even illumination and true colour images for both surveillance cameras and general area lighting. RAYLUX is a quick start lighting solution, making it perfect for deterring crime on alarm; unlike other traditional technologies which are slow to start. The unique Adaptive Illumination concept provides the flexibility to alter the angle of illumination on site to match the exact camera field of view. Each unit is also fitted with Active LED Life Control to deliver a consistent working life of 10 years. RAYLUX illuminators are supplied with a dedicated power supply as standard. The RAYLUX 100 delivers maximum distances up to 120m (394ft).
Specifications
| Features | |
|---|---|
| Maximum operating distance | 65 m |
| Type | Illuminator |
| Placement supported | Outdoor |
| Product colour | Silver |
| International Protection (IP) code | IP66 |
| Wall mountable | Yes |
| Cable length | 2.5 m |
| Ergonomics | |
| Wall mountable | Yes |
| Power | |
| Input voltage | 100 - 230 V |
| Rated power | 50 W |
| Technical details | |
| Type | Illuminator |
| Placement supported | Outdoor |
| International Protection (IP) code | IP66 |
| Weight & dimensions | |
| Cable length | 2.5 m |
| Width | 210 mm |
| Weight | 2.5 kg |
| Height | 150 mm |
| Depth | 65 mm |
| Colour | |
| Product colour | Silver |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -50 - 50 °C |
