QuWireless QuSpot network antenna Omni-directional antenna PoE/LAN 4 dBi
- Brand: QuWireless
- Category:
- SKU: A240S
- EAN: 5907772035016
Antenna QuSpot for RUT2xx
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
QuSpot for RUT240/RUT230 |
A240S | |||
|
QuSpot for RUT240/RUT230 |
A240S | |||
|
QuSpot Omni-Directional LTE Antenna IP67 Enclosure for RUT241/RUT240/RUT230/RUT200 - A240S |
16216 |
| Alternative Suppliers | |||||
|---|---|---|---|---|---|
|
QuSpot Omni-Directional LTE Antenna IP67 Enclosure for RUT241/RUT240/RUT230/RUT200 - A240S |
A240S | |||
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £109.95 | ||
| Amazon | New | £89.57 |
Related Products
Description

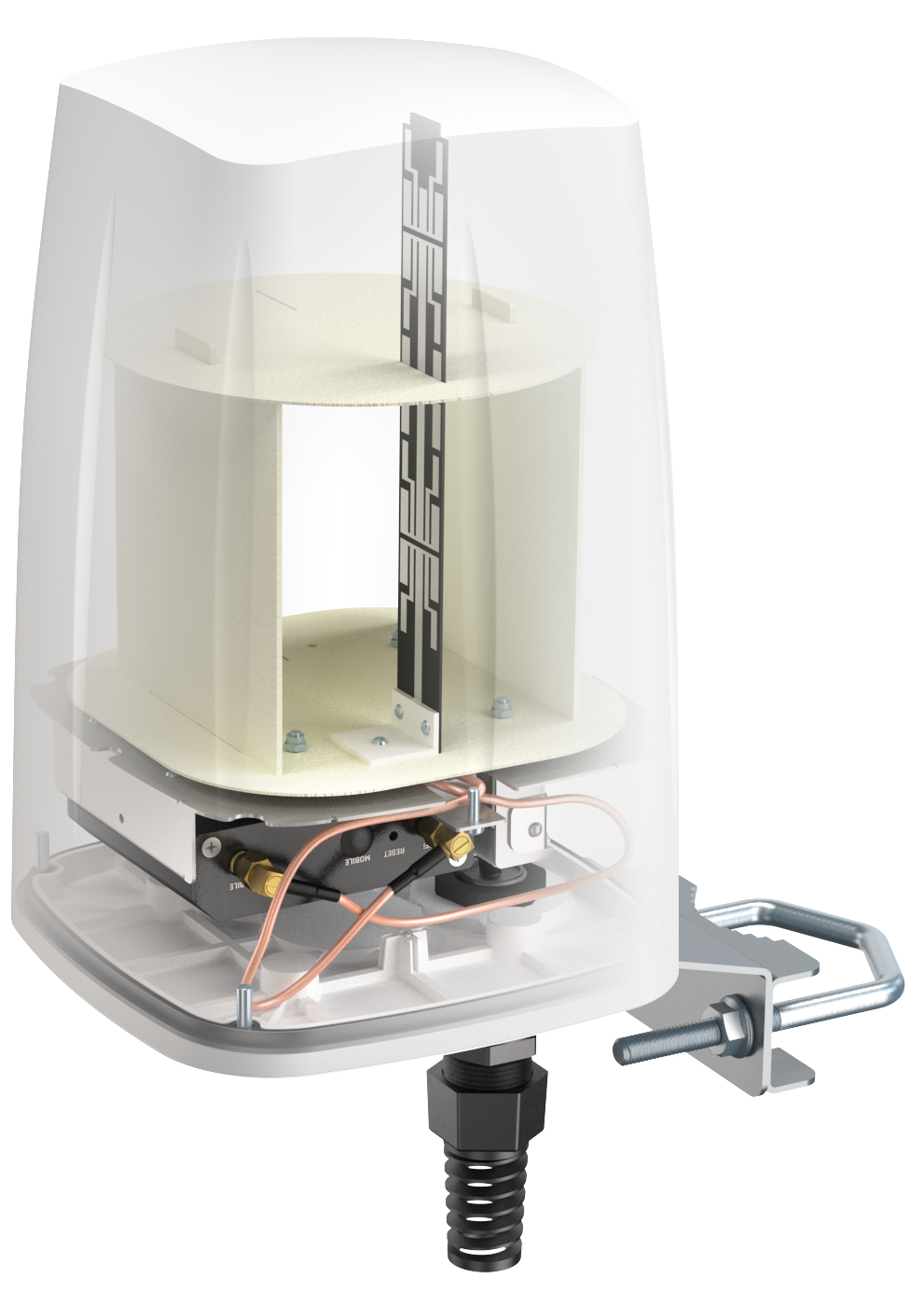

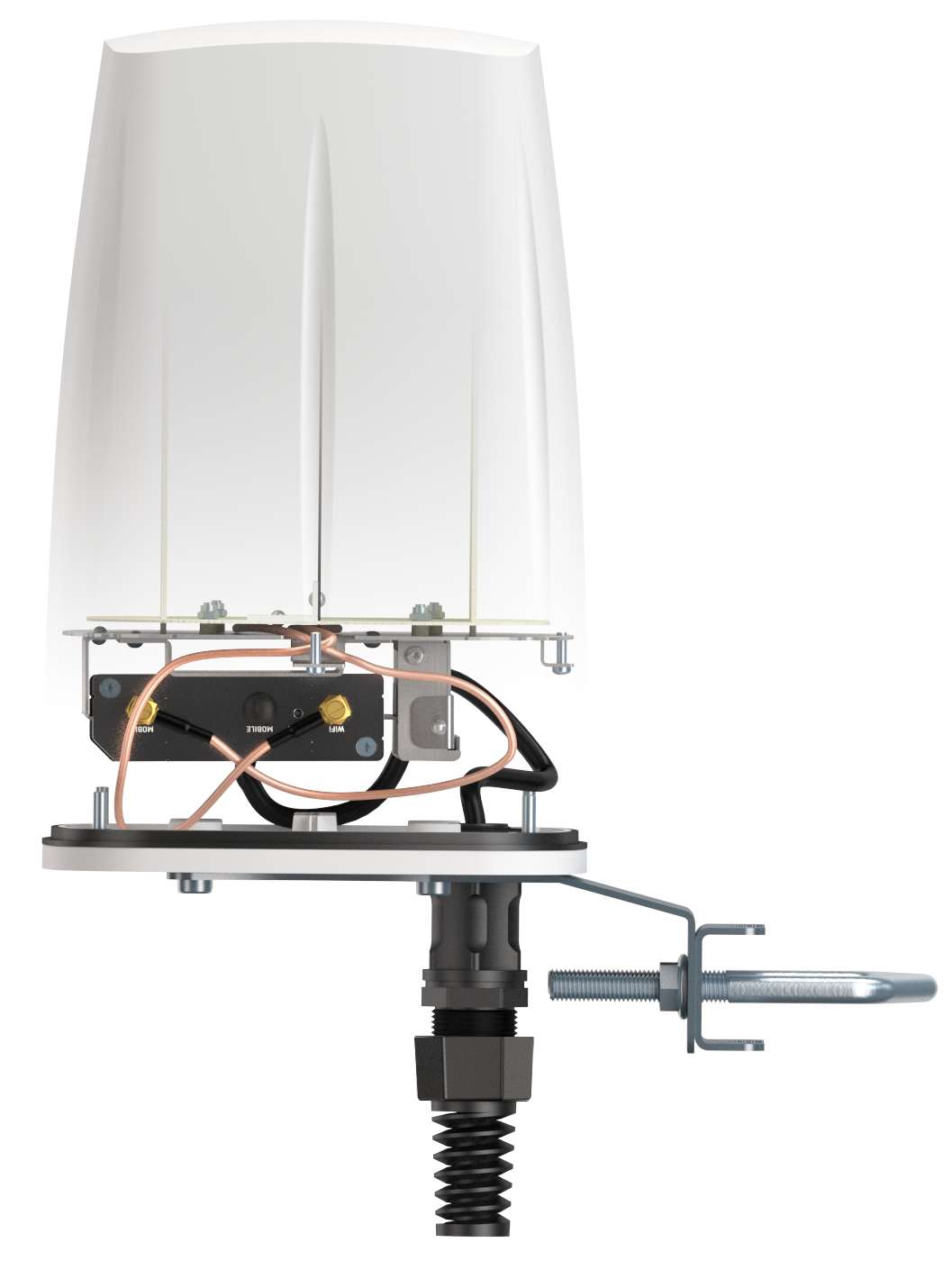

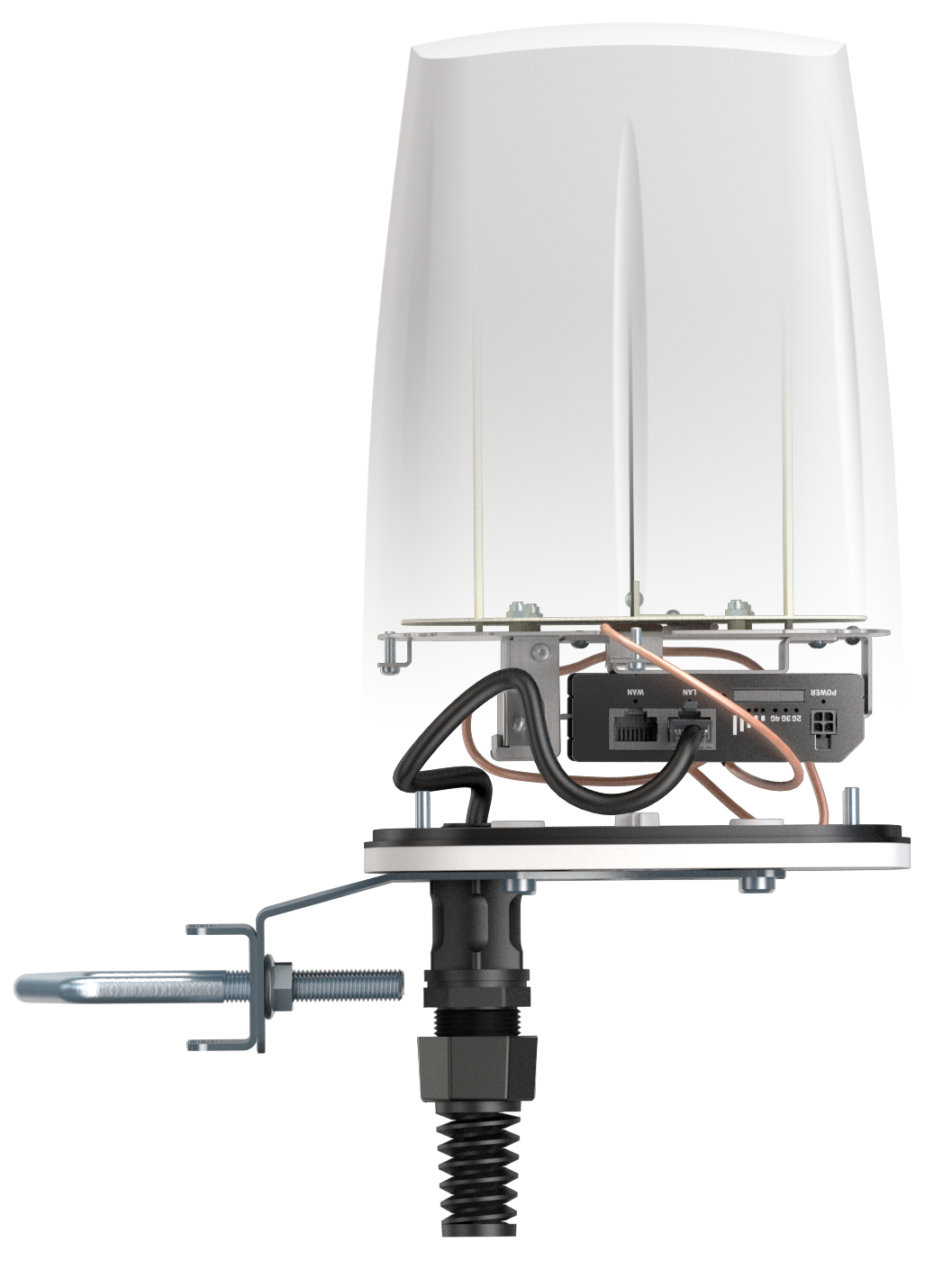

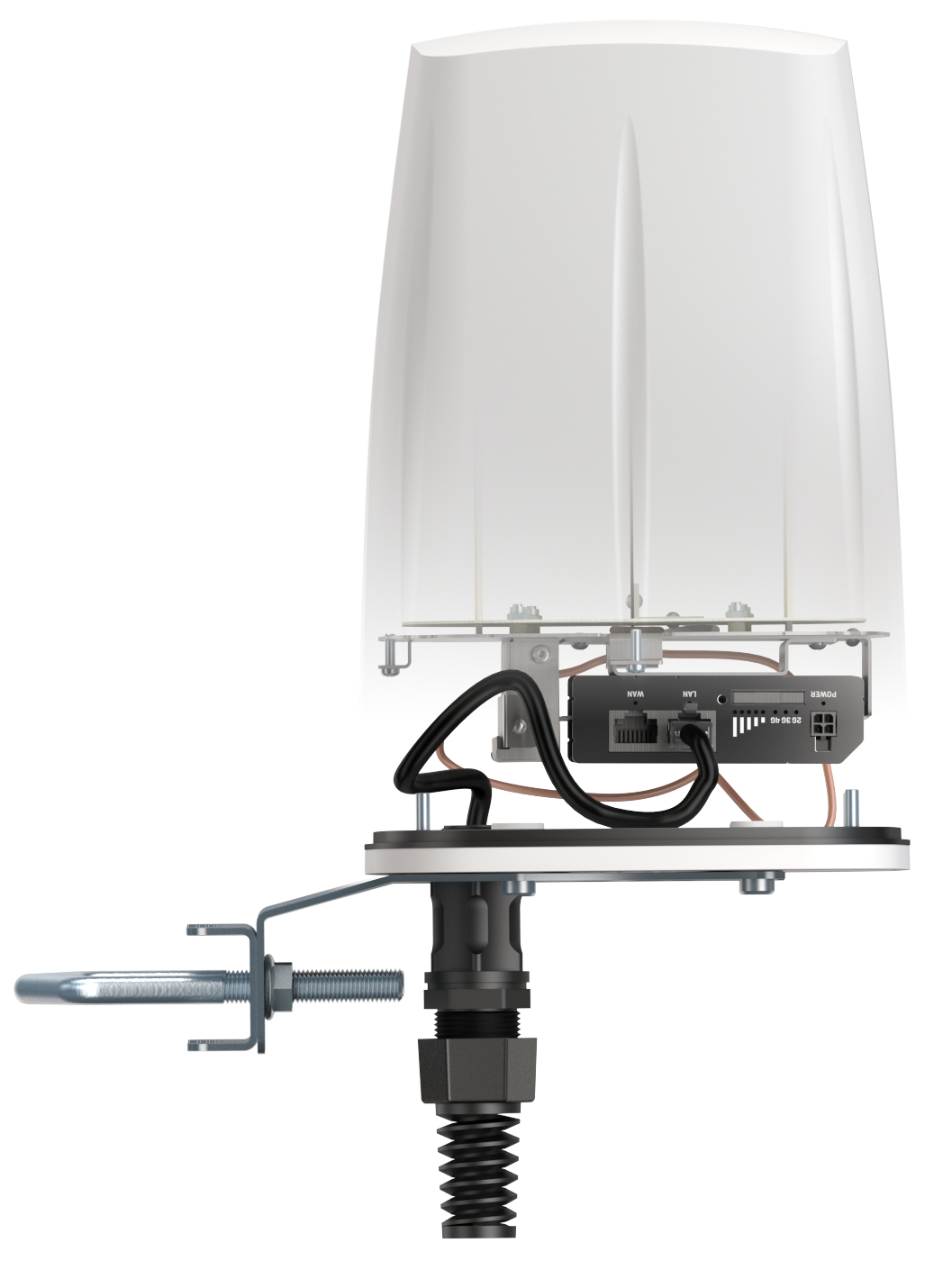

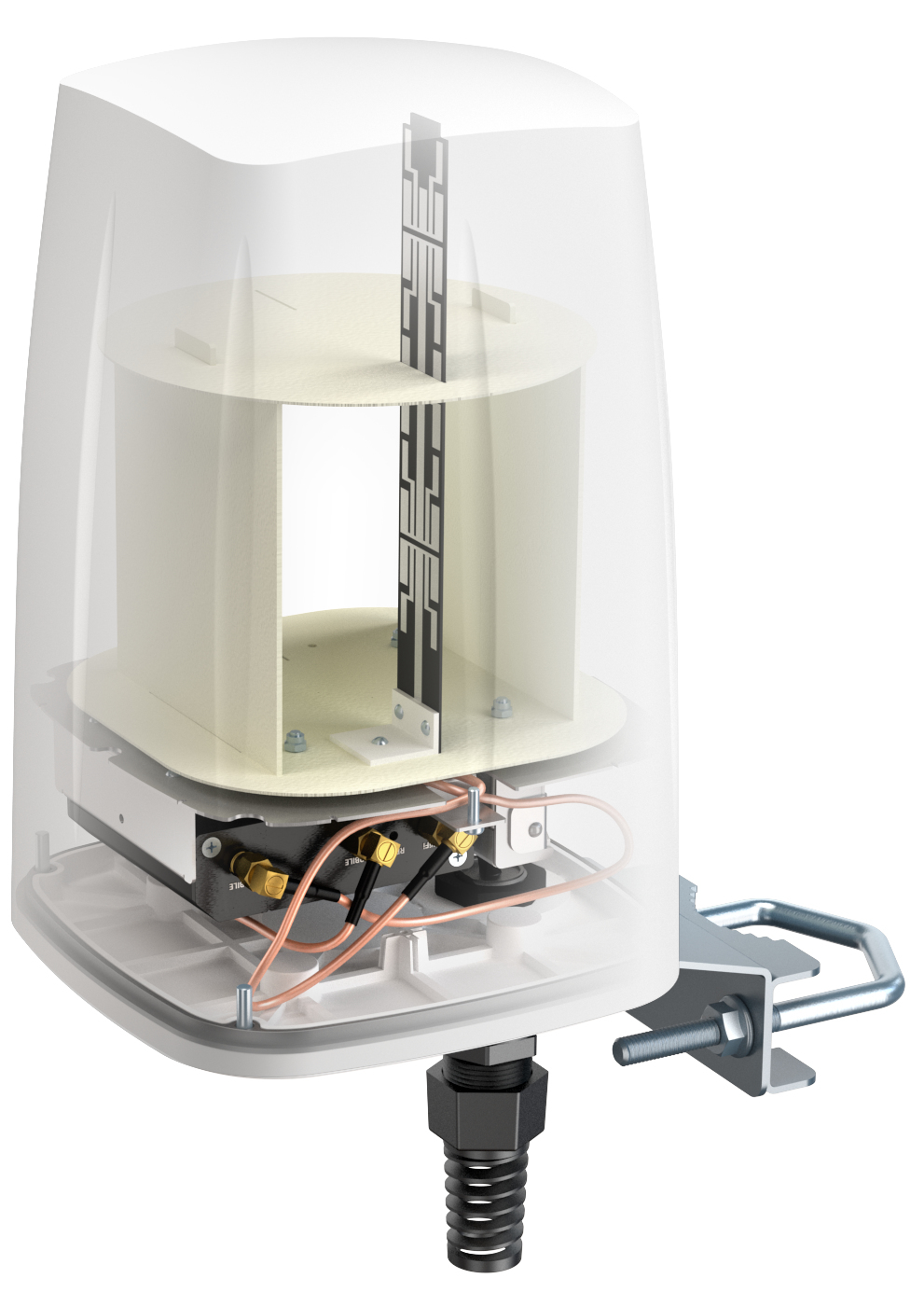

Integrated multi-band LTE omni antenna + WiFi omni antenna + place to install Teltonika RUT241, RUT240 or 230 (All-in-one)
QuSpot omnidirectional LTE antenna for Teltonika RUT260, RUT241, RUT240, RUT230 or RUT200 routers is a perfect outdoor device for mobile and fixed installations e.g. CCTV, hotspots, industrial areas, campervans, ships etc.. In addition to having omnidirectional, multi-band LTE antennas, it has also embedded omnidirectional Wi-Fi antenna. If you use RUT2xx with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
QuSpot omnidirectional LTE antenna for Teltonika RUT260, RUT241, RUT240, RUT230 or RUT200 routers is a perfect outdoor device for mobile and fixed installations e.g. CCTV, hotspots, industrial areas, campervans, ships etc.. In addition to having omnidirectional, multi-band LTE antennas, it has also embedded omnidirectional Wi-Fi antenna. If you use RUT2xx with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 4 dBi |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7; 2.4-2.5/4.7-6 GHz |
| Vertical beam width (2.4 GHz) | 25° |
| Vertical beam width | 35° |
| Impedance | 50 Ω |
| Horizontal beam width (2.4 GHz) | 360° |
| Horizontal beam width | 360° |
| Gain | 2 / 4 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Features | |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium |
| International Protection (IP) code | IP67 |
| Antenna type | Omni-directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2 |
| Purpose | Indoor & outdoor |
| Polarization | Vertical polarization |
| Mounting | Wall/Pole |
| Product colour | White |
| Antenna connector type | PoE/LAN |
| Compatible products | RUT200, RUT230, RUT240, RUT241, RUT260 |
| Country of origin | Poland |
| Antenna gain level (max) | 4 dBi |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7; 2.4-2.5/4.7-6 GHz |
| Vertical beam width (2.4 GHz) | 25° |
| Vertical beam width | 35° |
| Impedance | 50 Ω |
| Horizontal beam width (2.4 GHz) | 360° |
| Horizontal beam width | 360° |
| Gain | 2 / 4 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
| Weight | 1.5 kg |
| Width | 160 mm |
| Depth | 160 mm |
| Height | 240 mm |
| Technical details | |
| Antenna gain level (max) | 4 dBi |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7; 2.4-2.5/4.7-6 GHz |
| Antenna type | Omni-directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2 |
| Vertical beam width (2.4 GHz) | 25° |
| Vertical beam width | 35° |
| Purpose | Indoor & outdoor |
| Polarization | Vertical polarization |
| Mounting | Wall/Pole |
| Impedance | 50 Ω |
| Horizontal beam width (2.4 GHz) | 360° |
| Horizontal beam width | 360° |
| Gain | 2 / 4 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Antenna connector type | PoE/LAN |
| Compatible products | RUT200, RUT230, RUT240, RUT241, RUT260 |
| Harmonized System (HS) code | 85177100 |
| Colour | |
| Product colour | White |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Country of origin | Poland |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85177100 |
