QuWireless QuMax network antenna Directional antenna PoE/LAN 6 dBi
- Brand: QuWireless
- Category:
- SKU: A360M
- EAN: 5907772035641 7703949951749
Antenna QuMax for Teltonika RUT360
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
QuMax for RUT360 |
A360M | |||
|
IP67 Enclosure With Integrated Directional LTE + Omni-Directional Wi-Fi Antennas for RUT360 - A360M |
16822 |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | 389 hours ago | £106.07 |
Related Products
Description

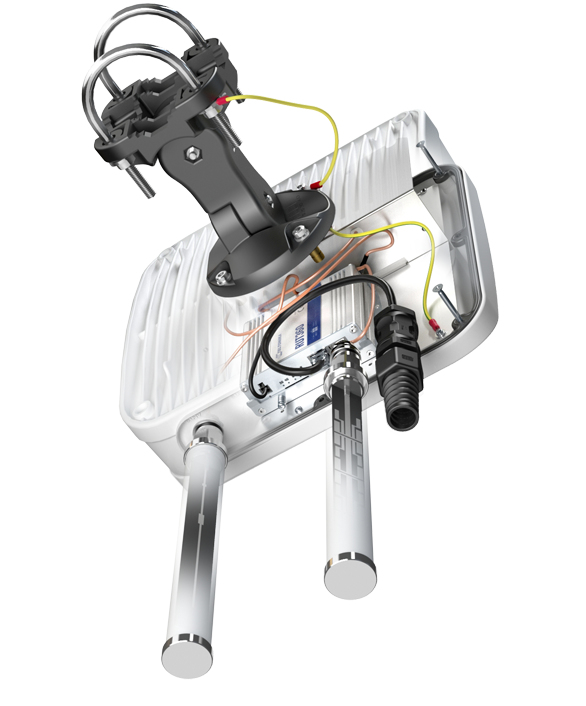

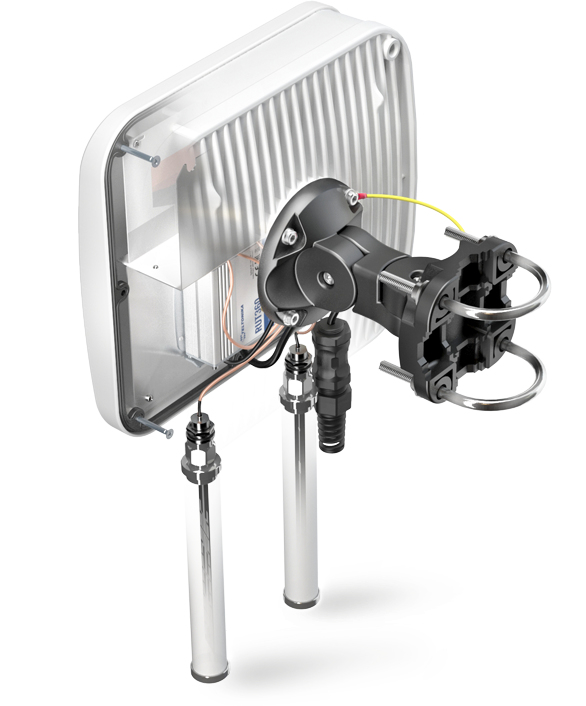

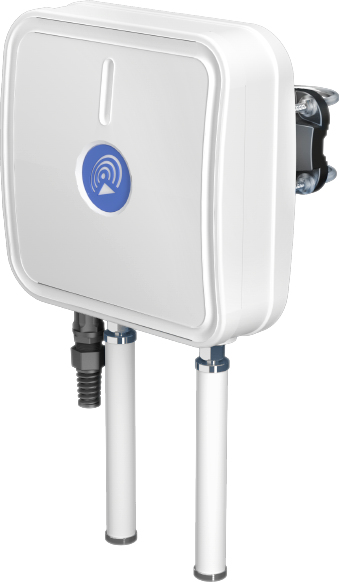

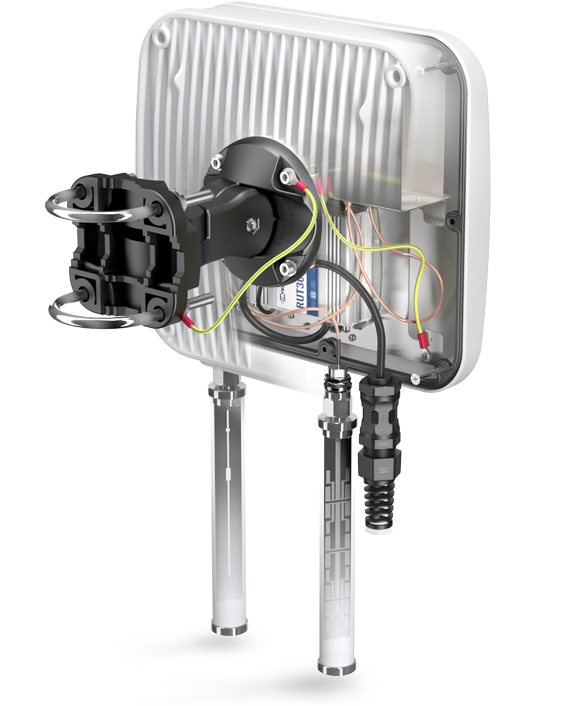

Integrated outdoor multi band high power LTE directional antenna + outdoor Wi-Fi omni antenna + place to install Teltonika RUT360 (All-in-one)
QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT360 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also outdoor Wi-Fi omni antennas.
QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT360 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also outdoor Wi-Fi omni antennas.
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 6 dBi |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7; 2.4-2.5 GHz |
| Vertical beam width (2.4 GHz) | 25° |
| Vertical beam width | 90° |
| Impedance | 50 Ω |
| Horizontal beam width (2.4 GHz) | 360° |
| Horizontal beam width | 90° |
| Gain | 4 / 6 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Features | |
| Waterproof | Yes |
| Protection features | Water resistant, Waterproof |
| Front to back ratio | 8 dB |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium, Fibreglass, Polytetrafluoroethylene (PTFE) |
| International Protection (IP) code | IP67 |
| Antenna type | Directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 1.80 - 2 |
| Purpose | Indoor & outdoor |
| Polarization | Vertical polarization |
| Mounting | Wall/Pole |
| Product colour | White |
| Cable type | RJ-45 |
| Cable length | 0.38 m |
| Antenna connector type | PoE/LAN |
| Compatible products | RUT360 |
| Country of origin | Poland |
| Antenna gain level (max) | 6 dBi |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7; 2.4-2.5 GHz |
| Vertical beam width (2.4 GHz) | 25° |
| Vertical beam width | 90° |
| Impedance | 50 Ω |
| Horizontal beam width (2.4 GHz) | 360° |
| Horizontal beam width | 90° |
| Gain | 4 / 6 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
| Weight | 1.8 kg |
| Width | 272 mm |
| Depth | 96 mm |
| Height | 276 mm |
| Technical details | |
| Antenna gain level (max) | 6 dBi |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7; 2.4-2.5 GHz |
| Antenna type | Directional antenna |
| Cables included | LAN (RJ-45) |
| Voltage Standing Wave Ratio (VSWR) | 1.80 - 2 |
| Vertical beam width (2.4 GHz) | 25° |
| Vertical beam width | 90° |
| Purpose | Indoor & outdoor |
| Polarization | Vertical polarization |
| Mounting | Wall/Pole |
| Impedance | 50 Ω |
| Horizontal beam width (2.4 GHz) | 360° |
| Horizontal beam width | 90° |
| Gain | 4 / 6 dBi |
| Cable type | RJ-45 |
| Cable length | 0.38 m |
| Antenna gain (2.4 GHz) | 6 dBi |
| Antenna connector type | PoE/LAN |
| Compatible products | RUT360 |
| Colour | |
| Product colour | White |
| Packaging content | |
| Quick installation guide | Yes |
| Mounting kit | Yes |
| Cables included | LAN (RJ-45) |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Country of origin | Poland |
| Quantity per pack | 1 pc(s) |
