QuWireless QuMax network antenna Directional antenna PoE/LAN 6 dBi
- Brand: QuWireless
- Category:
- SKU: AX09M
- EAN: 5907772035115
Antenna QuMax for Teltonika RUTX09
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
QuMax for RUTx09 |
AX09M |
Related Products
Description

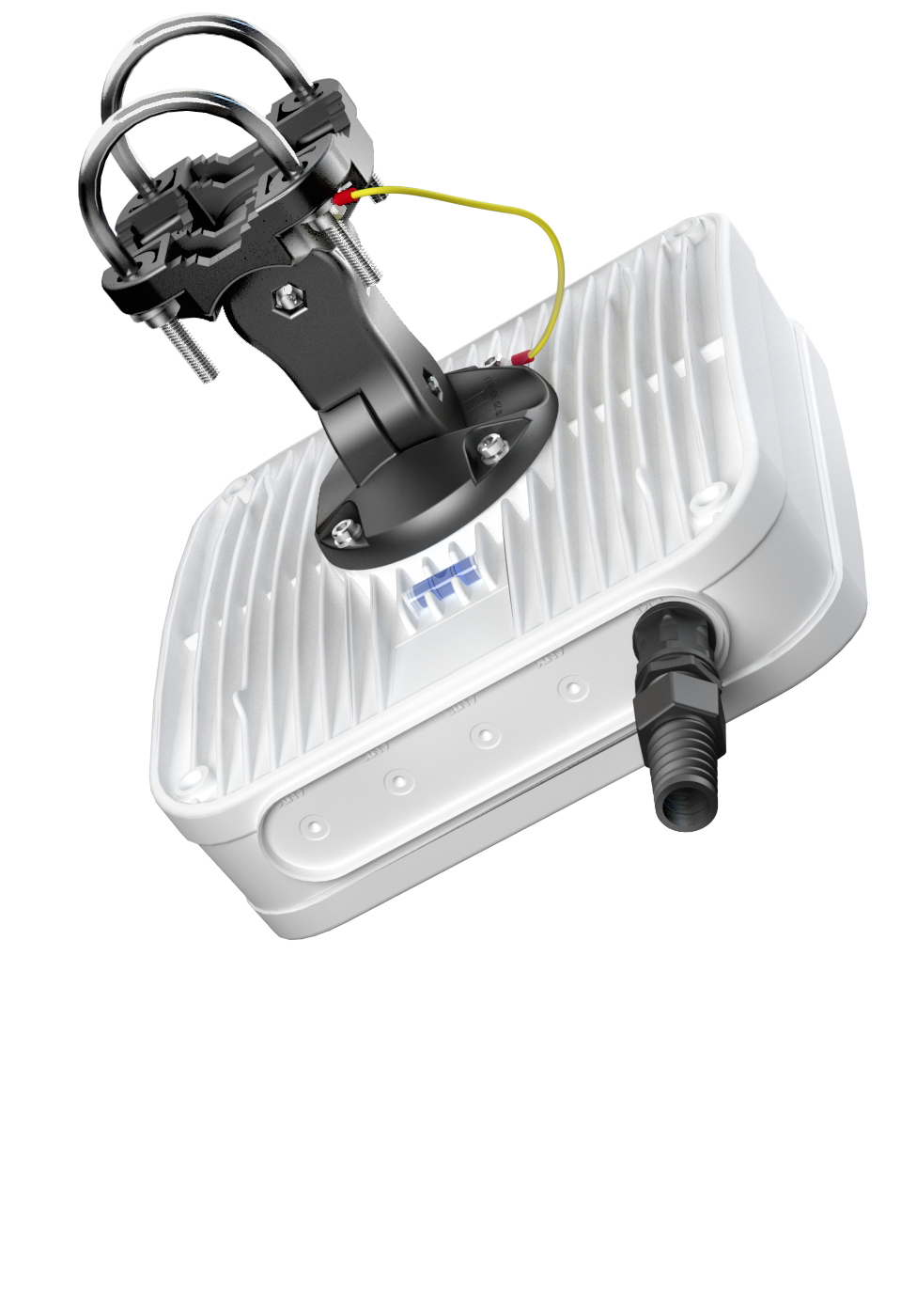

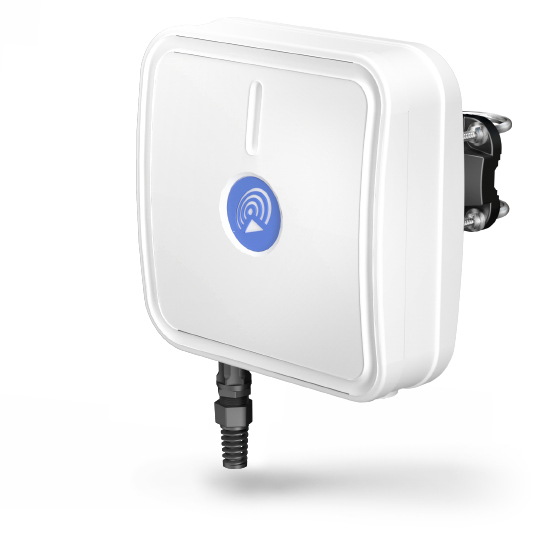

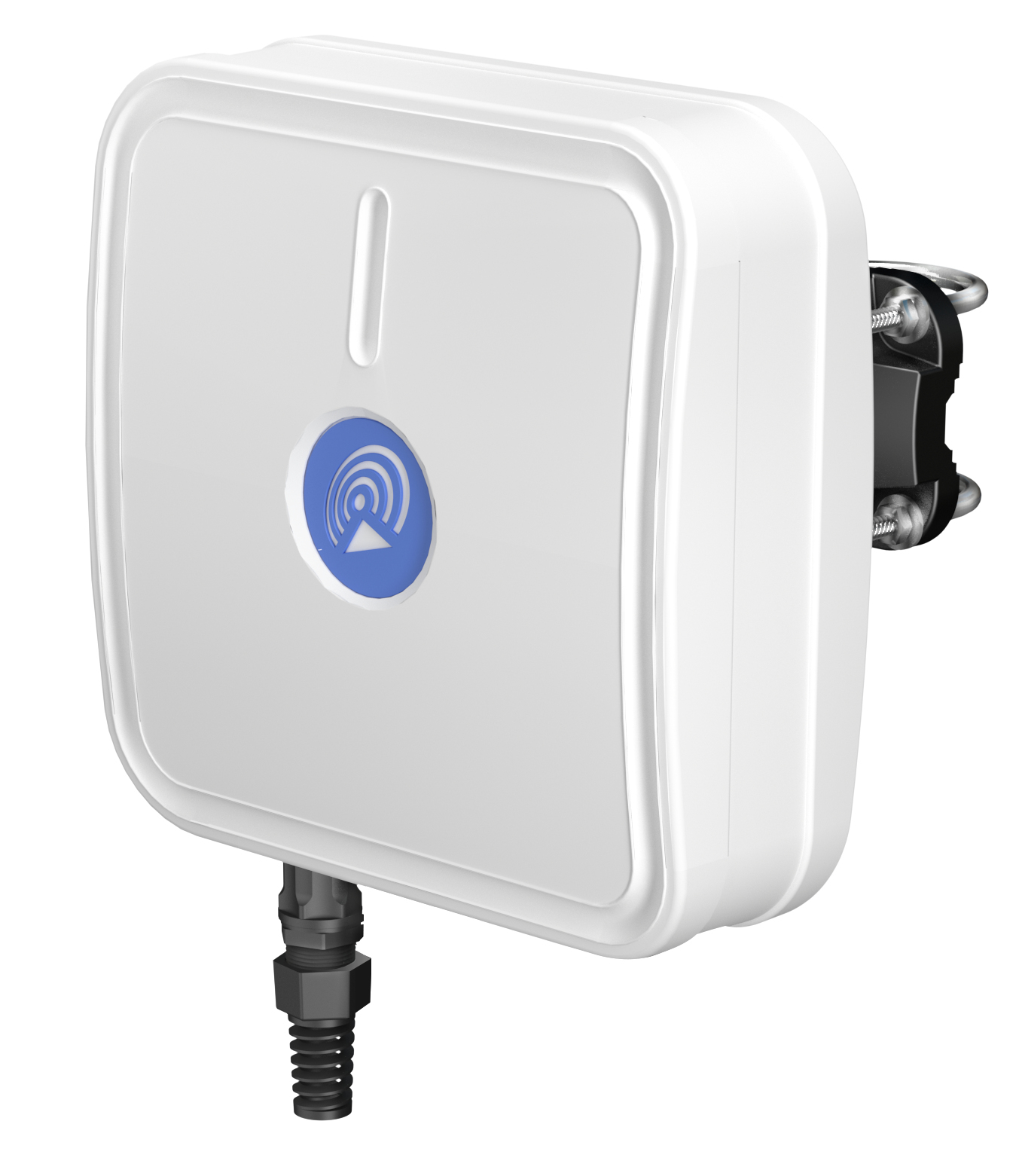

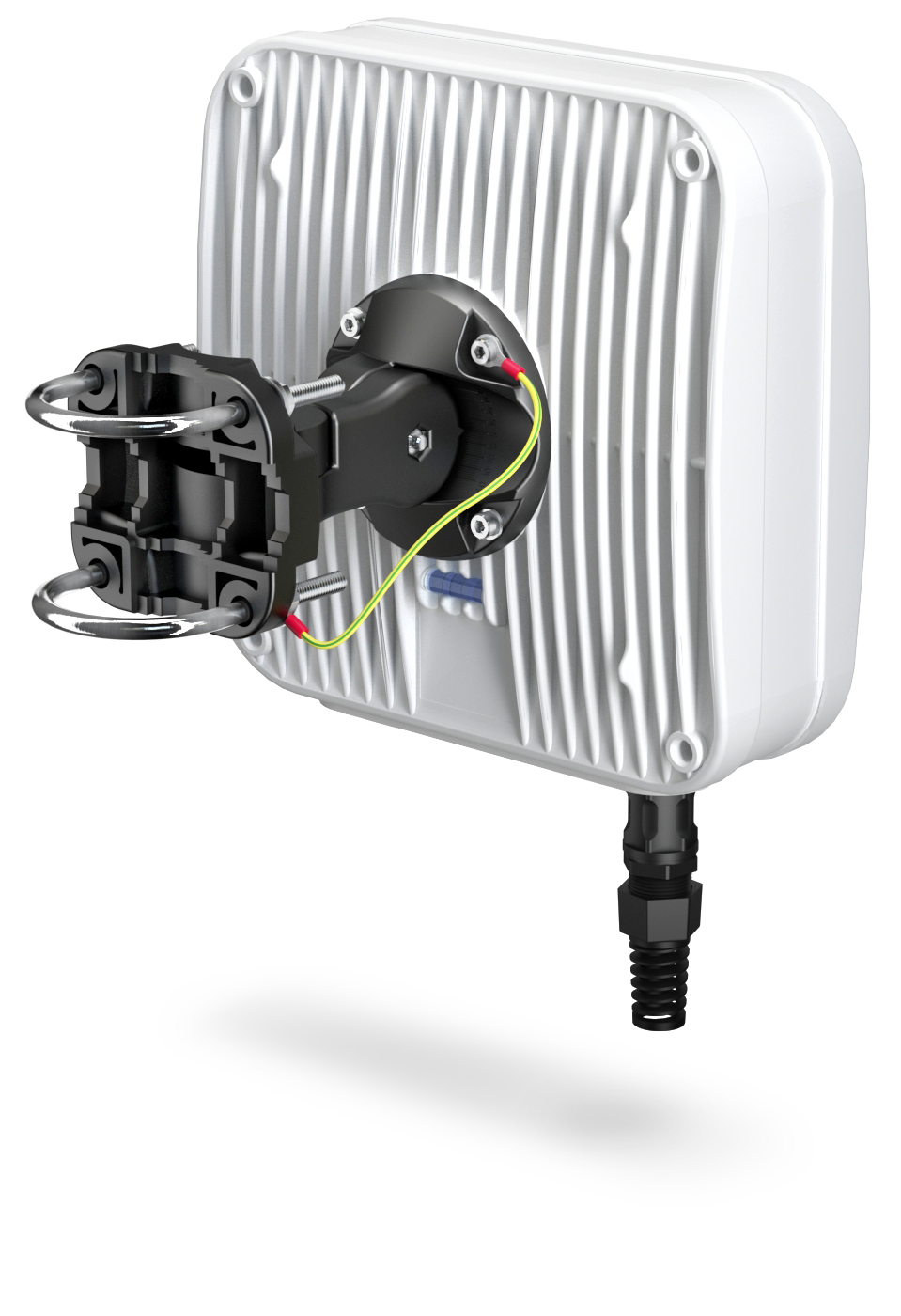

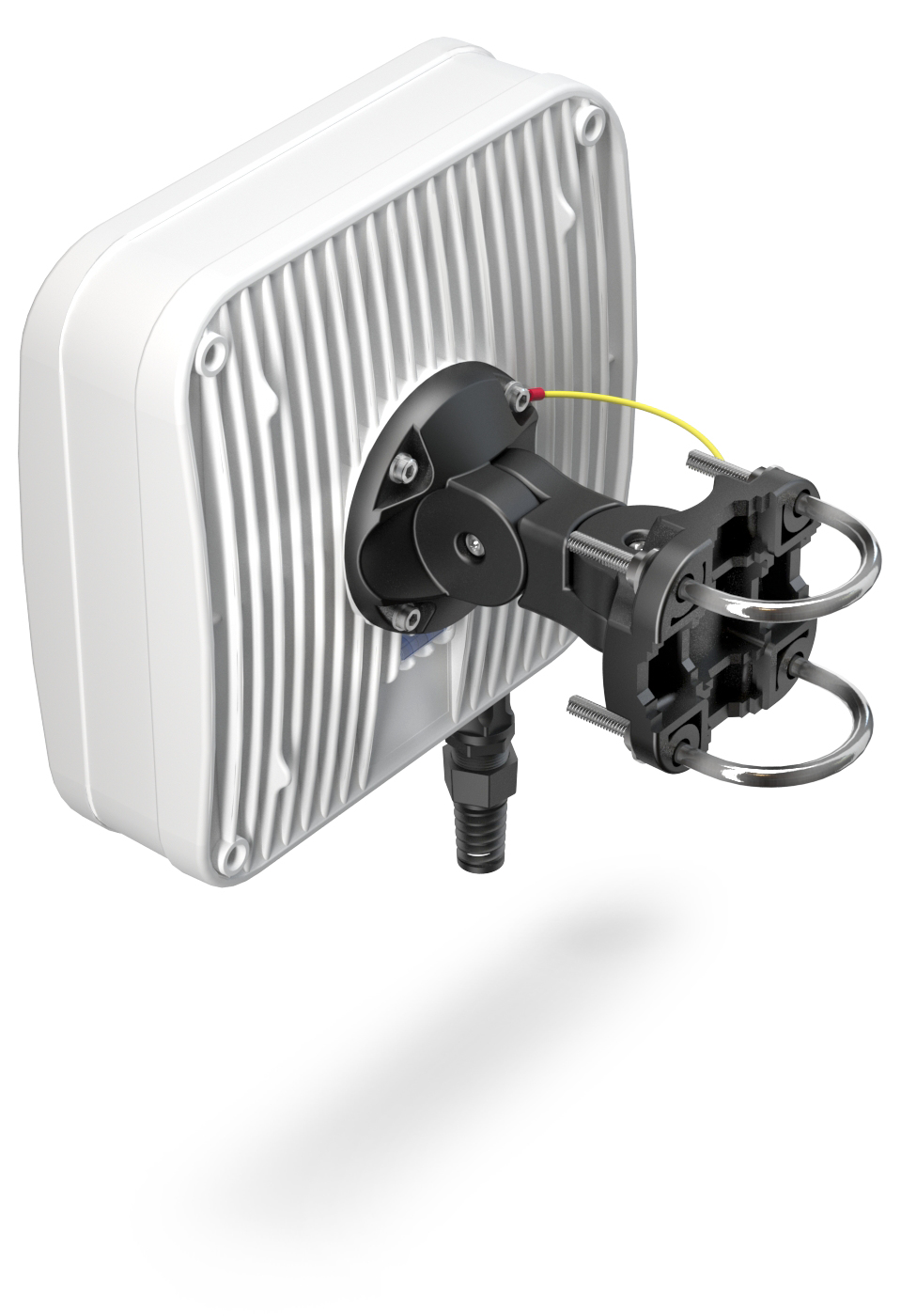

Integrated outdoor multi-band high power LTE directional antenna + GPS antenna + place to install Teltonika RUTX09 (All-in-one)

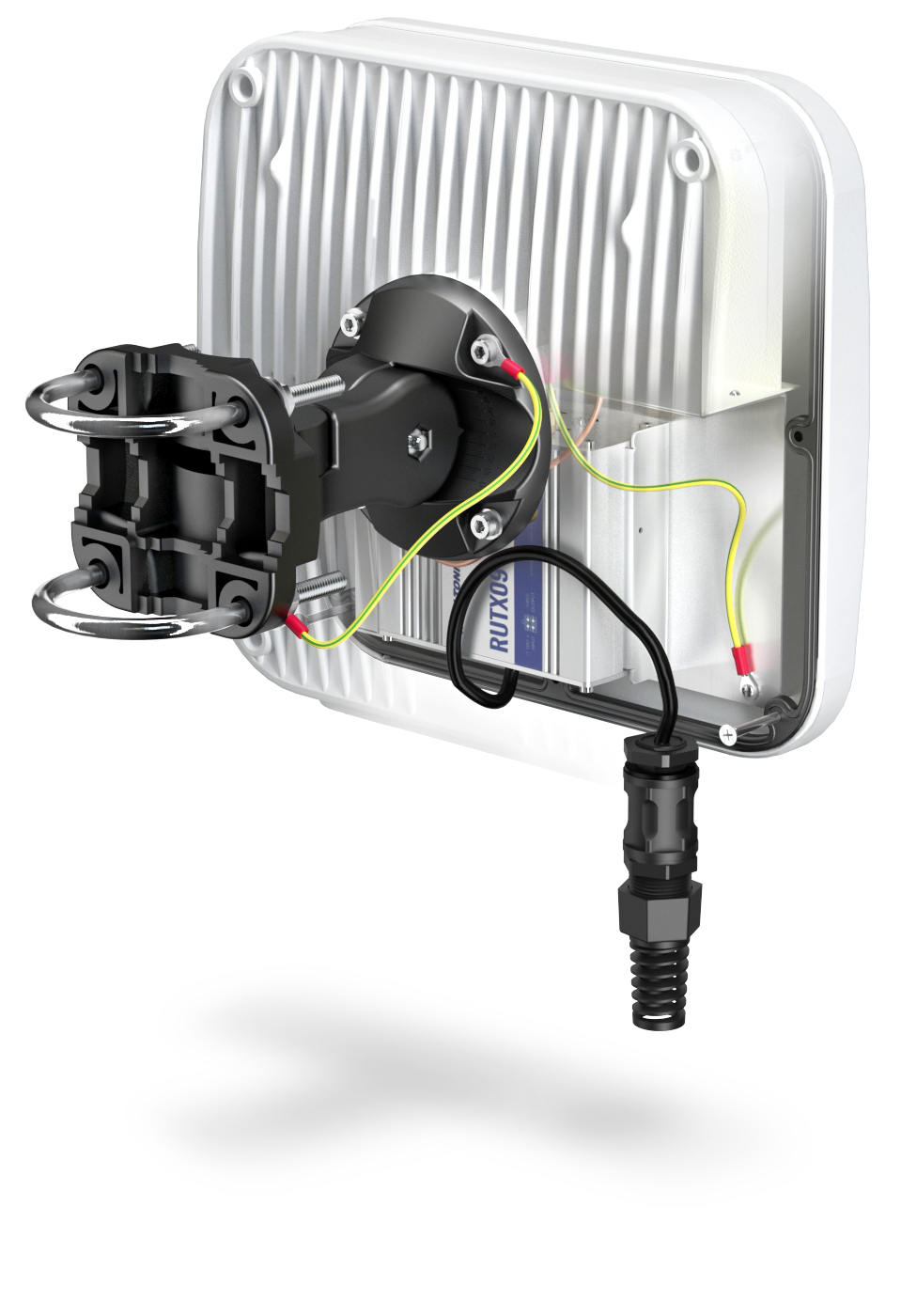

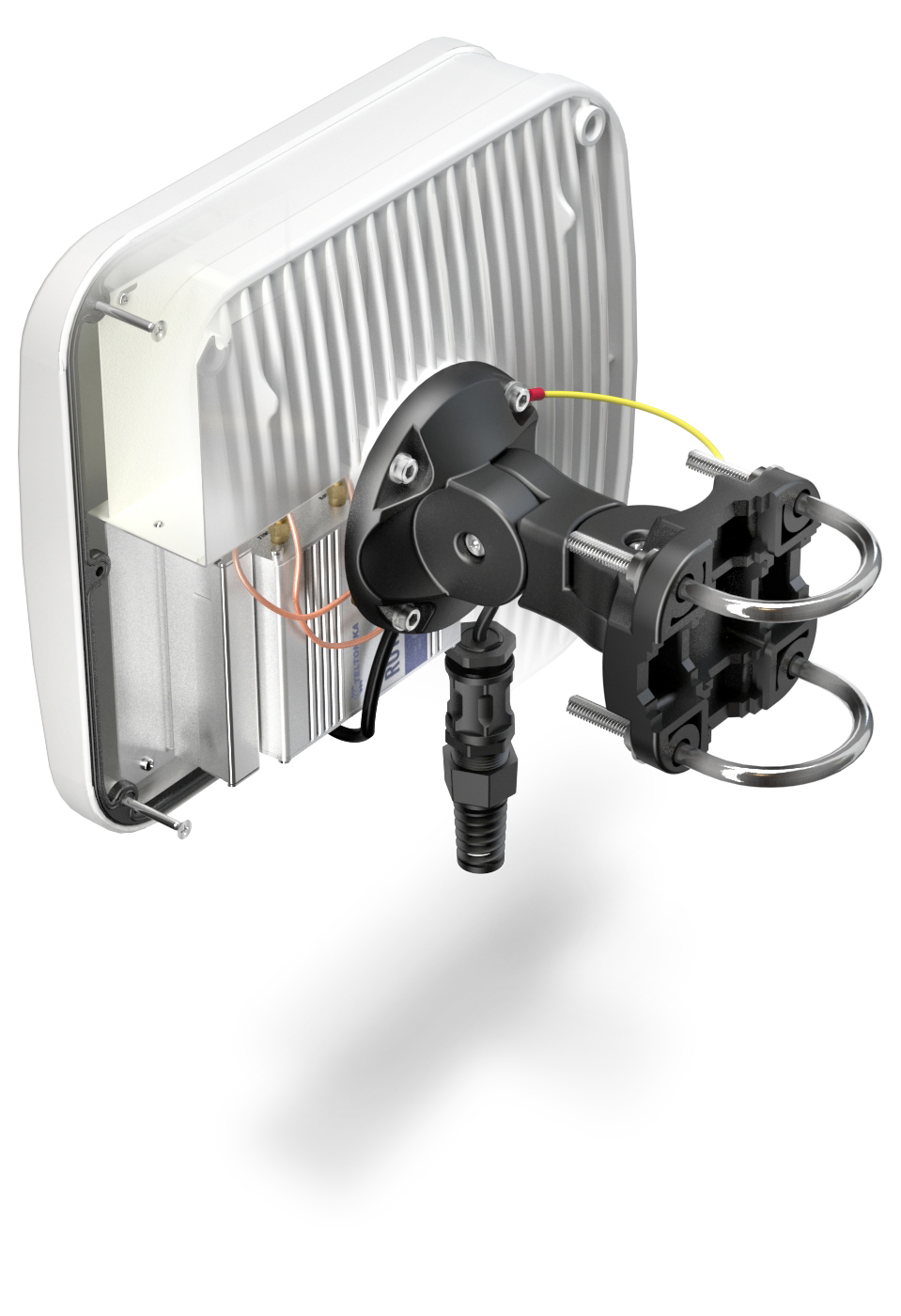

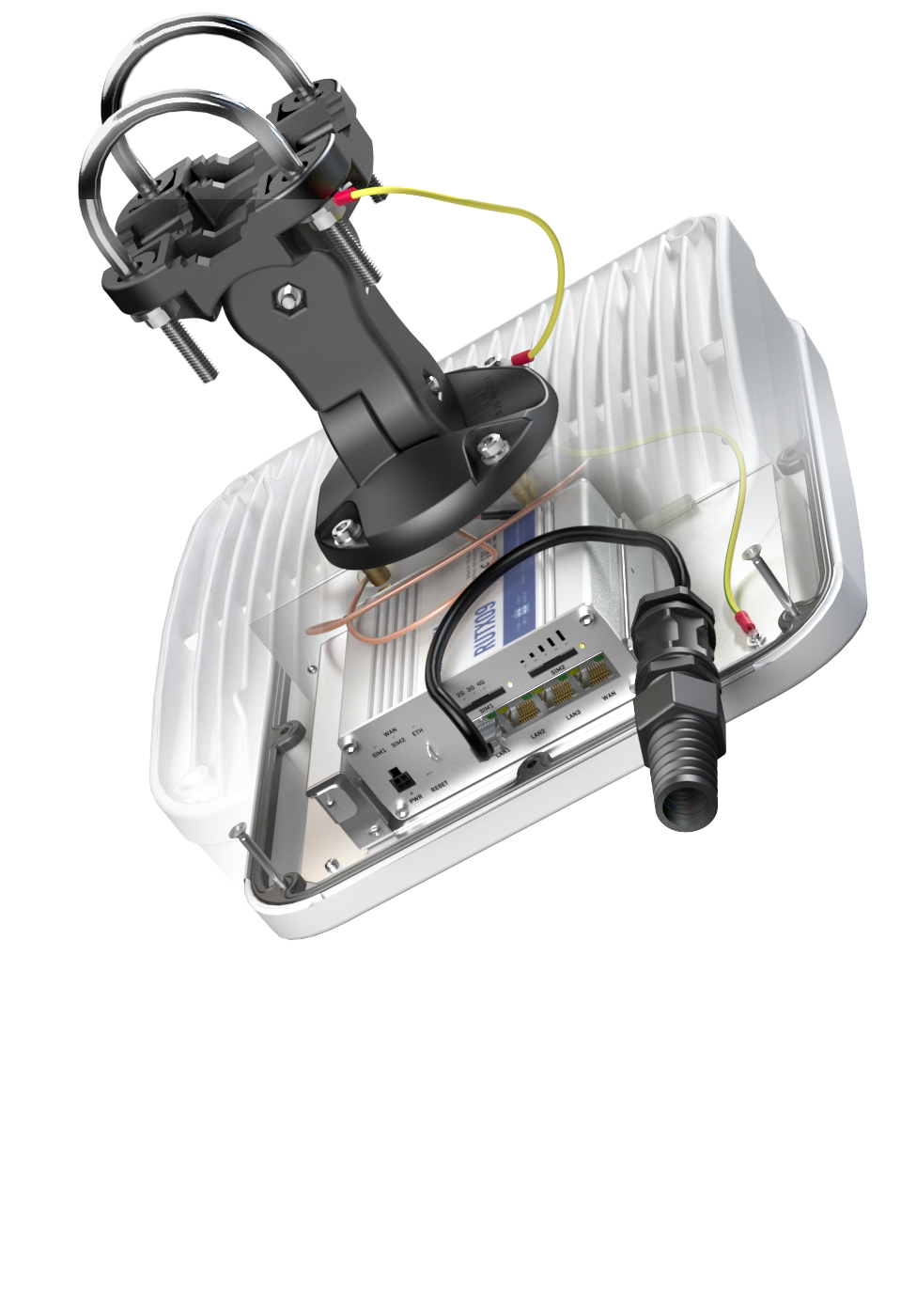

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUTX09 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also GPS antenna.
QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUTX09 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also GPS antenna.
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 6 dBi |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7 GHz |
| Vertical beam width | 90° |
| Impedance | 50 Ω |
| Horizontal beam width | 90° |
| Gain | 4 / 6 dBi |
| Features | |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium |
| Country of origin | Poland |
| International Protection (IP) code | IP67 |
| Antenna gain level (max) | 6 dBi |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7 GHz |
| Antenna type | Directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 1.8 |
| Vertical beam width | 90° |
| Purpose | Indoor & outdoor |
| Polarization | Vertical polarization |
| Mounting | Wall/Pole |
| Impedance | 50 Ω |
| Horizontal beam width | 90° |
| Gain | 4 / 6 dBi |
| Product colour | White |
| Antenna connector type | PoE/LAN |
| Compatible products | RUTX09 |
| Technical details | |
| Antenna gain level (max) | 6 dBi |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7 GHz |
| Antenna type | Directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 1.8 |
| Vertical beam width | 90° |
| Purpose | Indoor & outdoor |
| Polarization | Vertical polarization |
| Mounting | Wall/Pole |
| Impedance | 50 Ω |
| Horizontal beam width | 90° |
| Gain | 4 / 6 dBi |
| Antenna connector type | PoE/LAN |
| Compatible products | RUTX09 |
| Colour | |
| Product colour | White |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
| Weight | 1.8 kg |
| Width | 272 mm |
| Depth | 96 mm |
| Height | 276 mm |
| Packaging content | |
| Mounting kit | Yes |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
