QuWireless QuMax network antenna Directional antenna PoE/LAN 6 dBi
- Brand: QuWireless
- Category:
- SKU: A240M
- EAN: 5907772035085
Antenna QuMax for RUT2xx
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
QuMax for RUT240/RUT230 |
A240M | |||
|
QuMax Directional LTE Antenna IP67 Enclosure for RUT240/RUT200/RUT241 - A240M |
16860 |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £139.12 | ||
| Amazon | New | 8090 hours ago | £115.52 | |
| Amazon | New | £139.12 |
Related Products
Description

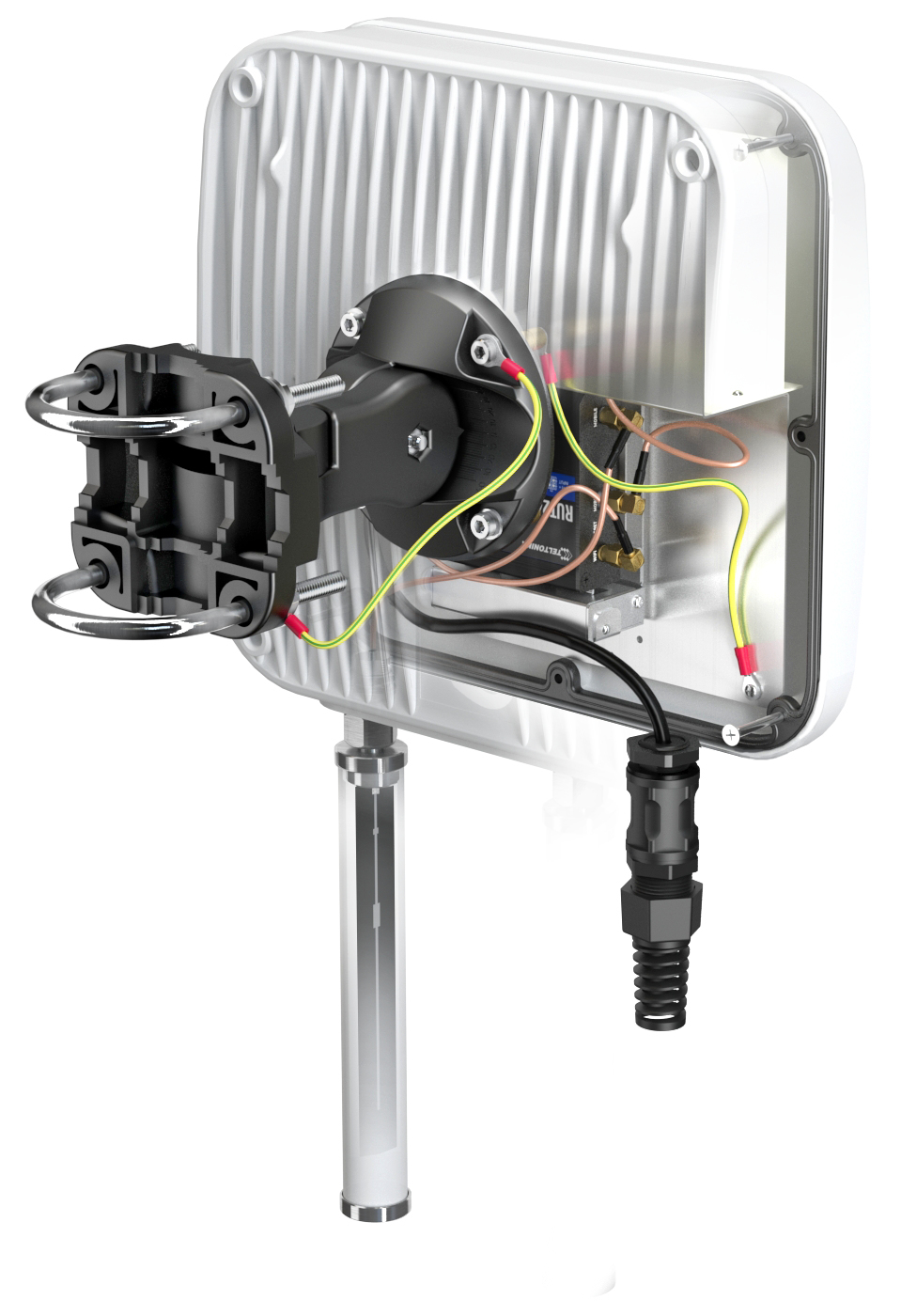

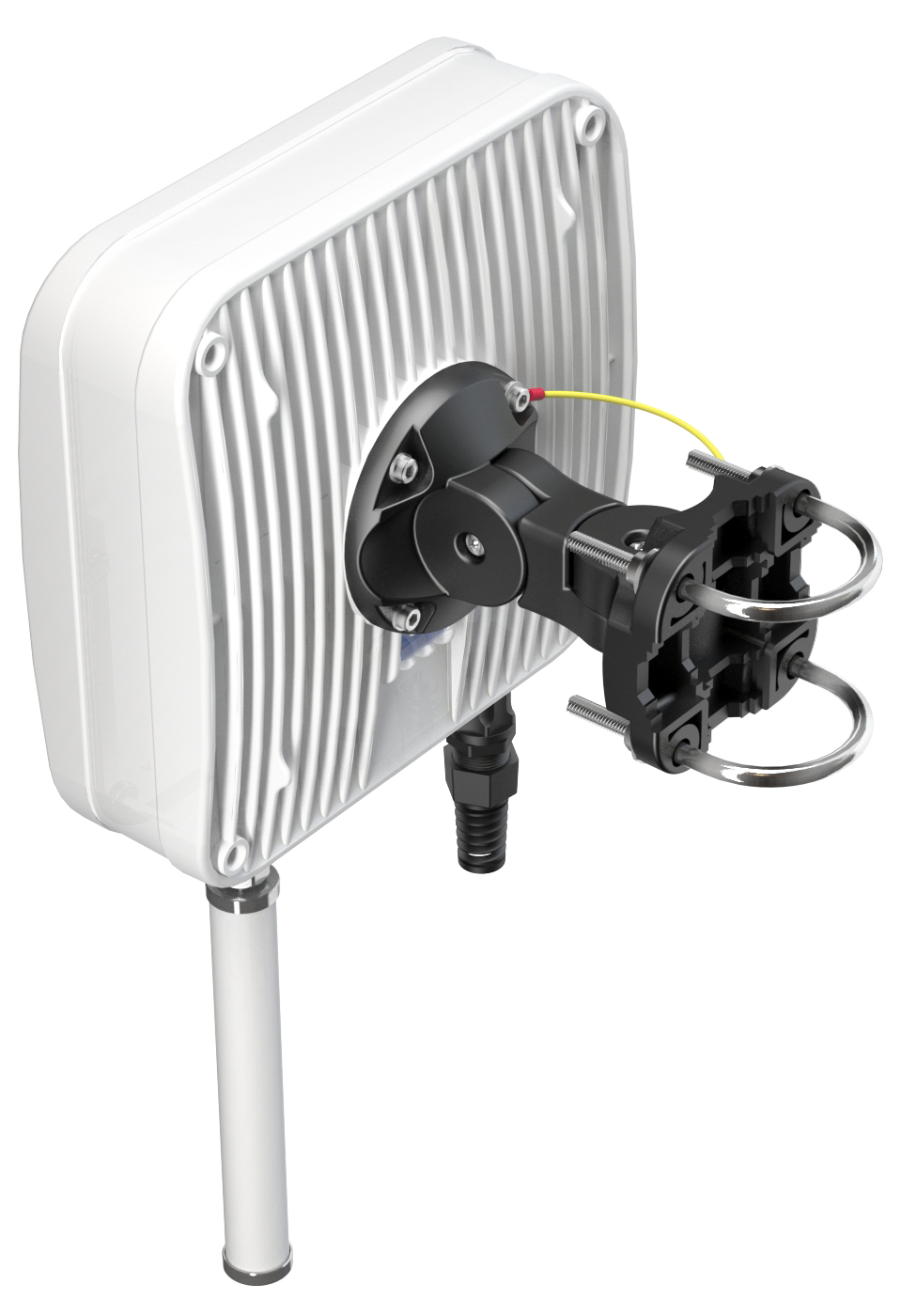

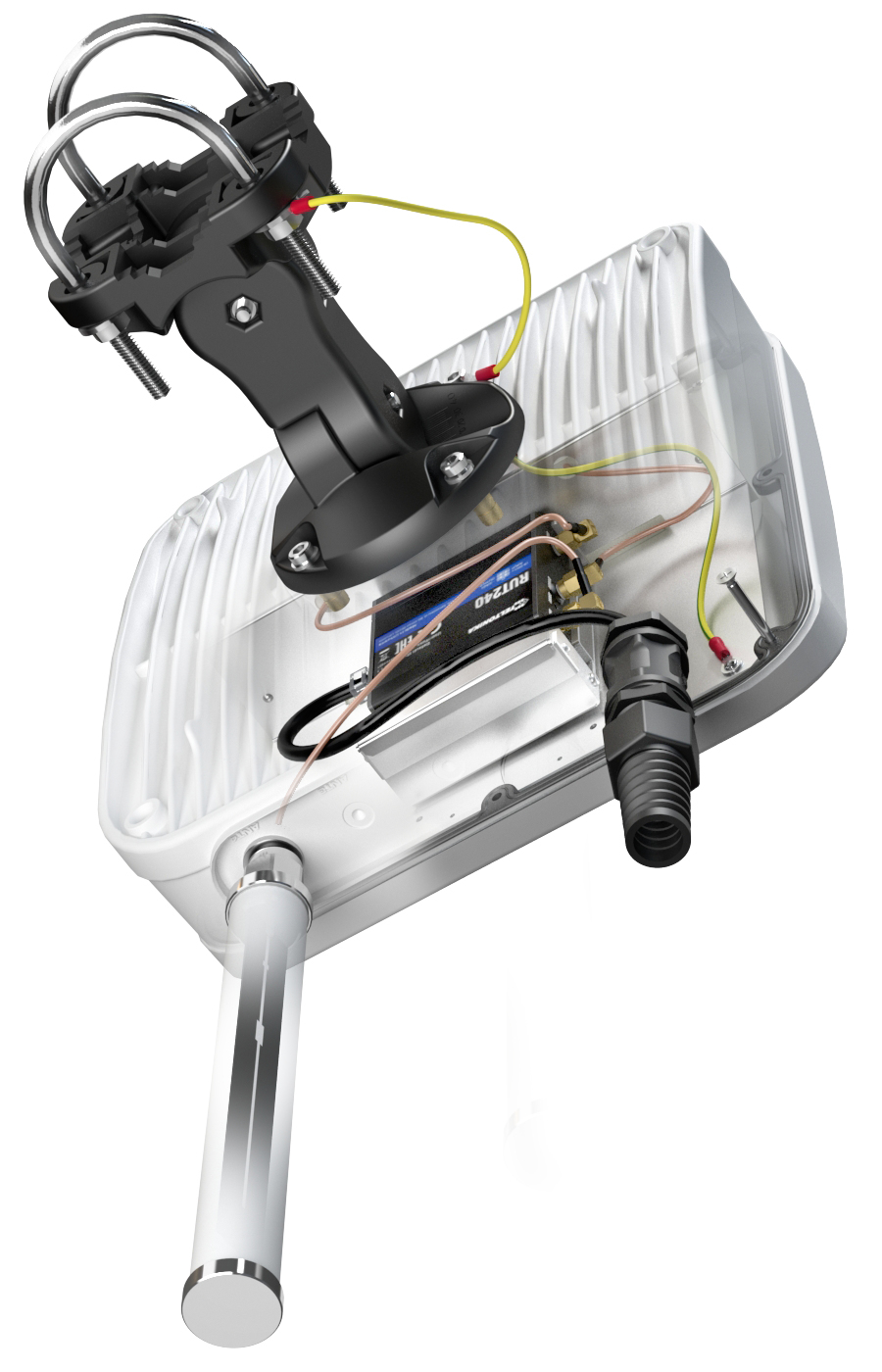

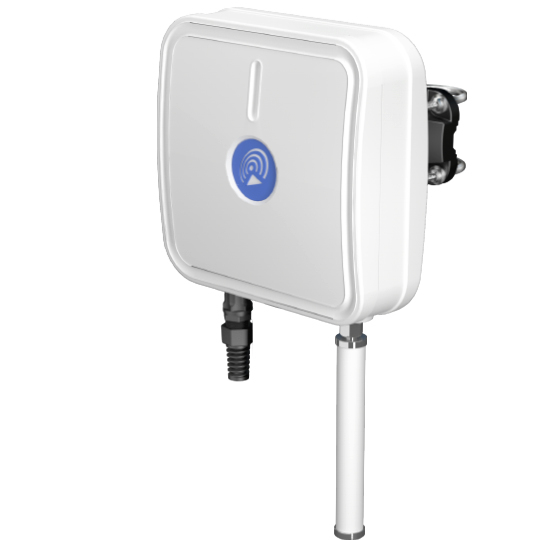

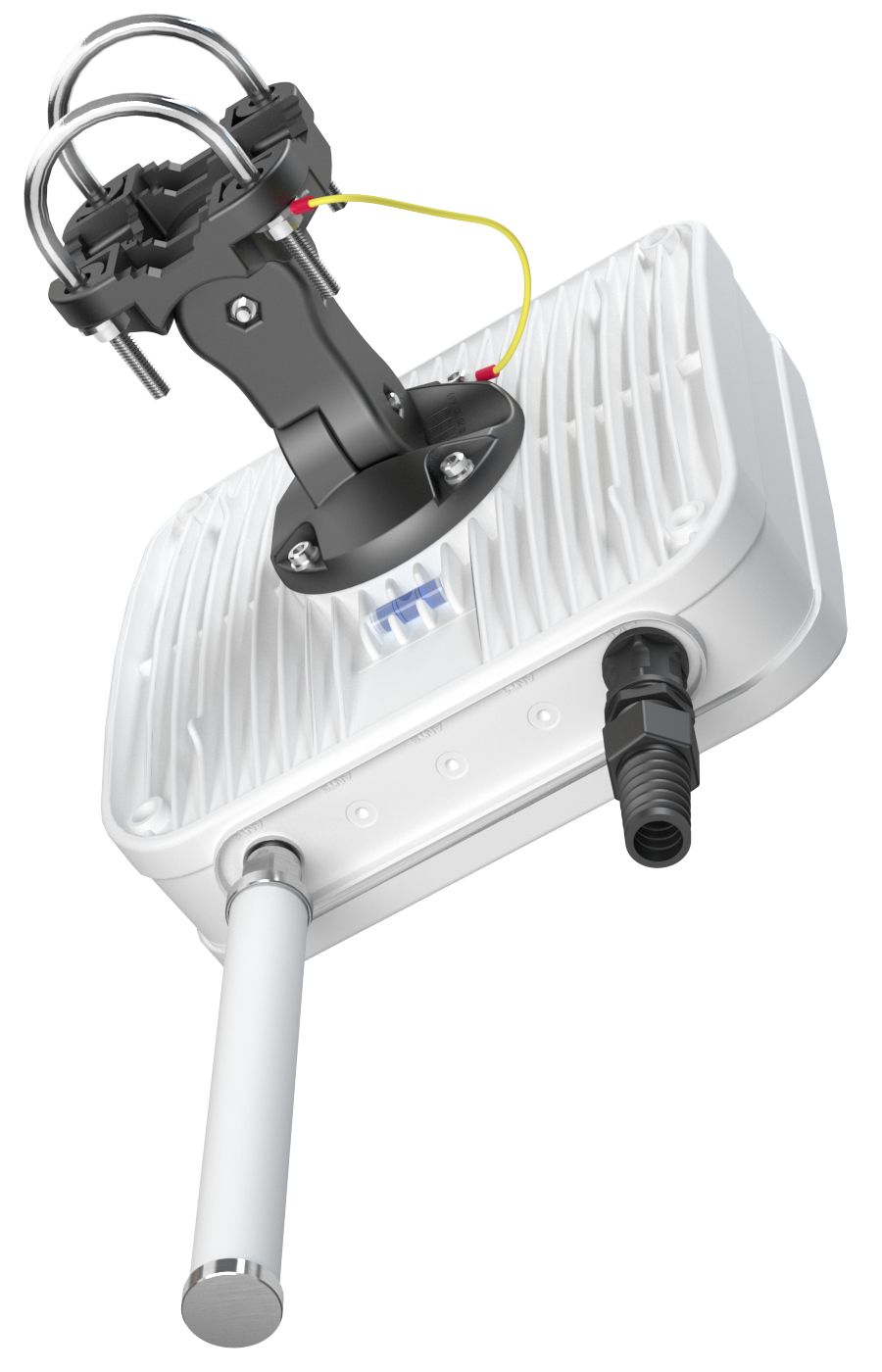

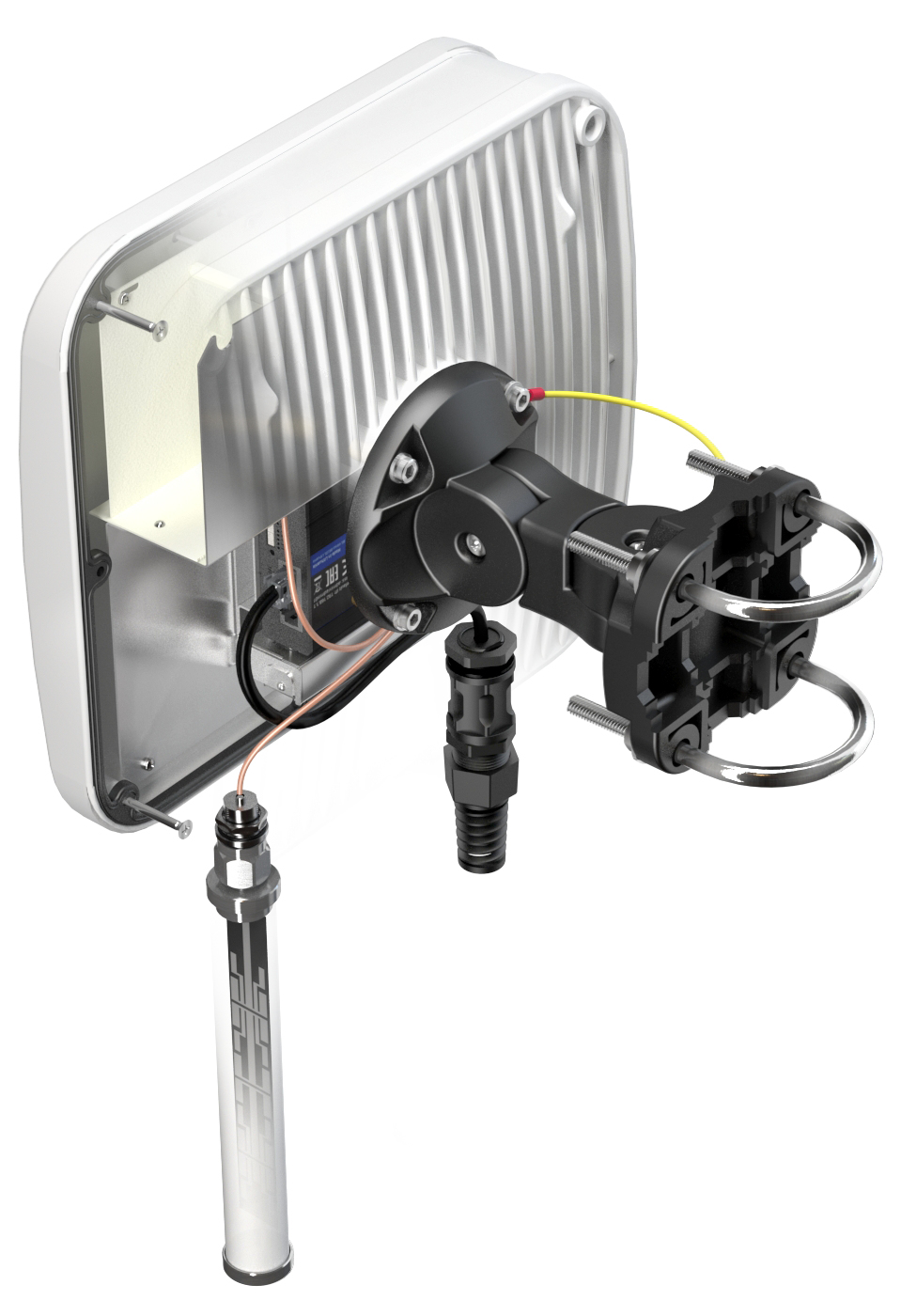

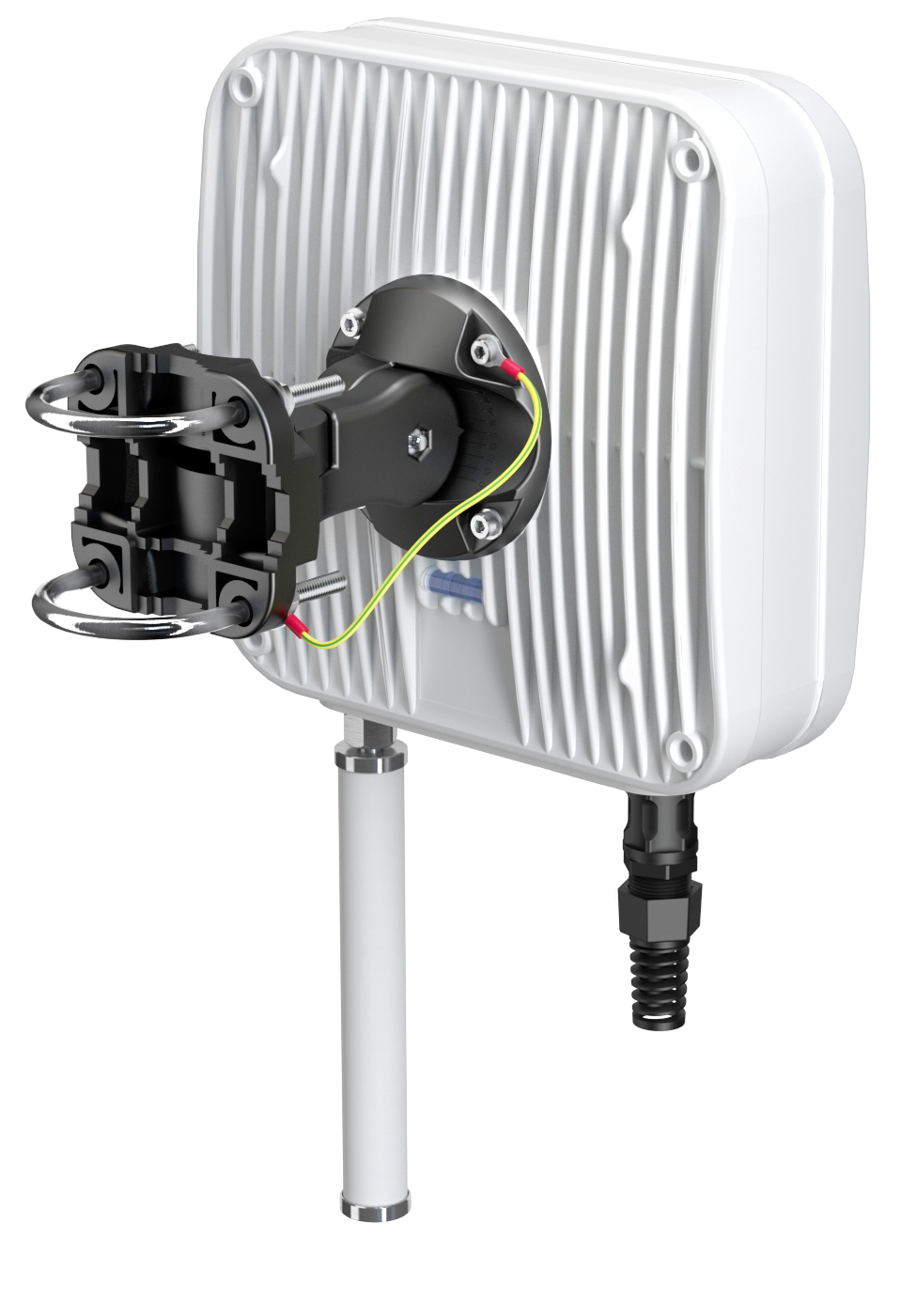

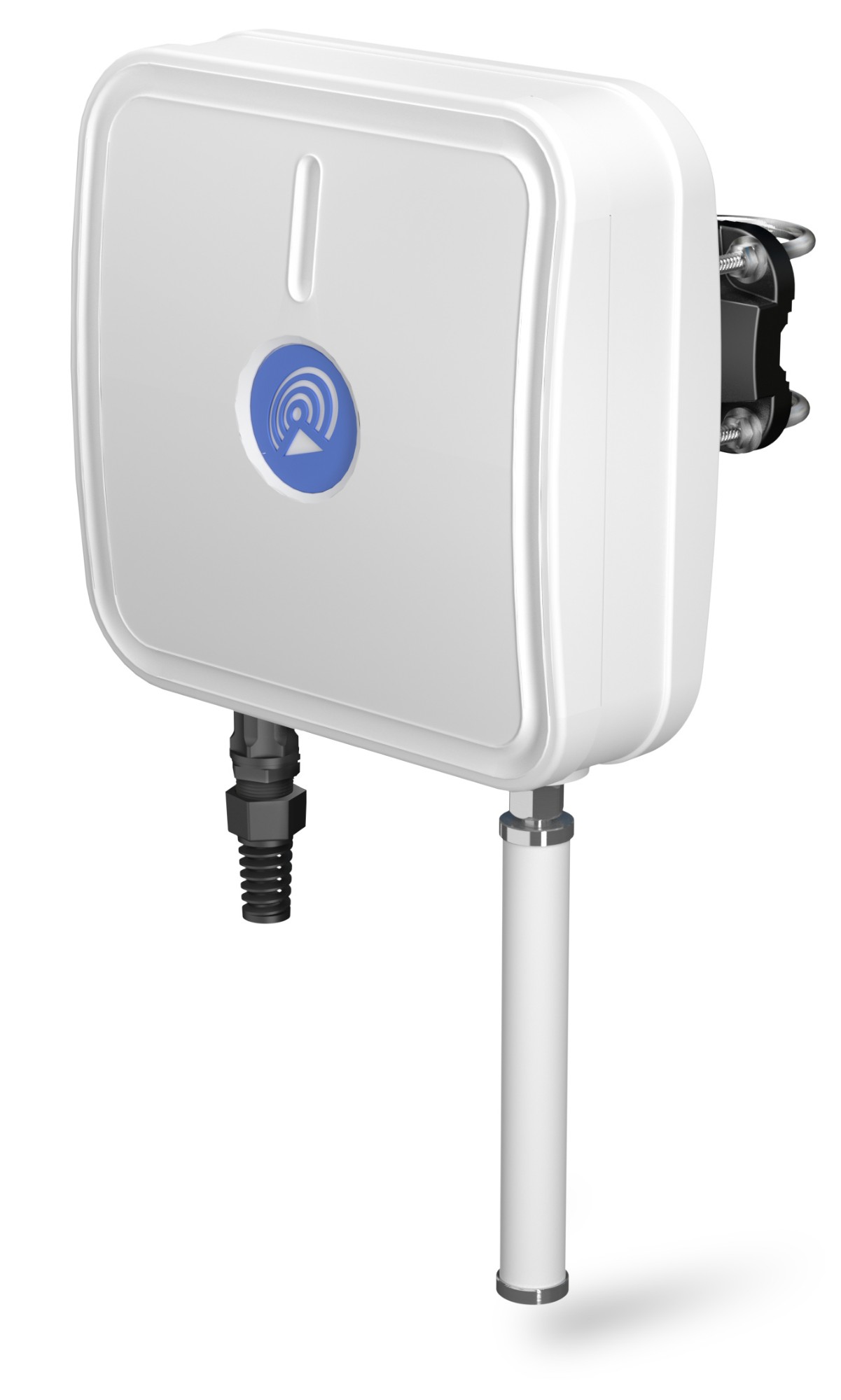

Integrated outdoor multi band high power LTE directional antenna + outdoor Wi-Fi omni antenna + place to install Teltonika RUT260/RUT241/RUT240/RUT200/RUT230 (All-in-one)
QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT260, RUT241, RUT240, RUT230 or RUT200 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also outdoor Wi-Fi omni antennas.
NOTE: For RUT230 one LTE antenna is unplugged.
QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT260, RUT241, RUT240, RUT230 or RUT200 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also outdoor Wi-Fi omni antennas.
NOTE: For RUT230 one LTE antenna is unplugged.
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 6 dBi |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7; 2.4-2.5 GHz |
| Vertical beam width (2.4 GHz) | 25° |
| Vertical beam width | 90° |
| Impedance | 50 Ω |
| Horizontal beam width (2.4 GHz) | 360° |
| Horizontal beam width | 90° |
| Gain | 4 / 6 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Features | |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium |
| International Protection (IP) code | IP67 |
| Antenna type | Directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 1.8 |
| Purpose | Indoor & outdoor |
| Polarization | Vertical polarization |
| Mounting | Wall/Pole |
| Product colour | White |
| Antenna connector type | PoE/LAN |
| Compatible products | RUT200, RUT230, RUT240, RUT241, RUT260 |
| Country of origin | Poland |
| Antenna gain level (max) | 6 dBi |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7; 2.4-2.5 GHz |
| Vertical beam width (2.4 GHz) | 25° |
| Vertical beam width | 90° |
| Impedance | 50 Ω |
| Horizontal beam width (2.4 GHz) | 360° |
| Horizontal beam width | 90° |
| Gain | 4 / 6 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
| Weight | 1.8 kg |
| Width | 272 mm |
| Depth | 96 mm |
| Height | 276 mm |
| Technical details | |
| Antenna gain level (max) | 6 dBi |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7; 2.4-2.5 GHz |
| Antenna type | Directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 1.8 |
| Vertical beam width (2.4 GHz) | 25° |
| Vertical beam width | 90° |
| Purpose | Indoor & outdoor |
| Polarization | Vertical polarization |
| Mounting | Wall/Pole |
| Impedance | 50 Ω |
| Horizontal beam width (2.4 GHz) | 360° |
| Horizontal beam width | 90° |
| Gain | 4 / 6 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Antenna connector type | PoE/LAN |
| Compatible products | RUT200, RUT230, RUT240, RUT241, RUT260 |
| Harmonized System (HS) code | 85177100 |
| Colour | |
| Product colour | White |
| Packaging content | |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Country of origin | Poland |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85177100 |
