QuWireless QuMax network antenna Directional antenna PoE/LAN 6 dBi
- Brand: QuWireless
- Category:
- SKU: A950M
- EAN: 5907772035092 5704174803249
Antenna QuMax for Teltonika RUT951/RUT950/RUT901
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
QuMax Directional LTE Antenna IP67 Enclosure for RUT950/RUT900/RUT951/RUT901 - A950M |
16222 |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £151.21 | ||
| Amazon | New | 8099 hours ago | £128.34 | |
| Amazon | New | £151.21 | ||
| Amazon | New | £238.88 | ||
| Amazon | New | 8099 hours ago | £116.83 |
Description

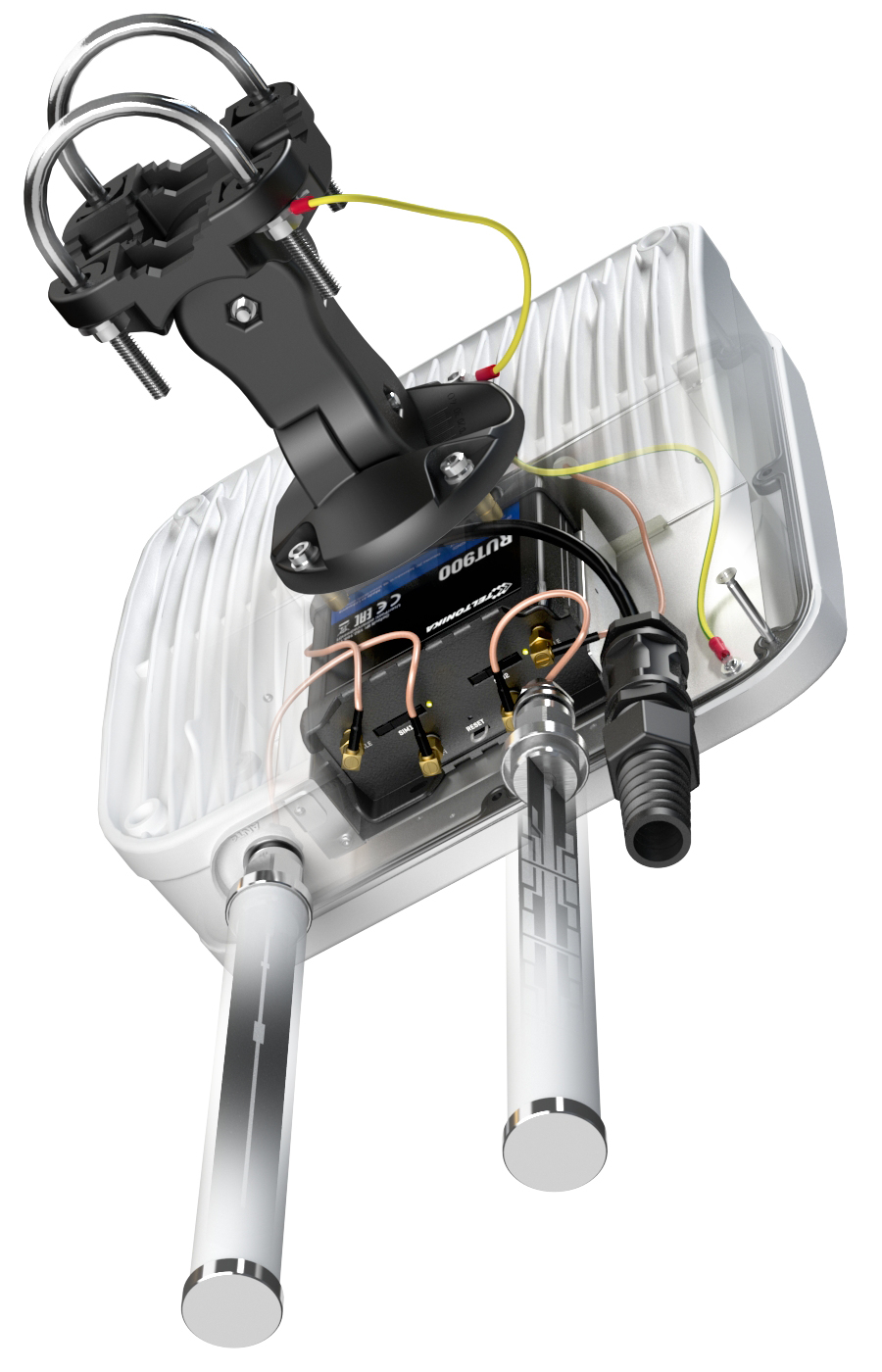

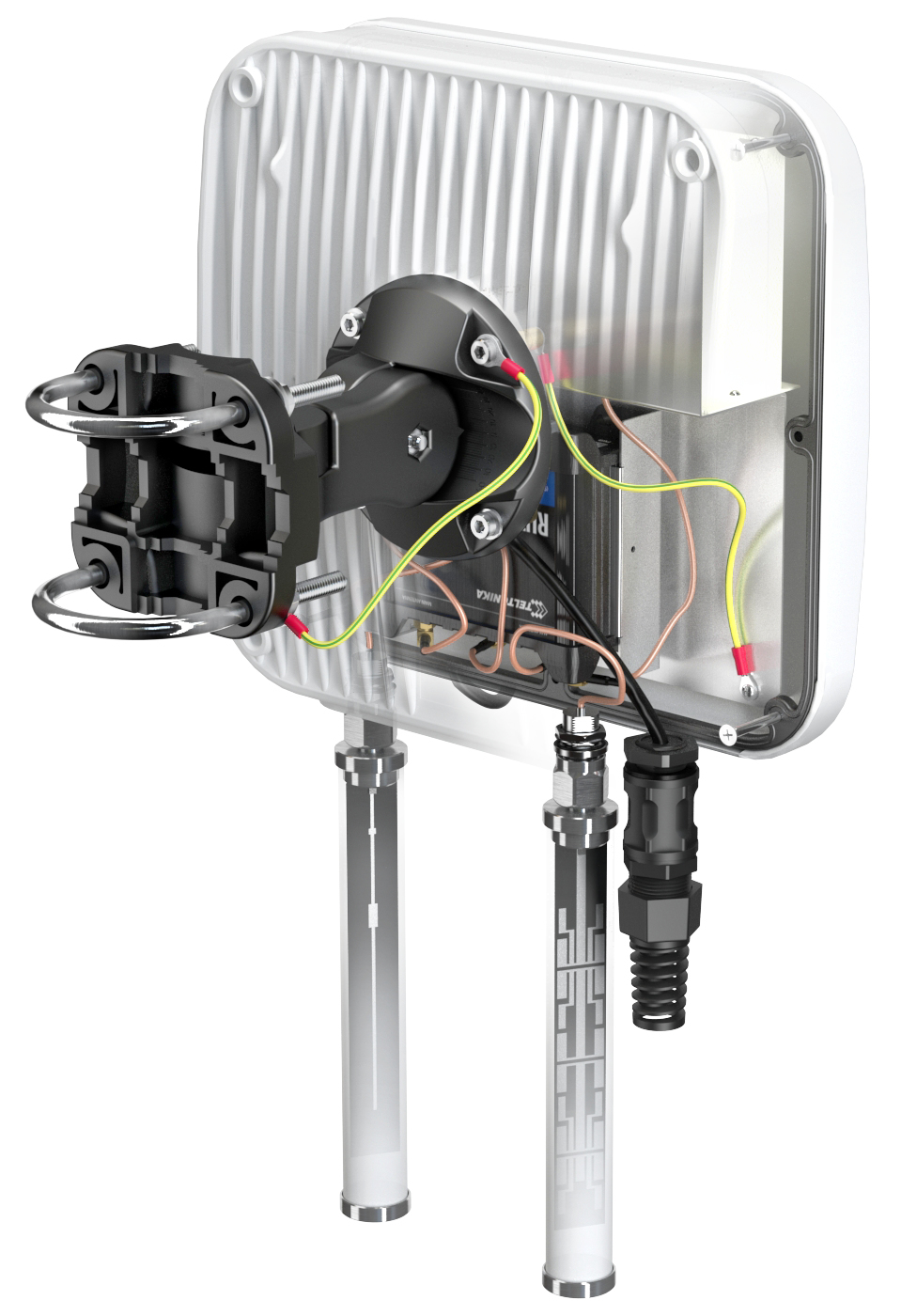

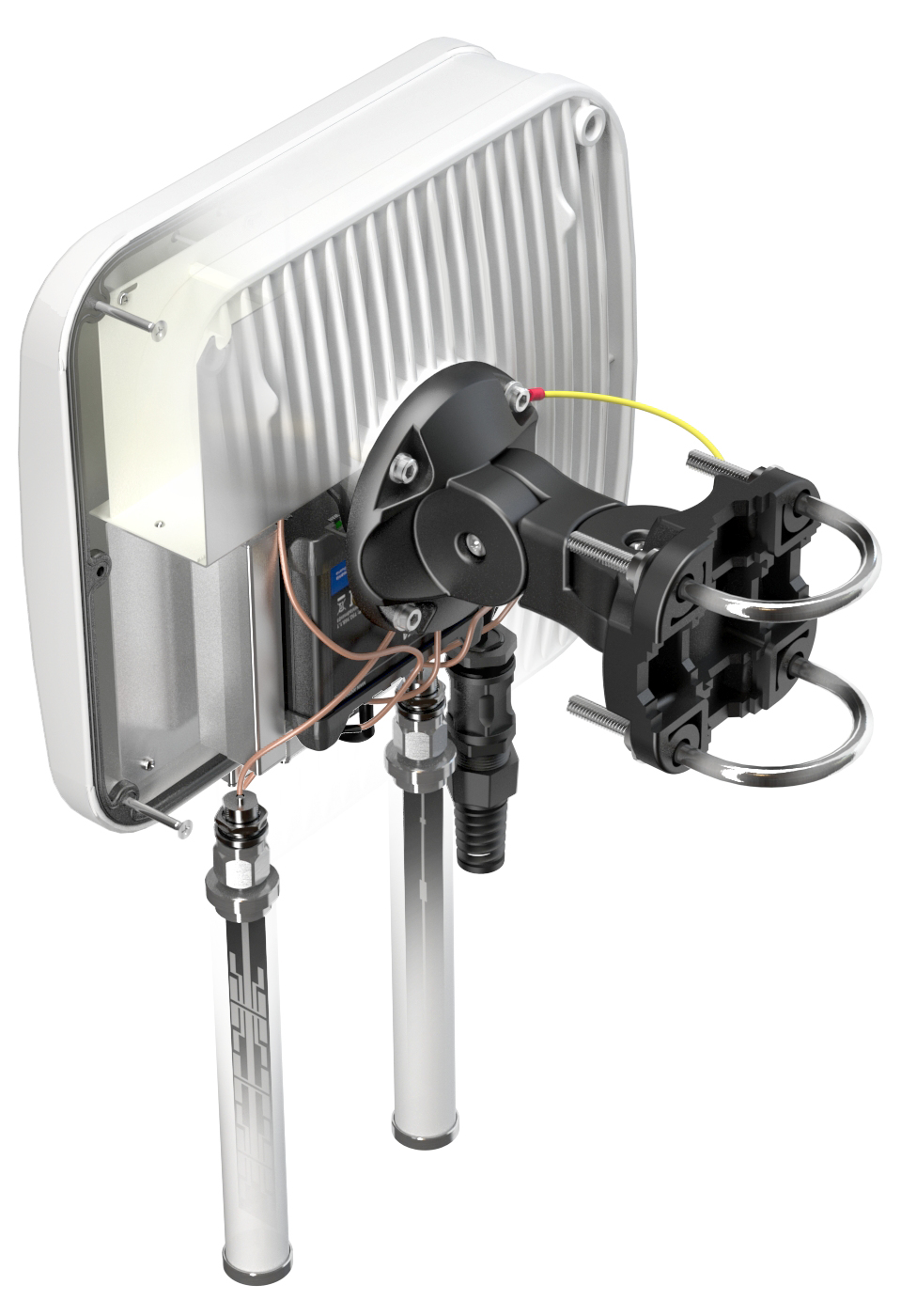

Integrated outdoor multi band high power LTE directional antenna + outdoor Wi-Fi omni antenna + place to install Teltonika RUT951, RUT950 or 900 (All-in-one)
QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT951, RUT950 or RUT901 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also outdoor Wi-Fi omni antennas.
QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT951, RUT950 or RUT901 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also outdoor Wi-Fi omni antennas.
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 6 dBi |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7; 2.4-2.5 GHz |
| Vertical beam width (2.4 GHz) | 25° |
| Vertical beam width | 90° |
| Impedance | 50 Ω |
| Horizontal beam width (2.4 GHz) | 360° |
| Horizontal beam width | 90° |
| Gain | 4 / 6 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Features | |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium |
| International Protection (IP) code | IP67 |
| Antenna type | Directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 1.8 |
| Purpose | Indoor & outdoor |
| Polarization | Vertical polarization |
| Mounting | Wall/Pole |
| Product colour | White |
| Antenna connector type | PoE/LAN |
| Compatible products | RUT900, RUT901, RUT950, RUT951 |
| Country of origin | Poland |
| Antenna gain level (max) | 6 dBi |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7; 2.4-2.5 GHz |
| Vertical beam width (2.4 GHz) | 25° |
| Vertical beam width | 90° |
| Impedance | 50 Ω |
| Horizontal beam width (2.4 GHz) | 360° |
| Horizontal beam width | 90° |
| Gain | 4 / 6 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
| Weight | 1.8 kg |
| Width | 272 mm |
| Depth | 96 mm |
| Height | 276 mm |
| Technical details | |
| Antenna gain level (max) | 6 dBi |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7; 2.4-2.5 GHz |
| Antenna type | Directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 1.8 |
| Vertical beam width (2.4 GHz) | 25° |
| Vertical beam width | 90° |
| Purpose | Indoor & outdoor |
| Polarization | Vertical polarization |
| Mounting | Wall/Pole |
| Impedance | 50 Ω |
| Horizontal beam width (2.4 GHz) | 360° |
| Horizontal beam width | 90° |
| Gain | 4 / 6 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Antenna connector type | PoE/LAN |
| Compatible products | RUT900, RUT901, RUT950, RUT951 |
| Harmonized System (HS) code | 85177100 |
| Colour | |
| Product colour | White |
| Packaging content | |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Country of origin | Poland |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85177100 |
