QuWireless QuMax XR LTE High Band network antenna Directional antenna PoE/LAN 13 dBi
- Brand: QuWireless
- Category:
- SKU: AXRLH
- EAN: 5907772035467
Antenna QuMax XR LTE High Band
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
QuMax XR LTE High Band |
AXRLH |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £136.80 | ||
| Amazon | New | £260.54 |
Related Products
-
Category: Cellular Network Devices -
Category: Cellular Network Devices -
Category: Cellular Network Devices
Description
Integrated outdoor multi band eXtra Range LTE directional antenna + place to install Teltonika RUT200/240/241/950/951/955/956/X09/X11

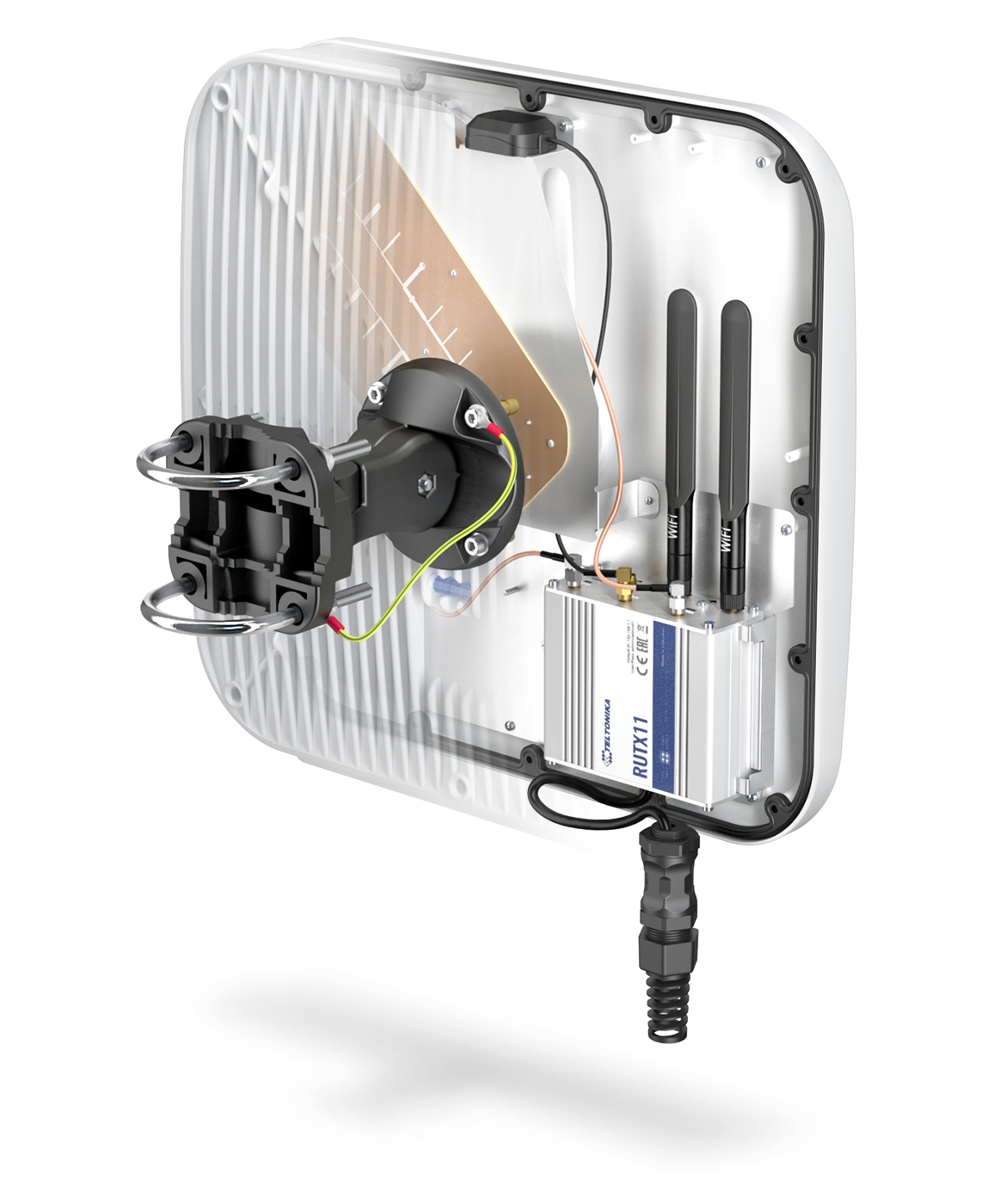

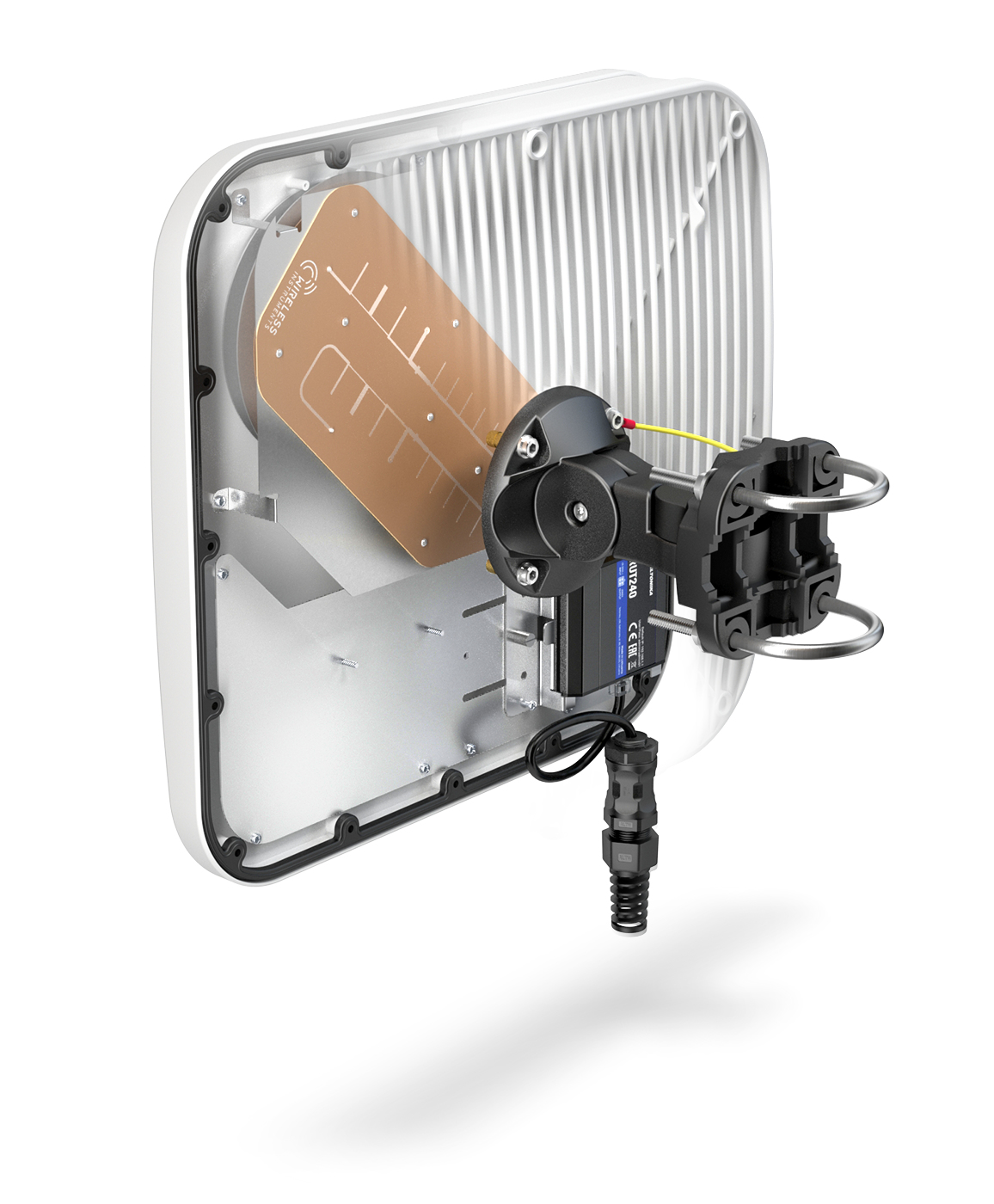

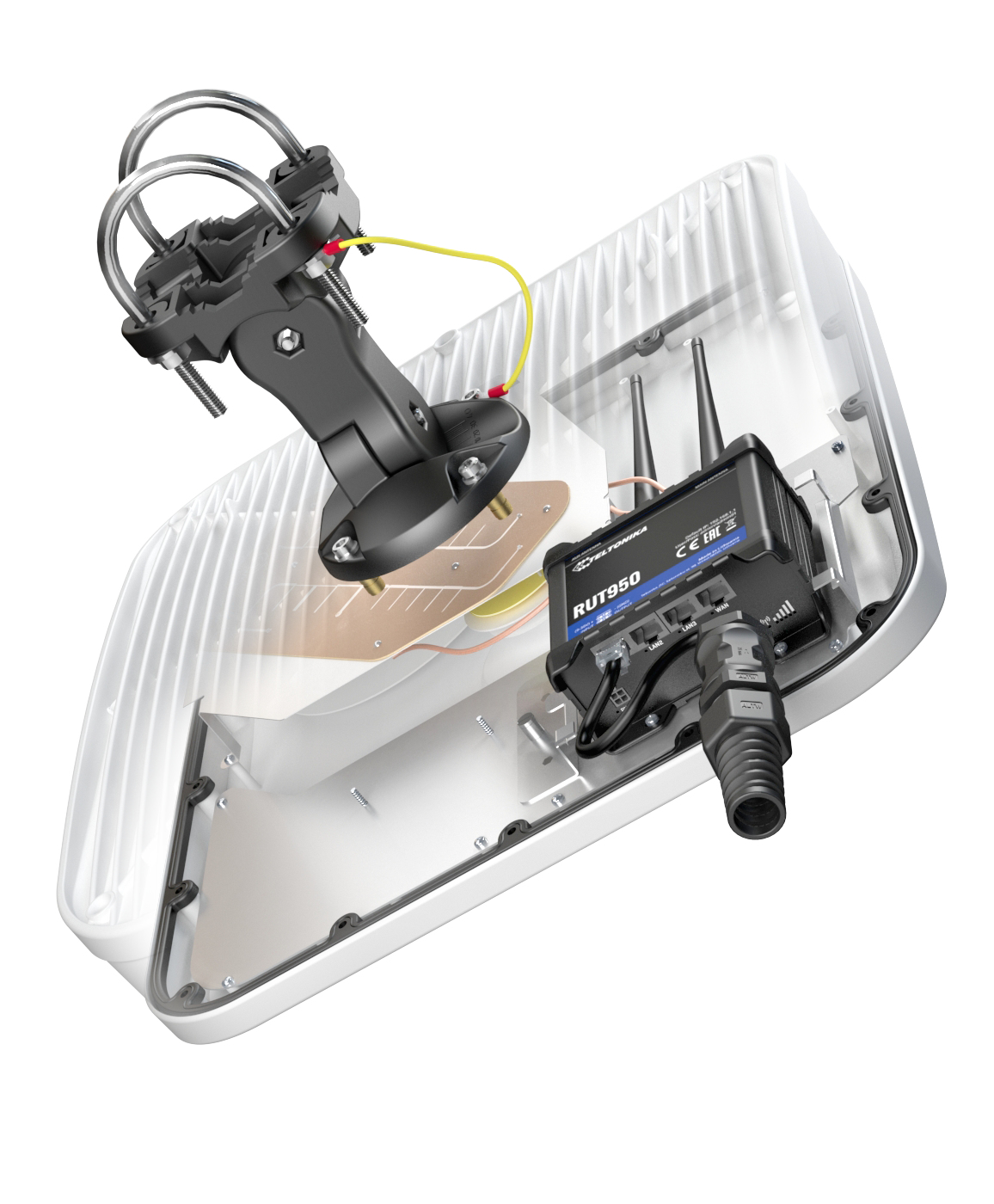

QuMax eXtra Range LTE High Band offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. There is also space for mounting internal genuine Teltonika GPS and Wi-Fi antennas inside the antenna enclosure. QuMax XR High Band version offer gain up to 12 dBi in LTE bands: 7, 15, 16, 30, 38, 40, 41, 53, 69 and support many other LTE bands (details in specification table).
Compatible Teltonika routers: RUT200, RUT240, RUT241, RUT900, RUT901, RUT950, RUT951, RUT955, RUT956, RUTX09, RUTX11.
QuMax eXtra Range LTE High Band offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. There is also space for mounting internal genuine Teltonika GPS and Wi-Fi antennas inside the antenna enclosure. QuMax XR High Band version offer gain up to 12 dBi in LTE bands: 7, 15, 16, 30, 38, 40, 41, 53, 69 and support many other LTE bands (details in specification table).
Compatible Teltonika routers: RUT200, RUT240, RUT241, RUT900, RUT901, RUT950, RUT951, RUT955, RUT956, RUTX09, RUTX11.
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 13 dBi |
| Frequency band | 0.694-0.96/ 2.3-2.7 GHz |
| Vertical beam width | 30° |
| Impedance | 50 Ω |
| Horizontal beam width | 30° |
| Gain | 13 dBi |
| Features | |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Country of origin | Poland |
| Antenna gain level (max) | 13 dBi |
| Frequency band | 0.694-0.96/ 2.3-2.7 GHz |
| Antenna type | Directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2 |
| Vertical beam width | 30° |
| Purpose | Outdoor |
| Polarization | Dual polarization |
| Mounting | Wall/Pole |
| Impedance | 50 Ω |
| Horizontal beam width | 30° |
| Gain | 13 dBi |
| Product colour | White |
| Antenna connector type | PoE/LAN |
| Compatible products | RUT200, RUT230, RUT240, RUT241, RUT260, RUT900, RUT901, RUT950, RUT951, RUT955, RUT956, RUTX09, RUTX11 |
| Technical details | |
| Antenna gain level (max) | 13 dBi |
| Frequency band | 0.694-0.96/ 2.3-2.7 GHz |
| Antenna type | Directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2 |
| Vertical beam width | 30° |
| Purpose | Outdoor |
| Polarization | Dual polarization |
| Mounting | Wall/Pole |
| Impedance | 50 Ω |
| Horizontal beam width | 30° |
| Gain | 13 dBi |
| Antenna connector type | PoE/LAN |
| Compatible products | RUT200, RUT230, RUT240, RUT241, RUT260, RUT900, RUT901, RUT950, RUT951, RUT955, RUT956, RUTX09, RUTX11 |
| Colour | |
| Product colour | White |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Weight & dimensions | |
| Weight | 3.7 g |
| Width | 392 mm |
| Depth | 99 mm |
| Height | 392 mm |
| Packaging content | |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
