QuWireless QuMax XR All In network antenna Directional antenna PoE/LAN 7 dBi
- Brand: QuWireless
- Category:
- SKU: AXRA
- EAN: 5907772035474 5704174473503
Antenna QuMax XR All In
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
QuMax XR All In |
AXRA |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £164.96 | ||
| Amazon | New | £331.96 |
Related Products
-
Category: Cellular Network Devices -
Category: Cellular Network Devices -
Category: Cellular Network Devices
Description
Integrated outdoor multi band eXtra Range LTE directional antenna + Wi-Fi dual band 2.4 & 5 GHz omni antenna + Bluetooth antenna + GPS antenna + place to install Teltonika RUT200/240/241/950/951/955/956/X09/X11 (All-in-one)

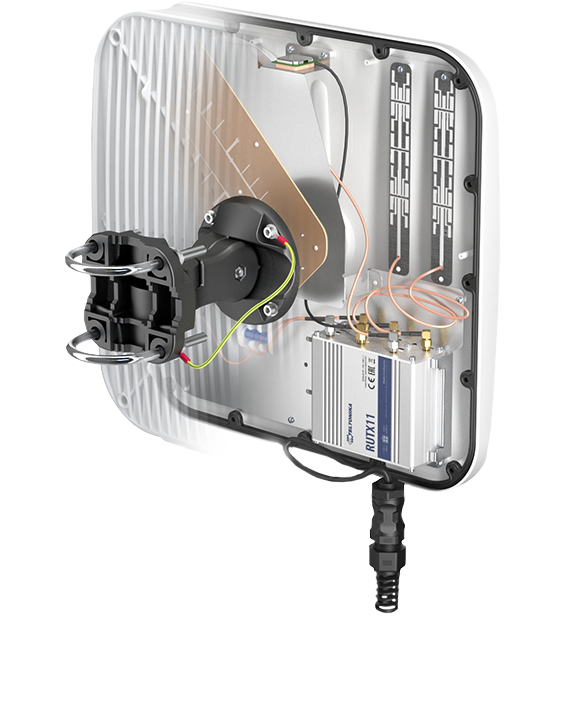

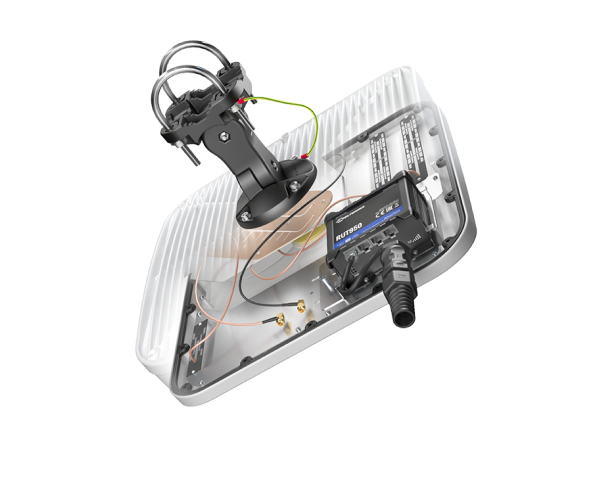

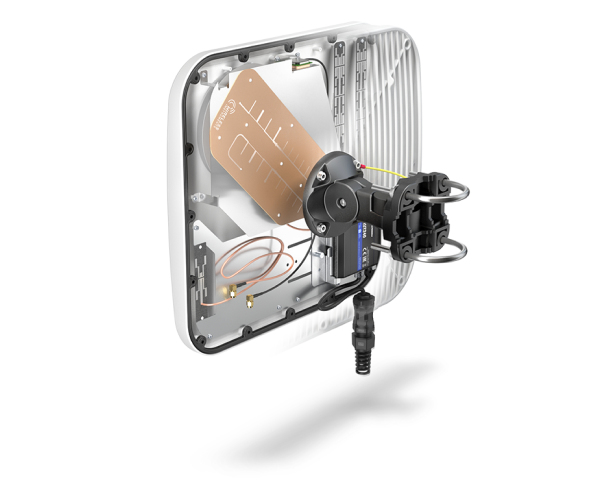

QuMAX eXtra Range All In offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It also has embedded Wi-Fi dual band 2.4 & 5 GHz omni antennas, GPS antenna and Bluetooth antenna. It is designed to have Teltonika RUT200/240/241/900/901/950/951/955/956/X09/X11 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment.
QuMAX eXtra Range All In offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It also has embedded Wi-Fi dual band 2.4 & 5 GHz omni antennas, GPS antenna and Bluetooth antenna. It is designed to have Teltonika RUT200/240/241/900/901/950/951/955/956/X09/X11 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment.
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 7 dBi |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7; 2.4-2.5/4.7-6 GHz |
| Vertical beam width (5 GHz) | 25° |
| Vertical beam width (2.4 GHz) | 25° |
| Vertical beam width | 70° |
| Impedance | 50 Ω |
| Horizontal beam width (5 GHz) | 360° |
| Horizontal beam width (2.4 GHz) | 360° |
| Horizontal beam width | 70° |
| Gain | 7 dBi |
| Antenna gain (5 GHz) | 7 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Features | |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| International Protection (IP) code | IP67 |
| Antenna type | Directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2 |
| Purpose | Indoor & outdoor |
| Polarization | Dual polarization |
| Mounting | Wall/Pole |
| Product colour | White |
| Antenna connector type | PoE/LAN |
| Compatible products | RUT200, RUT230, RUT240, RUT241, RUT260, RUT900, RUT901, RUT950, RUT951, RUT955, RUT956, RUTX09, RUTX11 |
| Country of origin | Poland |
| Antenna gain level (max) | 7 dBi |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7; 2.4-2.5/4.7-6 GHz |
| Vertical beam width (5 GHz) | 25° |
| Vertical beam width (2.4 GHz) | 25° |
| Vertical beam width | 70° |
| Impedance | 50 Ω |
| Horizontal beam width (5 GHz) | 360° |
| Horizontal beam width (2.4 GHz) | 360° |
| Horizontal beam width | 70° |
| Gain | 7 dBi |
| Antenna gain (5 GHz) | 7 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Weight & dimensions | |
| Weight | 3.7 kg |
| Width | 392 mm |
| Depth | 99 mm |
| Height | 392 mm |
| Technical details | |
| Antenna gain level (max) | 7 dBi |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7; 2.4-2.5/4.7-6 GHz |
| Antenna type | Directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2 |
| Vertical beam width (5 GHz) | 25° |
| Vertical beam width (2.4 GHz) | 25° |
| Vertical beam width | 70° |
| Purpose | Indoor & outdoor |
| Polarization | Dual polarization |
| Mounting | Wall/Pole |
| Impedance | 50 Ω |
| Horizontal beam width (5 GHz) | 360° |
| Horizontal beam width (2.4 GHz) | 360° |
| Horizontal beam width | 70° |
| Gain | 7 dBi |
| Antenna gain (5 GHz) | 7 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Antenna connector type | PoE/LAN |
| Compatible products | RUT200, RUT230, RUT240, RUT241, RUT260, RUT900, RUT901, RUT950, RUT951, RUT955, RUT956, RUTX09, RUTX11 |
| Colour | |
| Product colour | White |
| Packaging content | |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Country of origin | Poland |
| Quantity per pack | 1 pc(s) |
