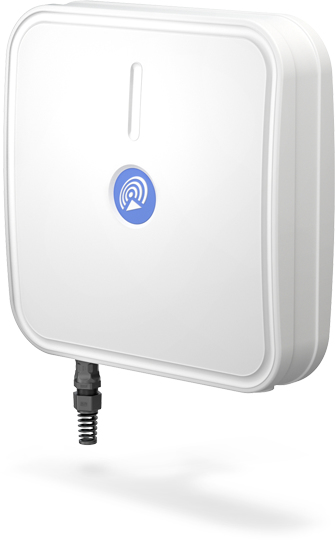

QuWireless AXRL network antenna Directional antenna PoE/LAN 7 dBi
- Brand: QuWireless
- Category:
- SKU: AXRL
- EAN: 5704174395911 5907772035450
Antenna QuMax XR LTE
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
QuMax XR LTE |
AXRL |
Related Products
-
Category: Cellular Network Devices -
Category: Cellular Network Devices -
Category: Cellular Network Devices
Description
Integrated outdoor multi band eXtra Range LTE directional antenna + place to install Teltonika RUT200/240/241/950/951/955/956/X09/X11

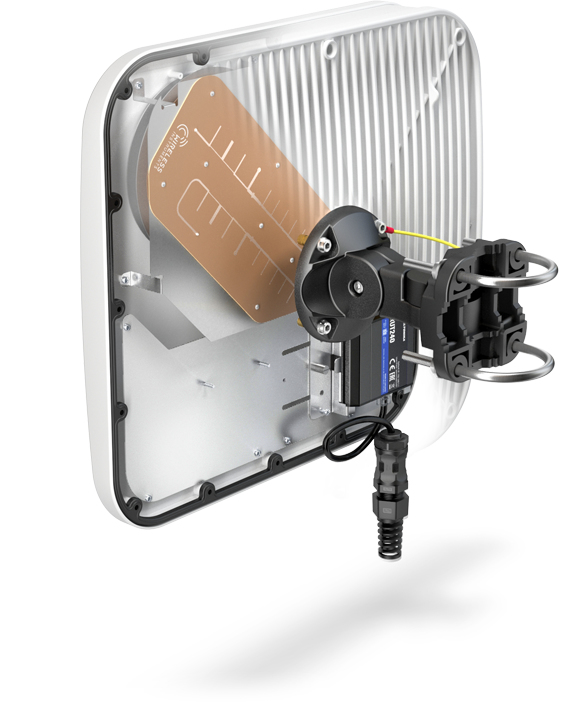

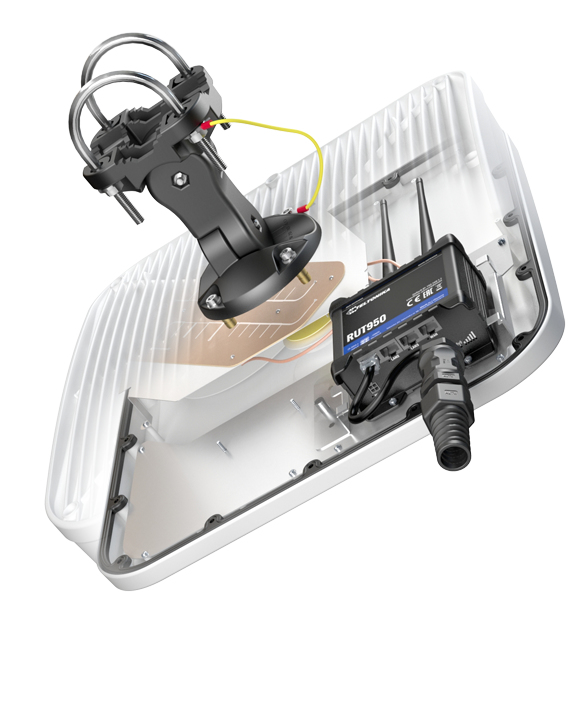

QuMAX eXtra Range LTE offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. There is also space for mounting internal genuine Teltonika GPS and Wi-Fi antennas inside the antenna enclosure.
Compatible Teltonika routers: RUT200, RUT240, RUT241, RUT900, RUT901, RUT950, RUT951, RUT955, RUT956, RUTX09, RUTX11.
NOTE: There is also available version with extreme high gain antenna for high bands (2300-2700 MHz) – QuMax XR LTE High Band
QuMAX eXtra Range LTE offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. There is also space for mounting internal genuine Teltonika GPS and Wi-Fi antennas inside the antenna enclosure.
Compatible Teltonika routers: RUT200, RUT240, RUT241, RUT900, RUT901, RUT950, RUT951, RUT955, RUT956, RUTX09, RUTX11.
NOTE: There is also available version with extreme high gain antenna for high bands (2300-2700 MHz) – QuMax XR LTE High Band
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 7 dBi |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7 GHz |
| Vertical beam width | 70° |
| Impedance | 50 Ω |
| Horizontal beam width | 70° |
| Gain | 7 dBi |
| Features | |
| Waterproof | Yes |
| Protection features | Dust resistant, Rain proof, Snow resistant |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium |
| International Protection (IP) code | IP67 |
| Antenna type | Directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 1.7 - 2 |
| Purpose | Outdoor |
| Polarization | Dual polarization |

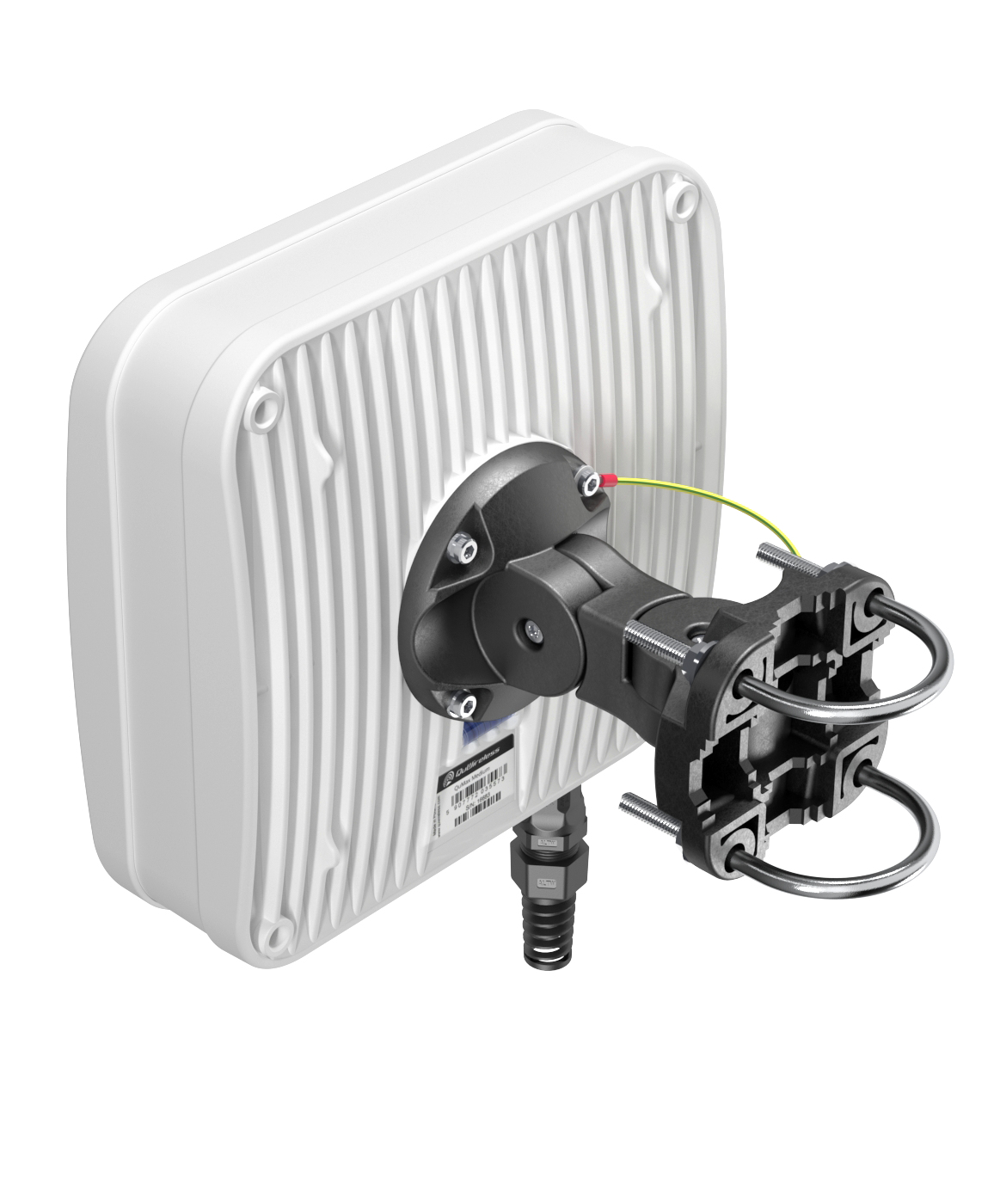

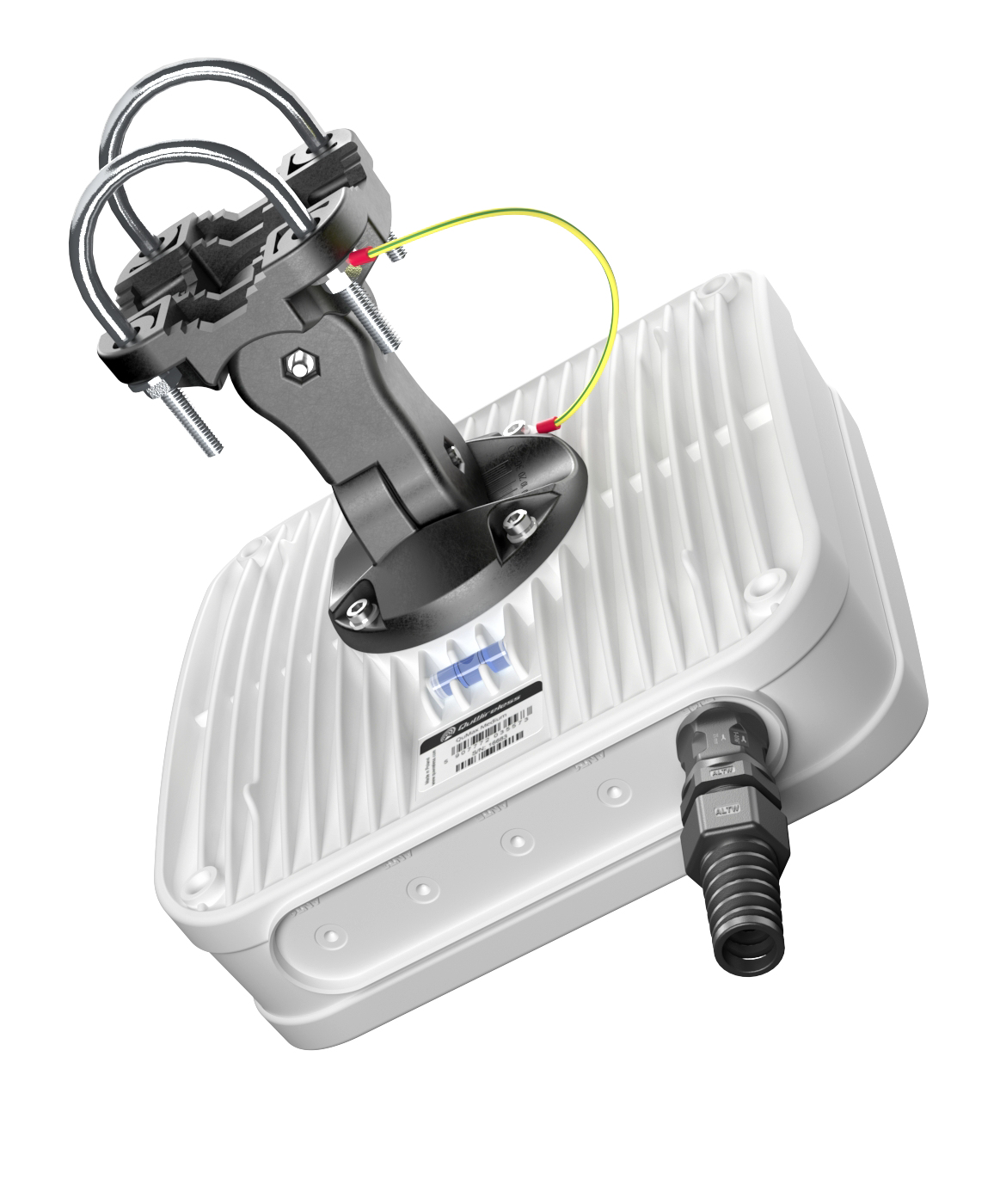

| Mounting | Wall/Pole |
| Product colour | White |
| Antenna connector type | PoE/LAN |
| Compatible products | RUT200010000 RUT23000E000 RUT24006E000 RUT241010000 RUT260 RUT900 RUT901 RUT950M02290 RUT951100000 RUT955T7V020 RUT956 RUTX09 RUTX11000200 |
| Antenna gain level (max) | 7 dBi |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7 GHz |
| Vertical beam width | 70° |
| Impedance | 50 Ω |
| Horizontal beam width | 70° |
| Gain | 7 dBi |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
| Weight | 3.7 kg |
| Width | 392 mm |
| Depth | 392 mm |
| Height | 99 mm |
| Technical details | |
| Antenna gain level (max) | 7 dBi |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7 GHz |
| Antenna type | Directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 1.7 - 2 |
| Vertical beam width | 70° |
| Purpose | Outdoor |
| Polarization | Dual polarization |
| Mounting | Wall/Pole |
| Impedance | 50 Ω |
| Horizontal beam width | 70° |
| Gain | 7 dBi |
| Antenna connector type | PoE/LAN |
| Compatible products | RUT200010000 RUT23000E000 RUT24006E000 RUT241010000 RUT260 RUT900 RUT901 RUT950M02290 RUT951100000 RUT955T7V020 RUT956 RUTX09 RUTX11000200 |
| Colour | |
| Product colour | White |
| Packaging content | |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
