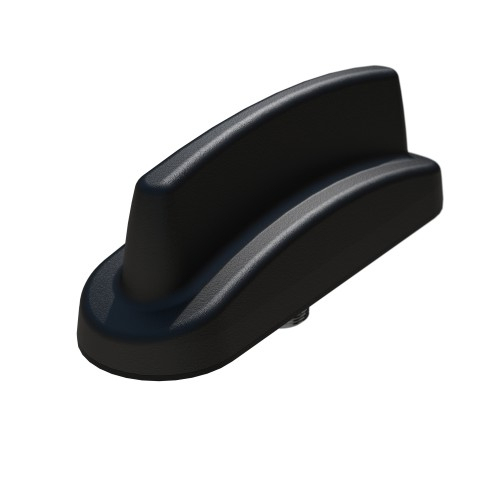

Panorama Antennas LPAM-BC3G-26-1SP network antenna Omni-directional antenna SMA 6 dBi
- Brand: PANORAMA ANTENNAS
- Category:
- SKU: LPAM-BC3G-26-1SP
- EAN: 5019738829444
Low Profile Antenna 2x2 MiMo 2G/3G/4G, 1m cable
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Panorama LPAM-BC3G - Aerial - cellular - omni-directional - outdoor, automobile |
LPAM-BC3G-26-1SP | |||
|
LOW PROF MIMO 2/3/4G 1m CBLES |
LPAM-BC3G-26-1SP |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £57.60 | ||
| Amazon | New | £57.64 |
Description
The LP[G]AM-BC3G-26 range has been designed to provide MiMo Cellular / LTE antenna function for IOT and M2M applications.
The compact, robust low-profile housing is weatherproof and contains two antenna elements with effective isolation and correlation covering all current global cellular and LTEbands in freq. range 698-960/1710-3800MHz. The LG version includes an active GPS/GNSS/Galileo/Beidou antenna for applications which require position or timing function.
The antenna can be fitted on a non- conductive panel if required* and offers easy, quick, secure and weatherproof installation with the single hole mounting bush and acrylic adhesive sealing pad. Supplied with integrated 3m (10’) cables and SMA plug connectors, the antenna will offer plug and play connectivity with many different terminals.
The compact, robust low-profile housing is weatherproof and contains two antenna elements with effective isolation and correlation covering all current global cellular and LTEbands in freq. range 698-960/1710-3800MHz. The LG version includes an active GPS/GNSS/Galileo/Beidou antenna for applications which require position or timing function.
The antenna can be fitted on a non- conductive panel if required* and offers easy, quick, secure and weatherproof installation with the single hole mounting bush and acrylic adhesive sealing pad. Supplied with integrated 3m (10’) cables and SMA plug connectors, the antenna will offer plug and play connectivity with many different terminals.
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 6 dBi |
| Frequency band | 0.698 - 0.96 / 1.71 - 3.8 GHz |
| Features | |
| Antenna type | Omni-directional antenna |
| Product colour | Black |
| Antenna connector type | SMA |
| Antenna gain level (max) | 6 dBi |
| Frequency band | 0.698 - 0.96 / 1.71 - 3.8 GHz |
| Power | |
| Power consumption (max) | 20 W |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 70 °C |
| Weight & dimensions | |
| Width | 45 mm |
| Depth | 150 mm |
| Height | 49 mm |
| Technical details | |
| Antenna gain level (max) | 6 dBi |
| Frequency band | 0.698 - 0.96 / 1.71 - 3.8 GHz |
| Antenna type | Omni-directional antenna |
| Antenna connector type | SMA |
| Colour | |
| Product colour | Black |
