Delivering High-demanding Service Connectivity for ISP / Triple Play Devices

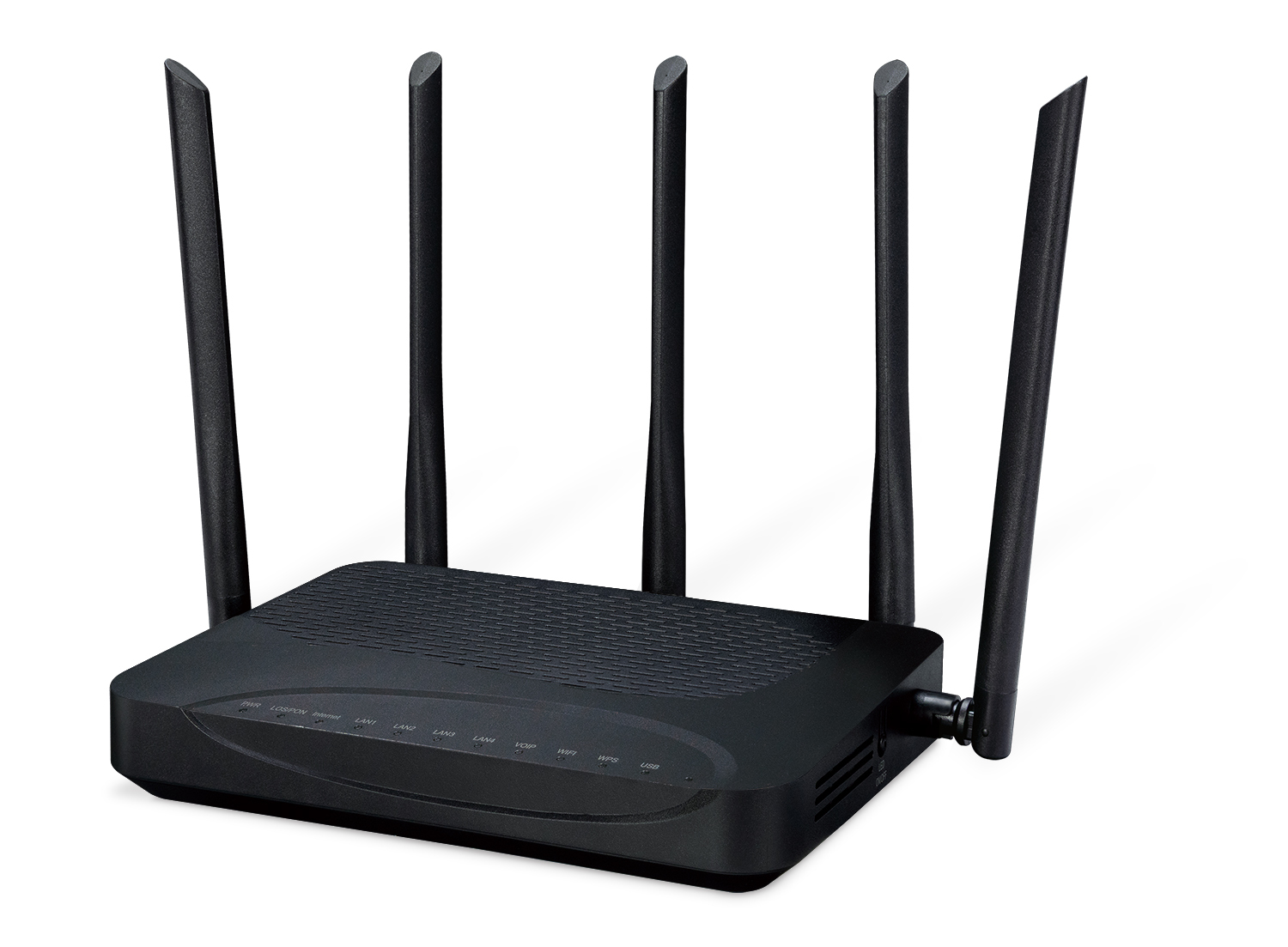

PLANET XGPN-400AXV is a high-performance XGS-PON Wi-Fi ONU (Optical Network Unit) designed to deliver ultra-fast broadband connectivity for residential and office users. Equipped with one 10Gbps downstream and 2.5Gbps upstream XG-PON port, four Gigabit Ethernet LAN ports, one RJ11 VoIP port, and advanced Wi-Fi 6 technology, it provides the ideal solution for ultra-high-speed fiber broadband applications. Paired with an XGS-PON Optical Line Terminal (OLT), the XGPN-400AXV offers a highly-efficient and reliable FTTH solution.

Key Features:

- XG-PON 10Gbps downstream and 2.5Gbps upstream speeds, ensuring ultra-fast broadband connectivity
- 4 Gigabit Ethernet LAN ports, delivering stable wired connections for desktops, NAS, and media devices
- 1 RJ11 FXS VoIP port for high-quality voice communication
- Dual-band Wi-Fi 6 (802.11b/g/n/ac/ax), providing up to 3000Mbps wireless performance with 5 external antennas
- Supports up to 20km transmission distance, perfect for fiber-to-the-home applications
- Seamless compatibility with XGS-PON OLTs ensures a flexible and scalable deployment


Perfectly Designed for Fiber to the Home Applications

PLANET XGPN-400AXV is perfectly designed for fiber-to-the-home (FTTH) applications, delivering 10Gbps downstream and 2.5Gbps upstream speeds over a single optical fiber. With a maximum transmission distance of 20 kilometers and support for a 1:256 split ratio, the XGPN-400AXV ensures cost-effective large-scale fiber deployments. Built-in QoS features, including 8 priority queues, WRR, SP, and FIFO scheduling, guarantee smooth bandwidth allocation for IPTV, online gaming, VoIP, and cloud services.


Integrated VoIP Port for Triple-Play Services

The XGPN-400AXV features a built-in RJ11 FXS port, enabling voice-over-IP (VoIP) service for residential and small business users. With support for standard voice codecs such as G.711 and G.729, the device allows users to connect an analog telephone directly, providing high-quality voice communication over the fiber network. This makes the XGPN-400AXV ideal for triple-play deployments, combining internet, voice, and video services into a single, unified solution.


High-speed Wi-Fi 6 802.11ax Wireless

PLANET XGPN-400AXV features the latest Wi-Fi 6 technology, supporting dual-band 2.4GHz and 5GHz frequencies with speeds up to 574Mbps (2.4GHz) and 2402Mbps (5GHz). Compliant with 802.11b/g/n/ac/ax standards, it delivers enhanced wireless performance with 5 external antennas, ensuring excellent coverage and stable connections for bandwidth-intensive applications such as 4K streaming, cloud gaming, and smart home devices.


Gigabit LAN Throughput Boosts Network Traffic

PLANET XGPN-400AXV provides four Gigabit Ethernet LAN ports, ensuring stable and high-speed wired connectivity for desktops, NAS, media players, and gaming consoles. Combined with Wi-Fi 6, it fully eliminates transmission bottlenecks, delivering both ultra-fast wired and wireless speeds for modern home and office environments.


IPv6/IPv4 Dual Stack Capability

With full support for IPv4 and IPv6 dual stack, the XGPN-400AXV seamlessly integrates into both current IPv4 networks and future IPv6 infrastructures. This ensures future-proof compatibility, enabling ISPs to smoothly deploy next-generation IPv6 FTTx services while maintaining backward compatibility with existing IPv4 networks.
