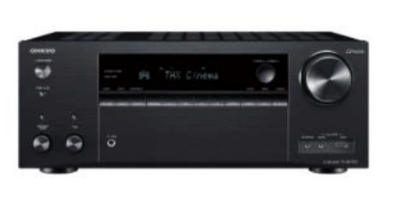

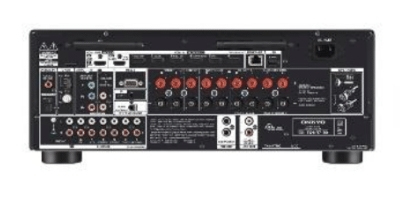

ONKYO TX-NR7100 AV receiver 7.2 channels 3D Black
- Brand: Onkyo
- Category:
- SKU: TX-NR7100
- EAN: 0889951003496
ONKYO TX-NR7100, 7.2 channels, 170 W, 250 W, 220 W, 130 W, 0.08%
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
7.2 Channels 3D Black |
TX-NR7100 |
Description
ONKYO TX-NR7100. Audio output channels: 7.2 channels, Power output per channel (1KHz@6 Ohm): 170 W, Dynamic power per channel (3 Ohm): 250 W. Connectivity technology: Wired. Audio formats supported: AAC, FLAC, LPCM, MP3, OGG, WAV, WMA. Supported radio bands: AM, FM, RDS features: PS, PTY, RT, TP. Supported graphics resolutions: 4096 x 2160, Supported video modes: 1080i, 1080p, 480i, 480p, 720p
Specifications
| Audio | |
|---|---|
| Audio output channels | 7.2 channels |
| Power output per channel (1KHz@6 Ohm) | 170 W |
| Dynamic power per channel (3 Ohm) | 250 W |
| Dynamic power per channel (4 Ohm) | 220 W |
| Dynamic power per channel (8 Ohm) | 130 W |
| Total Harmonic Distortion (THD) | 0.08% |
| Output level | 200 mV |
| Input sensitivity | 200 mV |
| Input impedance | 47000 Ω |
| Signal-to-Noise Ratio (SNR) | 106 dB |
| Inputs | |
| USB ports quantity | 2 |
| HDMI in | 8 |
| Component video (YPbPr/YCbCr) in | 2 |
| Composite video in | 5 |
| Digital audio optical in | 2 |
| Remote (IR) input | 1 |
| Digital audio coaxial in | 3 |
| PC in (D-Sub) | Yes |
| Outputs | |
| Number of HDMI outputs | 2 |
| Component video (YPbPr/YCbCr) out | 1 |
| Composite video out | 1 |
| Ports & interfaces | |
| Connectivity technology | Wired |
| File formats | |
| Audio formats supported | AAC, FLAC, LPCM, MP3, OGG, WAV, WMA |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Radio | |
| Supported radio bands | AM, FM |
| Internet radio | Yes |
| Radio Data System (RDS) | Yes |
| RDS features | PS, PTY, RT, TP |
| Optical drive | |
| Optical drive included | No |
| Video | |
| Supported graphics resolutions | 4096 x 2160 |
| Supported video modes | 1080i, 1080p, 480i, 480p, 720p |
| Video upscaling | Yes |
| Picture-in-Picture | Yes |
| 3D | Yes |
| Technical details | |
| Audio decoders | DTS-HD Master Audio, Dolby Atmos, Dolby TrueHD |
| x.v.Color support | Yes |
| Deep colour support | Yes |
| Bass adjustment | Yes |
| Treble adjustment | Yes |
| Volume control | Rotary |
| On Screen Display (OSD) | Yes |
| Remote control included | Yes |
| Apple docking compatibility | Not supported |
| Product colour | Black |
| Power | |
| AC input voltage | 120 V |
| AC input frequency | 60 Hz |
| Power consumption (typical) | 750 W |
| Certificates | |
| THX-certified | THX Select2 Plus |
| Packaging data | |
| Package dimensions (WxDxH) | 570 x 469 x 298 mm |
| Package weight | 15 kg |
| Packaging content | |
| User guide | Yes |
| Manual | Yes |
| FM antenna | Yes |
| Batteries included | Yes |
| AM antenna | Yes |
